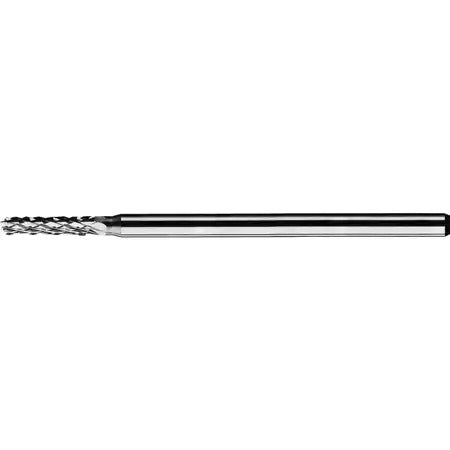

3.00mm CVD Diamond Coated, Diamond Pattern Router Bit, Drill Point, Up Cut, for Carbon Fiber etc. K155

3.00mm CVD Diamond Coated, Diamond Pattern Router Bit, Drill Point, Up Cut, for Carbon Fiber etc. K155

Regular price $14.99 USD
Regular price Sale price $14.99 USD
Sale Sold out

20 left in stock

SKU: K155

Product Overview

Through the process of Chemical Vapor Deposition, our CVD Diamond Coated Diamond Pattern Router Bit consists of a microcrystalline thin film of evenly distributed diamond particles of 3-6 μm on tungsten carbide substrate. The combination of CVD diamond, the hardest known material, and Tungsten Carbide, a very hard material, produces a tool that has exceptional service life. The diamond layer extends the life a carbide tool by 12 to 20 times longer, which decreases downtime due to fewer tool changes. As a physical barrier, the CVD diamond coating minimizes edge build-up and reduces wear of the tool. The diamond coating also has great thermal conductivity removing heat away from the cutting edge and increasing lubrication for better chip flow and evacuation.

Product Advantages

  • Exceptional service life

  • Less downtime

  • Increased efficiency and productivity

  • Less edge build-up

  • Faster heat dissipation

  • Excellent chip flow and evacuation

  • Improved surface finish

Materials Processed

  • Composites (PCB, GFRP, CFRP)

  • Engineered Plastics

  • Graphite

  • Ceramics

  • High Silicon Aluminum

Machine Compatibility

  • Milling Machines

  • CNC

  • DESCRIPTION
    • Cutting Diameter (Size): 3.00mm
    • Cutting Diameter (Decimal Inch): 0.1181
    • Cutting Diameter (mm): 3.00
    • Shank Diameter (Decimal Inch): 0.1181
    • Shank Diameter (mm): 3.00
    • Overall Length (Decimal Inch)1.4961
    • Overall Length (mm)38.00
    • Length of Cut (Decimal Inch): 0.4724
    • Length of Cut (mm): 12.00
    • Flute Style: Up Cut / Diamond Pattern
    • End Style: Drill Point
    • Shank Type: Straight / Cylindrical
    • Material: Sub Micron Grain Carbide
    • Finish / Coating: CVD Diamond
    • Series: 2120
    • BWGraphite, CFRP
    • Applicable Workpiece Material: Aluminum
    • Application: Routing CFRP, Fiberglass, and Composite Materials
