3/32" .094" 2.4mm PCD Diamond Coated Router Bit Fishtail Tip - Carbon Fiber, Graphite, Ceramic Hard and Abrasive Materials PCD332
3/32" .094" 2.4mm PCD Diamond Coated Router Bit Fishtail Tip - Carbon Fiber, Graphite, Ceramic Hard and Abrasive Materials PCD332
128 left in stock
SKU: PCD332
Couldn't load pickup availability

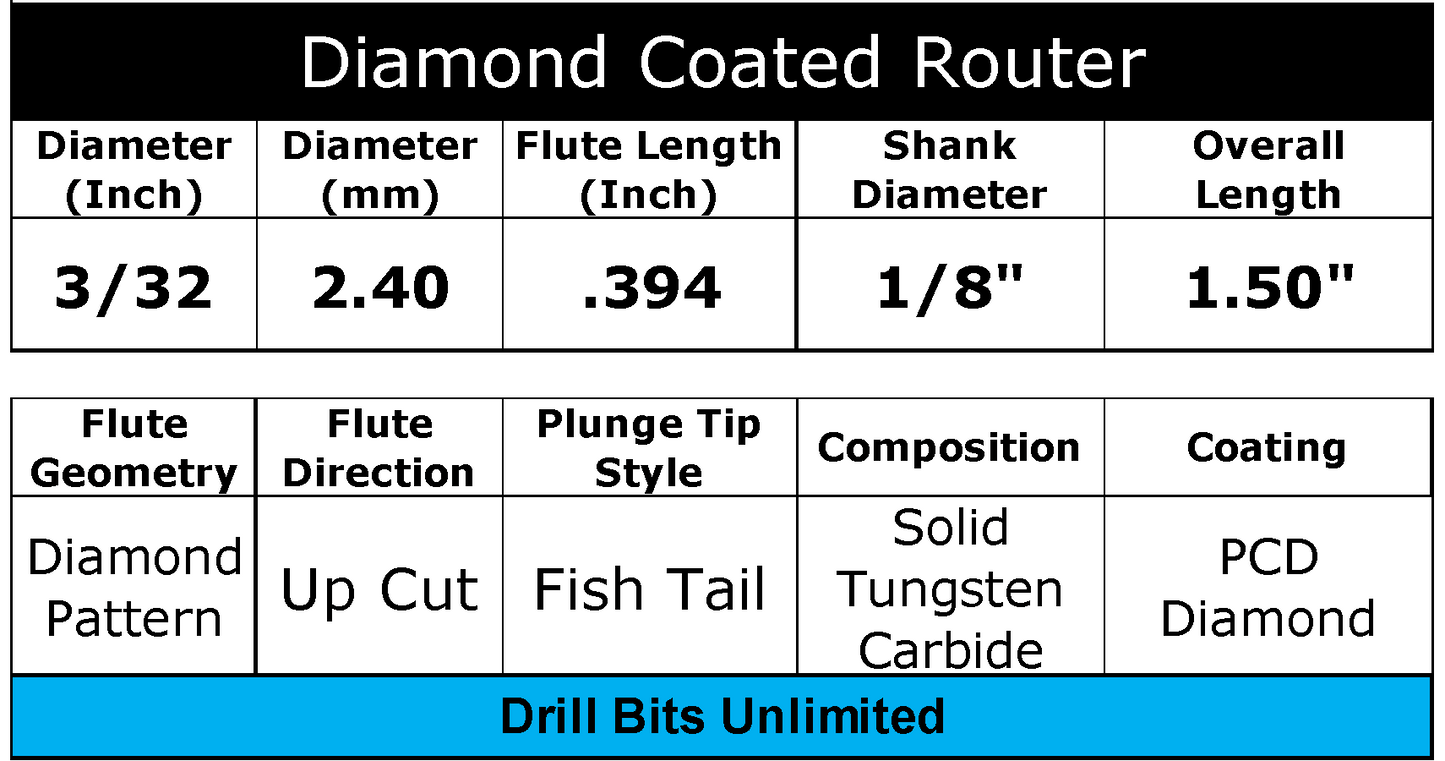

| Router Style: | Diamond Cut |
|---|---|
| Plunge Tip: | Fish Tail |
| Mill Diameter (Inch) : | 3/32 |
| Mill Diameter (mm) : | 2.40 |
| Depth of Cut (inch): | .394 |
| Shank Diameter (Inch) : | 1/8 |
| Overall Length (inch): | 1.50 |
| Material: | Solid Tungsten Carbide |
| Coating/Finish: | Polycrystalline Diamond (PCD) |
| Cutting Direction: | Right Hand |
| Flute Direction: | Right Hand (Up Cut) |
| Flute Type: | Diamond Pattern |
| Center Cutting?: | Yes |
Polycrystalline Diamond (PCD) Coated Carbide Routers
Premium Quality Tools from HAM Precision, Made in Germany
Great for cutting Carbon Fiber!
Diamond Coated for Long-Lasting Performance in demanding materials/applications!
Industrial Grade Polycrystalline Diamond Coated Carbide for Excellent Tool Longevity and Quality of Cut in Even the Toughest Materials!!!

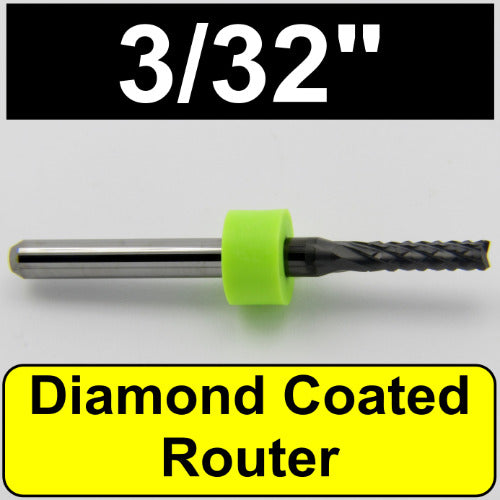

Diamond Coated Router Bit
Fishtail Style Tips for Precision Applications
1/8" Shaft fits CNC Router, Dremel tools, etc.

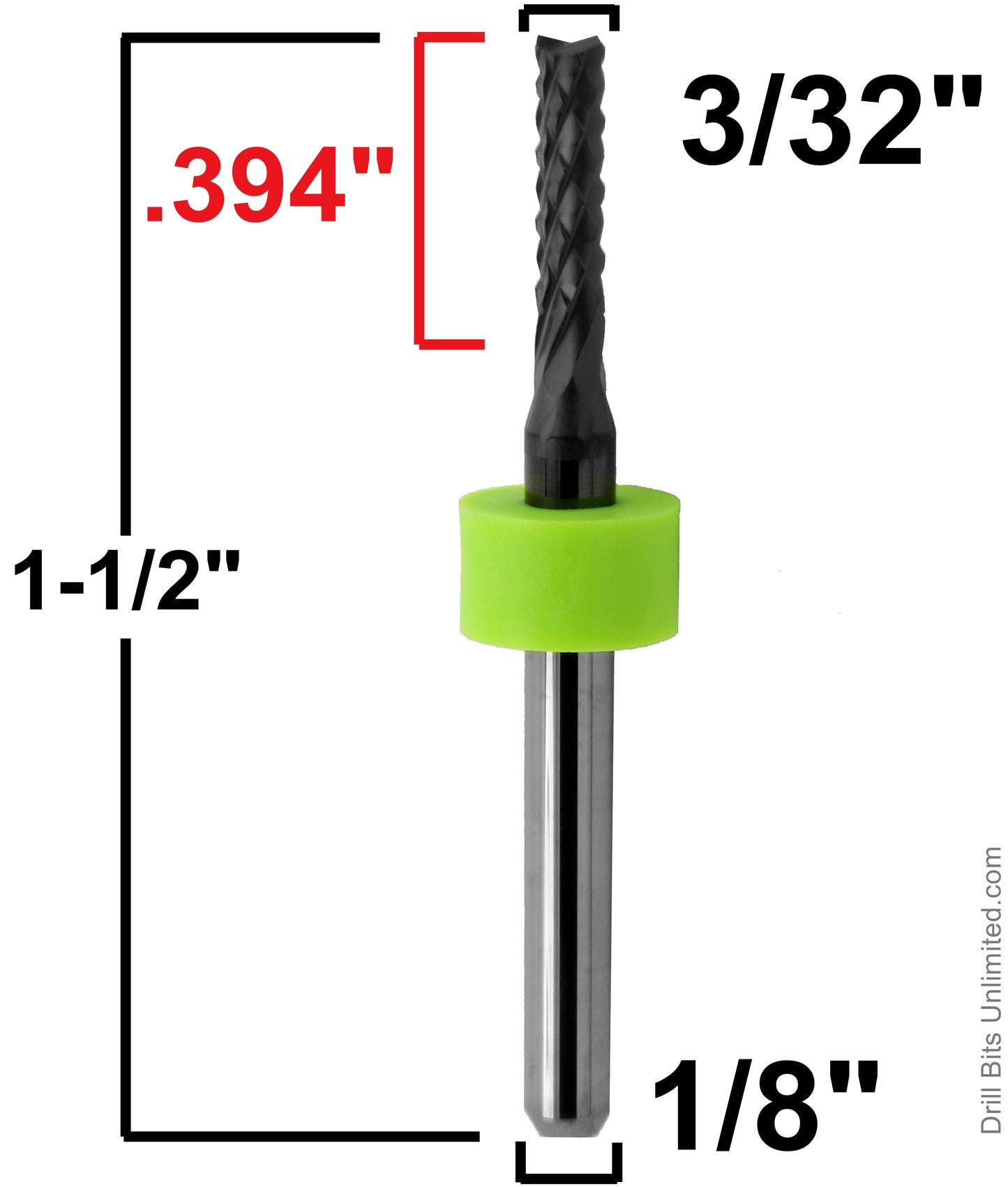

Overall Length is 1 1/2" - Flute Length is approx.10mm(.400")
Great for Carbon Fiber, Fiber reinforced plastics, Green Ceramics, Advanced fiberglass structures and aluminum metal matrix composites.
Diamond-coated routers, are designed for cutting and machining extremely hard and abrasive materials. The diamond coating on these tools provides exceptional hardness and wear resistance. Diamond flute routers are particularly effective for cutting the following materials:
-
Carbon Fiber: Diamond flute routers are well-suited for machining carbon fiber composites due to their ability to maintain sharp cutting edges and resist wear. They provide clean and precise cuts in carbon fiber materials.
-
Fiberglass: Diamond flute routers can efficiently cut through fiberglass materials, including fiberglass-reinforced plastics (FRP) and fiberglass laminates. The diamond coating ensures prolonged tool life even when working with abrasive fibers.
-
Ceramics: Diamond flute routers are commonly used for machining ceramics such as alumina, zirconia, and silicon nitride. The extreme hardness and wear resistance of diamond make it an excellent choice for cutting and shaping these brittle and hard materials.
-
Graphite: Diamond flute routers are effective in machining graphite materials due to their ability to maintain sharp edges and resist graphite's abrasive nature. They provide precise cuts in graphite electrodes, molds, and other graphite applications.
