0.0945" (3/32") x .430" LOC Chip Breaker Carbide Router, Fish Tail Tip, 1/8" Shank | R168

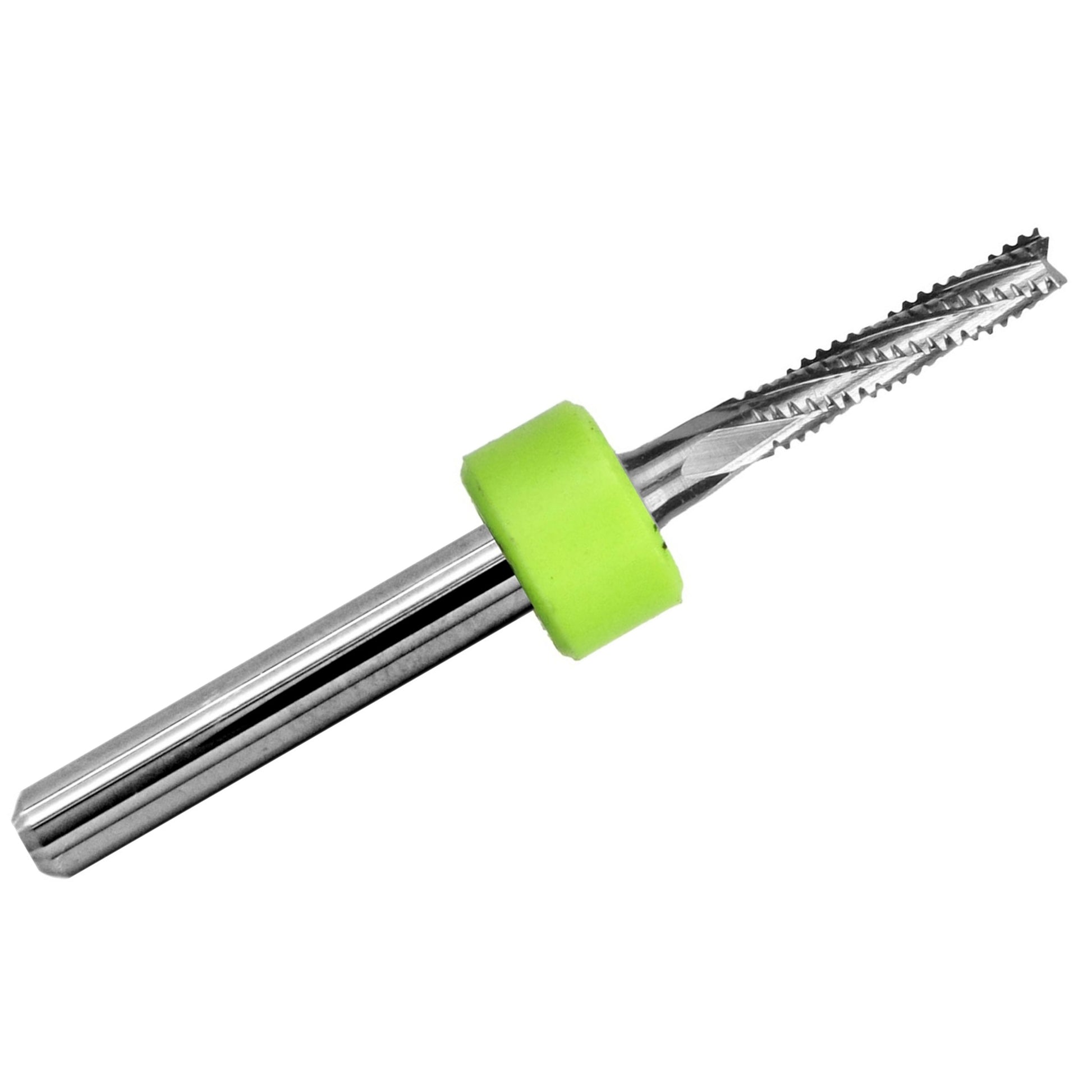

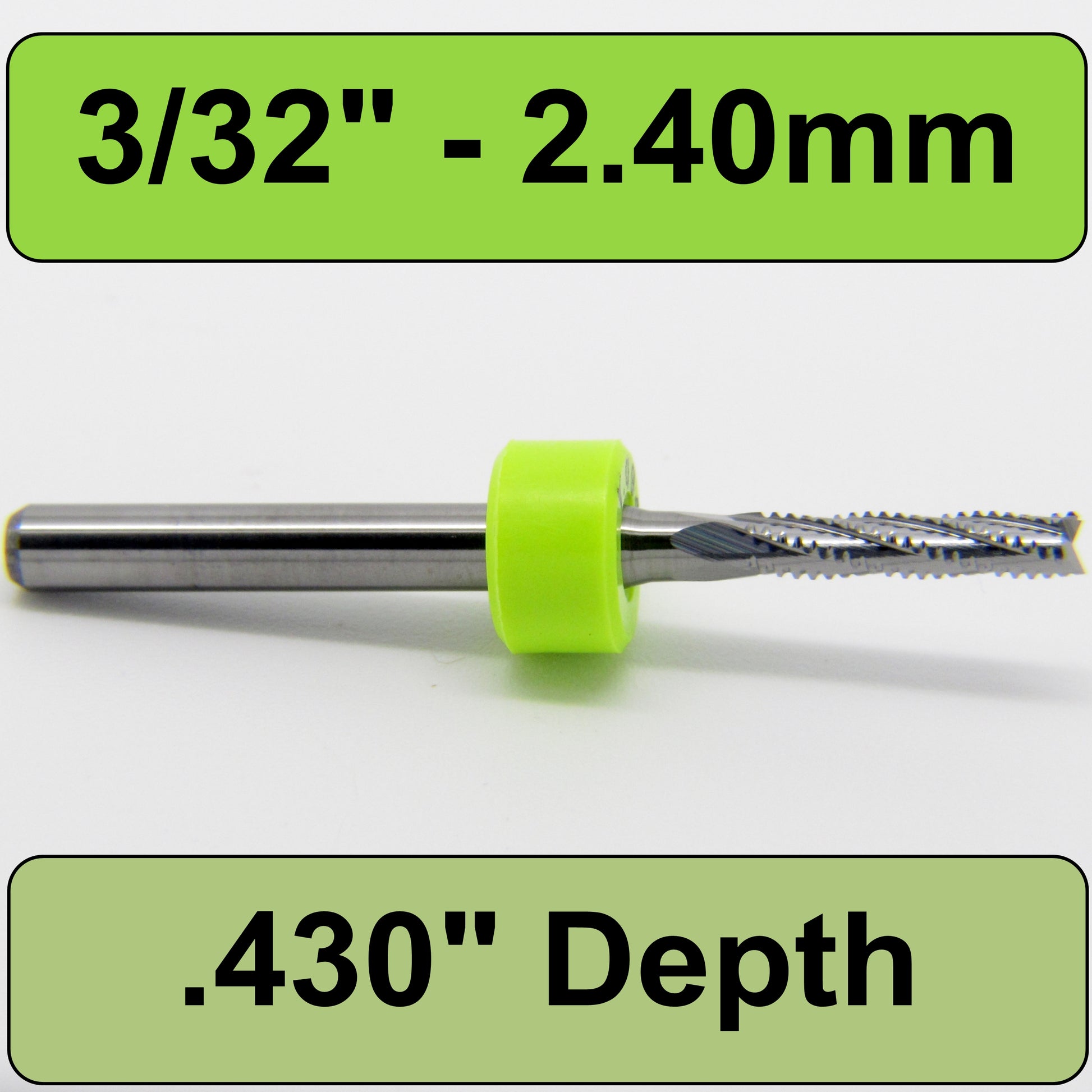

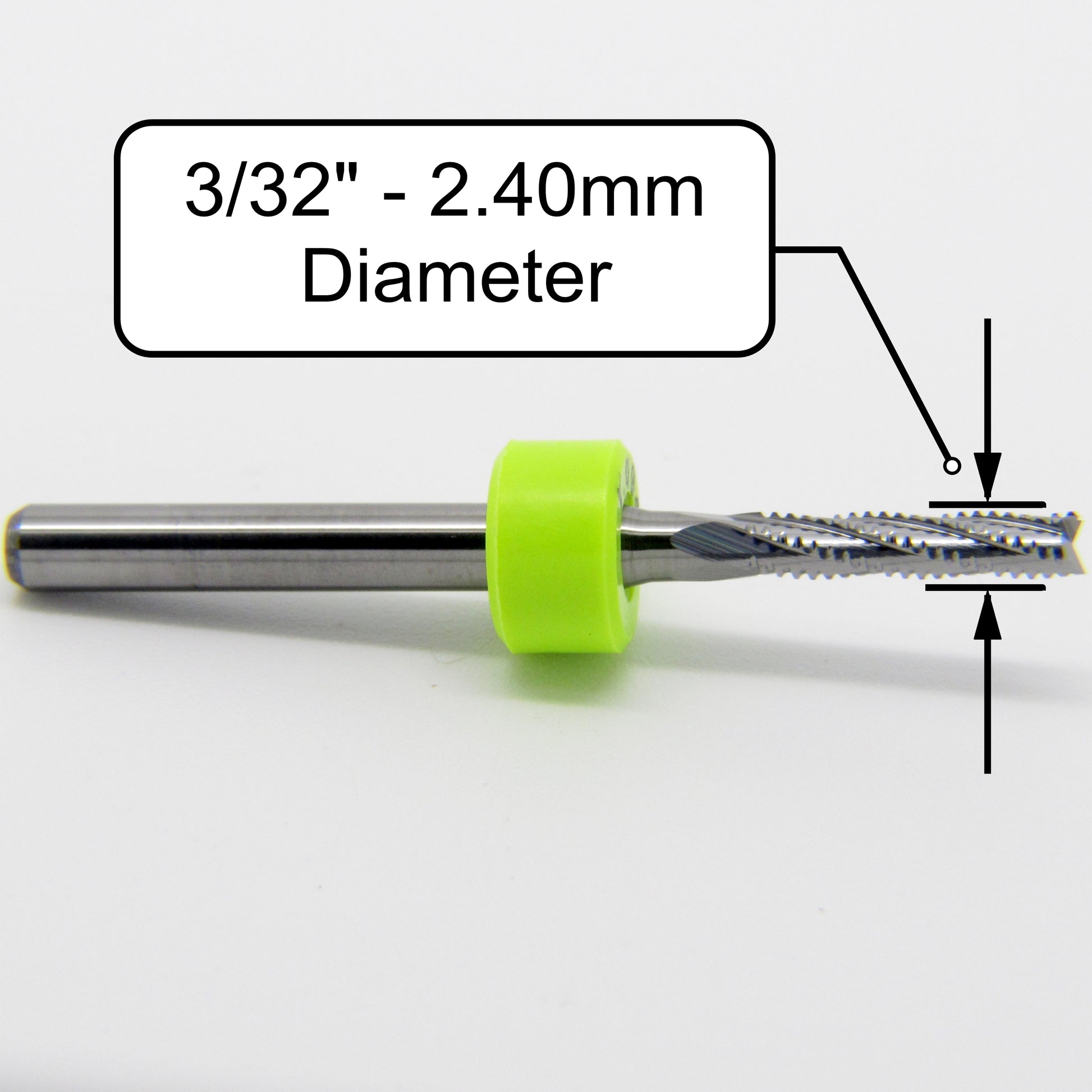

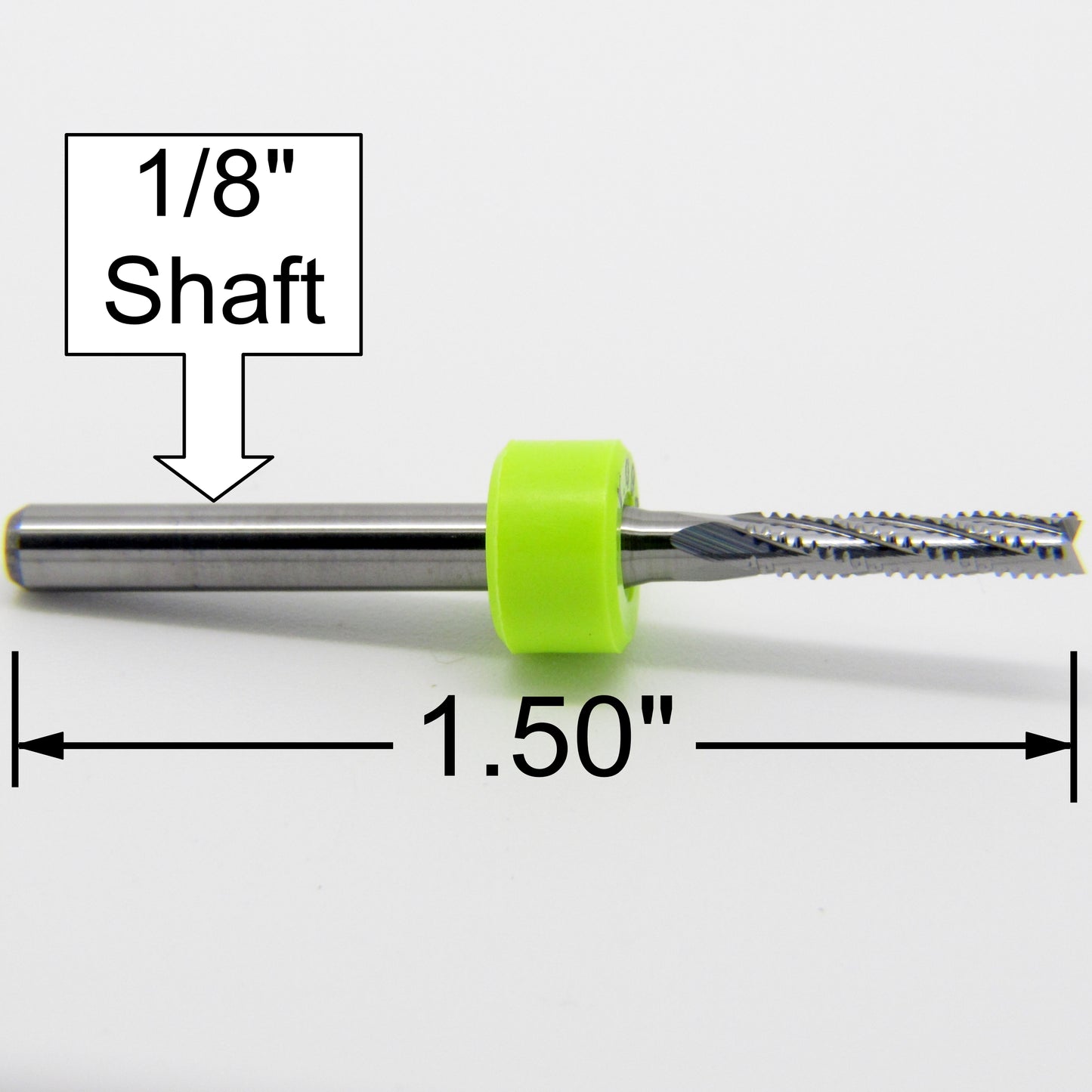

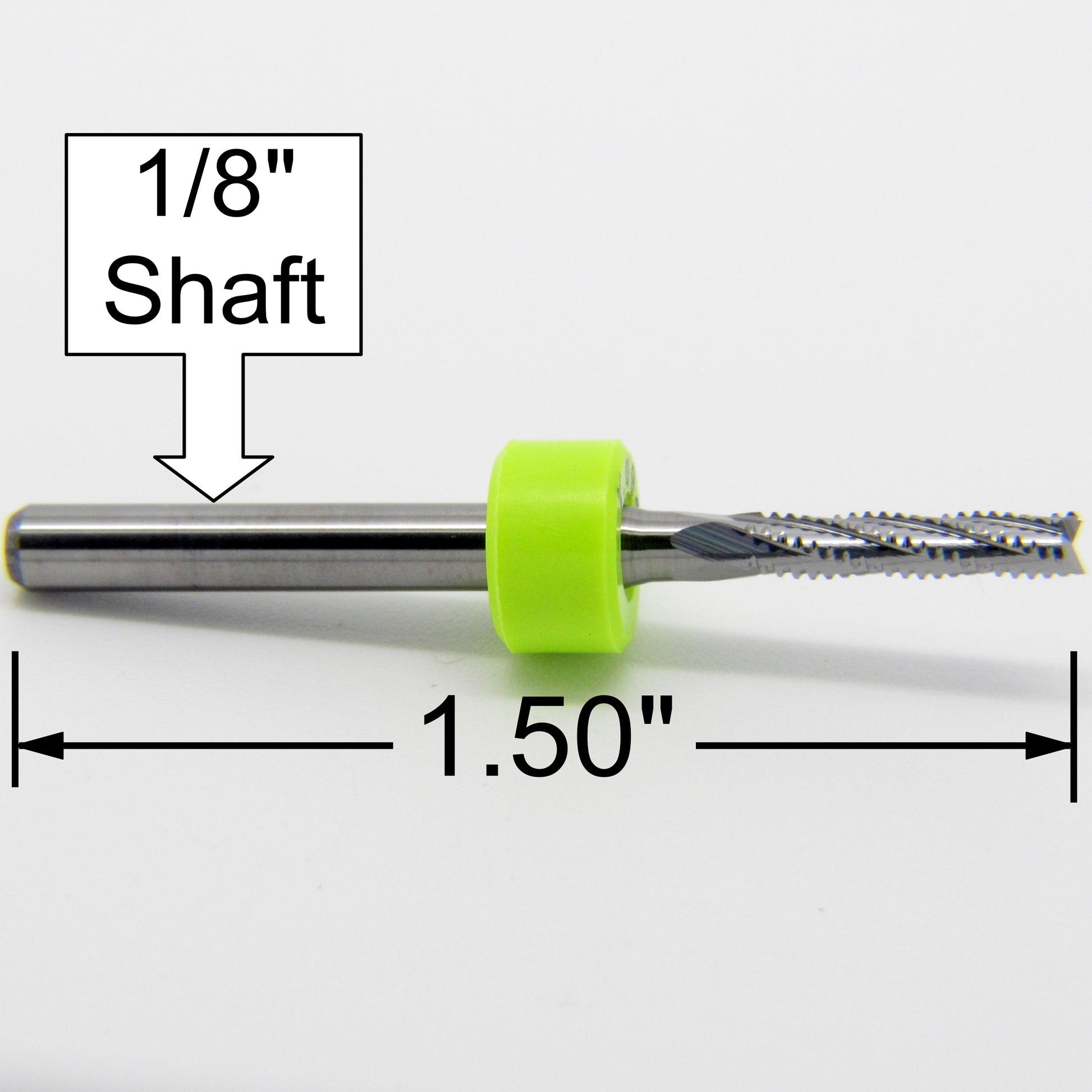

This Kyocera chip breaker carbide router features a 0.0945" (3/32" / 2.40mm) cutting diameter, .430" LOC, 1-1/2" overall length, and a 1/8" shank. It is designed for CNC routing in abrasive composite and laminate materials where chip control and clean cutting are important.

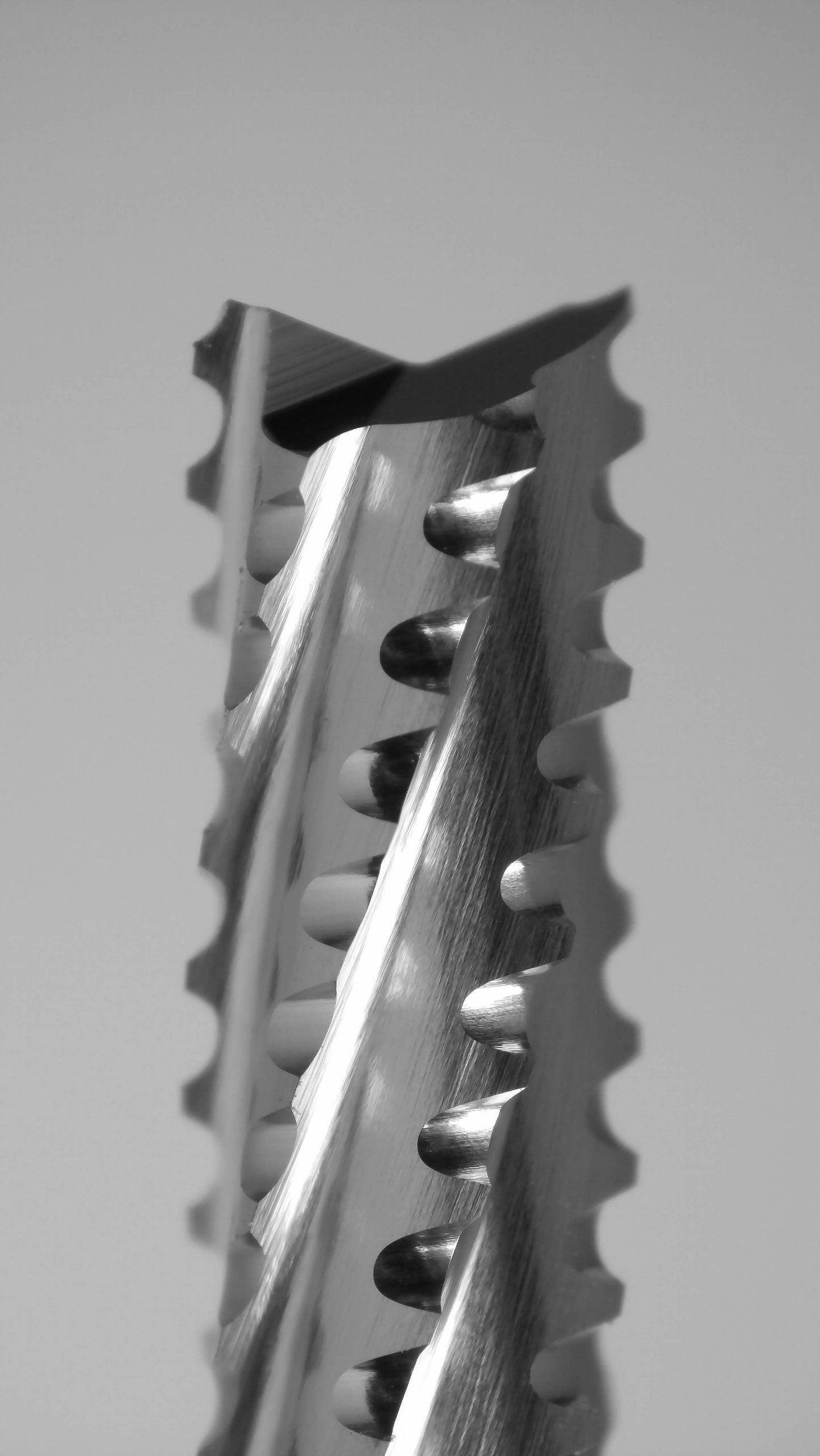

The chip breaker geometry uses a segmented cutting edge designed to break chips into smaller pieces, helping improve chip evacuation, reduce clogging, and minimize heat buildup during cutting.

Not sure whether a chip breaker or diamond flute router is right for your application? Compare chip breaker vs diamond flute routers →

Designed for FR-4, G10, fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool provides stable cutting performance in demanding routing applications.

For extended tool life in highly abrasive materials, explore our diamond-coated routers →

The up-cut design promotes efficient chip evacuation and can improve bottom-edge cut quality, making it well suited for through-cuts and deeper routing passes.

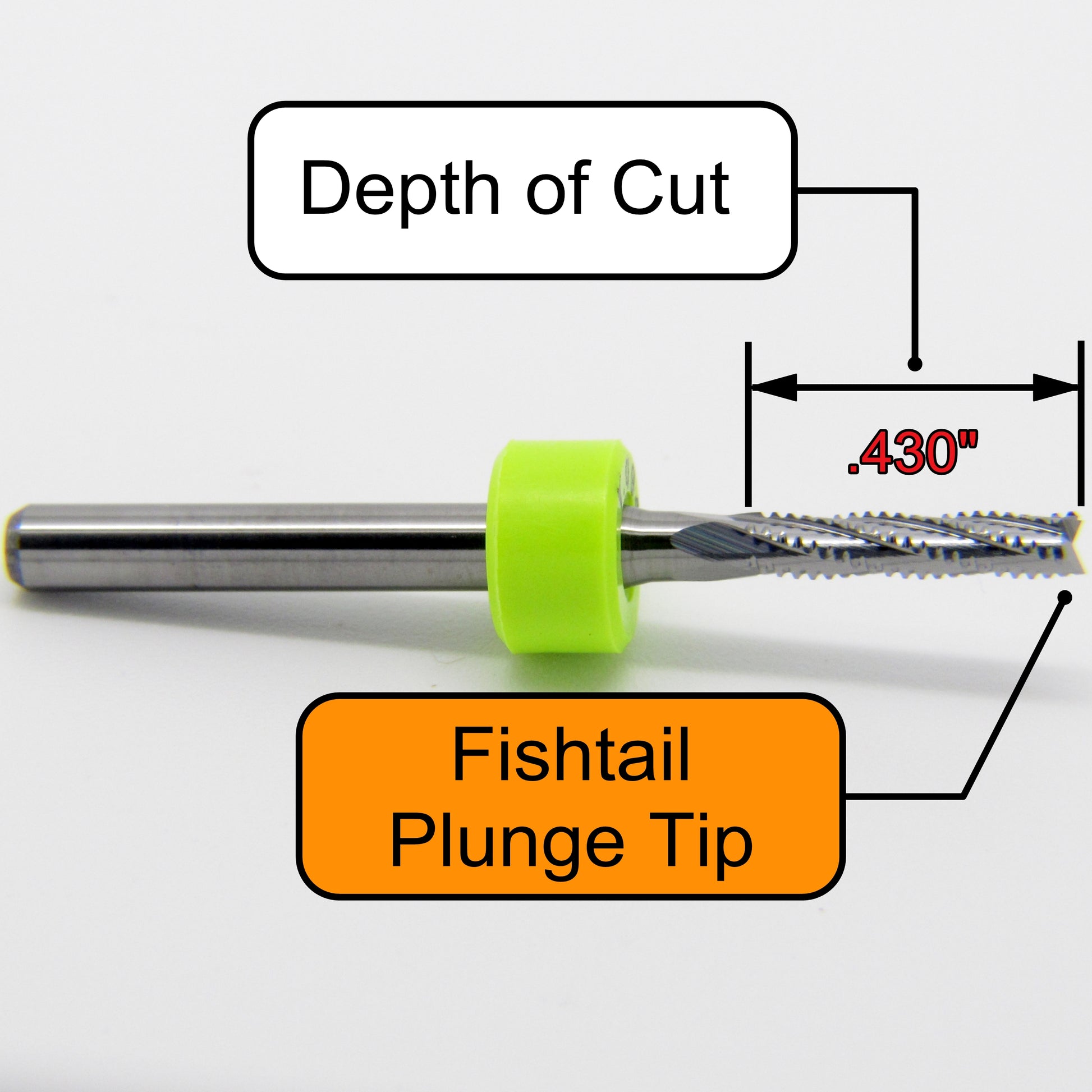

This tool features a fish tail tip, ideal for controlled entry into brittle or layered materials, helping reduce chipping and delamination at the surface.

👉 View Chip Breaker Router Feed & Speed Chart

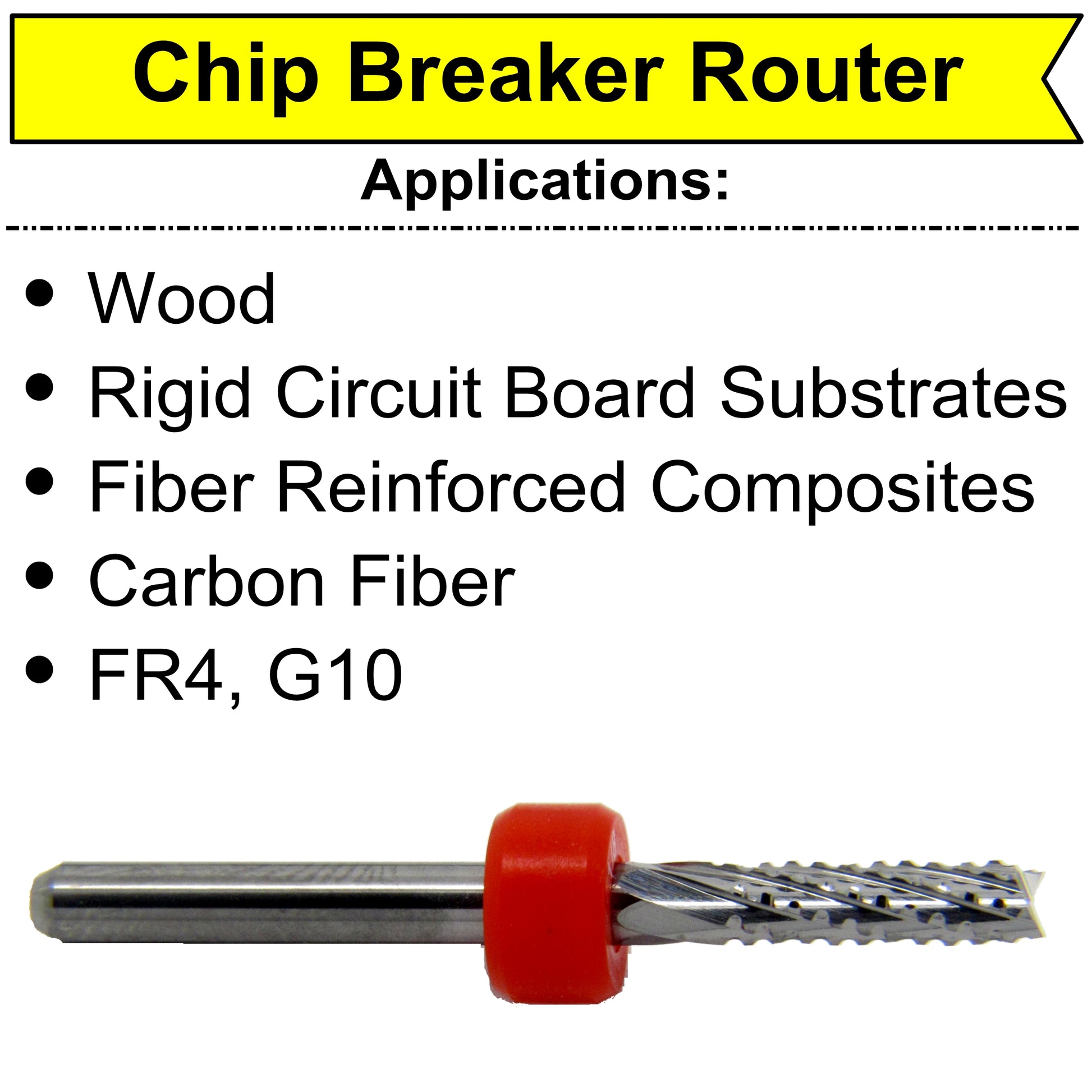

Typical Applications

• PCB routing, including FR-4 and G10
• Fiberglass and phenolic laminate cutting
• Carbon fiber routing
• Abrasive composite machining
• Through-cutting and deeper routing passes
• Applications requiring improved chip control
• Applications where reduced surface chipping and delamination are important

Benefits

• Chip breaker geometry helps reduce long, stringy chips and improves chip control
• Improved chip evacuation helps reduce heat buildup, clogging, and tool wear
• Up-cut design supports efficient chip evacuation and bottom-edge cut quality
• Fish tail tip supports controlled entry and helps reduce surface chipping and delamination in brittle or layered materials
• .430" LOC provides useful reach while maintaining rigidity for small-diameter routing
• Solid tungsten carbide construction provides rigidity and wear resistance
• Kyocera manufacturing provides consistent quality

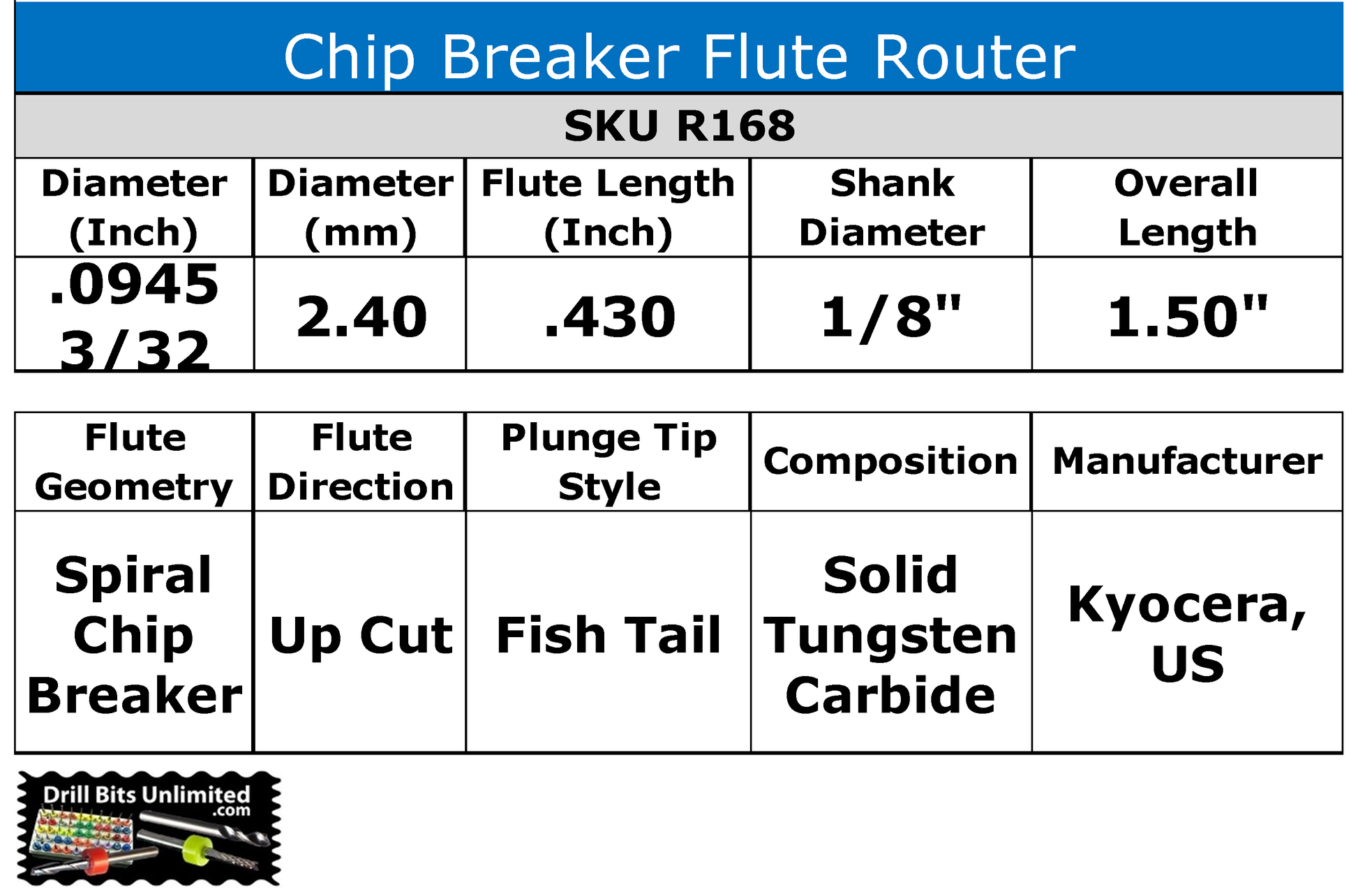

Specifications

Tip style: Fish Tail — controlled entry into brittle or layered materials, helping reduce chipping and delamination at the surface.
