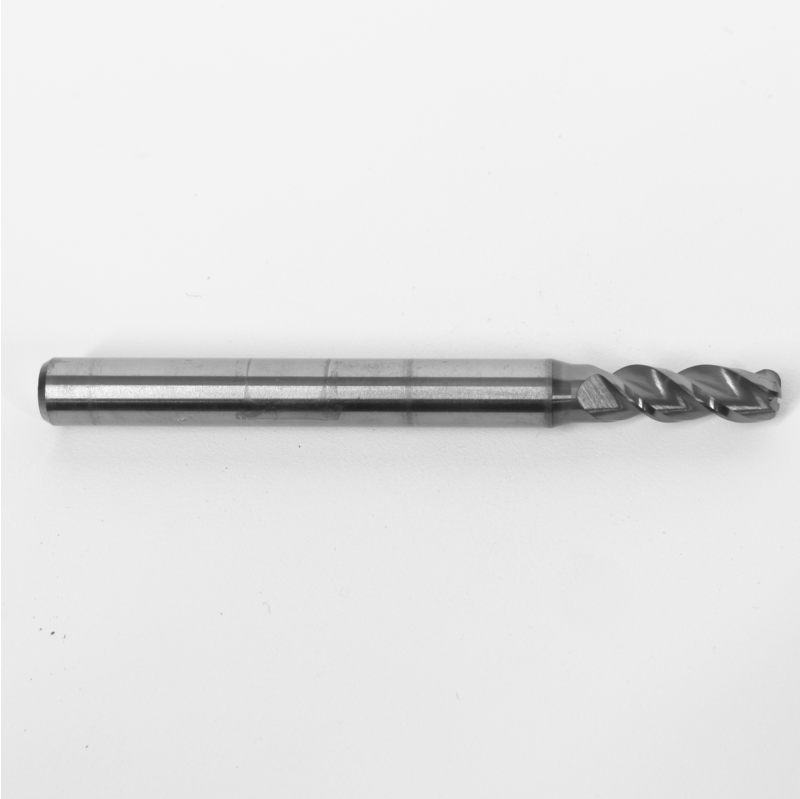

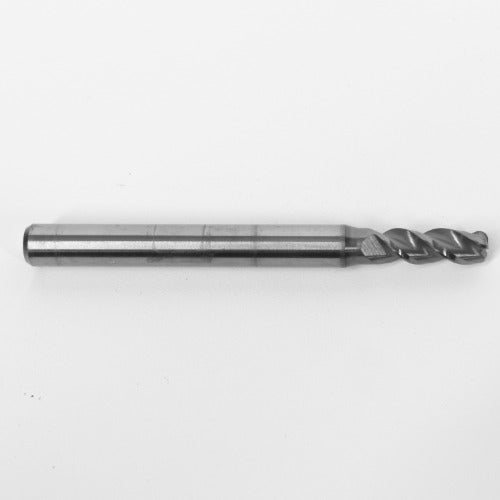

5.00mm Diameter Corner Radius End Mill,TITAN-AXM,High Perf.,T1969O591CR5 K054
5.00mm Diameter Corner Radius End Mill,TITAN-AXM,High Perf.,T1969O591CR5 K054
Regular price
$26.95 USD
Regular price
Sale price
$26.95 USD
Unit price
per
10 left in stock
SKU: K054
Couldn't load pickup availability
Kyocera has developed the TITAN-AX™ line of end mills
for machining materials used in Medical, Microwave, Aerospace and other miniature component industries.
BENEFITS
- Smoother Cutting with Better Chip Evacuation
- Corner Radii Programmable for 3D Surfacing
- Better Life and Finishes
- Consistent Part Size and Surface Finish
- Better Clamping Rigidity and T.I.R
- Clearance for Deeper Pocketing Applications
- Ideal for Trochoidal Milling Parts
| Dimension Type: Metric | Milling Dia.: 5.00mm |
| Overall Length: 63.50mm | Non Ferrous (N) Compatibility: No |
| Steel (P) Compatibility: Yes | Stainless (M) Compatibility: Yes |
| Finish: AX | List Number: TITAN |
| End Mill Application: Roughing/Finishing | End Mill Cutting Type: Center Cutting |
| Grade: Micro Grain | Item: Corner Radius End Mill |
| Super Alloy (S) Compatibility: Yes | End Mill Style: Corner Radius |
| Hardened (H) Compatibility: Yes | End Mill Material: Carbide |
| Shank Type: Straight | Single End/Double End: Single End |
| Cutting Direction: Right Hand | Number of Flutes: 3 |
| Helix Angle: 32 Degrees /48 Degrees | Length of Cut: 15.00mm |
| Shank Dia.: 6.00mm | Corner Radius: 1.50mm |
| Cast Iron (K) Compatibility: Yes | Milling Diameter: 5.00mm |
| Shank Type - Machining: Straight | Material - Machining: Carbide |
| Material Grade - Machining: Micro Grain | Measurement System: Metric |
| Country of Origin (subject to change): United States |
