Drill Bits Unlimted

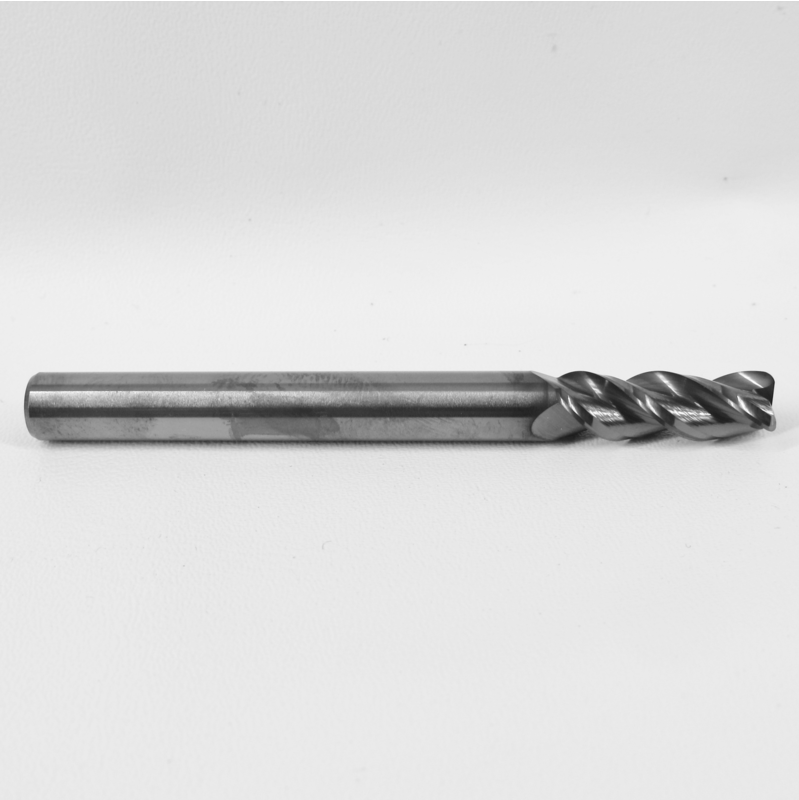

6.00mm Diameter Corner Radius End Mill,TITAN-AXM,High Perf.,T2362O709CR4 K006

6.00mm Diameter Corner Radius End Mill,TITAN-AXM,High Perf.,T2362O709CR4 K006

Regular price $39.95 USD
Regular price Sale price $39.95 USD
Sale Sold out

10 left in stock

SKU: K006

Kyocera has developed the TITAN-AX™ line of end mills for machining materials used in Medical, Microwave, Aerospace and other miniature component industries.


  • Smoother Cutting with Better Chip Evacuation
  • Corner Radii Programmable for 3D Surfacing
  • Better Life and Finishes
  • Consistent Part Size and Surface Finish
  • Better Clamping Rigidity and T.I.R
  • Clearance for Deeper Pocketing Applications
  • Ideal for Trochoidal Milling Parts


End Mill Material: Carbide Length of Cut: 18.00mm
Stainless (M) Compatibility: Yes End Mill Style: Corner Radius
Milling Diameter: 6.00mm End Mill Application: Roughing/Finishing
Number of Flutes: 3 Non Ferrous (N) Compatibility: No
Grade: Micro Grain Shank Dia.: 6.00mm
Single End/Double End: Single End Finish: AX
Super Alloy (S) Compatibility: Yes Corner Radius: 1.00mm
Cutting Direction: Right Hand Milling Dia.: 6.00mm
List Number: TITAN Overall Length: 63.50mm
Steel (P) Compatibility: Yes Cast Iron (K) Compatibility: Yes
End Mill Cutting Type: Center Cutting Dimension Type: Metric
Item: Corner Radius End Mill Hardened (H) Compatibility: Yes
Shank Type: Straight Helix Angle: 32 Degrees /48 Degrees
Material - Machining: Carbide Shank Type - Machining: Straight
Material Grade - Machining: Micro Grain Measurement System: Metric
