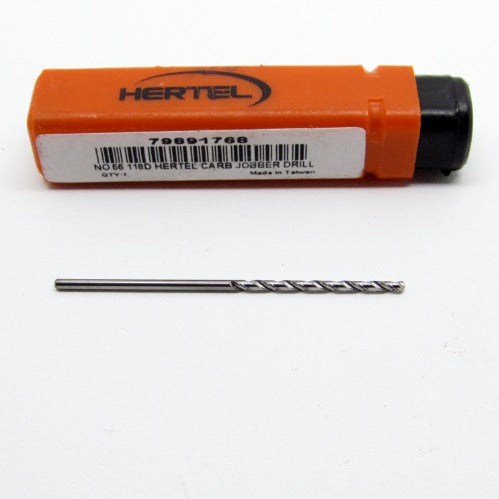

Hertel #56 118 Deg Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute DA11-2-79891768

Hertel #56 118 Deg Solid Carbide Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute DA11-2-79891768

Regular price $7.99 USD
Regular price Sale price $7.99 USD
Sale Sold out

1 left in stock

SKU: DA11-2-79891768

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.

Specs

Drill Bit Size (Wire) #56
Drill Bit Size (Decimal Inch) 0.0465
Drill Point Angle 118
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Bright
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (Inch) 3/4
Flute Length (Decimal Inch) 0.7500
Overall Length (Decimal Inch) 1.5000
Overall Length (Inch) 1-1/2
Point Type Standard
Shank Diameter (Decimal Inch) 0.0465
Spiral Type Regular Spiral
Web Configuration Tapered
Drill Bit Diameter Tolerance (Decimal Inch) -0.0005 to 0.0000
Number of Flutes 2
Web Thinning Web-Thinned
Drill Bit Grade High Performance
Material Grade C2
