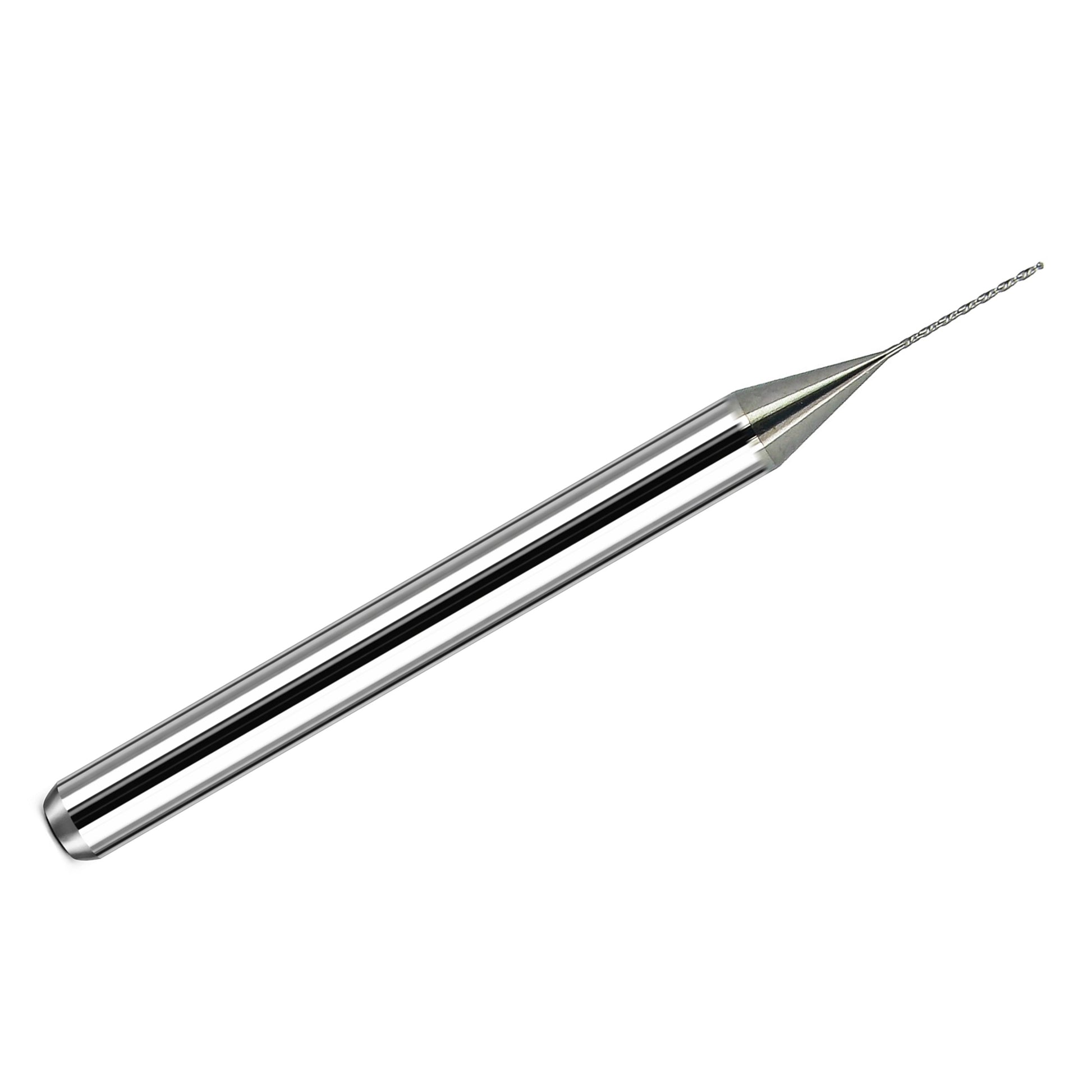

0.0122" (0.31mm) Left Hand Solid Carbide Micro Drill Bit AlTiN Coated Kyocera 226L-0122.225 K170

This 0.0122" (0.31mm) left hand solid carbide micro drill bit from Kyocera features a durable AlTiN coating and precision micro-drill geometry for high-accuracy CNC drilling applications. Manufactured from sub-micron micrograin carbide, this drill is designed for excellent rigidity, wear resistance, and reliable performance in demanding machining environments.

The left hand spiral design is suited for specialized reverse-rotation drilling applications and other precision machining operations where left hand tools are required. With a 0.225" flute length, 1.50" overall length, and 3mm straight shank, this micro drill is well suited for small-hole drilling in precision setups.

Manufactured in the United States, Kyocera micro drills are known for consistent quality, tight tolerances, and dependable performance in CNC and toolroom applications.

Common applications include:

• Precision micro drilling
• Reverse-rotation and left hand drilling applications
• CNC machining and toolroom work
• Small-hole drilling in metals and selected engineering materials

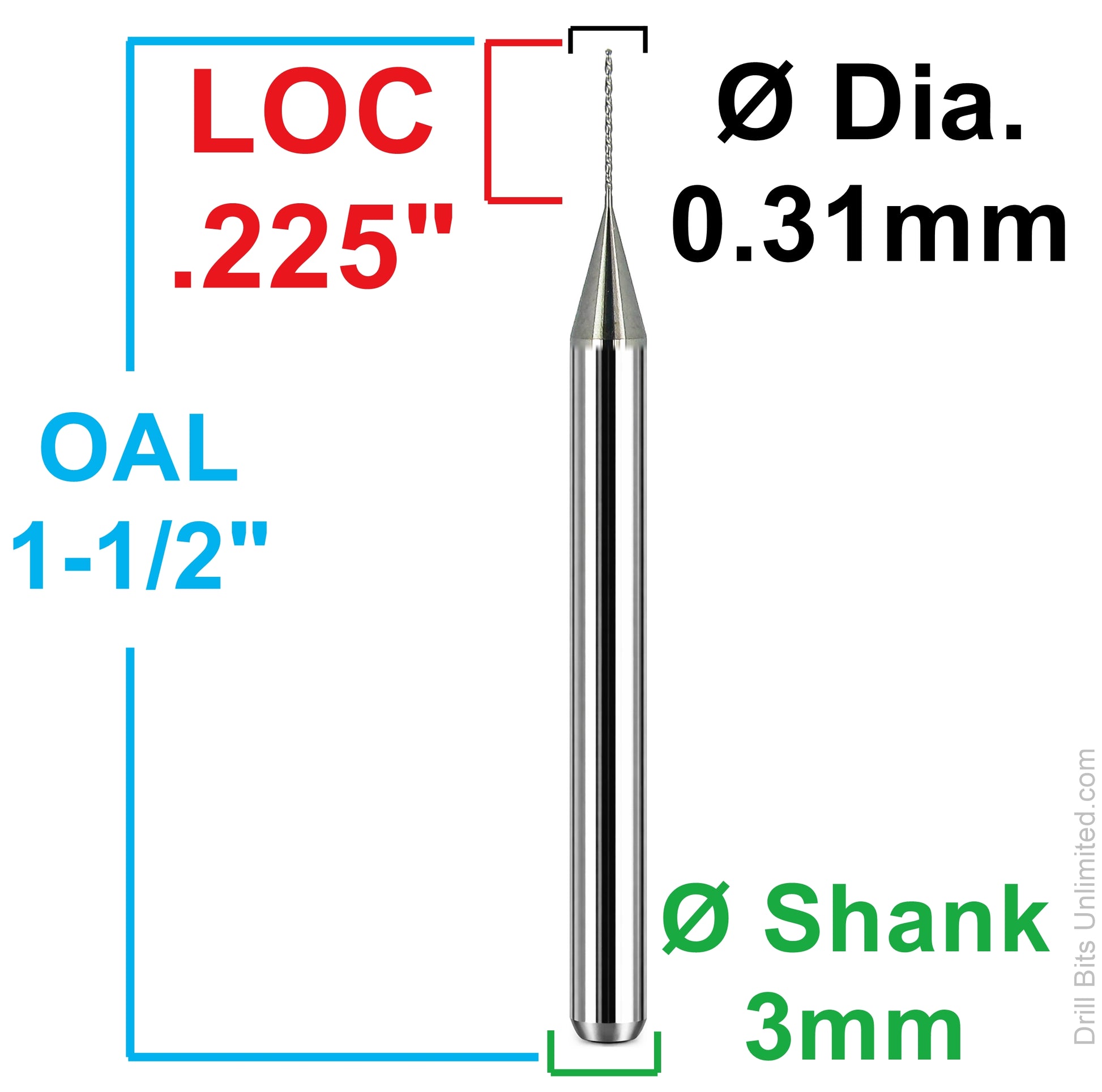

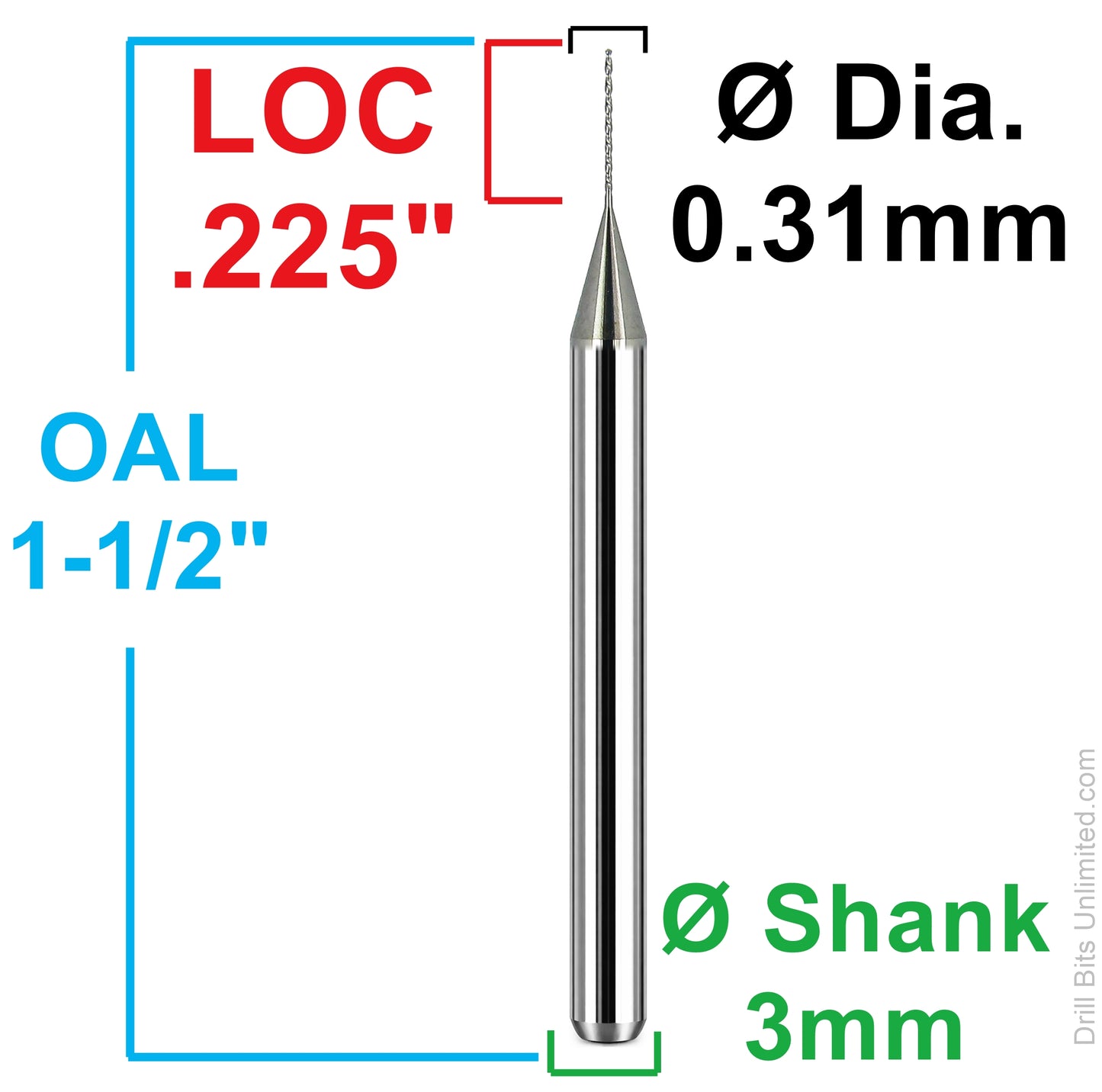

Specifications:

• Diameter: 0.0122" (0.31mm)
• Flute Length / LOC: 0.225"
• Overall Length: 1.50"
• Shank Diameter: 3mm
• Direction: Left Hand
• Material: Solid Micrograin Carbide
• Coating: AlTiN
• Series: Kyocera 226L
• Country of Origin: United States
