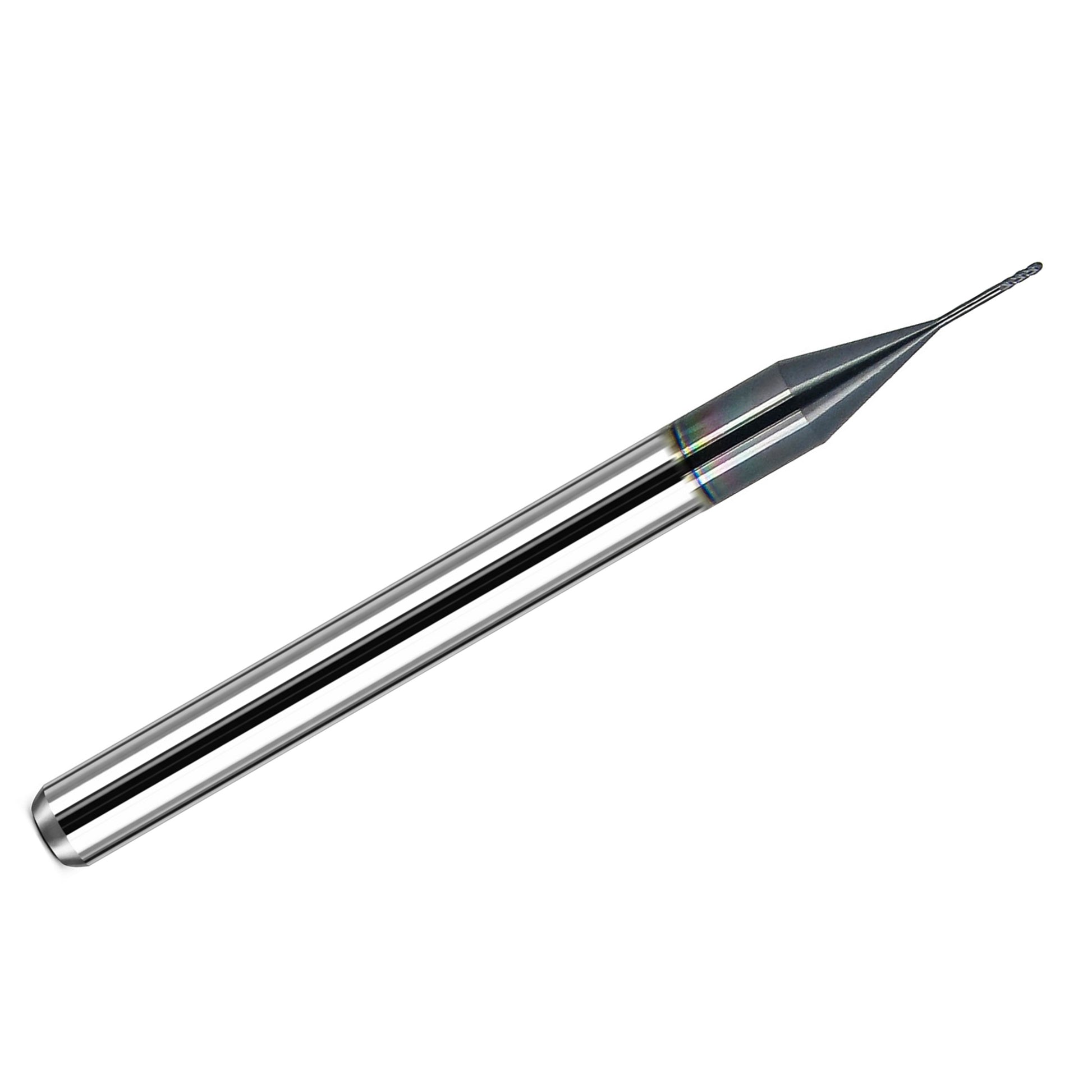

0.0150" x .045" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K180

This 0.015" 4-flute ball nose carbide end mill from Kyocera is designed for precision micro milling and extended reach applications requiring accuracy and stability.

Manufactured from micrograin solid carbide and finished with an AlTiN coating, this tool delivers excellent wear resistance and heat protection when machining hard materials and demanding applications.

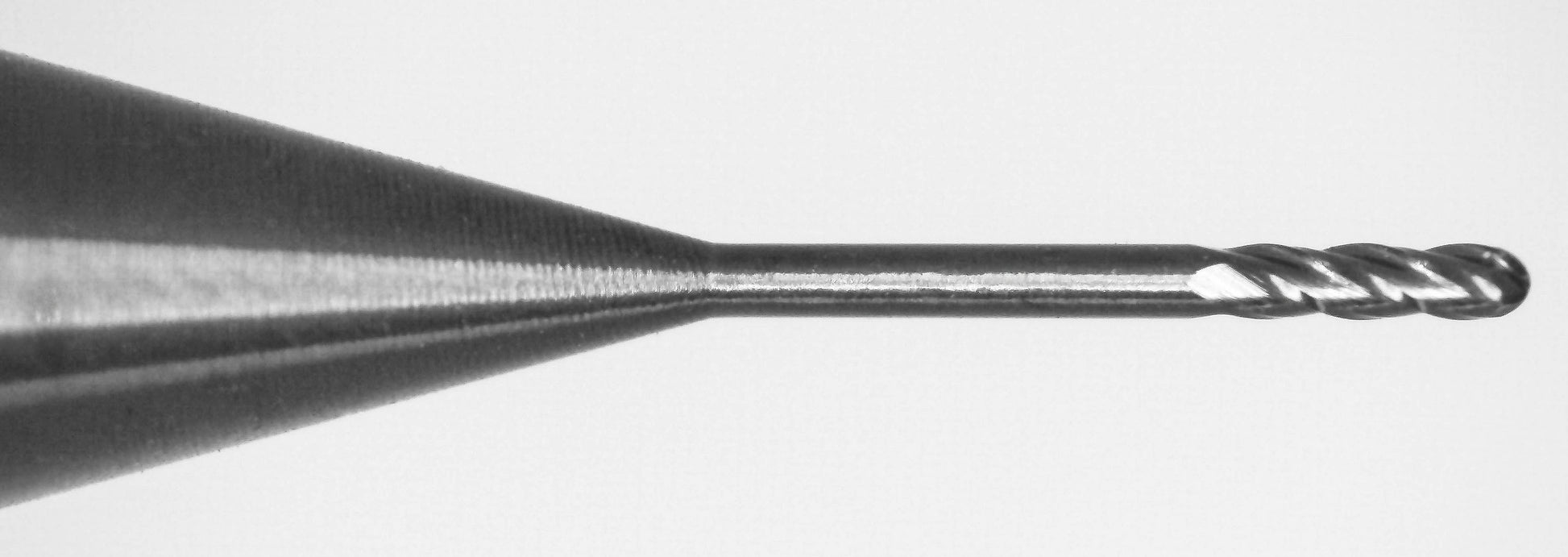

The extended reach neck design provides improved access to deep or restricted areas while reducing tool deflection, making it ideal for fine detail work and intricate geometries.

The 4-flute configuration increases rigidity and allows for smoother finishes in finishing passes, especially in steels and harder materials.

Common applications include:

• 3D contouring and finishing
• Mold and die work
• Precision micro machining
• Hard material finishing
• Deep cavity milling

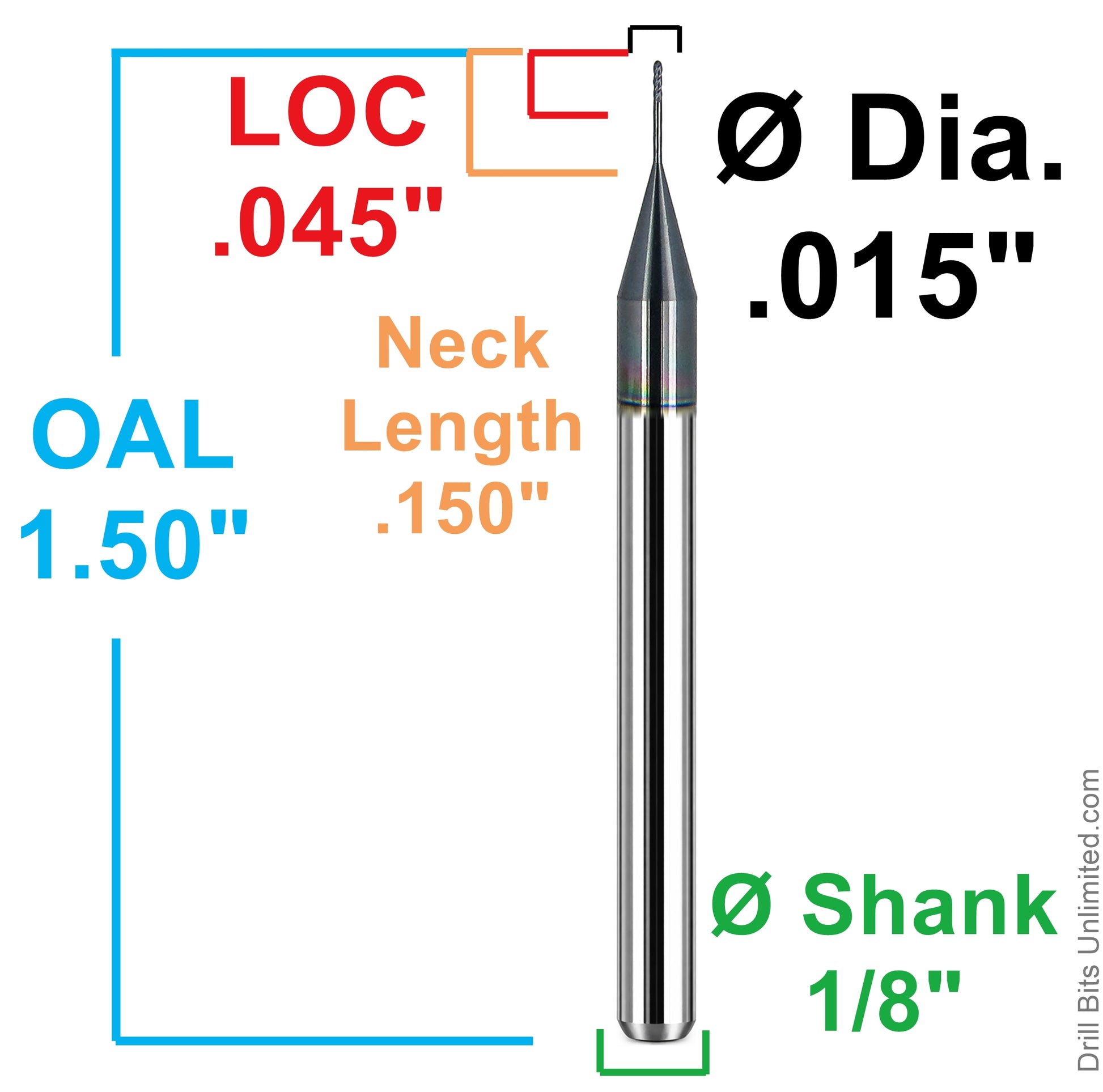

Specifications:

• Diameter: 0.015"
• Length of Cut: 0.045"
• Neck Length: 0.150"
• Overall Length: 1.50"
• Shank Diameter: 1/8"
• Flutes: 4
• End Style: Ball Nose
• Coating: AlTiN
• Material: Solid Micrograin Carbide
• Series: Kyocera 1845

👉 View End Mill Feed & Speed Calculator
