0.019" Square End Carbide End Mill AlTiN 2-Flute Kyocera USA 1620-0190L029 K056

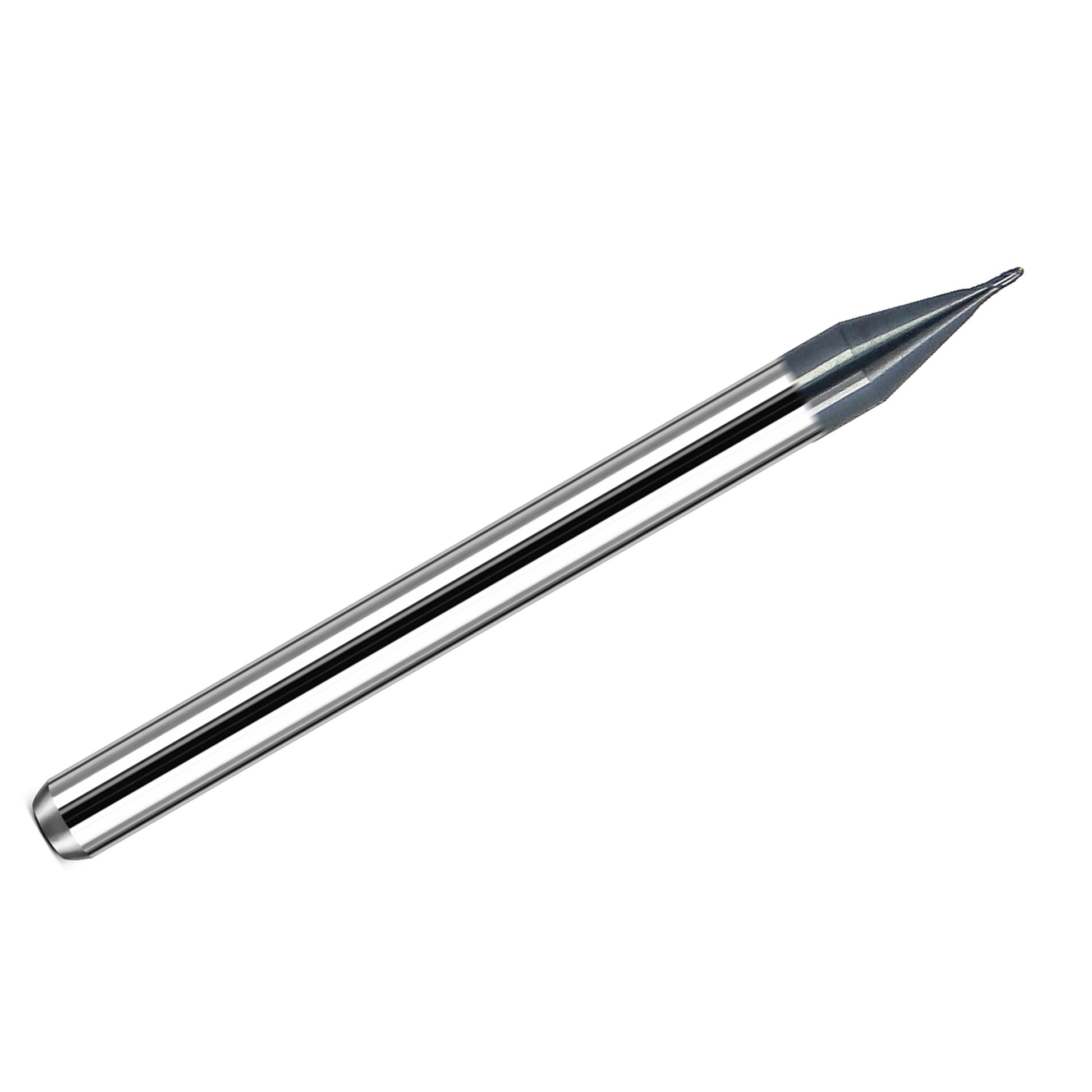

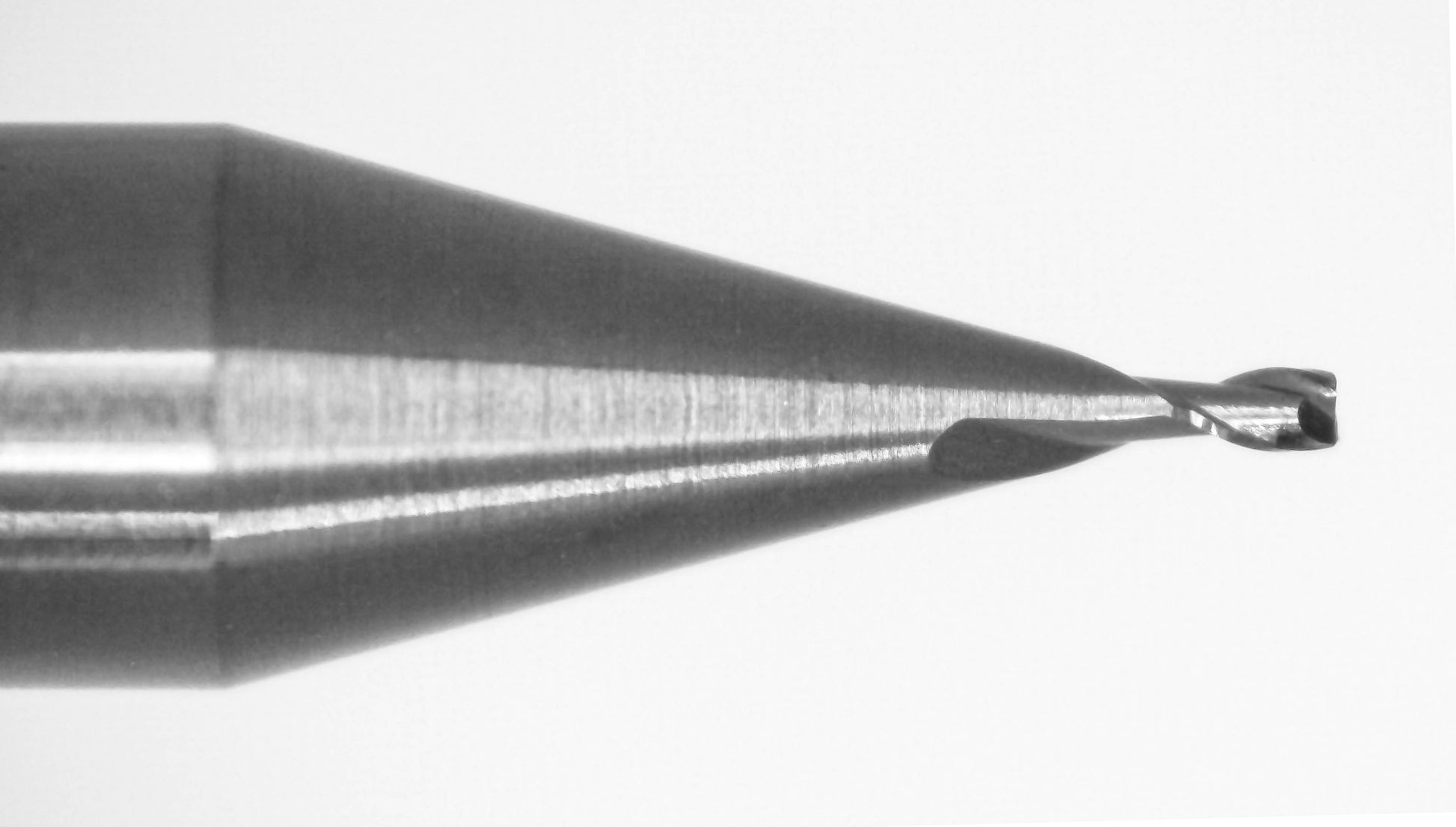

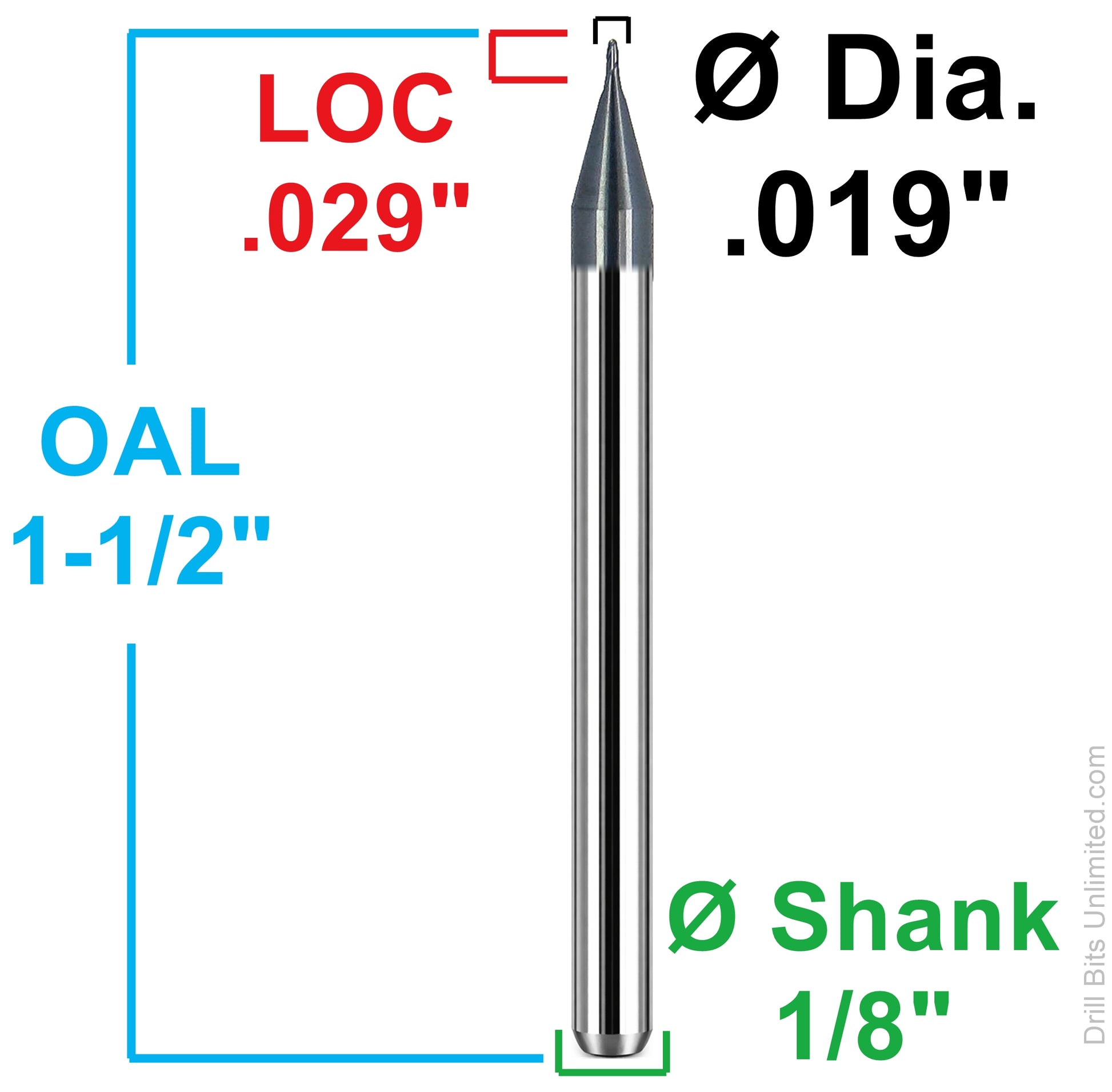

This 0.019" (0.48mm) 2-flute solid carbide square end mill from Kyocera features a durable AlTiN coating and precision-ground C2 micro-grain carbide construction. Part number 1620-0190L029, this micro end mill is designed for high-precision CNC machining of small features.

Square end mills are widely used for slotting, pocketing, profiling, and precision micro-machining. The flat cutting end allows accurate machining of sharp internal corners and flat-bottom features in miniature components and precision parts.

The AlTiN coating improves heat resistance and wear life during high-speed machining, while the 2-flute design provides excellent chip evacuation and reduced cutting forces. This makes the tool suitable for machining steel, stainless steel, cast iron, hardened materials, and superalloys.

Manufacturer: Kyocera

Manufacturer Part Number: 1620-0190L029

Country of Origin: United States

Typical Applications

• Micro CNC milling
• Precision slotting and pocketing
• Profiling small components
• Electronics and miniature parts machining
• High-precision tool and die work

Benefits

• Square end geometry for flat-bottom milling
• 2 flutes improve chip evacuation and reduce cutting forces
• AlTiN coating improves wear resistance and heat tolerance
• Micro-grain carbide provides rigidity and durability
• Center cutting design allows plunge milling capability

Specifications
