0.0315" / 1/32" Chip Breaker Router, Fish Tail, .100" LOC, 1/8" Shank | Lightly Used 10 Pc URC100

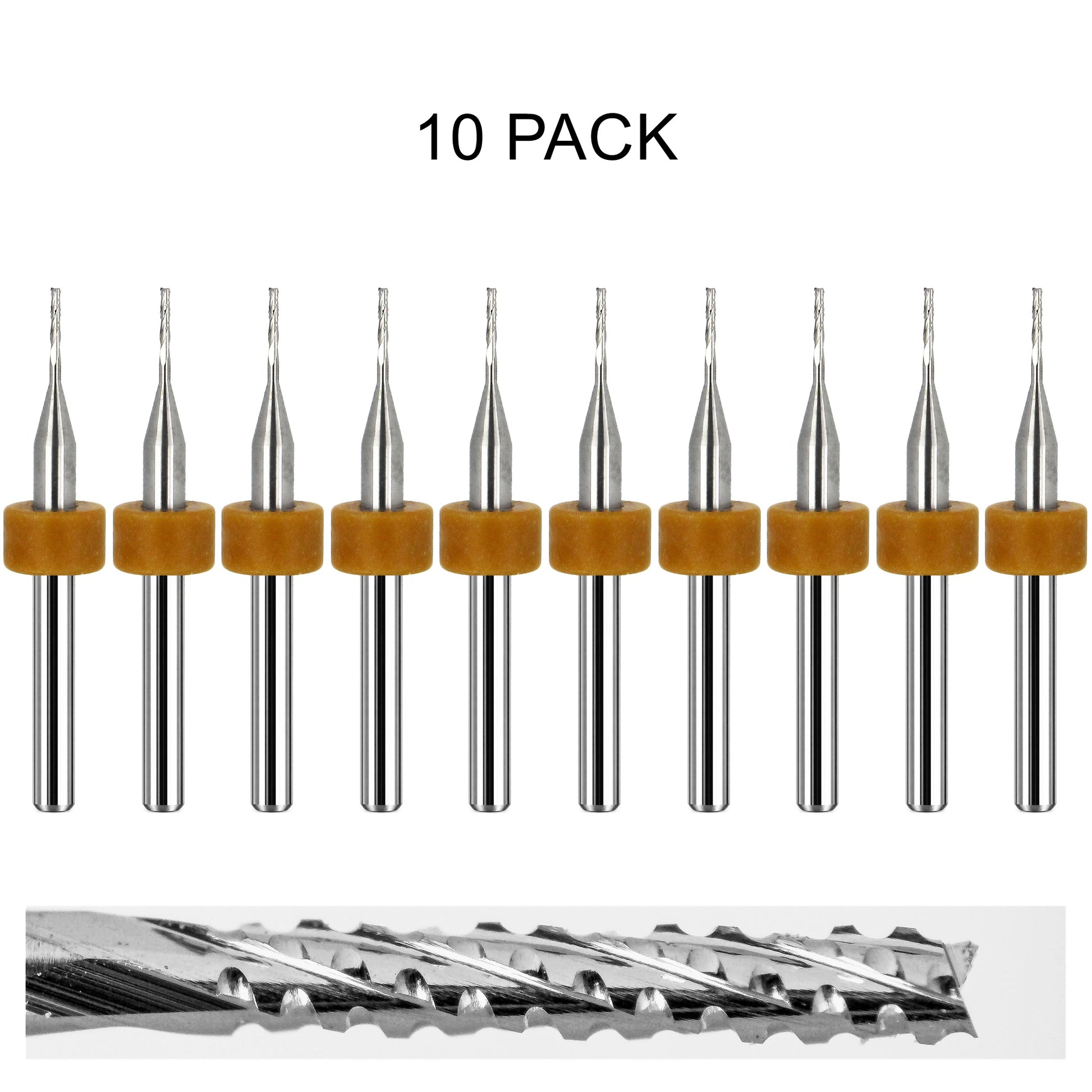

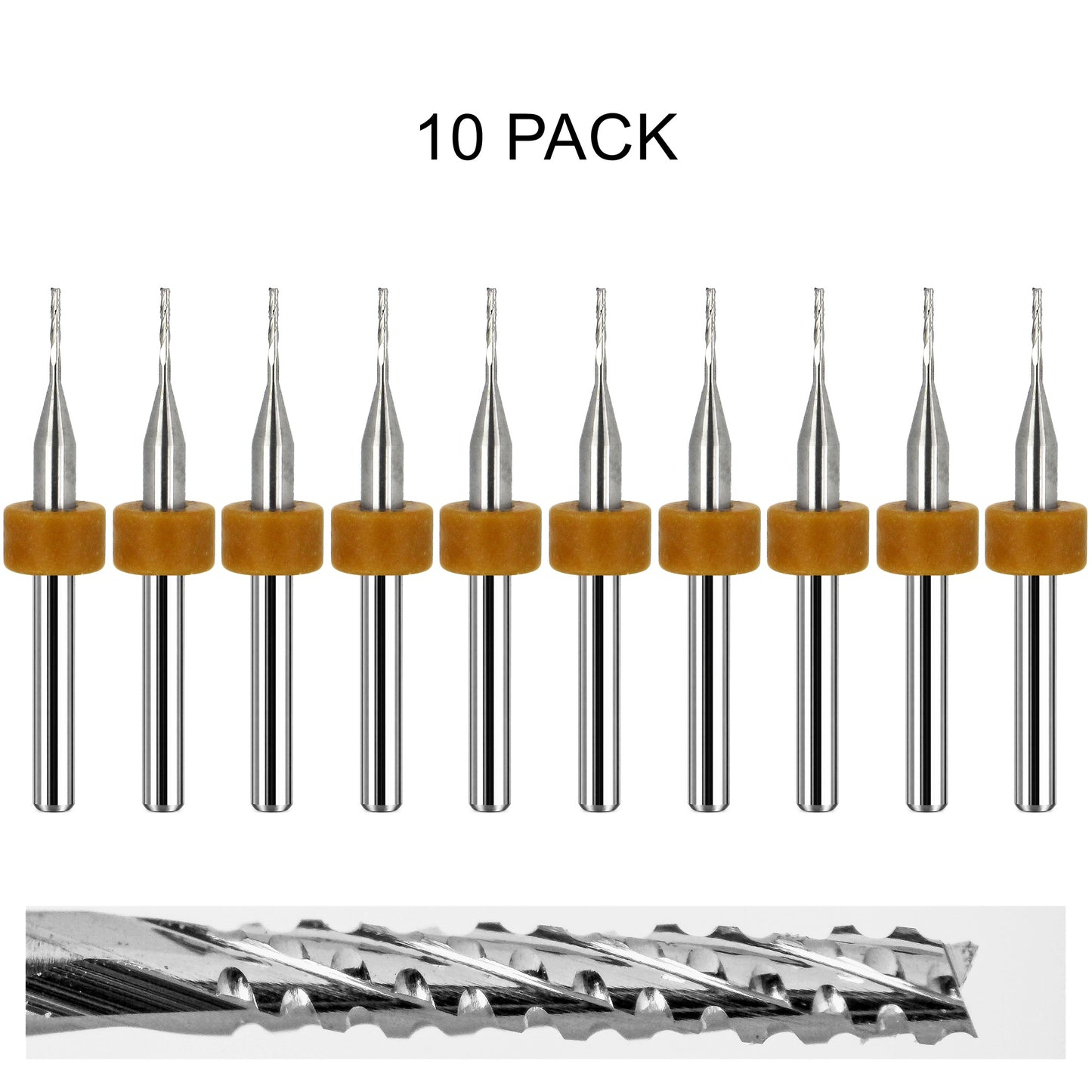

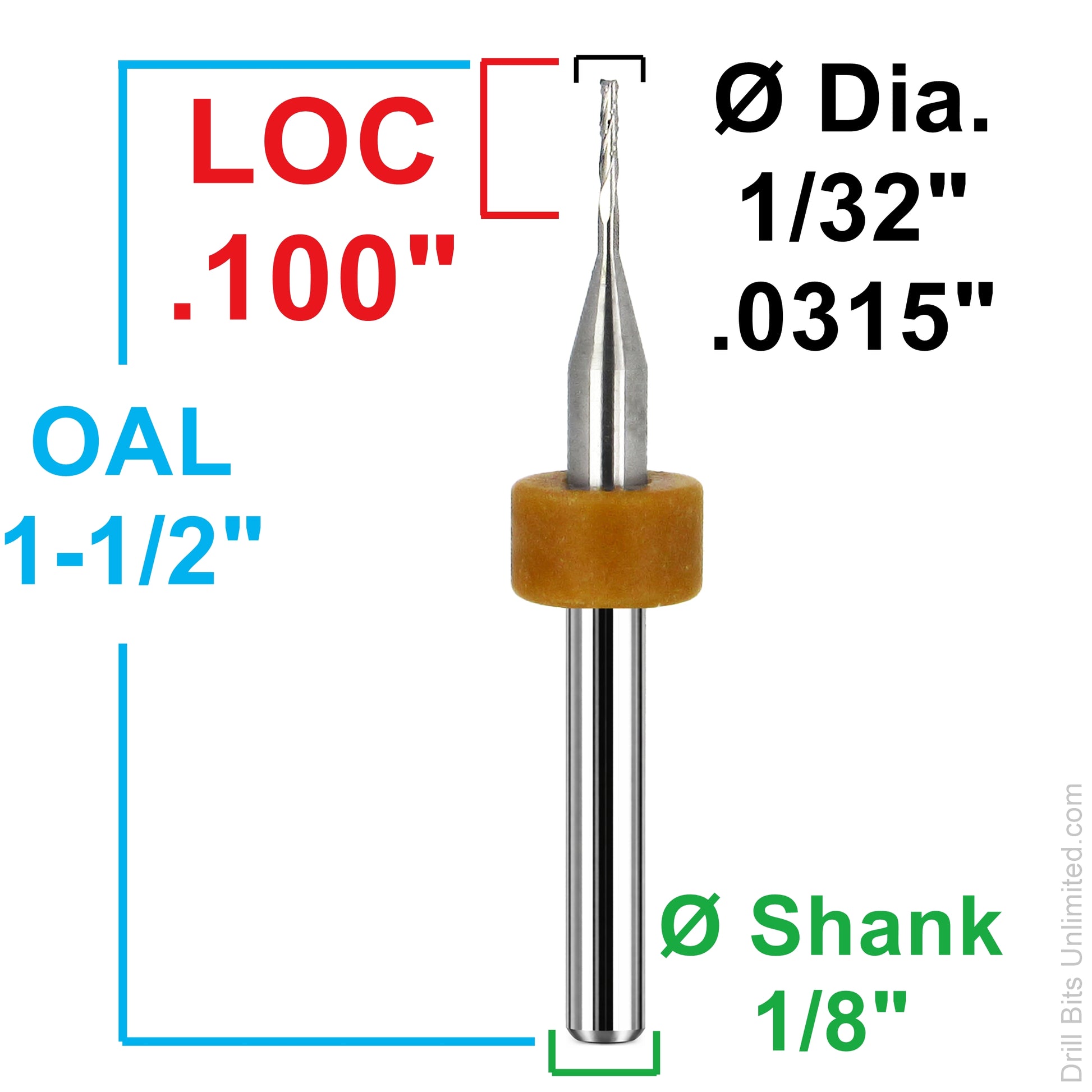

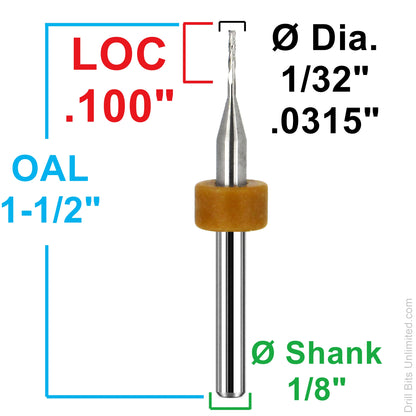

This lightly used 10-piece Kyocera chip breaker carbide router set includes 0.0315" / 1/32" (0.80mm) solid carbide routers with a .100" LOC, 1-1/2" overall length, and a 1/8" shank.

These routers are lightly used, cleaned, and inspected. They are a practical value option for hobby use, prototyping, testing, backup tooling, short-run jobs, and light industrial applications.

• Geometry: Chip breaker cutting edge helps break chips into smaller pieces for improved chip control.
• Tip style: Fish tail tip provides gentler entry into brittle or layered materials.
• Cut direction: Up-cut design supports chip evacuation and bottom-edge cut quality.
• Common material use: FR-4, G10, fiberglass, phenolic laminates, and other abrasive composites.

Not sure whether a chip breaker or diamond flute router is right for your application? Compare chip breaker vs diamond flute routers →

👉 View Feed & Speed Recommendations

Common Uses

• PCB and laminate routing, including FR-4 and G10
• Fiberglass and phenolic laminate cutting
• General abrasive composite routing where chip control is helpful
• Testing, prototyping, hobby CNC work, and short-run jobs
• Backup tooling for light industrial use

Benefits

• 10-piece value pack of lightly used, cleaned, and inspected Kyocera carbide routers
• Chip breaker geometry helps reduce long, stringy chips and improve chip control
• Up-cut design supports chip evacuation and bottom-edge cut quality
• Fish tail tip helps reduce chipping during entry into brittle or layered materials
• Solid tungsten carbide construction provides rigidity and wear resistance
• 1/8" shank fits many compact CNC routers and spindles

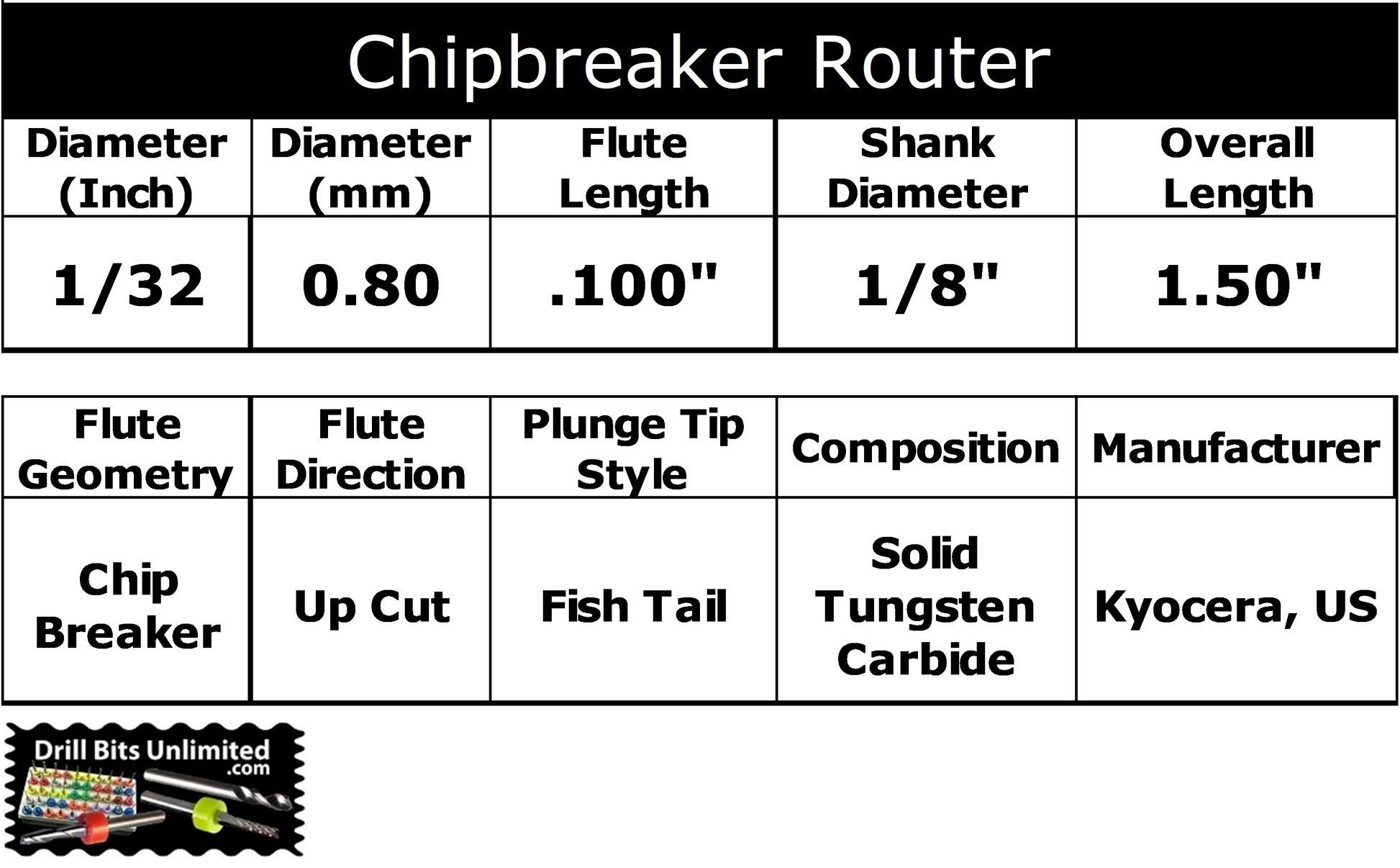

Specifications

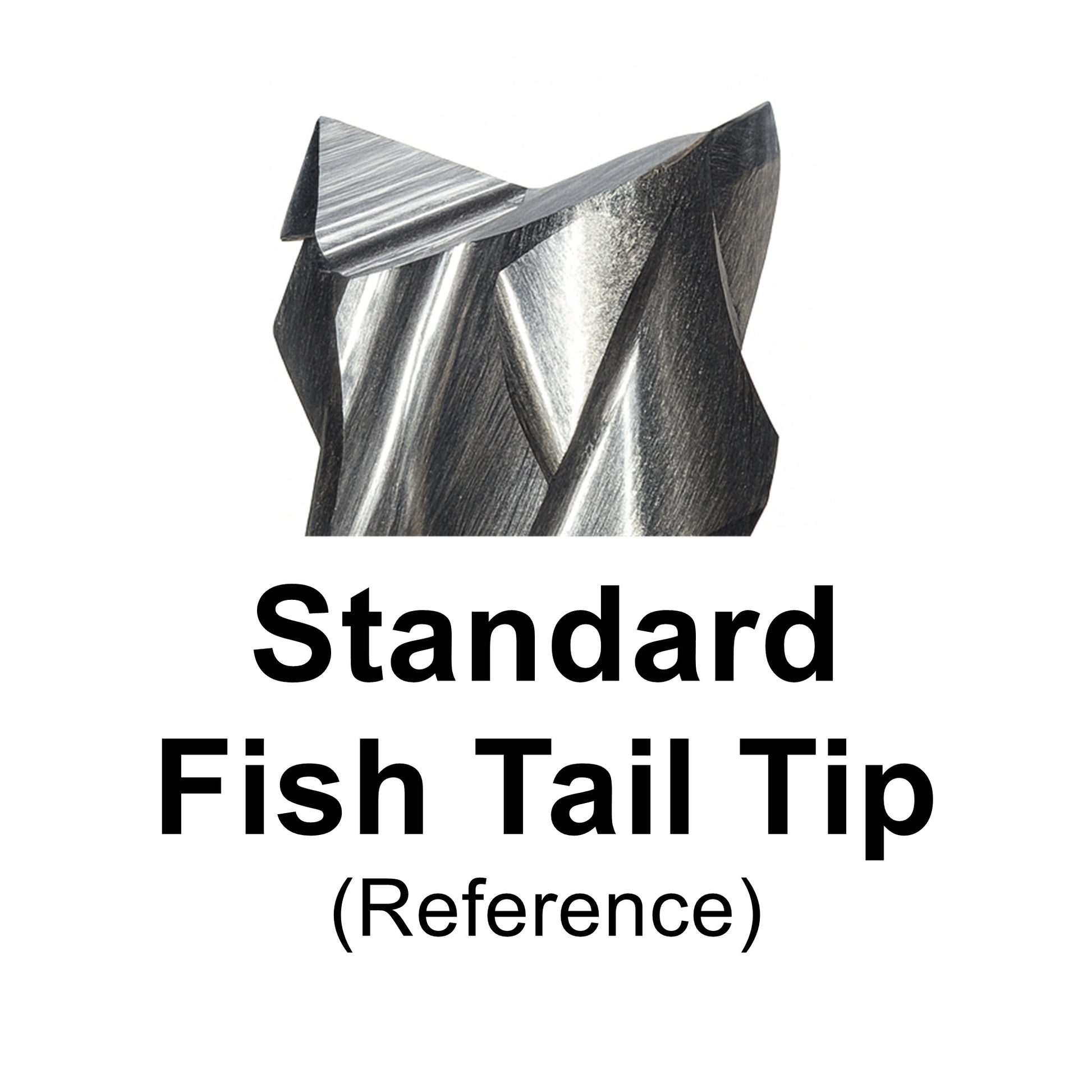

Tip style: Fish Tail — gentler entry to help reduce chipping and surface damage in brittle or layered materials.

Need new-condition routers? Browse our full selection of new chip breaker routers →
