Drill Bits Unlimited

0.0394" (1.00mm) × .256" LOC Diamond Flute PCB Router, Fish Tail, 1/8" Shank | R108A

0.0394" (1.00mm) × .256" LOC Diamond Flute PCB Router, Fish Tail, 1/8" Shank | R108A

Regular price $4.49 USD
Regular price Sale price $4.49 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

Kyocera 1.00mm Diamond-Flute PCB Router | .256" LOC | Fish Tail | Up-Cut

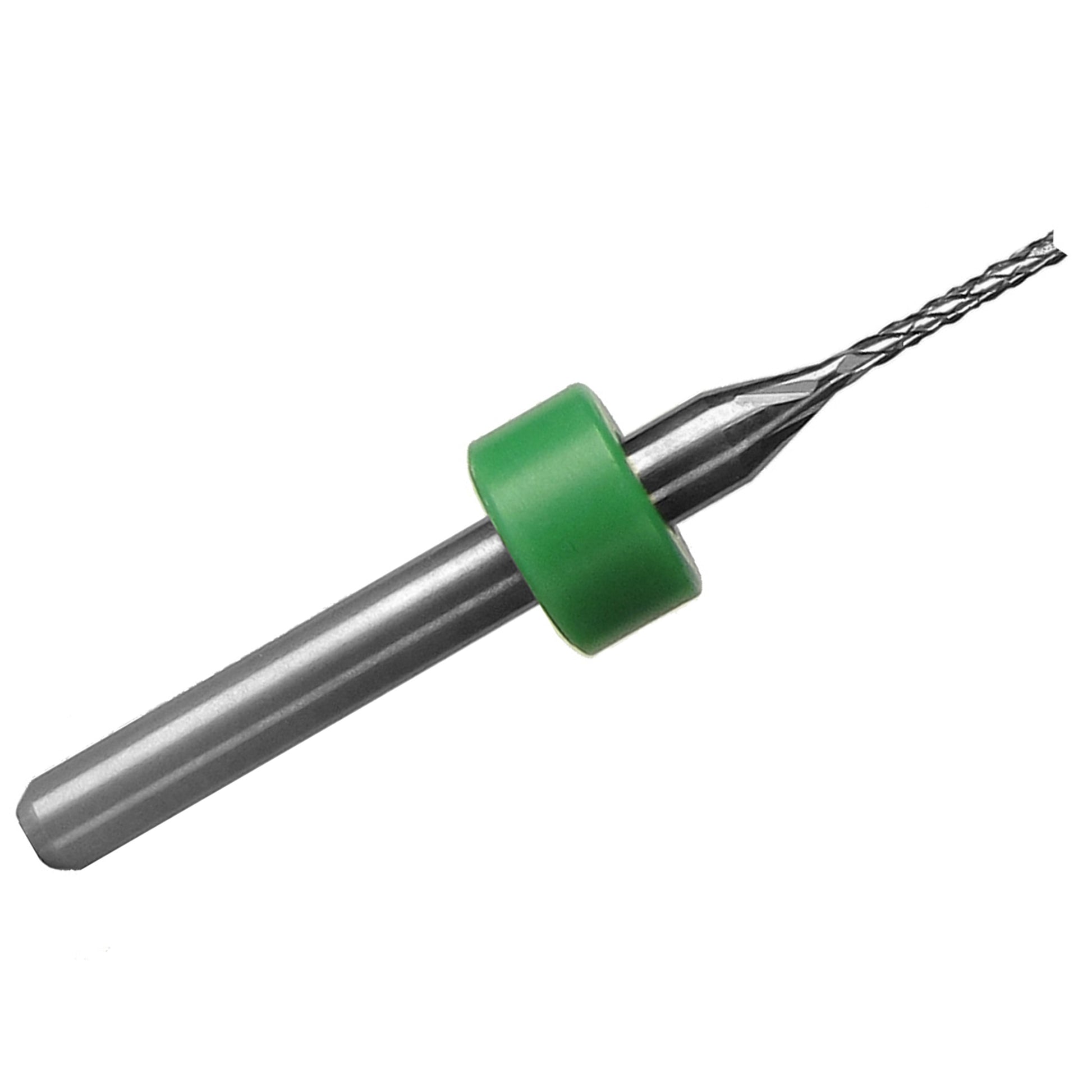

The R108A diamond-flute carbide router features a 0.0394" (1.00mm) cutting diameter, 0.256" (approximately 6.50mm) length of cut, and standard 1/8" (3.175mm) shank. Manufactured by Kyocera, this precision router is designed for PCB routing, FR4/G10 fiberglass laminates, phenolic materials, and other abrasive composites.

With a longer cutting section than many smaller PCB routers, R108A provides additional reach for routing and profiling suitable laminate and composite workpieces. Its diamond-pattern cutting geometry features numerous small, intersecting cutting edges, while the fishtail tip supports plunge entry and through-routing in appropriate materials.

Key Features

  • 0.0394" (1.00mm) cutting diameter: Precision cutting width for PCB outlines, slots, and detailed profiles
  • 0.256" (6.50mm nominal) LOC: Extended cutting reach for suitable PCB laminates and composite sheets
  • Diamond-flute geometry: Intersecting cutting edges help control chipping, fraying, and fiber pull-out under appropriate conditions
  • Fish tail tip: End-cutting geometry supports entry into suitable sheet materials and routing operations
  • Up-cut configuration: Helps direct routing debris upward during machining
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits properly sized CNC spindle collets and precision tool holders

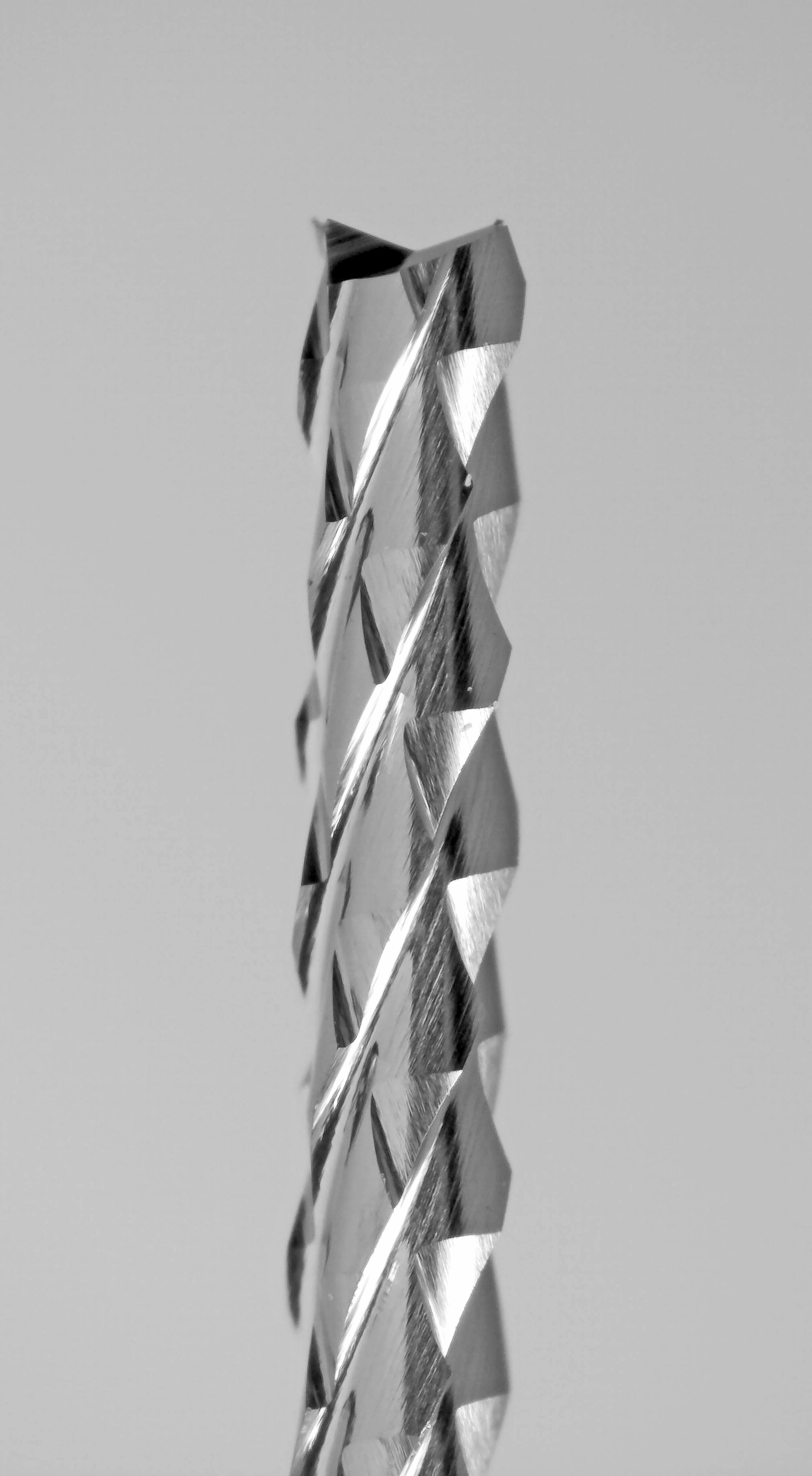

Diamond-Flute Geometry & Fish Tail Tip

Diamond-flute routers, also called diamond-cut or diamond-pattern routers, feature numerous fine, intersecting cutting edges rather than conventional continuous spiral flutes. This geometry is commonly used for routing abrasive and layered materials such as FR4 circuit boards and G10 fiberglass laminates.

The fishtail tip provides end-cutting edges for entry into suitable workpieces. Under appropriate machining conditions, this design can help control edge damage during PCB profiling and through-cutting.

The 0.256" cutting length provides approximately 6.50mm of cutting reach, compared with the 0.197" cutting length of our R114 fishtail router of the same diameter. Choose the shorter LOC when additional reach is unnecessary, since shorter cutting sections generally offer greater resistance to deflection.

Important: Diamond-flute describes the cutting geometry. This tool is uncoated solid carbide, not diamond-coated or PCD tooling.

Typical Applications

  • PCB board outlines, slots, and cutouts
  • FR4 and G10 fiberglass laminate routing
  • Phenolic and epoxy laminate machining
  • Fiberglass-reinforced composite trimming
  • Carbon fiber composites where uncoated carbide tooling is appropriate
  • Precision CNC profiling and prototype fabrication
  • Routing materials requiring additional cutting reach

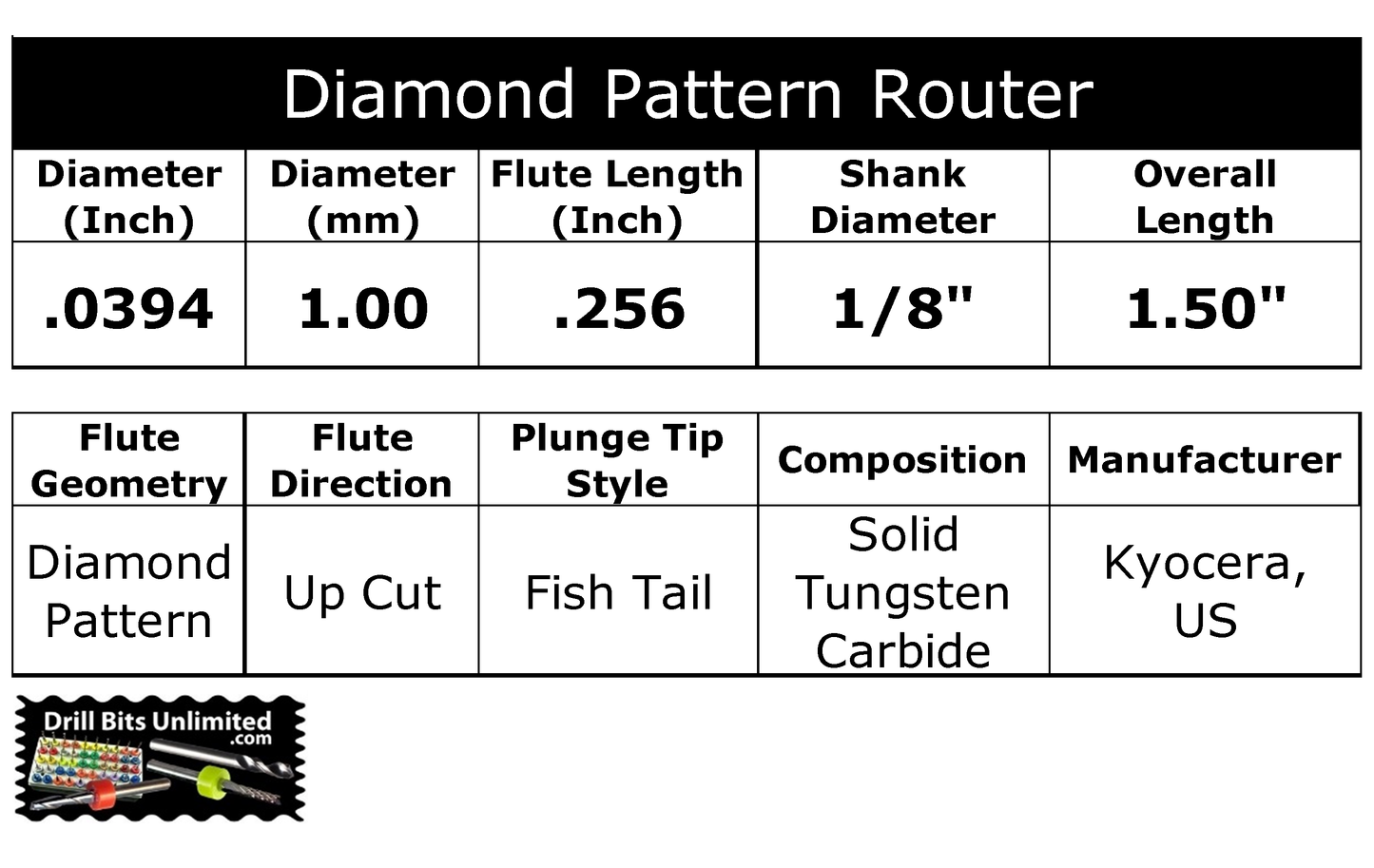

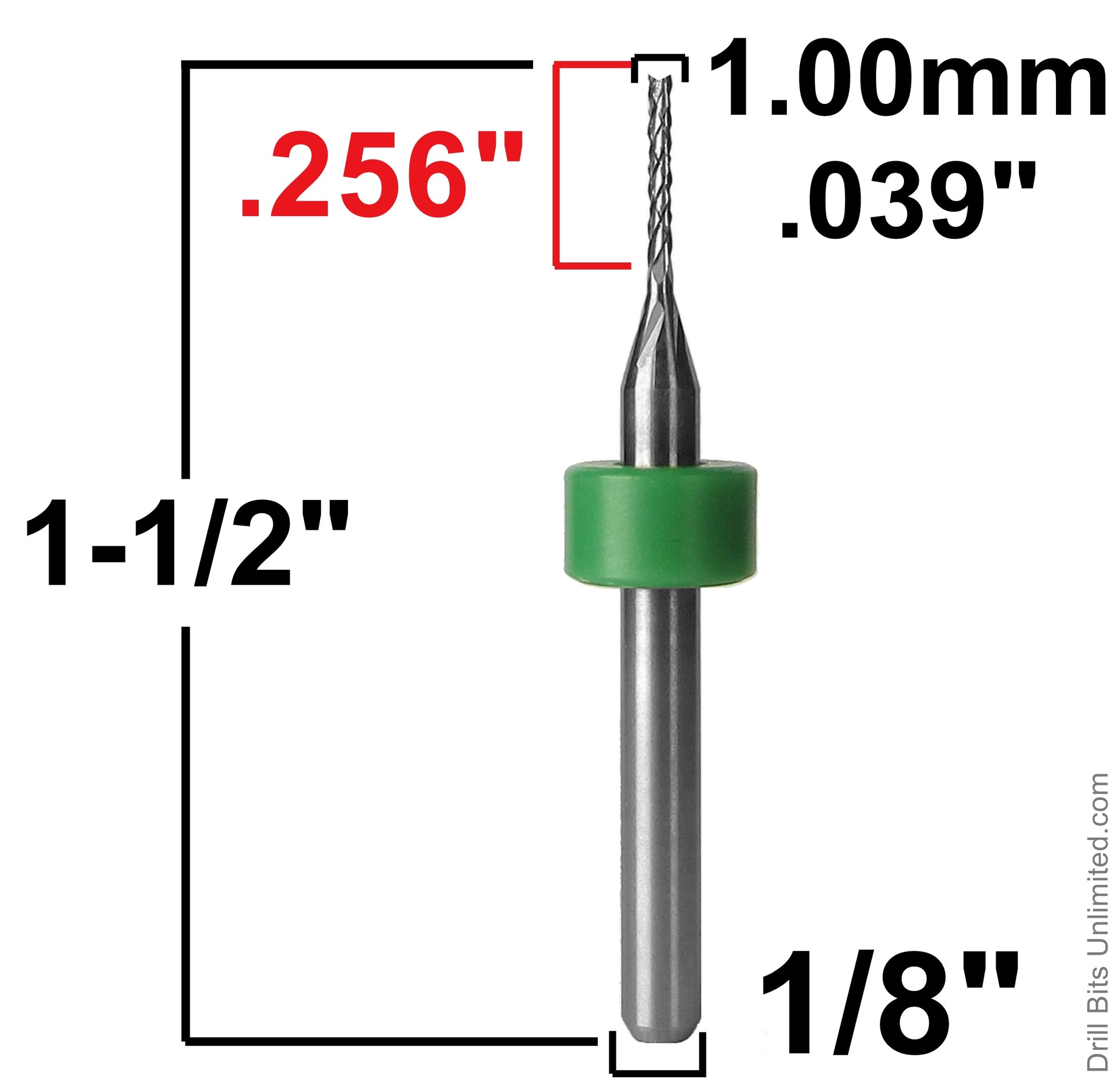

Technical Specifications

DBU SKU R108A
Manufacturer Kyocera
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.0394" (1.00mm)
Length of Cut (LOC) 0.256" (approx. 6.50mm)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut
Cut Direction Up-Cut
Tip Style Fish Tail
Material Solid Tungsten Carbide
Coating Uncoated

Feeds & Speeds

Proper spindle speed, feed rate, cutting depth, and secure workholding are particularly important when routing abrasive laminates with small-diameter, longer-LOC carbide tools.

View Carbide Router Feed & Speed Charts and select the dedicated Diamond-Flute Router Feed & Speed Chart for starting recommendations for FR4, G10, fiberglass, and PCB materials.

Feed and speed recommendations are starting points only. Actual cutting conditions depend on the material, spindle capability, workholding, machine rigidity, and depth of cut. The longer cutting section requires care to avoid excessive tool deflection and breakage. Use appropriate dust extraction when machining fiberglass and carbon fiber.

Related Router Bits & Guides

Browse our Diamond-Flute PCB Router Bits Collection for additional diameters, flute lengths, and tip configurations.

Learn more about diamond-cut geometry and fishtail versus drill-point tips in our Diamond-Flute Router Guide.

Need a shorter cutting length? Our R114 diamond-flute fishtail router offers the same 1.00mm diameter with a 0.197" LOC for applications that do not require the additional reach of R108A.
