Drill Bits Unlimited

0.0394" (1.00mm) × .197" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R110

0.0394" (1.00mm) × .197" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R110

Regular price $4.99 USD
Regular price Sale price $4.99 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

Kyocera 1.00mm Diamond-Flute PCB Router | Drill Point | Up-Cut | Solid Carbide

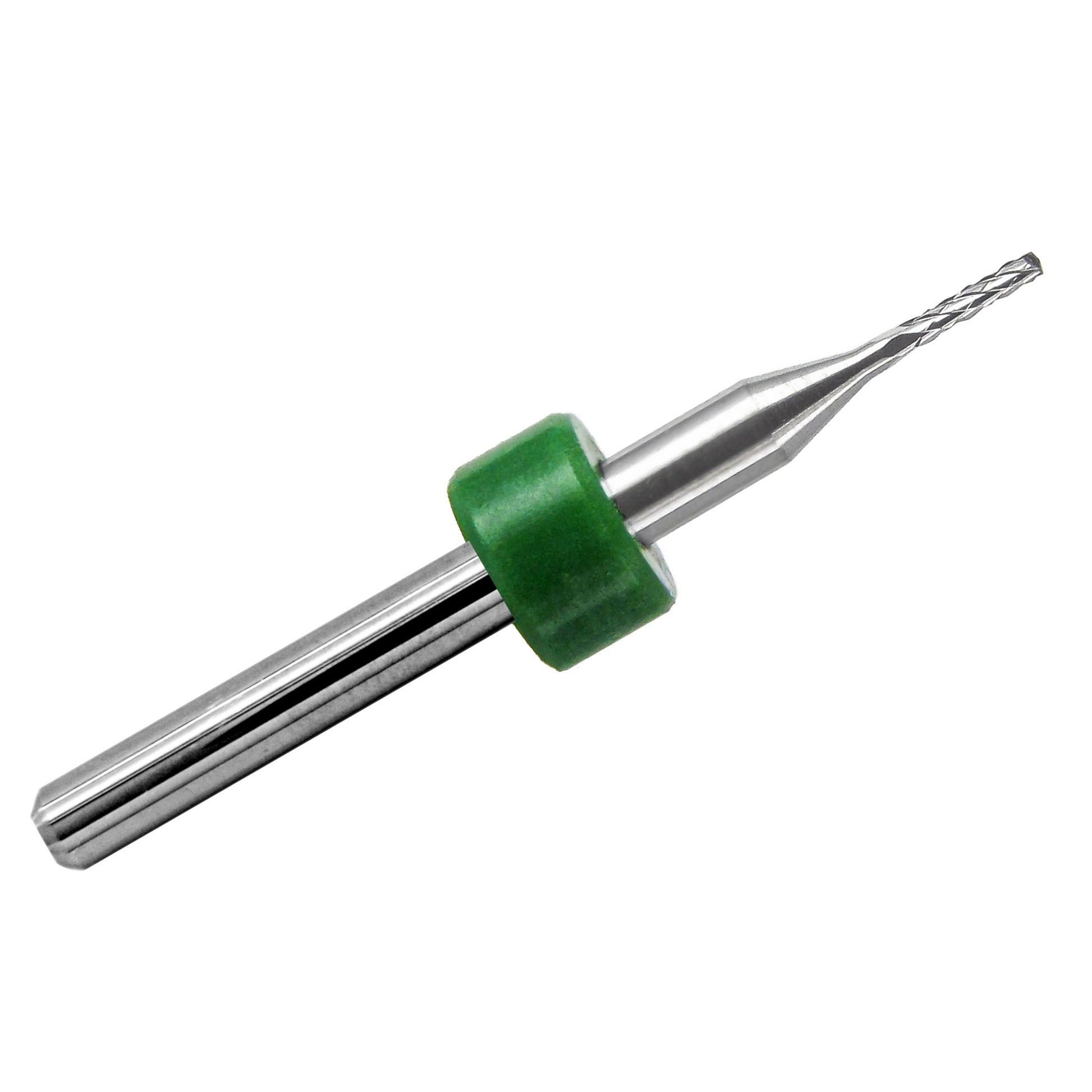

The R110 diamond-flute carbide router features a 0.0394" (1.00mm) cutting diameter, 0.197" (5.00mm) length of cut, and standard 1/8" (3.175mm) shank. Manufactured by Kyocera, this precision router is designed for PCB fabrication, FR4/G10 fiberglass laminates, phenolic materials, and other abrasive composites.

Its diamond-pattern cutting geometry uses numerous intersecting cutting edges for controlled material removal. Combined with an up-cut configuration and drill-point tip, this tool is suitable for precision PCB profiling, internal cutouts, slots, and routing applications requiring plunge entry.

Key Features

  • 0.0394" (1.00mm) cutting diameter: Precision cutting width for PCB outlines, slots, and detailed contours
  • 0.197" (5.00mm) LOC: Provides cutting reach for suitable PCB laminates and composite materials
  • Diamond-flute geometry: Intersecting cutting edges help control fiber pull-out, chipping, and delamination under appropriate machining conditions
  • Drill-point tip: Designed to facilitate plunge entry when starting internal cutouts and slots
  • Up-cut configuration: Helps direct cutting debris upward during routing
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC collets and tool holders

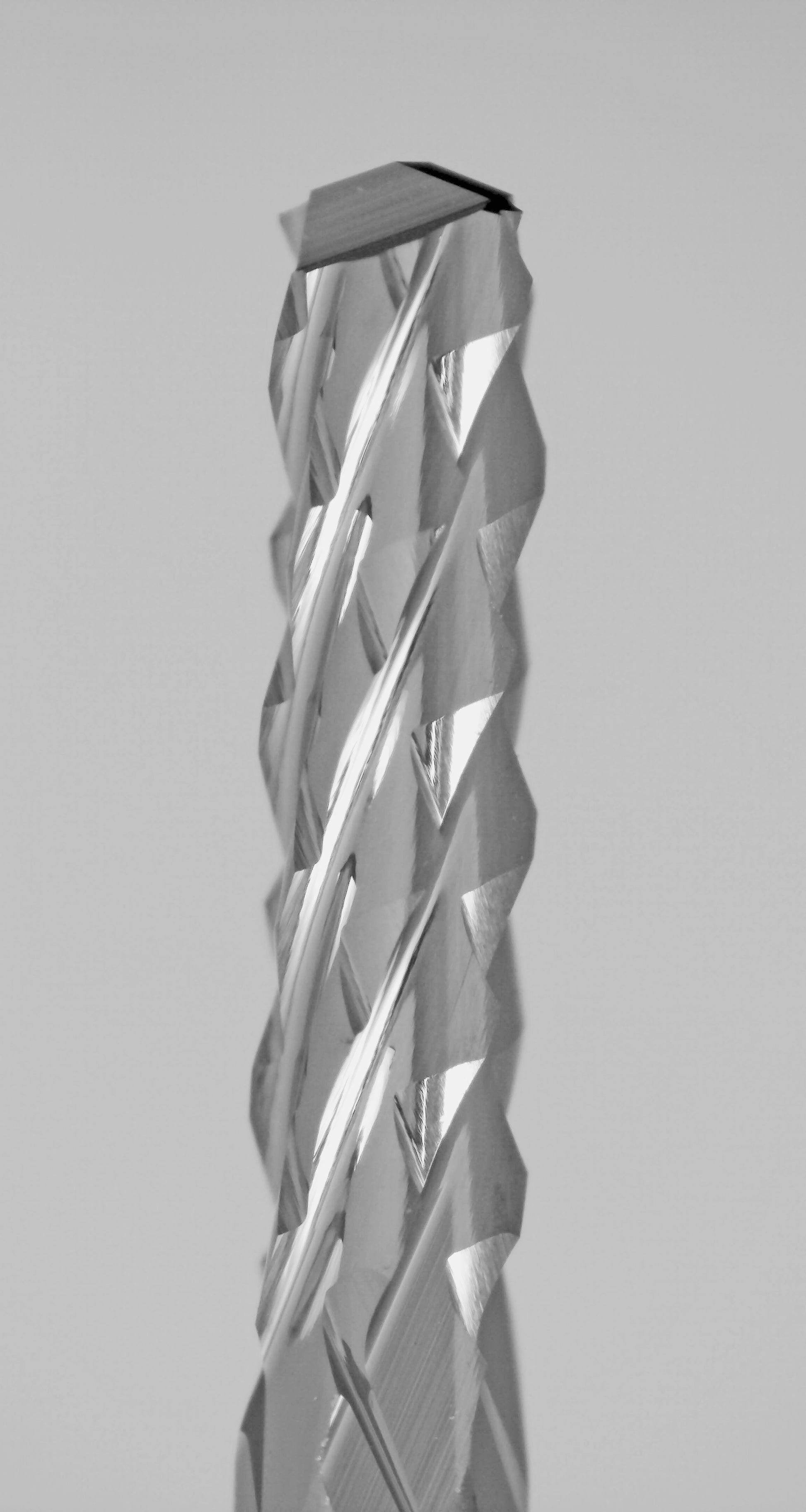

Diamond-Flute Geometry & Drill-Point Tip

Diamond-flute routers, also called diamond-cut or diamond-pattern routers, feature numerous small cutting edges in an intersecting pattern. This geometry is commonly used for precision machining of abrasive, brittle, and layered materials such as FR4 circuit boards and G10 fiberglass laminates.

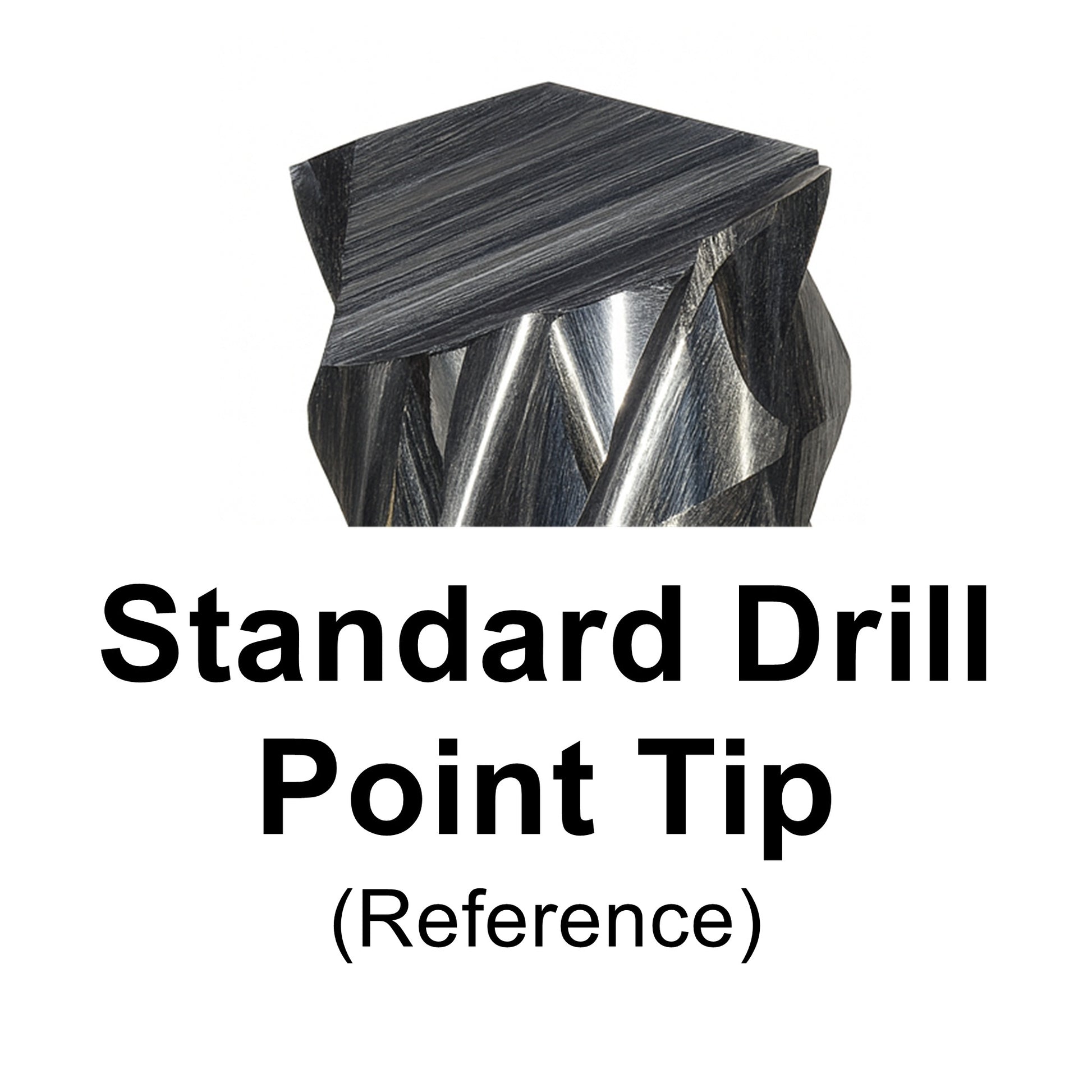

The drill-point tip facilitates direct plunge entry into suitable workpieces, making R110 useful for applications requiring internal routing starts. Unlike fishtail-tip routers, this tool uses a drill-point end geometry; plunge performance depends on the workpiece, machine rigidity, and cutting conditions.

The 0.197" cutting length provides approximately 5.00mm of usable flute length. For through-cutting, ensure the flute length is appropriate for the material thickness and that sufficient clearance is available beneath the workpiece.

Important: Diamond-flute describes the cutting-edge geometry. This tool is uncoated solid carbide, not a diamond-coated or PCD router.

Typical Applications

  • PCB board outlines, slots, and internal cutouts
  • FR4 and G10 fiberglass laminate routing
  • Phenolic and epoxy laminate machining
  • Fiberglass-reinforced plastic and composite trimming
  • Carbon-fiber composites where uncoated carbide tooling is suitable
  • Precision CNC profiling and prototype fabrication

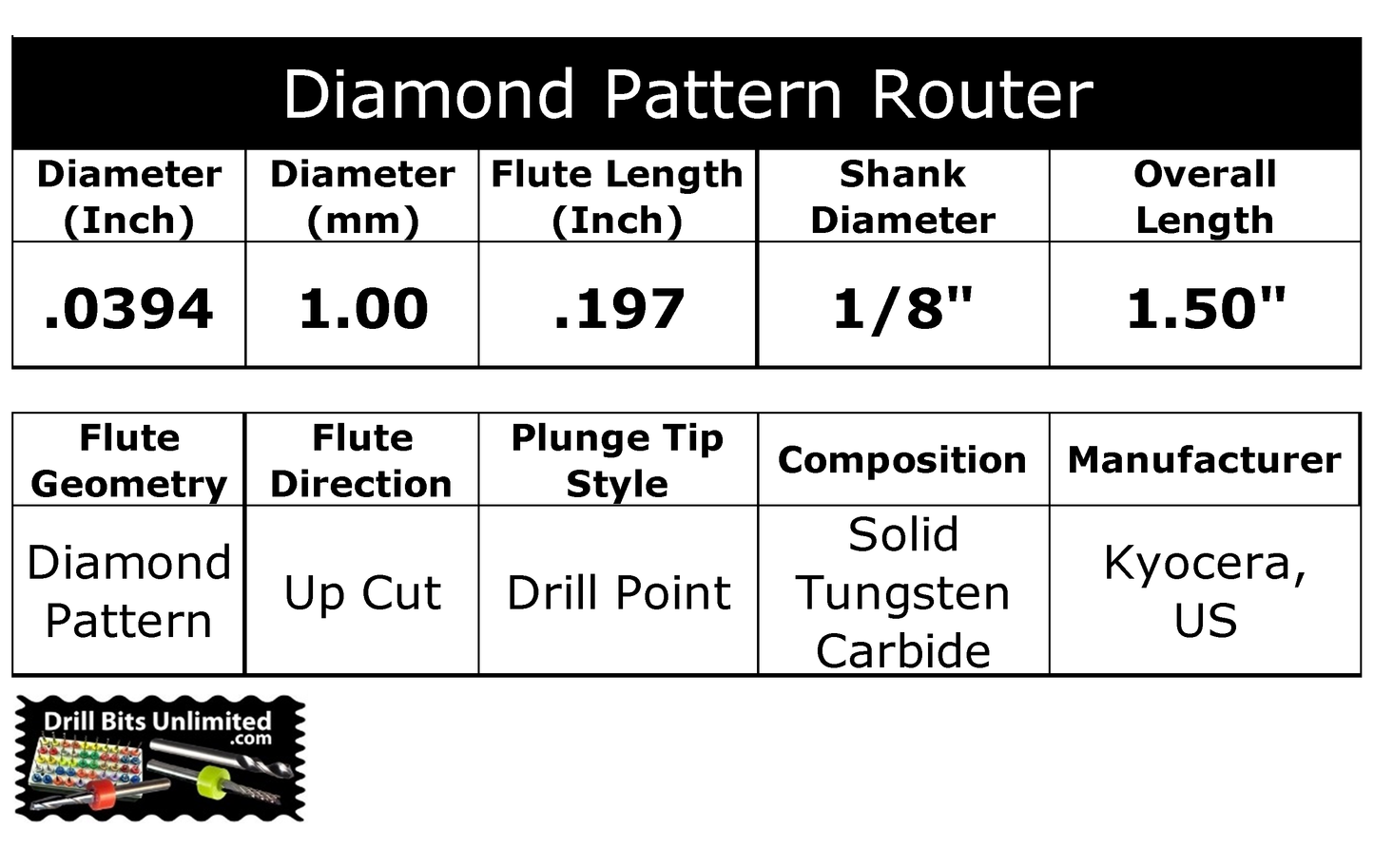

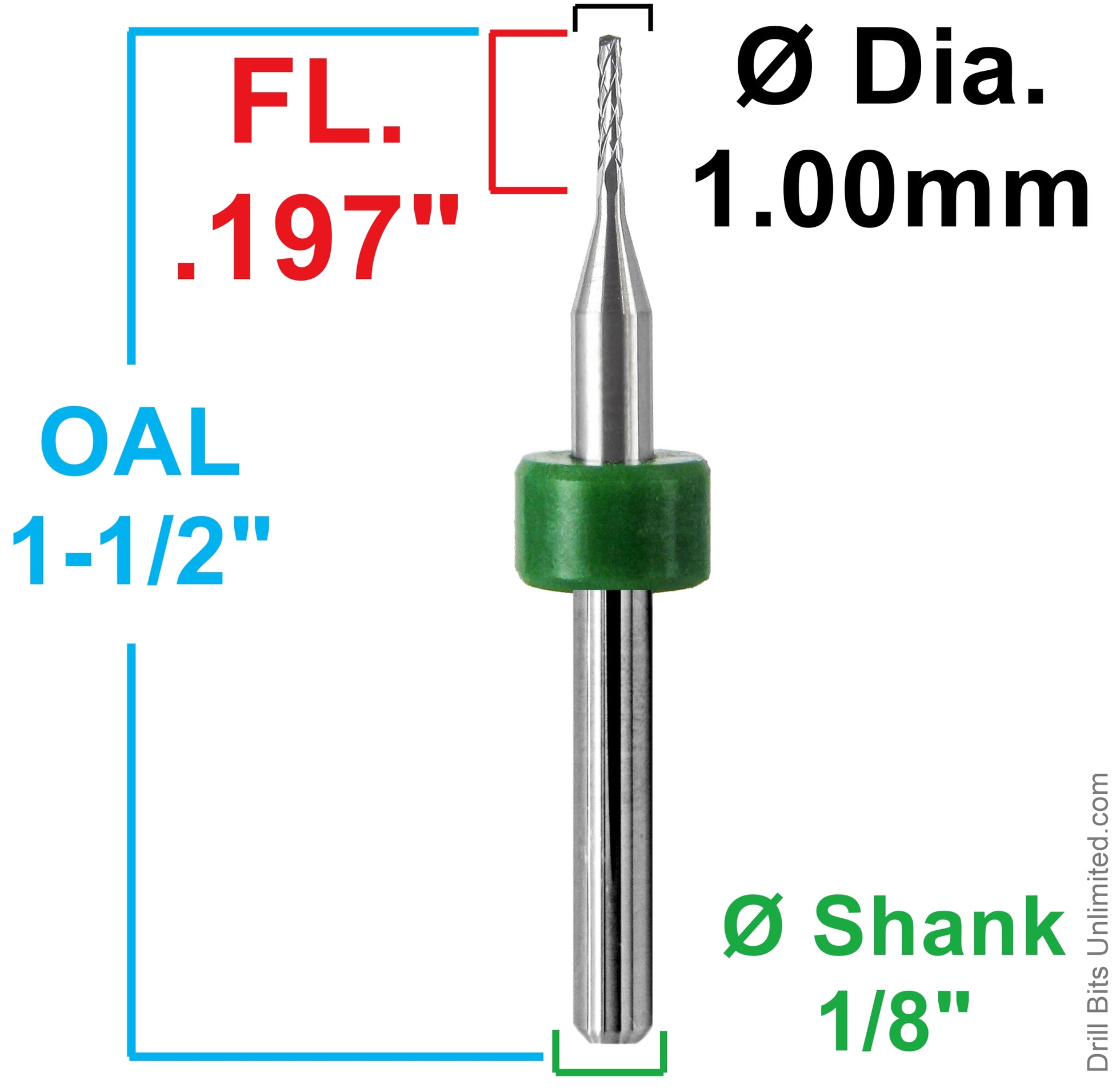

Technical Specifications

DBU SKU R110
Manufacturer Kyocera
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.0394" (1.00mm)
Length of Cut (LOC) 0.197" (5.00mm)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut / Cross Cut
Cut Direction Up-Cut / Updraft
Tip Style Drill Point
Tool Material Solid Tungsten Carbide
Coating Uncoated

Feeds & Speeds

Proper spindle speed, feed rate, depth of cut, and workholding are especially important when routing PCB laminates and abrasive composites with small-diameter carbide tools.

View Carbide Router Feed & Speed Charts and select the dedicated Diamond-Flute Router Chart for starting recommendations for FR4, G10, fiberglass, and PCB materials.

Recommended cutting parameters are starting points only. Adjust for the material, spindle speed, machine rigidity, workholding, and tool diameter. Avoid excessive cutting loads and use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Looking for another diameter, flute length, or tip style? Browse our Diamond-Flute PCB Router Bits Collection.

Learn more about cross-cut geometry and drill-point versus fishtail tips in our Diamond-Flute Router Guide.

For demanding production machining of carbon fiber and other highly abrasive composites, explore our PCD & CVD Diamond-Coated Router Bits for additional wear-resistant tooling options.
