0.0394" (1.00mm) x 4mm LOC 1-Flute Carbide End Mill, 1/8" Shank | m1-100

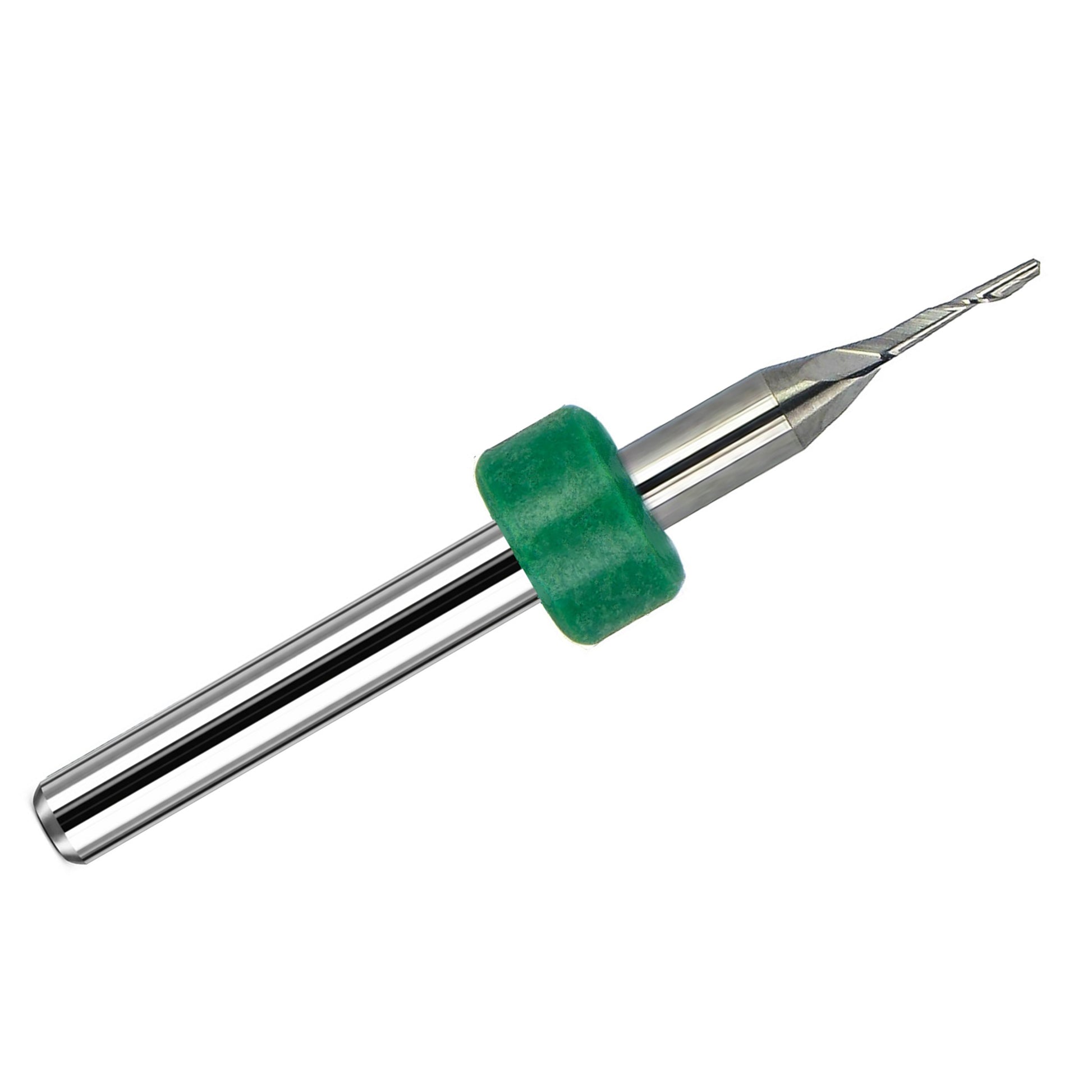

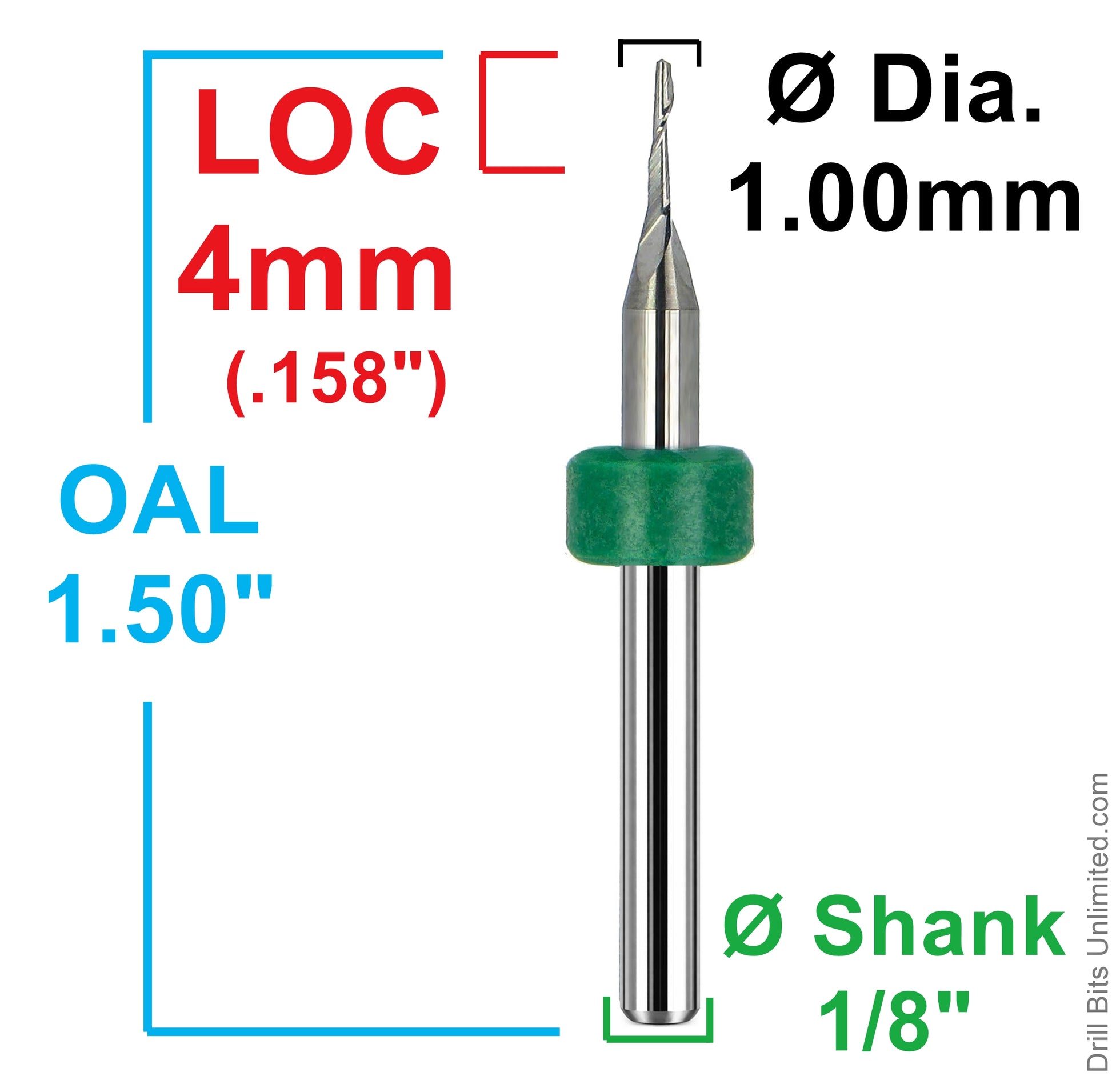

This Kyocera single-flute carbide end mill features a 0.0394" (1.00mm) cutting diameter, 4mm (.158") flute length, 1.50" overall length, and a 1/8" shank. Its solid carbide construction makes it a precise choice for fine-detail routing and milling in softer materials and non-ferrous applications.

This single-flute up-cut geometry is well suited for cutting acrylic, plastics, aluminum, copper, and other soft non-ferrous materials. Its up-cut design helps evacuate chips efficiently and can improve bottom-edge cut quality in many light milling and routing applications.

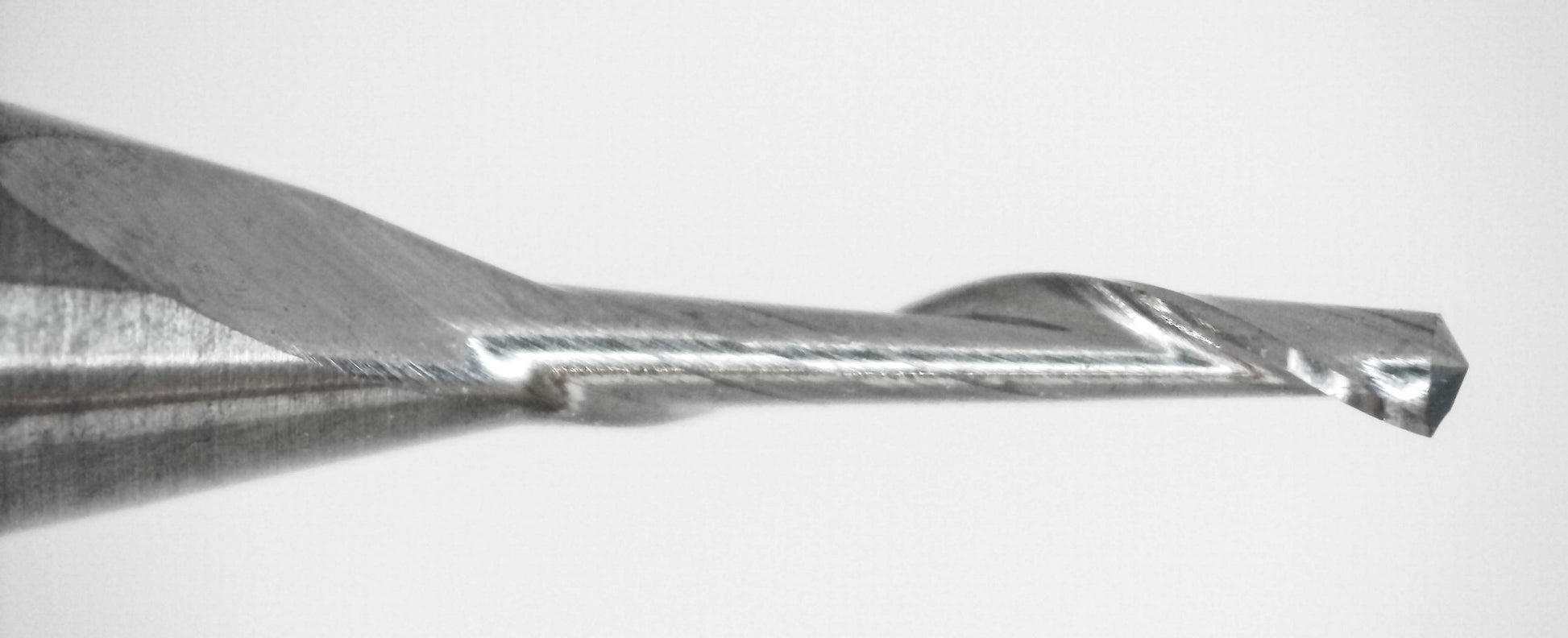

This tool features a pierce-point tip for easier entry, but it is not center cutting. For best results, use ramping, side entry, or a pre-drilled hole rather than straight-down plunging into solid material.

Typical Applications

• Acrylic and plastic machining
• Aluminum cutting
• Copper and soft non-ferrous metal work
• Detail routing and contouring
• Slotting and fine-profile work
• Light CNC milling applications requiring a small-diameter cutter

Benefits

• Single-flute design supports efficient chip evacuation in softer materials
• Up-cut geometry can improve bottom-edge cut quality while clearing chips efficiently
• Pierce-point tip can help with easier entry in appropriate toolpaths
• Solid carbide construction provides rigidity and wear resistance
• 1/8" shank fits many compact CNC routers and spindles

Specifications

👉 View End Mill Feed & Speed Calculator

Former SKU / item number: M197
