0.0440" (1.12mm) x .132" LOC 4-Flute Square End Carbide End Mill, 1/8" Shank | K078
0.0440" (1.12mm) x .132" LOC 4-Flute Square End Carbide End Mill, 1/8" Shank | K078
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

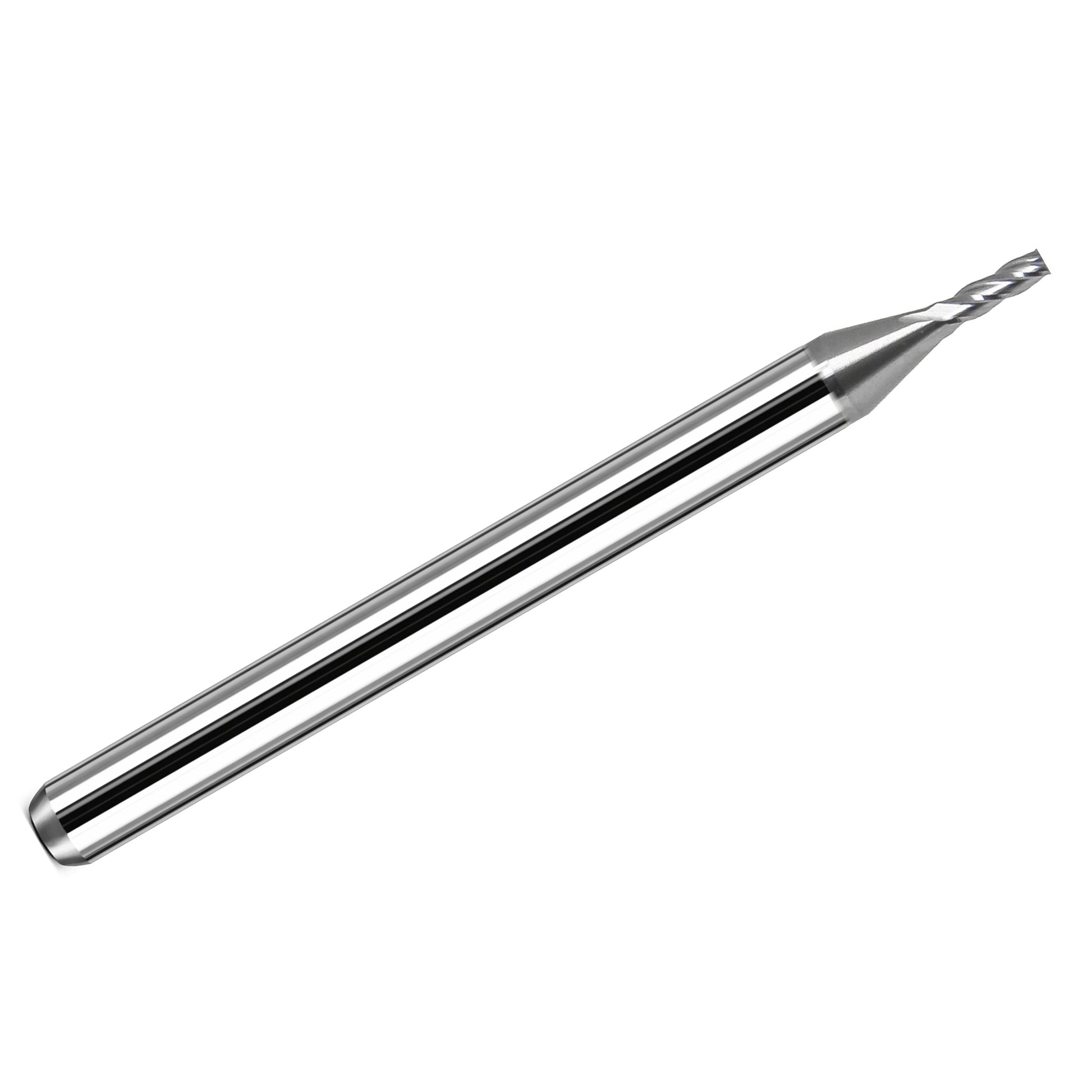

This 0.044" (1.12mm) 4-flute square end carbide end mill is manufactured by Kyocera from C2 micro-grain solid carbide to provide excellent rigidity, edge retention, and long tool life in precision CNC machining operations.
These professional cutting tools are manufactured in the United States and are designed for high precision machining where consistent geometry, durability, and reliable performance are critical.

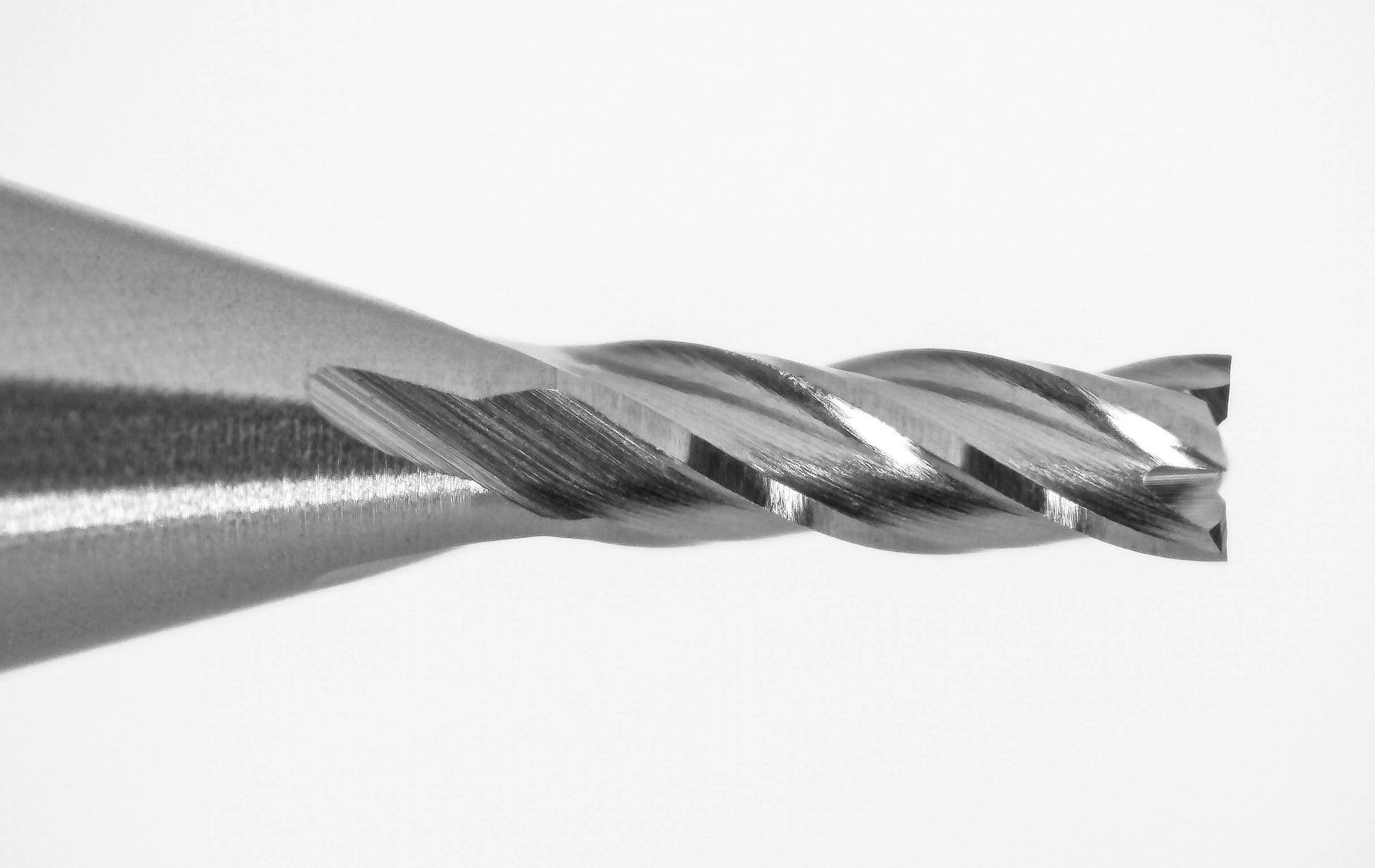

The square end geometry is ideal for slotting, profiling, and precision milling operations. The 4-flute design increases rigidity and improves surface finish during finishing passes while maintaining stability in small-diameter machining applications.
The bright (uncoated) finish performs well in aluminum, plastics, composites, and other non-ferrous materials.
Manufacturer: Kyocera
Manufacturer Part Number: 1810-0440.132
Country of Origin: United States
Typical Applications
- Precision CNC milling
- Slotting and profiling
- Micro machining operations
- Aluminum machining
- Plastic and composite machining
Benefits
- Precision square end geometry
- C2 micro-grain carbide for excellent durability
- 4 flutes increase rigidity and improve surface finish
- Center-cutting design allows plunge milling
- Bright finish performs well in non-ferrous materials

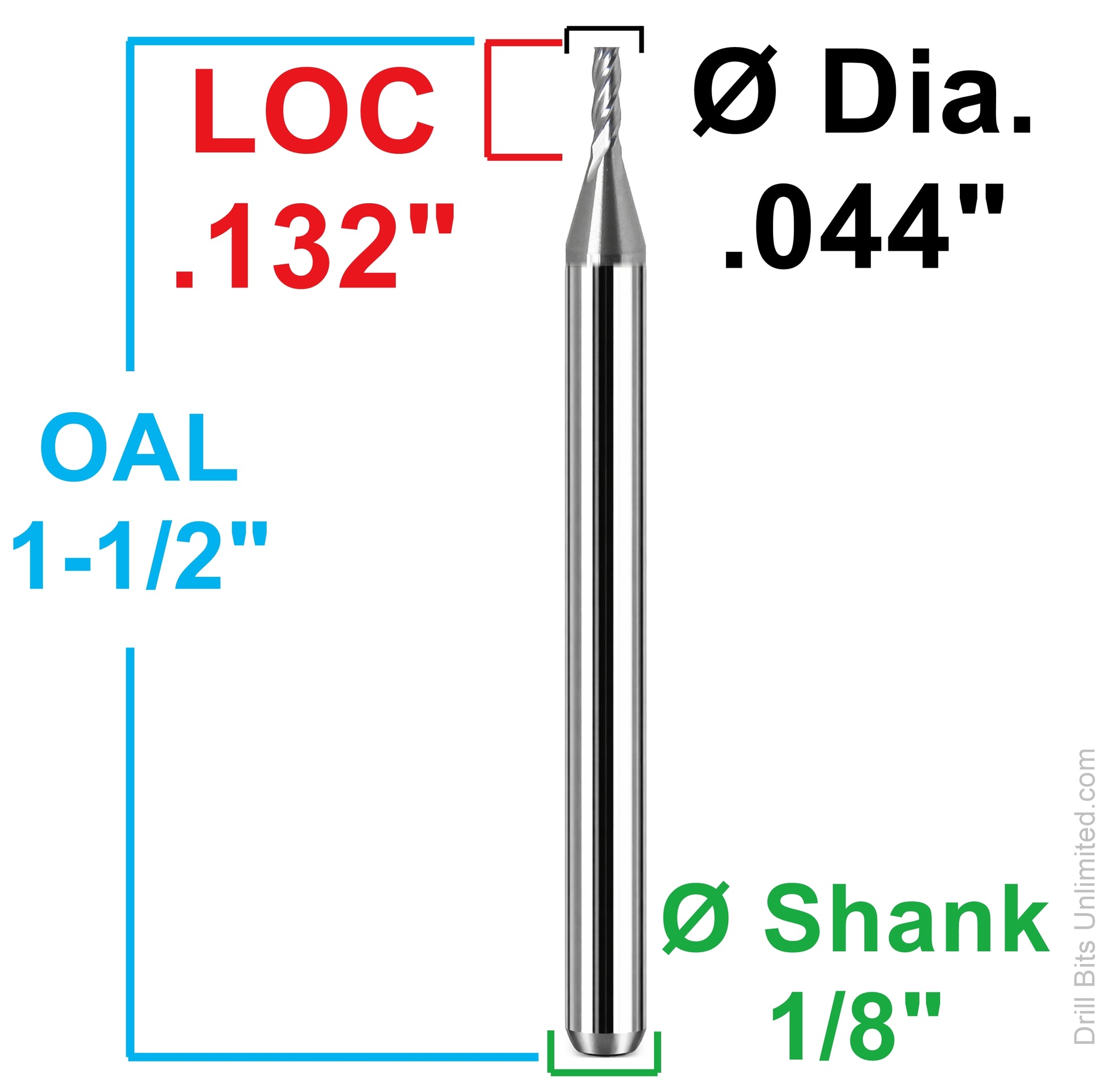

Specifications
| Manufacturer | Kyocera |
| Tool Type | Square End Mill |
| List Number | 1810 |
| Milling Diameter | 0.0440" |
| Length of Cut (LOC) | 0.1320" |
| Overall Length | 1.500" |
| Shank Diameter | 0.125" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | C2 Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non-Ferrous (N) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Country of Origin | United States |
