0.0440" (1.12mm) x .132" LOC AlTiN Coated 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | K015
0.0440" (1.12mm) x .132" LOC AlTiN Coated 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | K015
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 8% off |
| 50 + | 12% off |
| 100 + | 14% off |
Couldn't load pickup availability

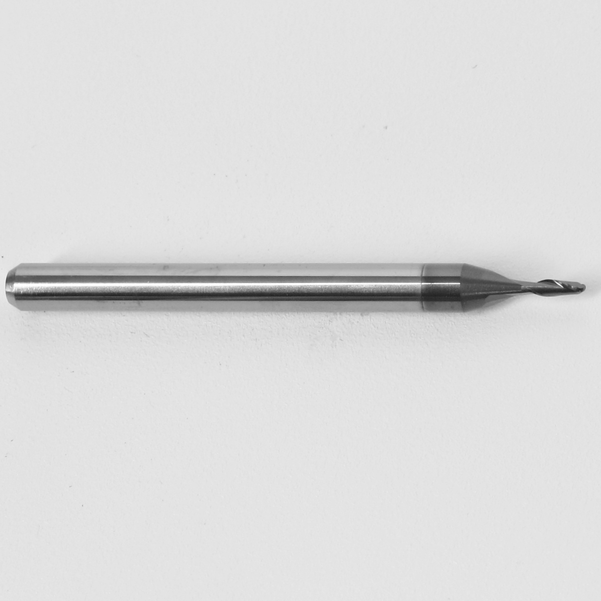

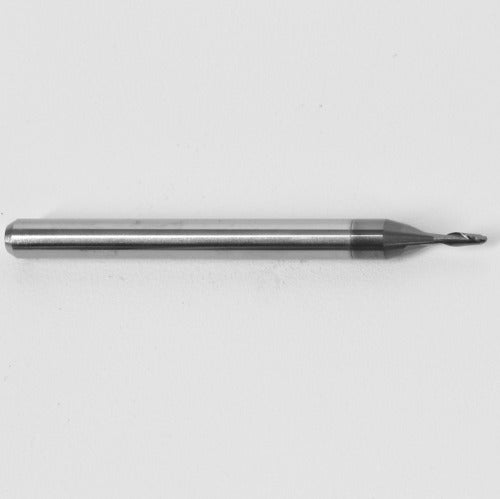

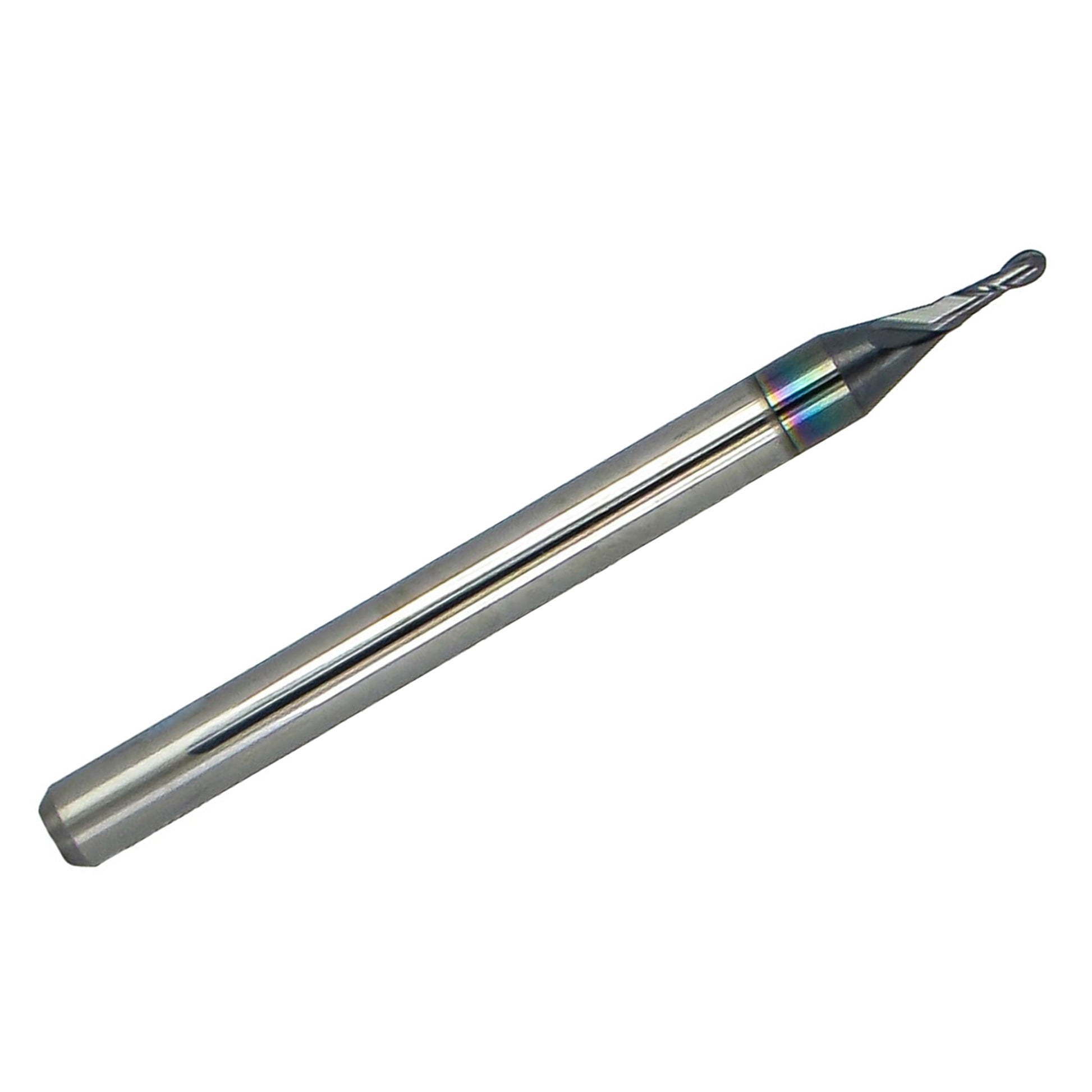

This 0.044" (1.12mm) 2-flute ball nose solid carbide end mill features a durable AlTiN coating designed for high-performance milling in difficult materials. The ball nose geometry allows smooth 3D contouring and profiling while producing excellent surface finishes.
Made in the USA, this precision ground micro-grain carbide end mill provides excellent rigidity and wear resistance when machining steel, stainless steel, hardened alloys, cast iron, and super alloys.
Ball nose end mills are commonly used for 3D contour milling, mold and die machining, surface finishing, and complex CNC toolpaths where smooth curved surfaces are required.
Manufacturer Part Number: 1625-0440L132
Alternate Format: 16250440L132
Benefits
- Ball nose geometry ideal for 3D contouring and profiling
- AlTiN coating improves heat resistance and tool life
- 2-flute design improves chip evacuation
- Center-cutting geometry allows ramping and light plunge milling
- Precision ground micro-grain carbide for excellent rigidity
- Made in the USA

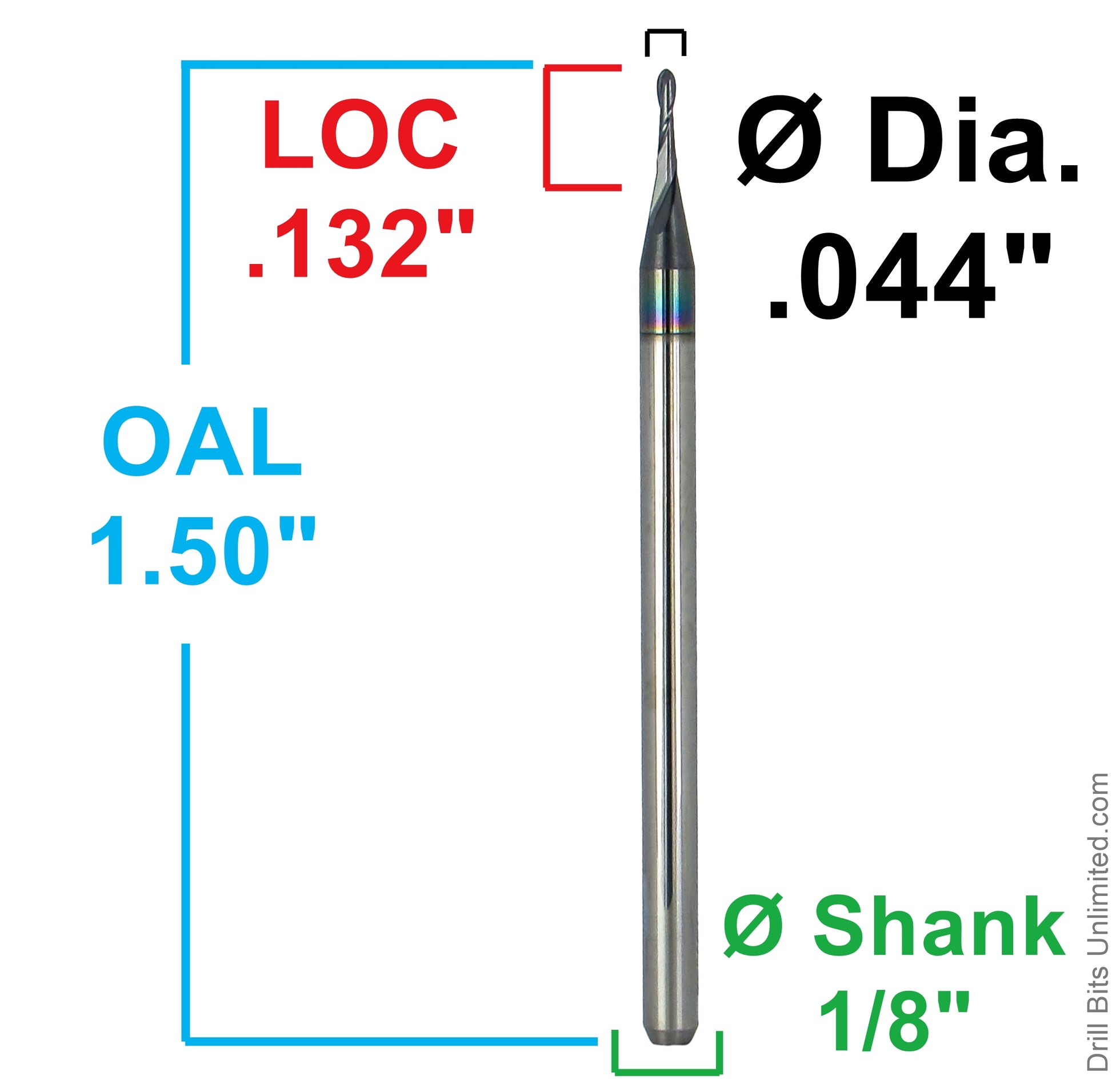

| Tool Type | Ball Nose Carbide End Mill |
| Milling Diameter | 0.0440" (1.12mm) |
| Flutes | 2 |
| Material | Solid Micrograin Carbide |
| Coating | AlTiN |
| Helix Angle | 30° |
| Length of Cut (LOC) | 0.132" |
| Overall Length (OAL) | 1.500" |
| Shank Diameter | 1/8" (0.125") |
| Cut Direction | Right Hand |
| End Type | Single End |
| Cutting Type | Center Cutting |
| Super Alloy (S) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
