0.0490" x .147" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K205
0.0490" x .147" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K205
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

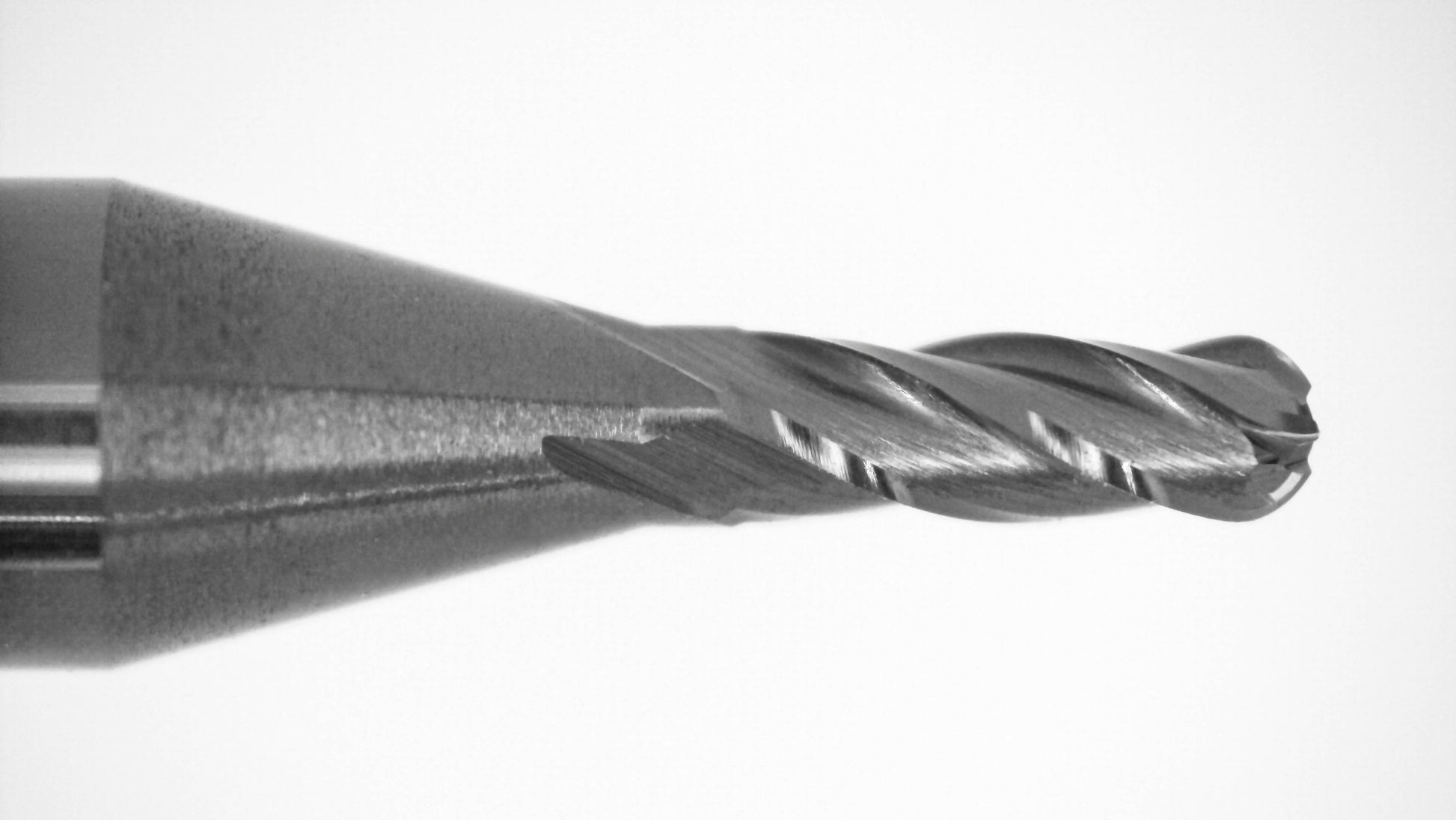

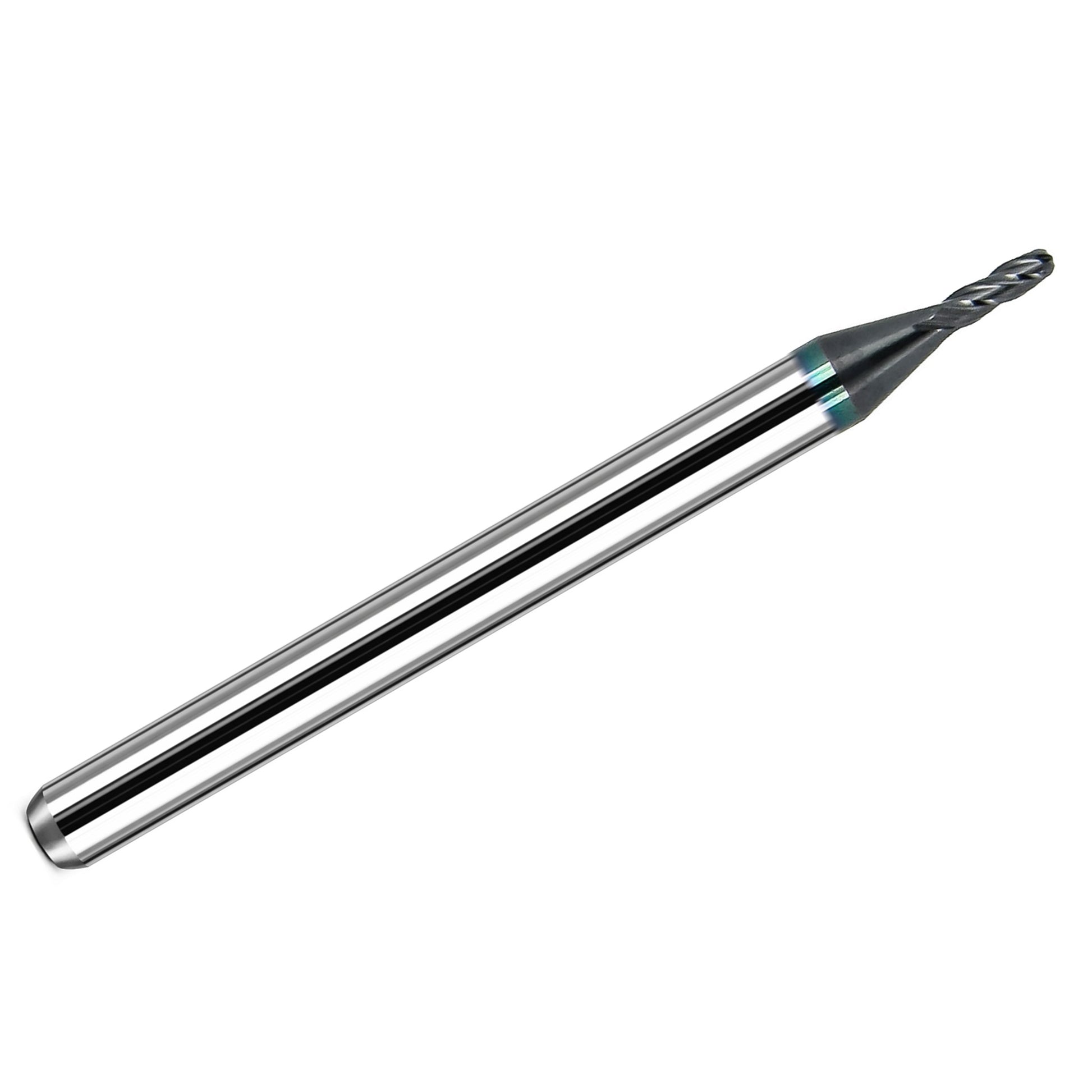

This 0.0490" 4-flute ball nose solid carbide end mill features a durable AlTiN coating for improved wear resistance and heat protection in demanding milling applications. Built with a 1/8" shank, .147" length of cut, and 1.50" overall length, it is well suited for precision profiling, contouring, and fine-detail machining.
The ball nose tip is ideal for 3D surfaces, blended contours, and rounded-bottom features where a square end mill is not preferred. The 4-flute design offers increased edge engagement and smooth cutting performance in appropriate materials and setups.
Manufacturer Part Number: 1825-0490L147

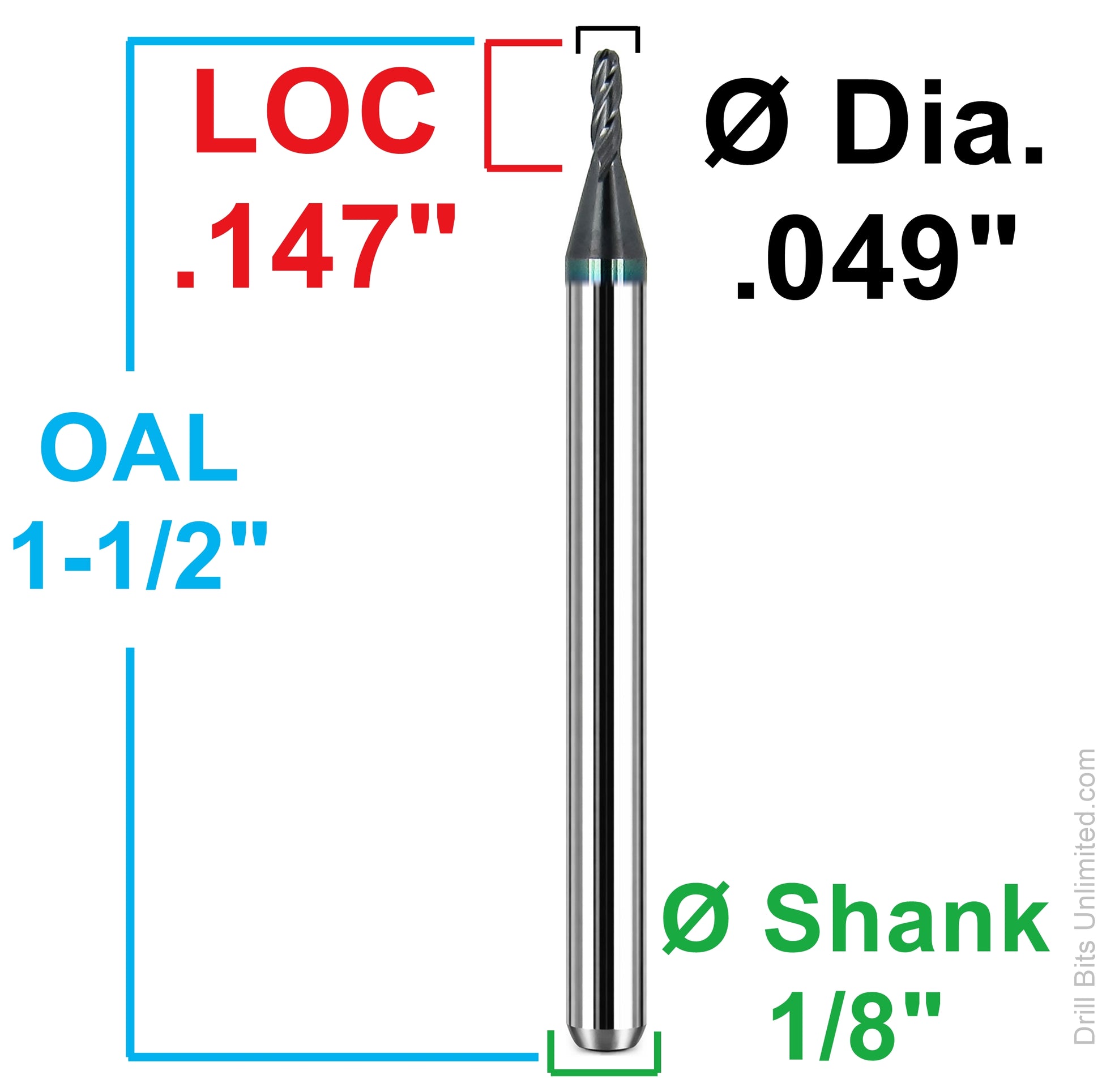

- Diameter: 0.0490"
- Flute Count: 4
- End Style: Ball Nose
- Coating: AlTiN
- Shank Diameter: 1/8"
- Length of Cut: 0.147"
- Overall Length: 1.50"
- Material: Solid Carbide
- Series: 1825
Common applications: 3D contouring, radius features, fine profiling, detailed cavity work, and precision finishing passes.
