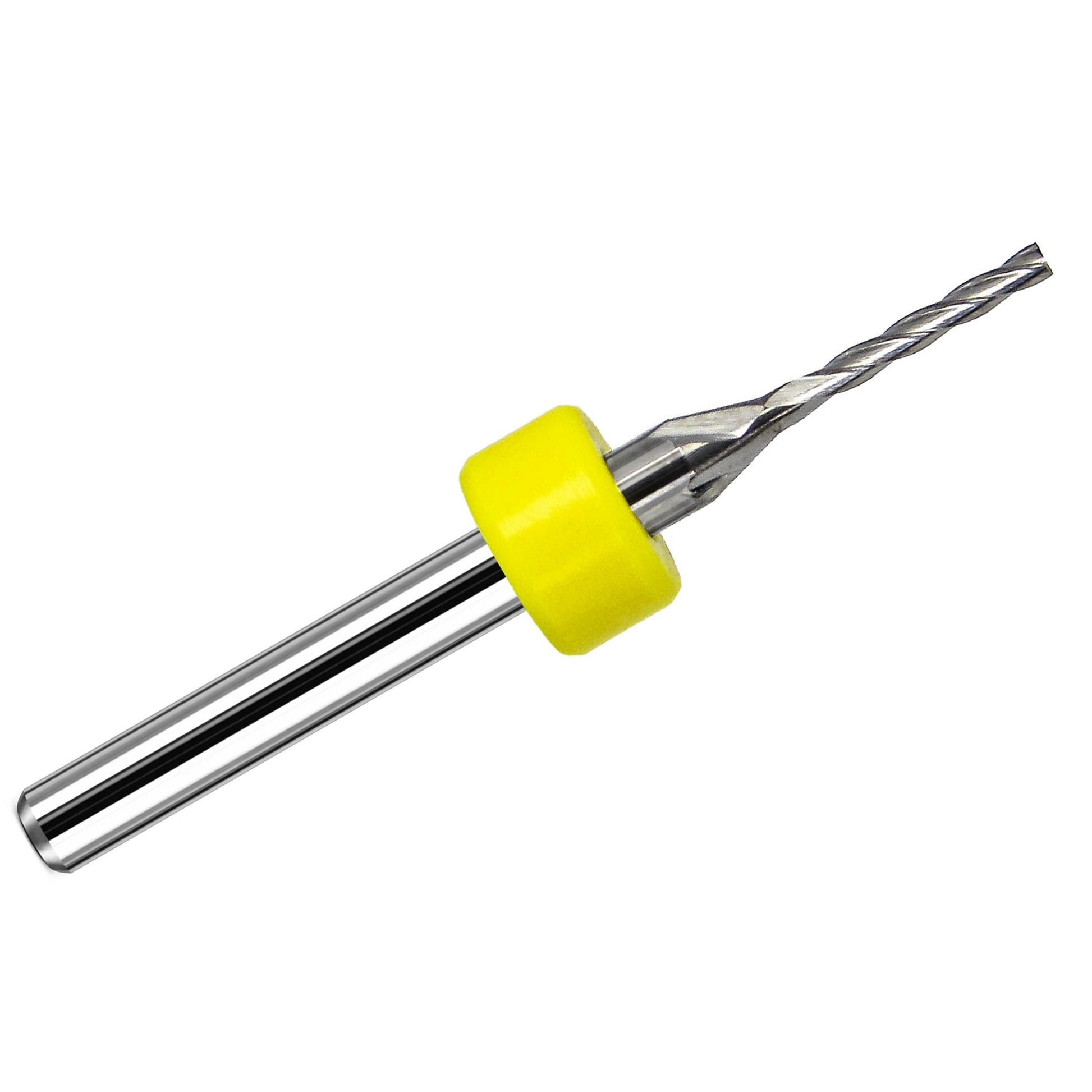

• 0.0500 inch 4 flute up cut carbide end mill with square end and 1/8 inch shank

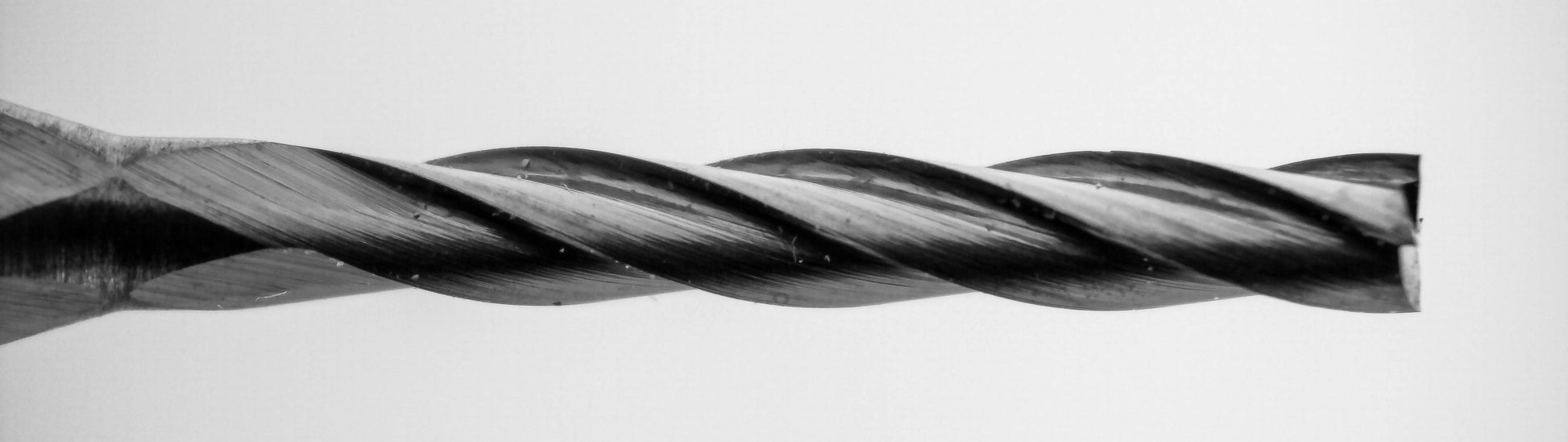

  • Close-up of square end tip on 0.0500 inch 4 flute up cut carbide end mill

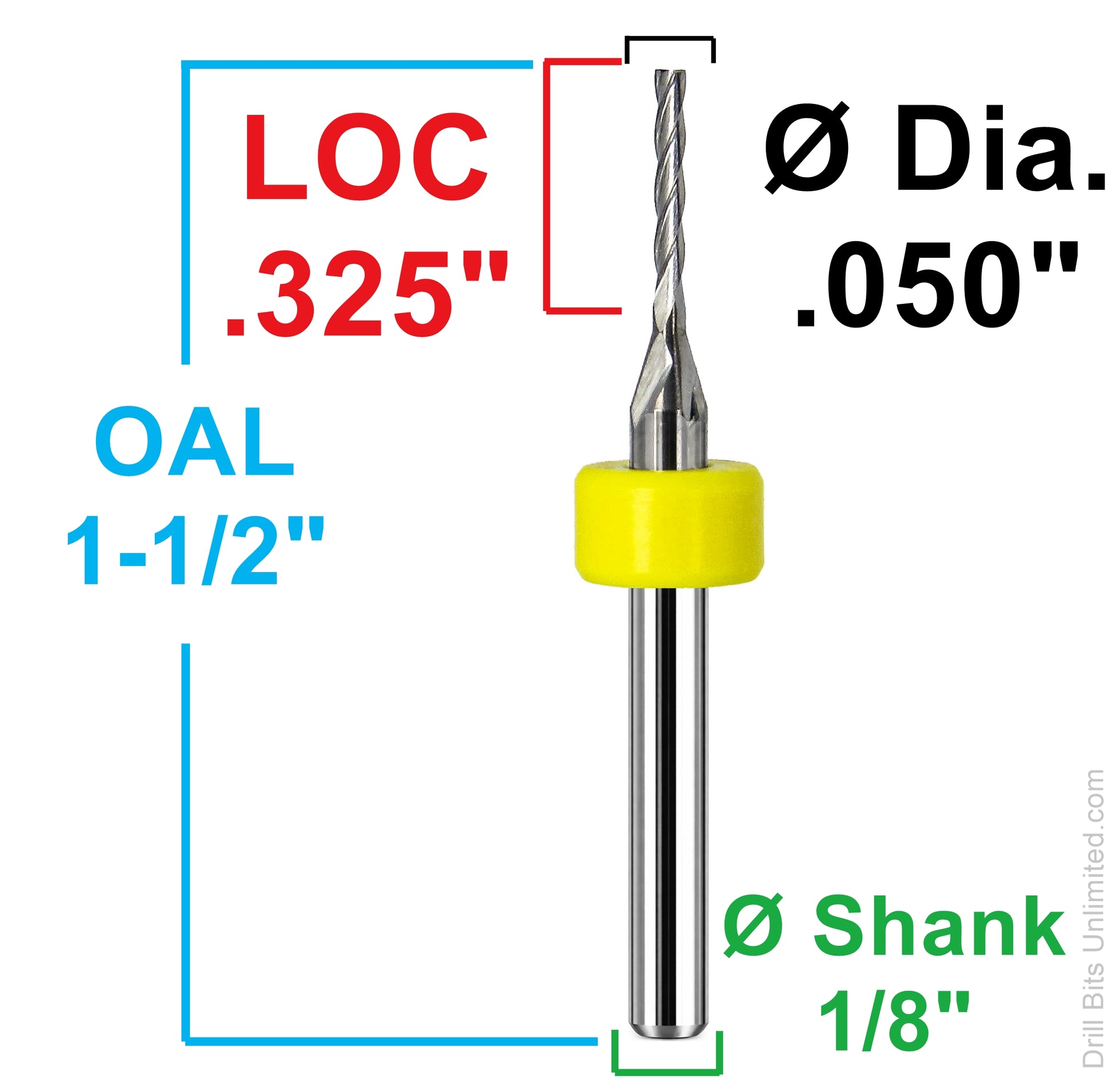

  • Dimensional drawing of 0.0500 inch 4 flute up cut carbide end mill showing .325 inch flute length, 1-1/2 inch OAL, and 1/8 inch shank
1 4

Drill Bits Unlimted

0.0500" x .325" LOC 4 Flute Up Cut Carbide End Mill, Square End, 1/8" Shank AP-49

0.0500" x .325" LOC 4 Flute Up Cut Carbide End Mill, Square End, 1/8" Shank AP-49

$5.49 USD
$5.49 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.

This 4 flute up cut carbide end mill features a 0.0500" cutting diameter, .325" flute length, 1-1/2" overall length, and a 1/8" shank. Its solid carbide construction makes it a practical choice for precision milling and profiling in a range of machinable materials.

The 4-flute up-cut geometry is well suited for applications requiring stable cutting action and efficient chip evacuation. Its up-cut design helps move chips upward and can improve bottom-edge surface quality in appropriate materials.

This tool features a square end plunge tip and is intended for precision slotting, profiling, and contouring work.

Typical Applications

  • Precision slotting
  • Profiling and contouring
  • Light milling in metals
  • Plastic machining
  • Fine-detail CNC work

Benefits

  • 4-flute design supports stable cutting and a finer finish in appropriate materials
  • Up-cut geometry can improve bottom-edge surface quality while helping evacuate chips
  • Square end suitable for slotting, profiling, and general end milling work
  • Small 0.0500" diameter is useful for detail work
  • Solid carbide construction offers rigidity and wear resistance

Specifications

Tool Type Carbide End Mill
Flute Count 4
End Type Square End
Cut Direction Up Cut
Cutting Diameter 0.0500"
Flute Length .325"
Overall Length 1-1/2"
Shank Diameter 1/8"
Material Solid Carbide
Finish Bright / Uncoated
