Drill Bits Unlimted

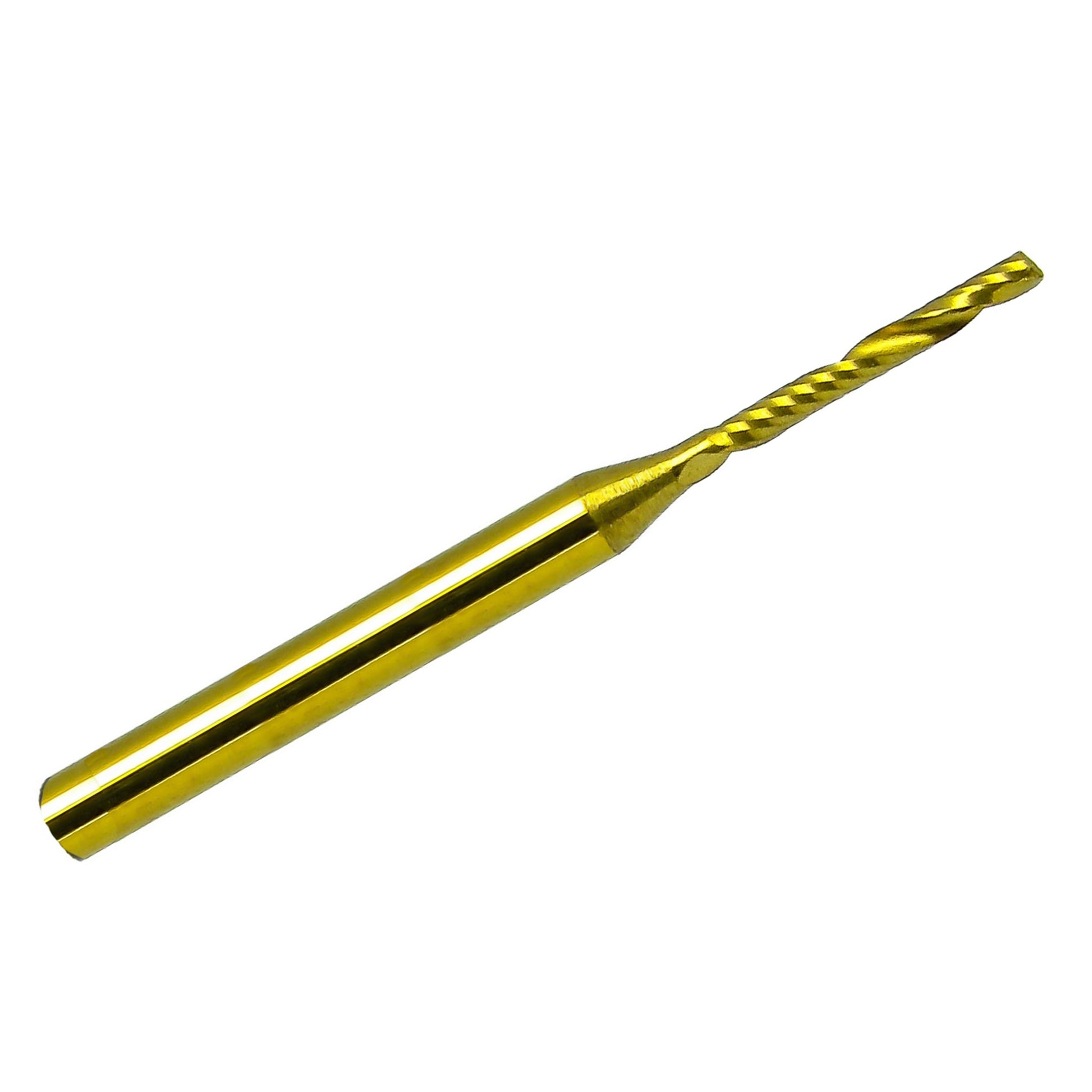

0.0591" (1.50mm) x 12mm Flute Length Single O-Flute Carbide End Mill, TiN Coated, 1/8" Shank MO-120
0.0591" (1.50mm) x 12mm Flute Length Single O-Flute Carbide End Mill, TiN Coated, 1/8" Shank MO-120
Regular price
$8.99 USD
Regular price
Sale price
$8.99 USD
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

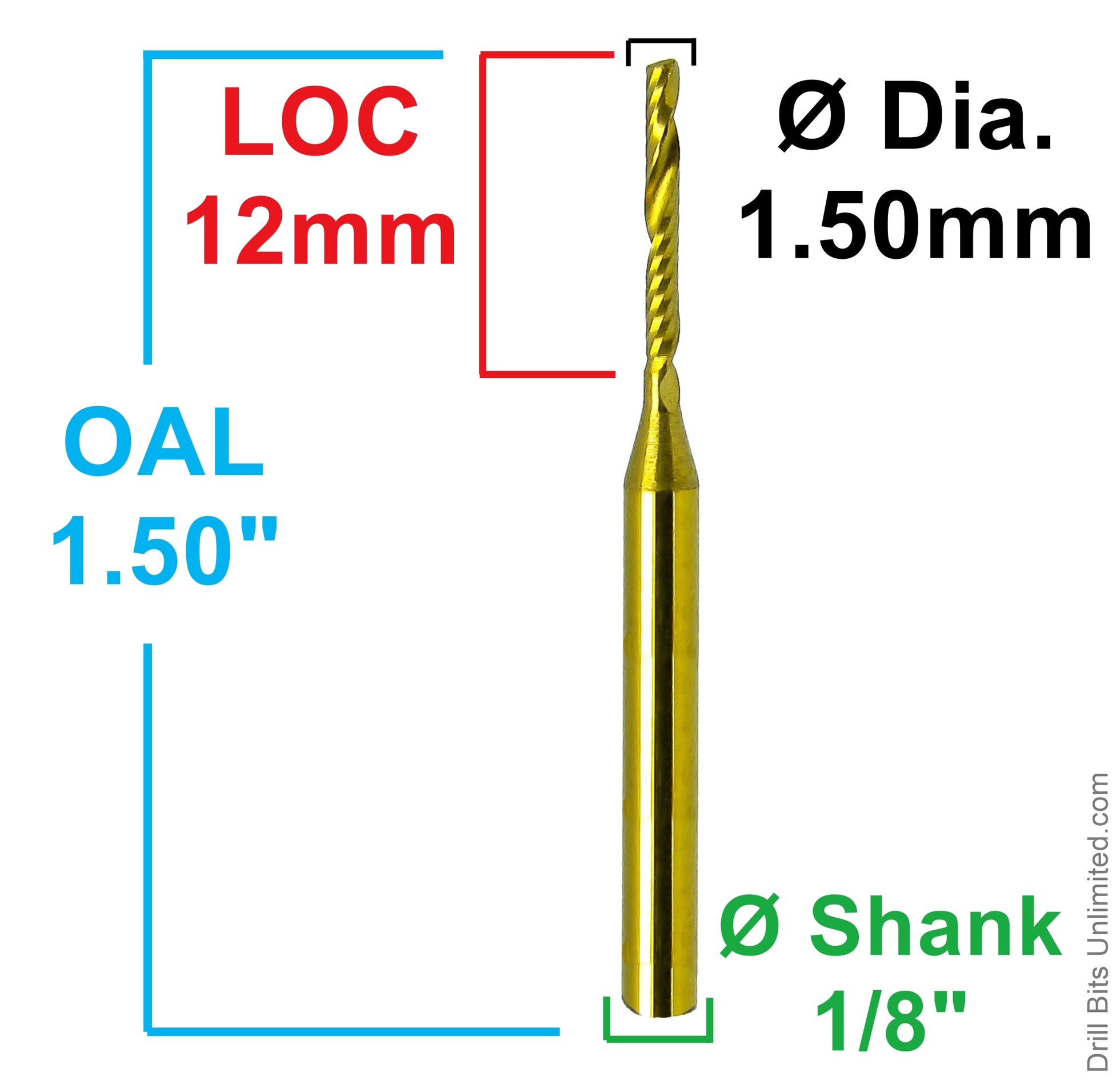

This single O-flute carbide end mill features a 0.0591" (1.50mm) cutting diameter, 12mm flute length, 1.50" overall length, and a 1/8" shank. The titanium nitride (TiN) coating helps improve wear resistance in routing and milling applications involving suitable non-ferrous materials.

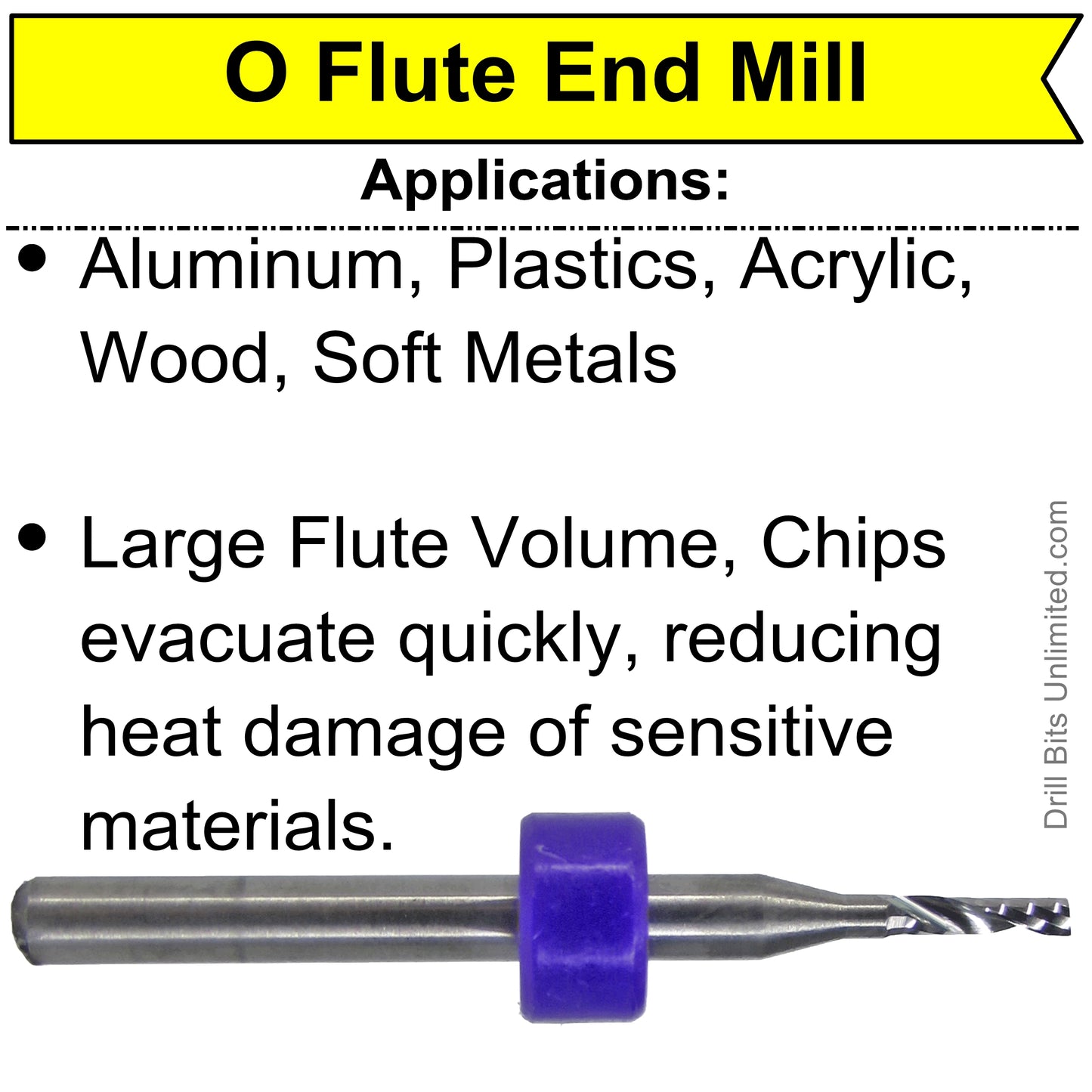

The O-flute geometry is well suited for cutting acrylic, plastic, PVC, aluminum, and other non-ferrous materials. Its up-cut design helps evacuate chips efficiently and can improve bottom-edge cut quality in many routing applications.
Typical Applications
- Acrylic and plastic machining
- PVC cutting
- Aluminum routing and milling
- Profiling and contouring
- Slotting and detail work
- CNC applications requiring efficient chip evacuation
Benefits
- Single O-flute design supports efficient chip evacuation in softer materials
- TiN coating helps improve wear resistance
- Up-cut geometry can improve bottom-edge cut quality while clearing chips efficiently
- Square end suitable for slotting, profiling, and general routing work
- 1/8" shank fits many compact CNC routers and spindles
Specifications
| Tool Type | Carbide End Mill |
| Flute Count | 1 |
| Geometry | O-Flute |
| End Type | Square End |
| Cut Direction | Up Cut |
| Cutting Diameter | 0.0591" (1.50mm) |
| Flute Length | 12mm |
| Overall Length | 1.50" |
| Shank Diameter | 1/8" |
| Coating | Titanium Nitride (TiN) |
| Material | Solid Carbide |
