0.0591" (1.50mm) x 8.5mm LOC DLC-Coated Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank – MO-135

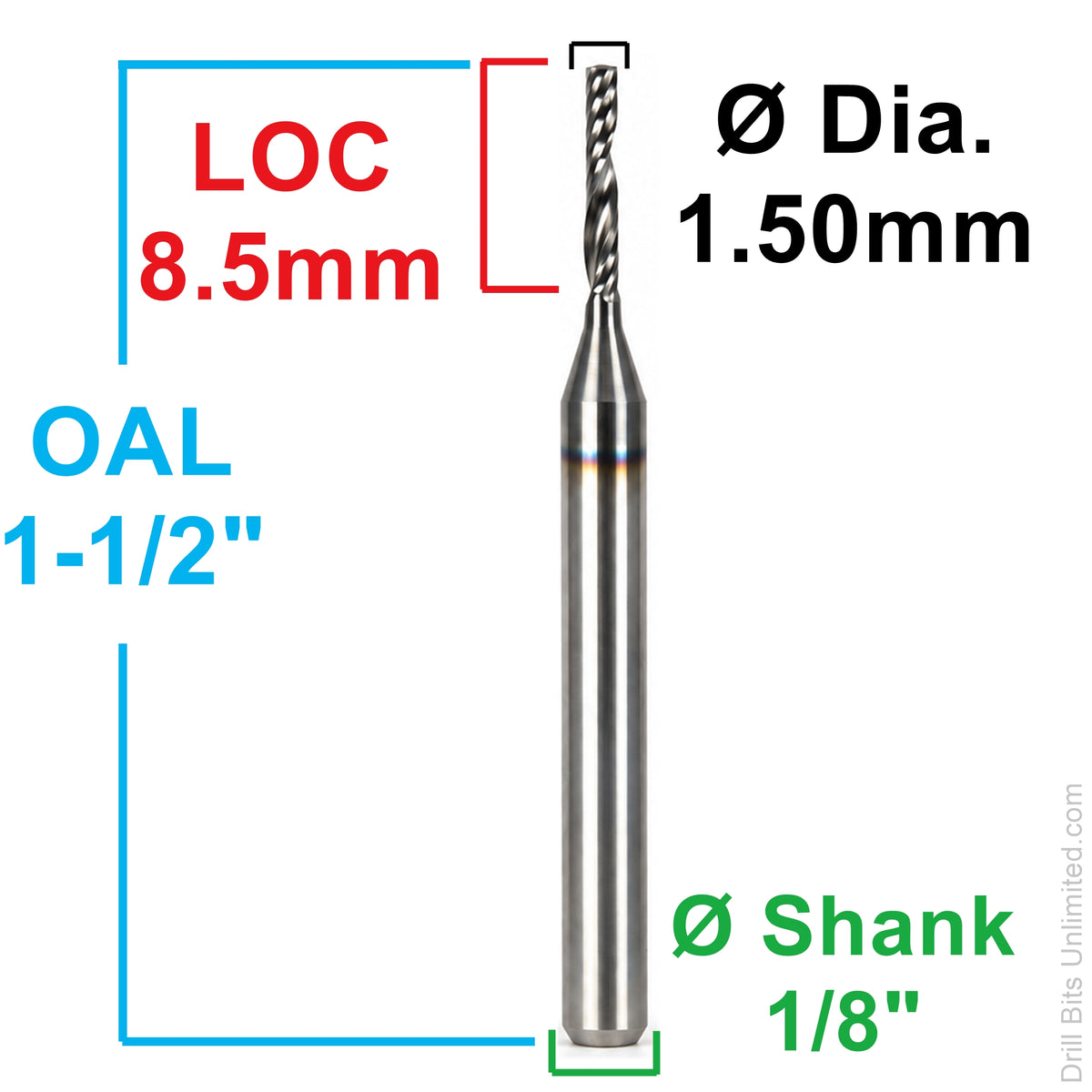

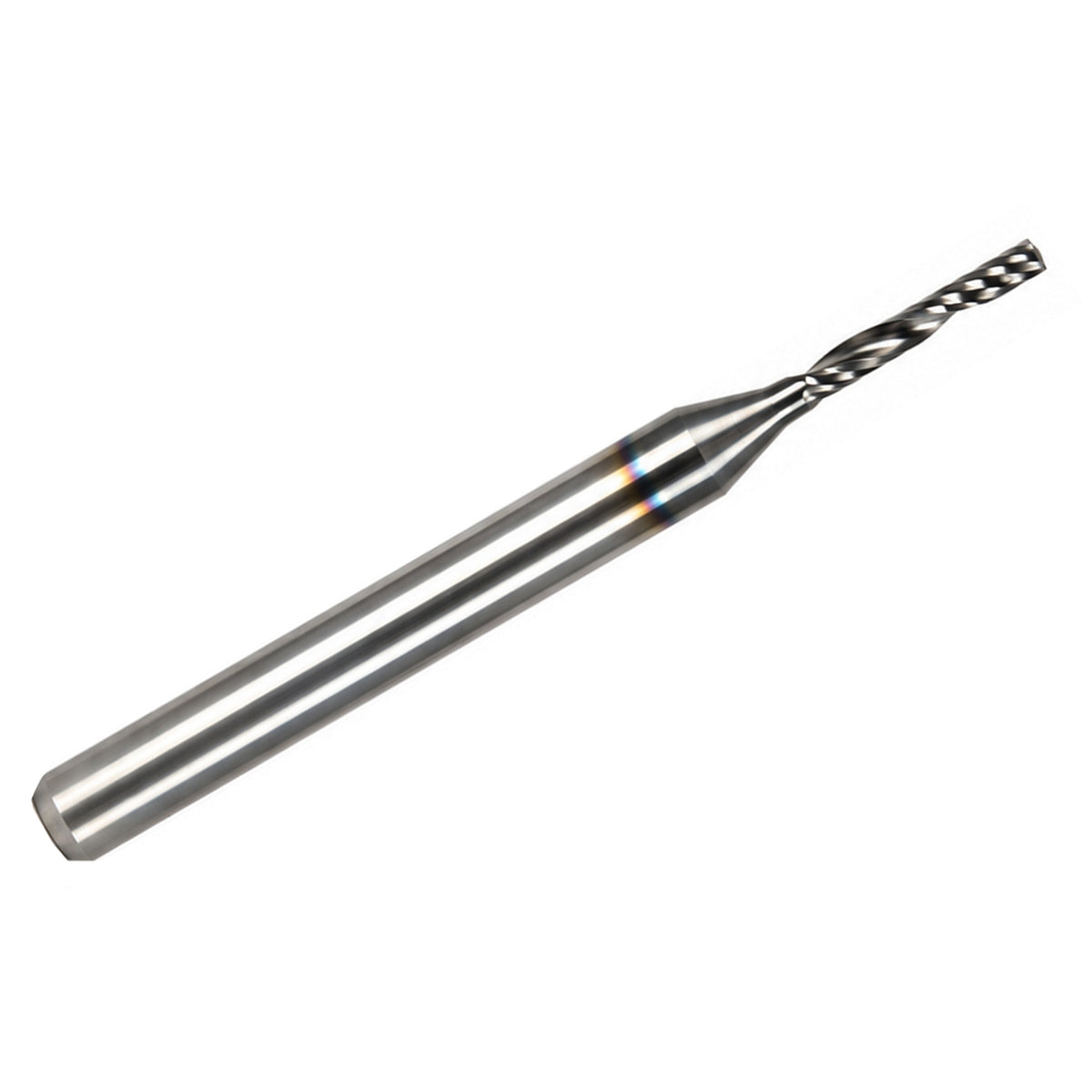

This DLC-coated single O-flute solid carbide end mill features a 0.0591" (1.50mm) cutting diameter, 8.5mm length of cut, single O-flute geometry, and a standard 1/8" shank. It is designed for precision CNC routing, milling, profiling, slotting, and trimming in plastics, wood, and suitable non-ferrous materials.

The O-flute geometry provides generous chip space and efficient chip evacuation, making it especially well suited for machining acrylic, plastics, PVC, wood, and wood-based materials. It may also be used for aluminum and suitable non-ferrous metals when proper feeds, speeds, chip clearing, and workholding are used.

The DLC (Diamond-Like Carbon) coating provides a low-friction, wear-resistant cutting surface designed to help reduce material adhesion and improve wear resistance compared with an otherwise similar uncoated cutter. The polished cutting edge and single-flute design help promote efficient chip evacuation and reduce material buildup during machining.

The up-cut design helps pull chips up and away from the cutting area for efficient evacuation. It can also provide good bottom-edge cut quality in many routing applications. Because an up-cut tool pulls chips upward, proper workholding is important and the top edge may require masking or finishing depending on the material and application.

Typical Applications

• Acrylic and plastic machining
• PVC cutting
• Wood and wood-based material routing
• Signmaking and plastic fabrication
• Aluminum routing and milling when properly set up
• Suitable non-ferrous material cutting
• Fine profiling and contouring
• Narrow slotting and edge trimming
• Precision CNC applications requiring efficient chip evacuation

Tool Features

• DLC coating provides a low-friction, wear-resistant cutting surface
• Polished cutting edge helps promote clean cutting and efficient chip evacuation

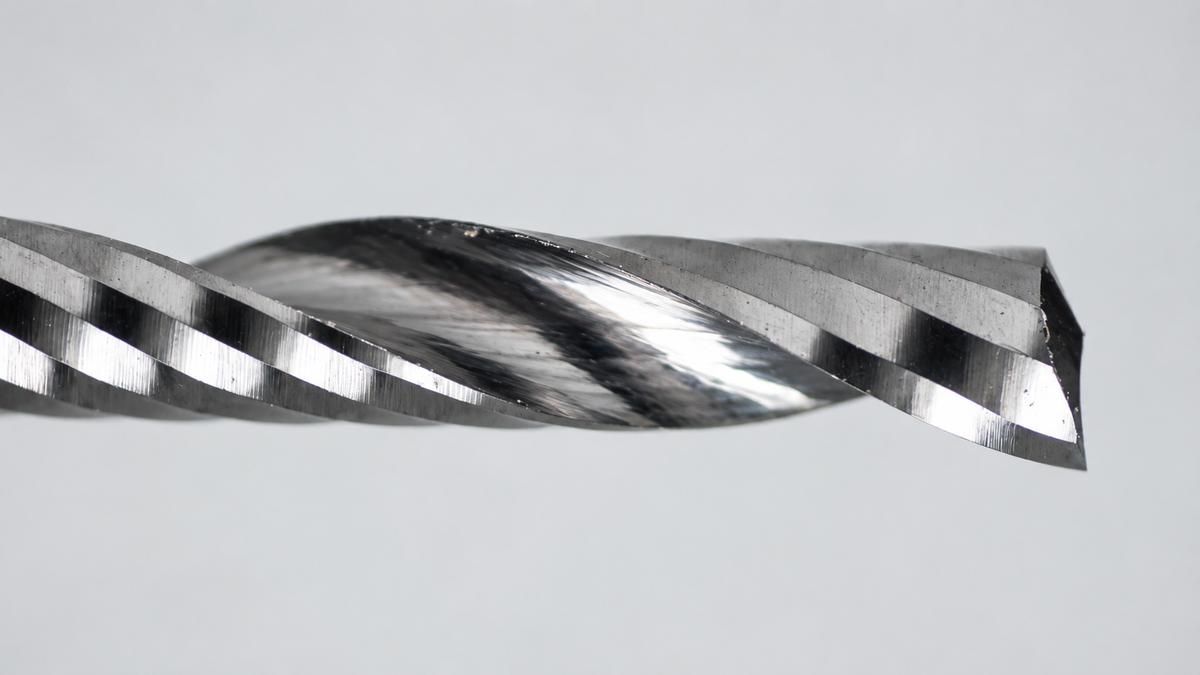

• Single O-flute geometry provides generous chip space for efficient evacuation
• Well suited for acrylic, plastics, PVC, wood, aluminum, and suitable non-ferrous materials
• Up-cut geometry helps move chips up and away from the cutting area
• 8.5mm LOC provides useful cutting depth while maintaining a compact small-diameter tool geometry
• Square end geometry is suitable for slotting, profiling, trimming, and general routing work
• Solid carbide construction provides rigidity and wear resistance
• Standard 1/8" shank fits many compact CNC routers and precision collet setups

Specifications
