0.0591" (1.5mm) x 8mm LOC Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank | MO-131

0.0591" (1.50mm) x 8mm LOC Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank – MO-131

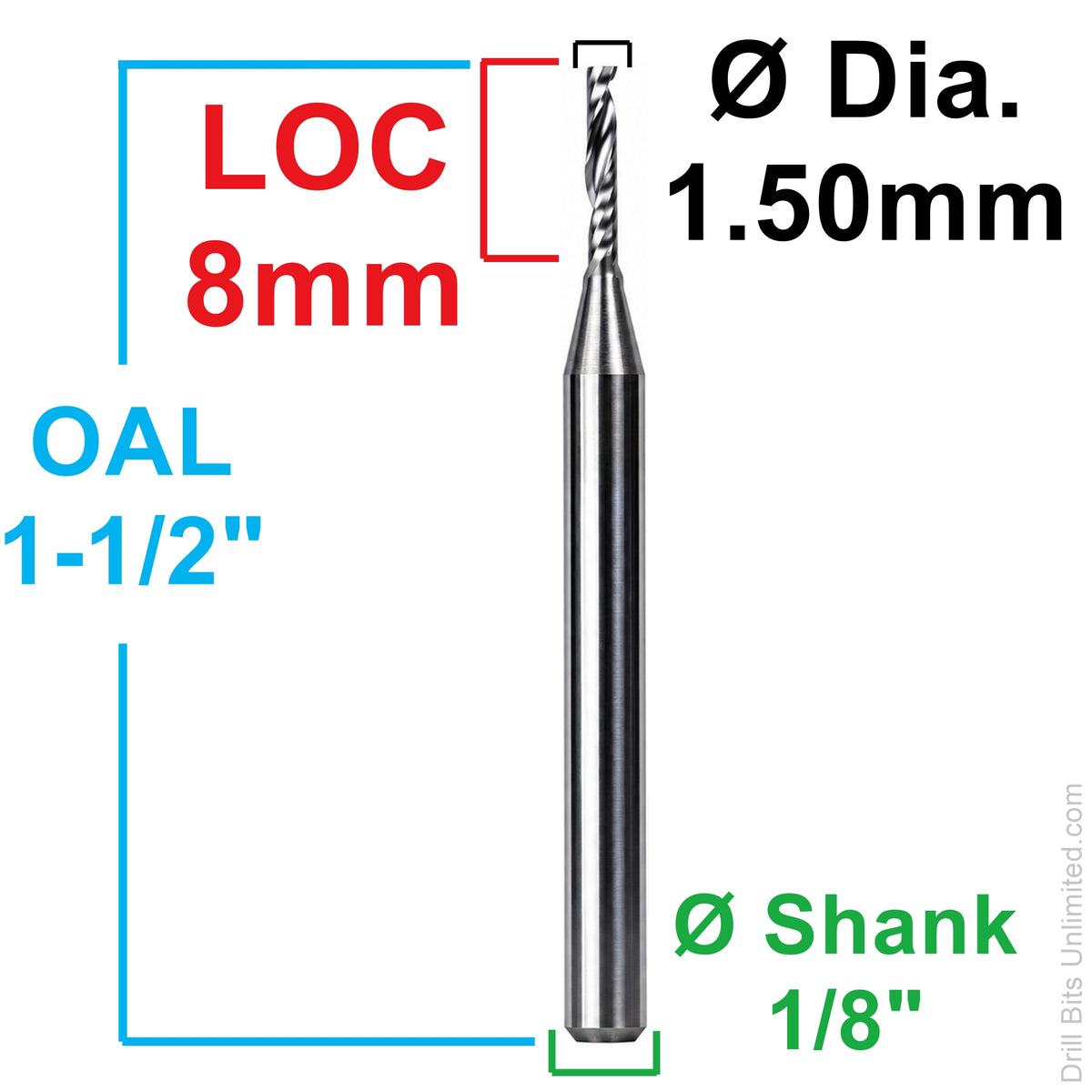

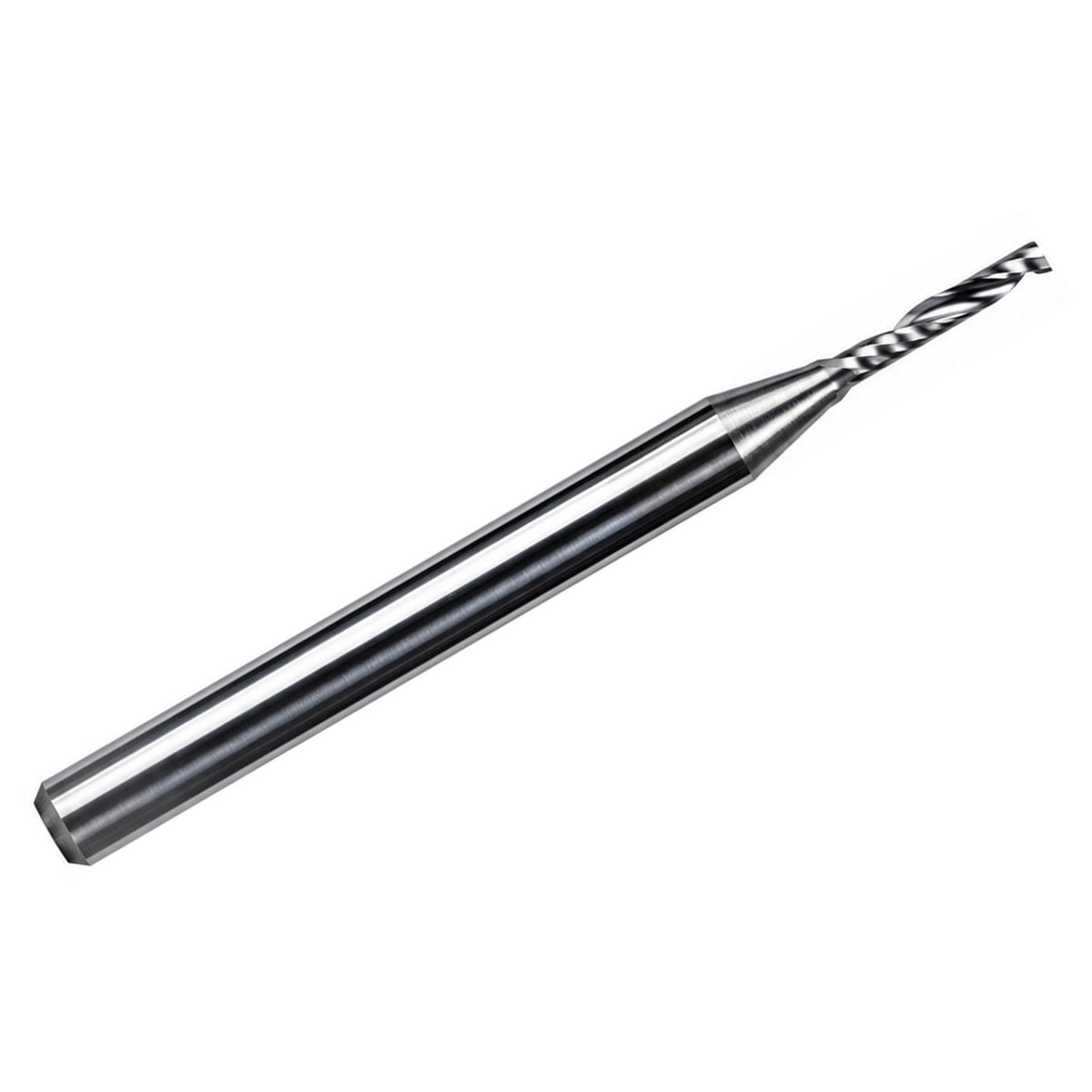

This single O-flute solid carbide end mill features a 0.0591" (1.50mm) cutting diameter, 8mm length of cut, single O-flute geometry, and a standard 1/8" shank. Its polished, uncoated solid carbide construction makes it well suited for precision CNC routing, milling, profiling, slotting, and trimming in plastics and other suitable soft or non-ferrous materials.

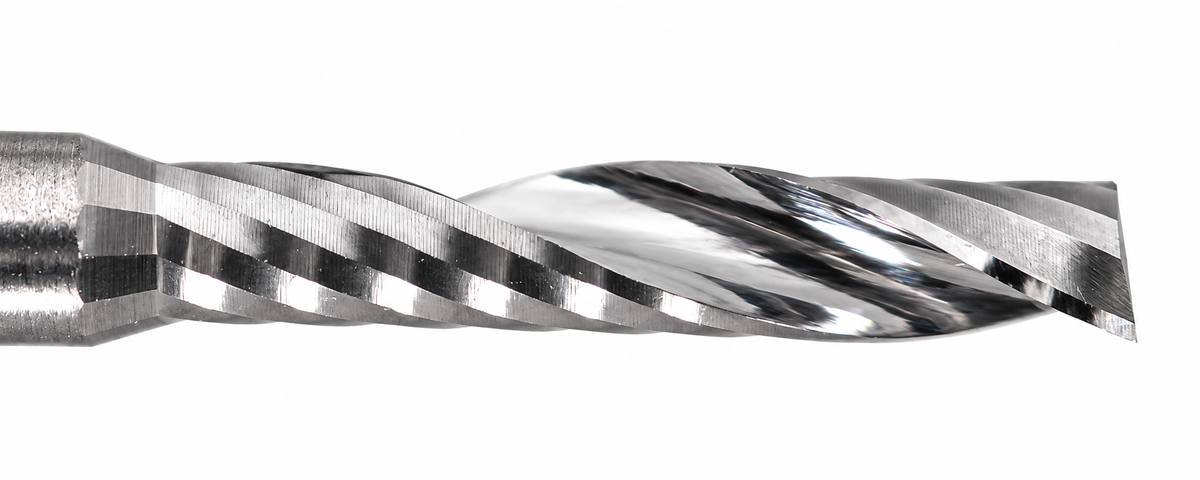

The O-flute geometry provides generous chip space and efficient chip evacuation, making it especially well suited for machining acrylic, plastics, HDPE, polycarbonate, PVC, and other machinable plastic materials. It may also be used for suitable wood products, aluminum, and other non-ferrous materials when proper feeds, speeds, chip clearing, and workholding are used.

The polished, uncoated carbide cutting surface provides a sharp cutting edge without an added coating layer. The polished flute surface helps promote smooth chip flow, which is especially useful when machining plastics where heat buildup and chip re-cutting can affect cut quality.

The up-cut design pulls chips upward and away from the cutting area for efficient evacuation. This is particularly useful in slotting and deeper cuts where chip clearing is important. Up-cut geometry can also provide good bottom-edge cut quality. Because the cutting action tends to lift the workpiece and chips upward, secure workholding is recommended and top-edge finish should be considered when the visible upper surface is critical.

Typical Applications

• Acrylic and plastic machining
• HDPE and polyethylene
• Polycarbonate
• PVC and similar plastics
• Signmaking and plastic fabrication
• Fine profiling and contouring
• Slotting and edge trimming
• Small-feature CNC machining
• Suitable wood and wood-based materials
• Aluminum and suitable non-ferrous materials when properly set up

Tool Features

• 1.50mm cutting diameter for fine-detail and narrow-feature machining
• Single O-flute geometry provides generous chip space for efficient evacuation
• Polished, uncoated cutting surface helps promote smooth chip flow
• Well suited for acrylic, HDPE, polycarbonate, PVC, and other machinable plastics
• Up-cut geometry pulls chips upward and away from the cutting area
• 8mm LOC provides useful cutting depth for profiling, slotting, and trimming
• Square end geometry is suitable for slotting, profiling, trimming, and general routing work
• Solid carbide construction provides rigidity and wear resistance
• Standard 1/8" shank fits many compact CNC routers and precision collet setups

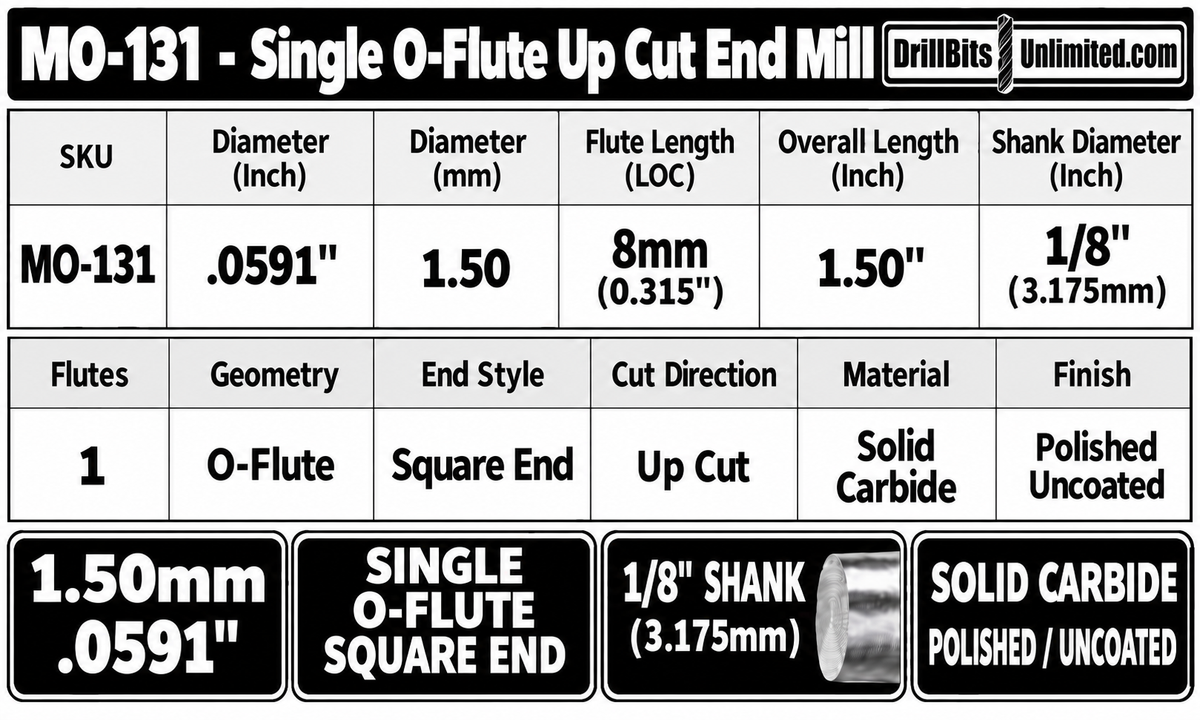

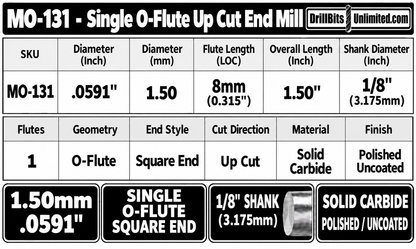

Specifications
