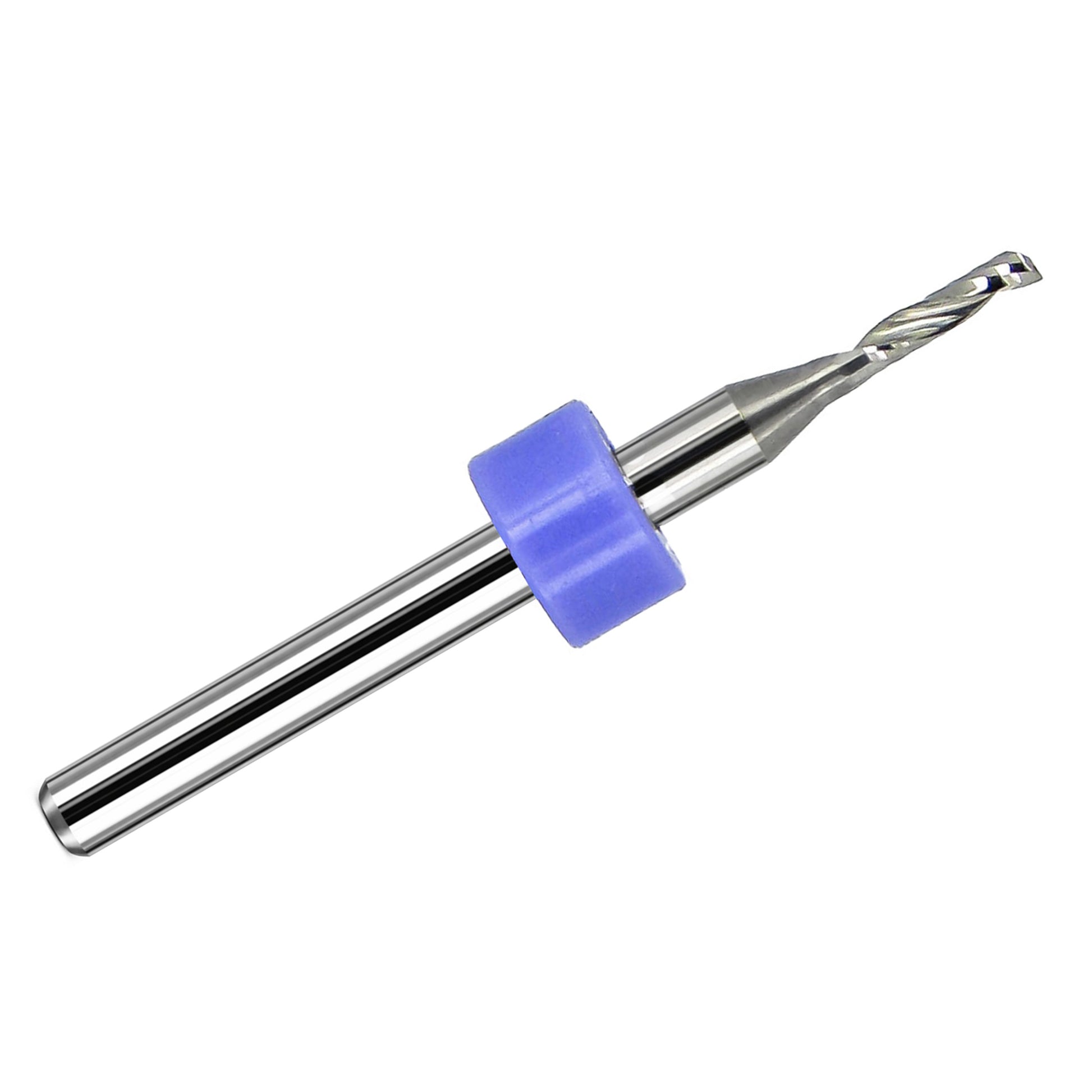

• Lightly used 1/16 inch single O-flute carbide end mill with 1/8 inch shank

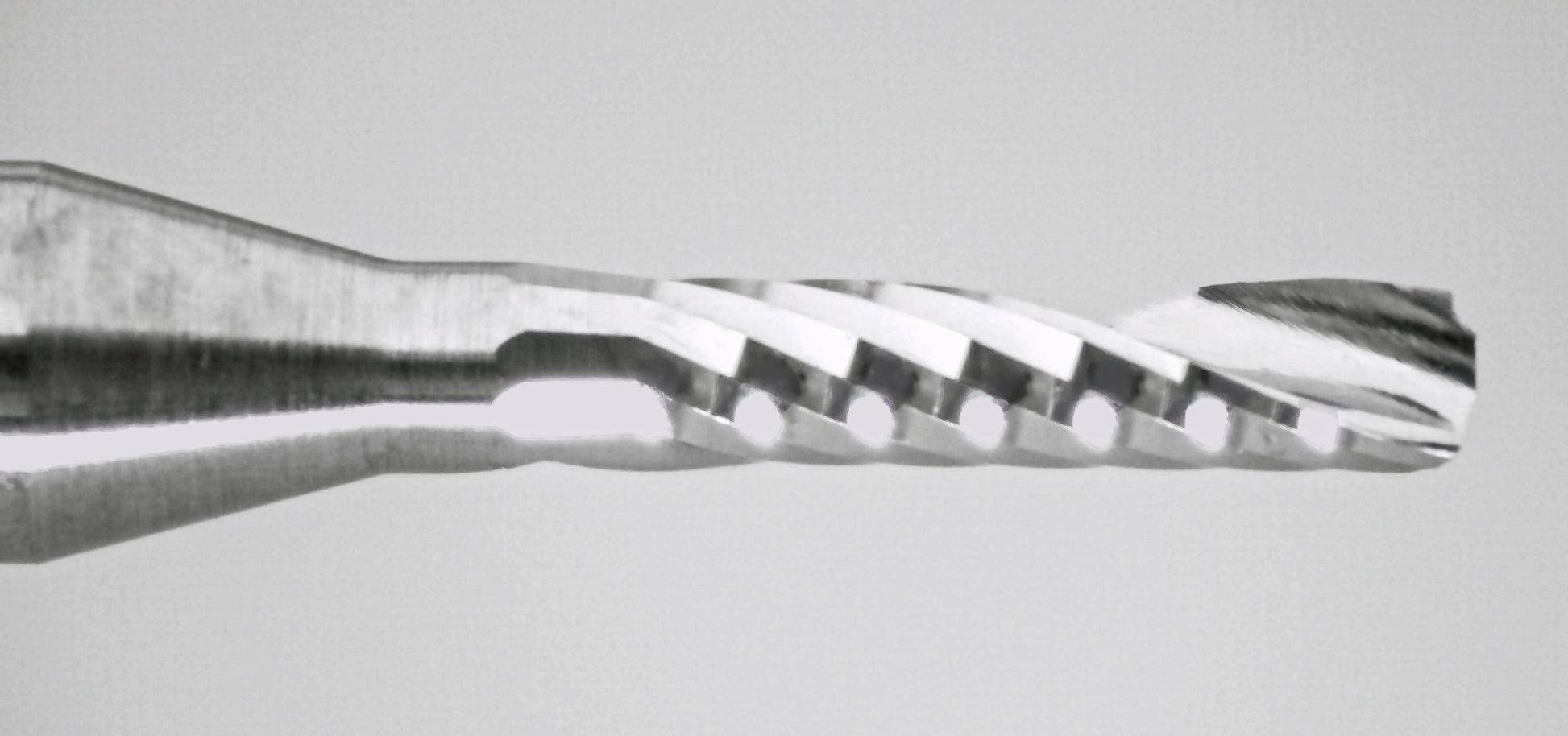

  • Close-up of cutting end on lightly used 1/16 inch single O-flute carbide end mill

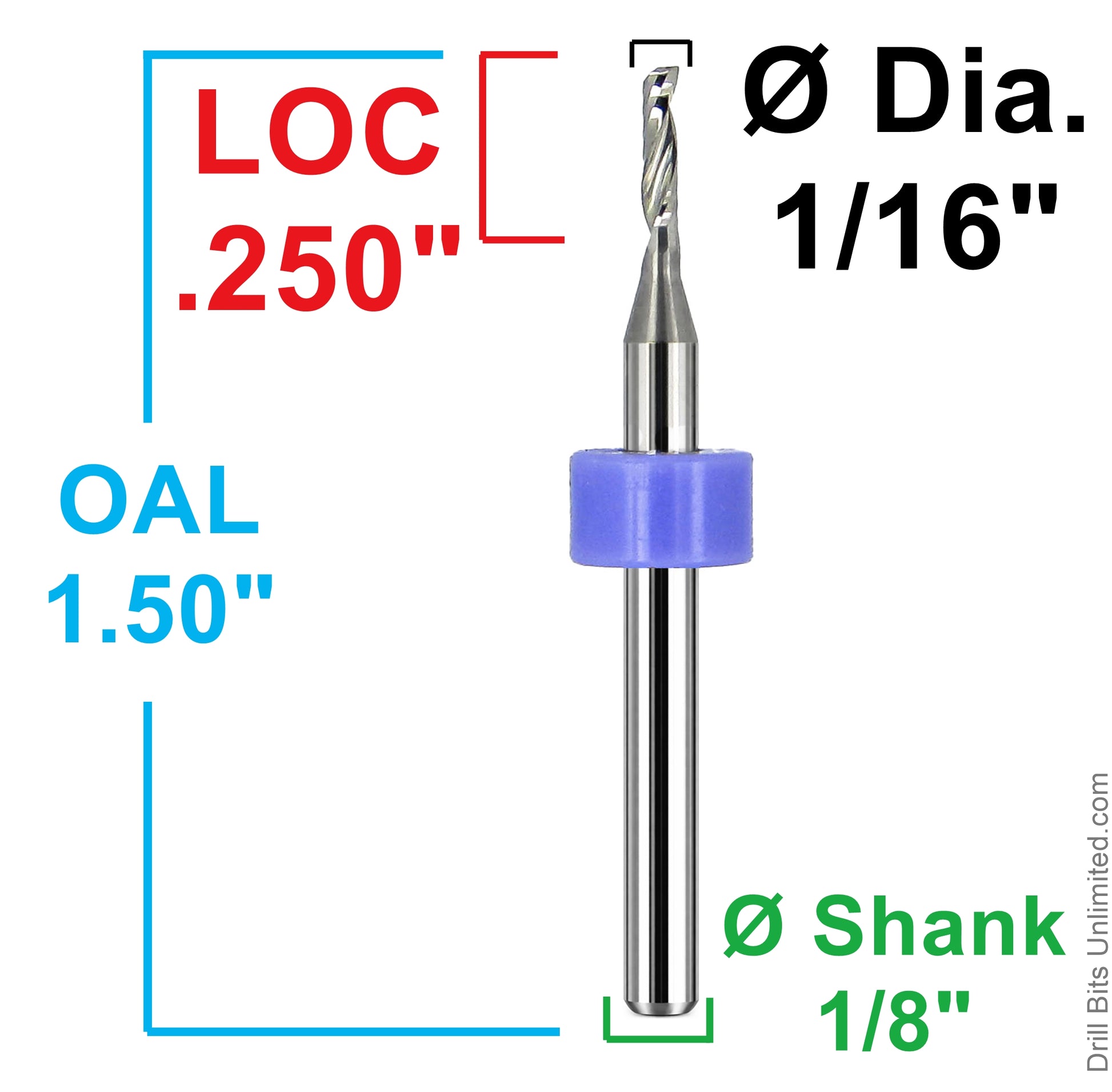

  • Dimensional drawing of lightly used 1/16 inch single O-flute carbide end mill showing .250 inch flute length, 1.50 inch OAL, and 1/8 inch shank
1 3

Drill Bits Unlimted

0.0625" (1/16") x .250" Flute Length Up-Cut Single O-Flute Carbide End Mill, 1/8" Shank LUM-A

0.0625" (1/16") x .250" Flute Length Up-Cut Single O-Flute Carbide End Mill, 1/8" Shank LUM-A

$6.49 USD
$0.00 USD $6.49 USD
Sale Sold out
Shipping calculated at checkout.

Buy more and Save!

Minimum Qty Discount
10 + 3% off
25 + 5% off
50 + 8% off
100 + 10% off

This single O-flute carbide end mill features a 0.0625" (1/16") cutting diameter, .250" flute length, 1.50" overall length, and a 1/8" shank. It is made from solid tungsten carbide with a bright, uncoated finish.

The O-flute geometry is well suited for cutting acrylic, plastic, PVC, aluminum, and other soft non-ferrous materials. Its up-cut design helps evacuate chips efficiently and can improve bottom-edge cut quality in many routing applications.

This tool is being sold as lightly used. Please review the photos carefully for actual condition.

Typical Applications

  • Acrylic and plastic machining
  • PVC cutting
  • Aluminum and soft non-ferrous metal work
  • Profiling and contouring
  • Slotting and detail work
  • CNC applications requiring efficient chip evacuation

Benefits

  • Single O-flute design supports efficient chip evacuation in plastics and soft non-ferrous materials
  • Up-cut geometry can improve bottom-edge cut quality while clearing chips efficiently
  • Polished flute geometry helps chips curl and clear more cleanly
  • Square end suitable for slotting, profiling, and general routing work
  • 1/8" shank fits many compact CNC routers and spindles

Specifications

Tool Type Carbide End Mill
Condition Lightly Used
Flute Count 1
Geometry O-Flute
End Type Square End
Cut Direction Right Hand
Flute Direction Right Hand (Up Cut)
Cutting Diameter 0.0625" (1/16") / 1.60mm
Flute Length .250"
Overall Length 1.50"
Shank Diameter 1/8" (.125)
Material Solid Tungsten Carbide
Finish Bright / Uncoated
Helix Angle 24°
Center Cutting Yes
Applications Plastics, Aluminum, Soft Metals

Returns

Returns are accepted within 30 days of delivery for unused items in resalable condition. Original shipping charges are non-refundable unless the return is due to our error. Late, bulk, used, clearance, or special-order returns may be limited or subject to approval. See our Refund Policy for full details.
