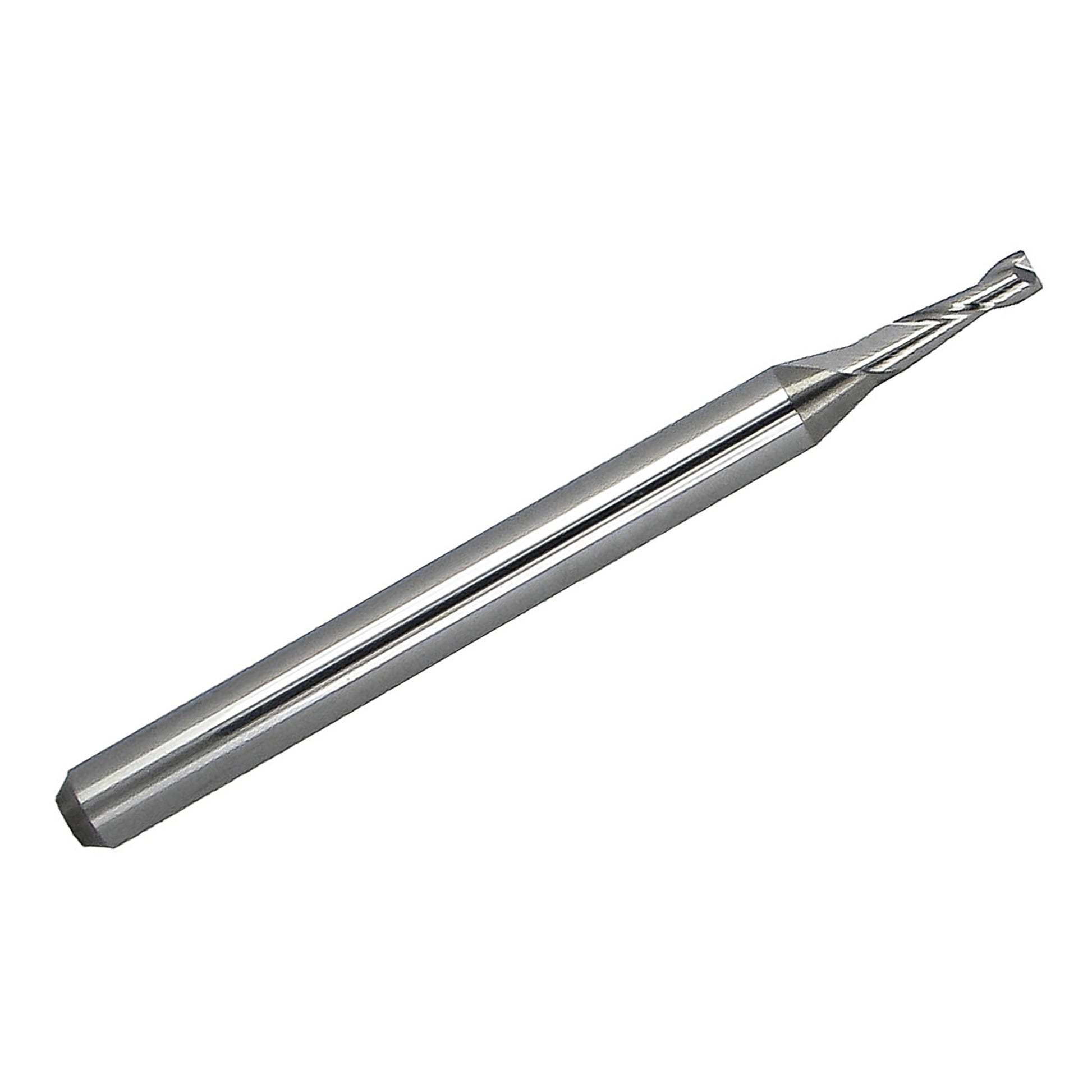

0.065" Corner Radius Carbide End Mill – 0.005 Radius – 2 Flute – Kyocera K023

This 0.065" corner radius solid carbide end mill from Kyocera features a 0.005" corner radius designed to reduce edge chipping and improve tool life compared to sharp square-end tools. The small radius strengthens the cutting edge while maintaining excellent detail capability for precision CNC milling operations.

Manufactured from micrograin carbide in the United States, this 2-flute center-cutting end mill is optimized for non-ferrous materials, plastics, and composite materials where clean edge quality and tool strength are important.

The 30° helix geometry provides efficient chip evacuation while maintaining smooth cutting action, making this tool well suited for slotting, profiling, and finishing operations in aluminum and other softer materials.

Manufacturer: Kyocera

Manufacturer Part Number: 1612-0650.195CR

Typical Applications

• Precision profiling and contour milling
• Aluminum machining
• Plastics and acrylic machining
• Composite materials
• Small-feature CNC milling
• Reduced edge chipping compared to square end mills

Benefits

• 0.005" corner radius strengthens the cutting edge
• Micrograin carbide provides excellent rigidity and wear resistance
• 2-flute geometry optimized for non-ferrous materials
• Center cutting design allows plunging
• Bright uncoated finish suitable for aluminum and plastics
• Precision manufactured by Kyocera
