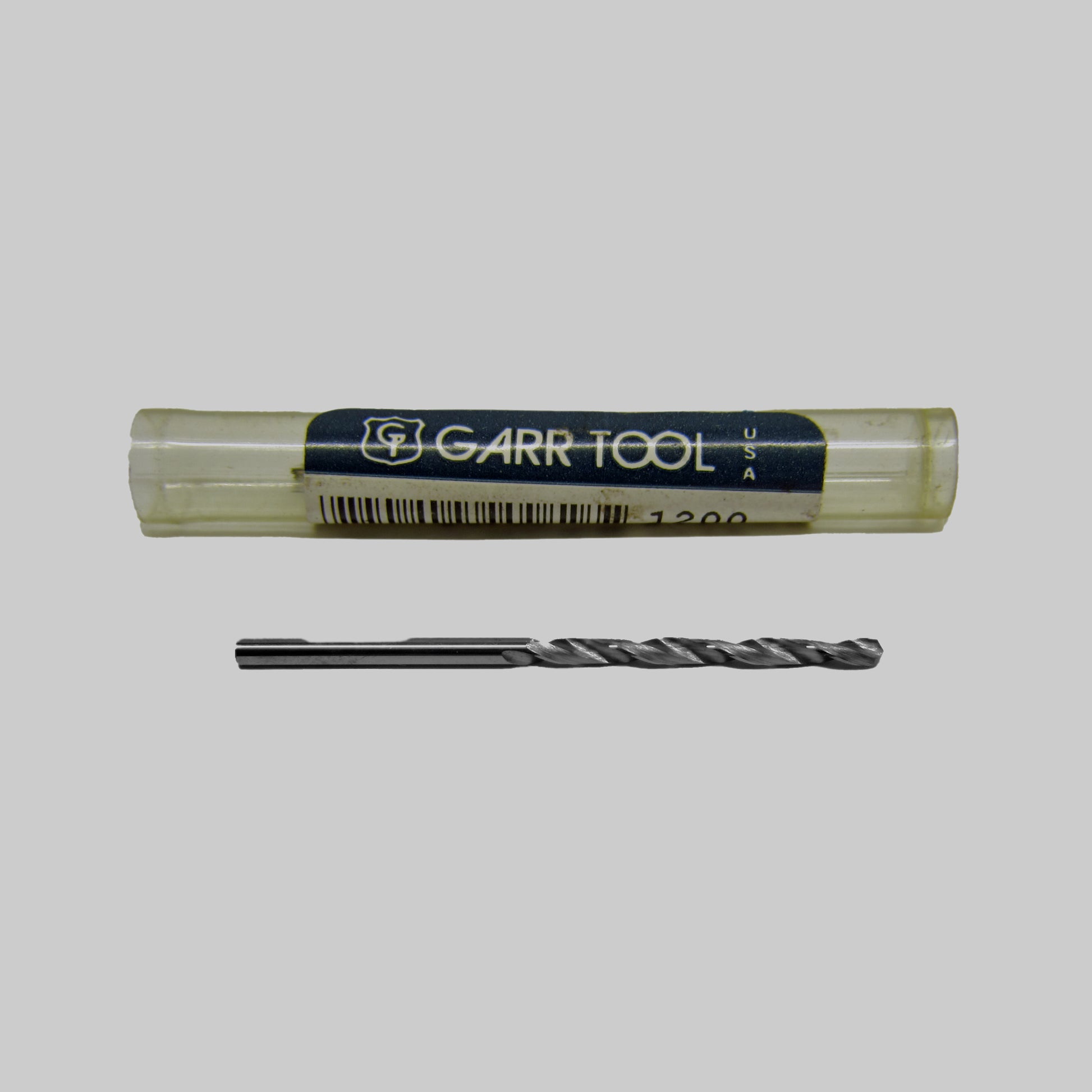

0.0760" (#48) Jobber Length Solid Carbide Drill Bit, 118° 4-Facet Point | 56190

This GARR #48 solid carbide jobber-length drill bit is a USA-made precision drill for rigid drilling setups where small-hole accuracy, wear resistance, and clean entry are important. It has a 0.0760" diameter, 118° 4-facet / cam point, bright uncoated finish, right-hand cut, spiral flutes, and a straight shank.

The 4-facet / cam point helps support accurate hole starting and controlled drilling, while the spiral flute design helps move chips out of the hole during cutting. Solid carbide is harder and more wear-resistant than high-speed steel, but it is also brittle, so this drill should be used in a stable drill press, CNC machine, or precision fixture with minimal runout and no side loading.

Typical Applications

• Precision #48 hole drilling
• Controlled drilling in plastics, aluminum, brass, composites, carbon steel, stainless steel, titanium alloy, and other suitable materials
• Drill press, CNC, fixture-based, and other rigid drilling setups
• Applications where a USA-made solid carbide jobber-length drill is preferred

Benefits

• Submicron grain solid carbide construction provides high hardness, rigidity, and wear resistance
• 118° 4-facet / cam point supports controlled drilling and accurate hole starting
• Bright uncoated finish provides a smooth tool surface for chip flow in suitable materials
• Spiral flute design helps evacuate chips from the hole
• Jobber-length design provides more reach than many stub-length carbide drills
• USA-made GARR tool for precision drilling applications

Specifications
