0.0787" (2.00mm) x .700" LOC 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | MB-200

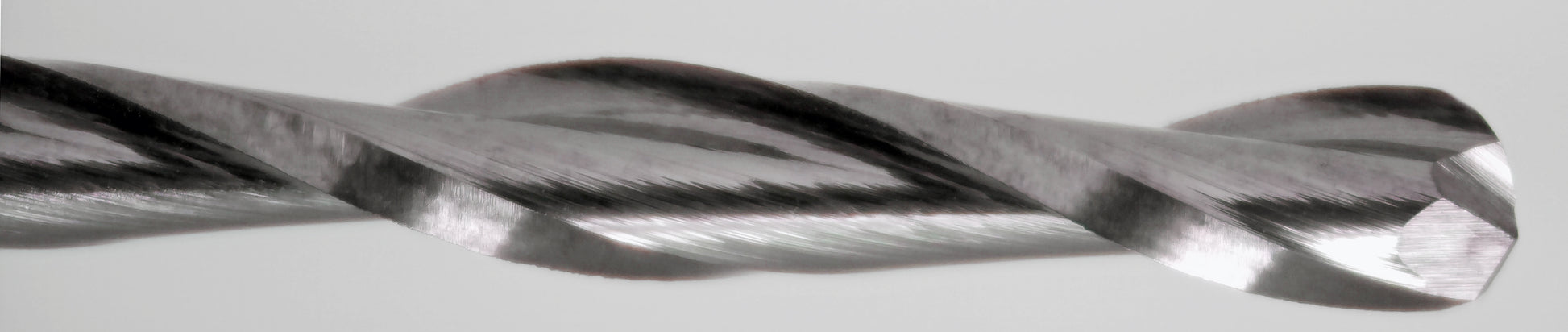

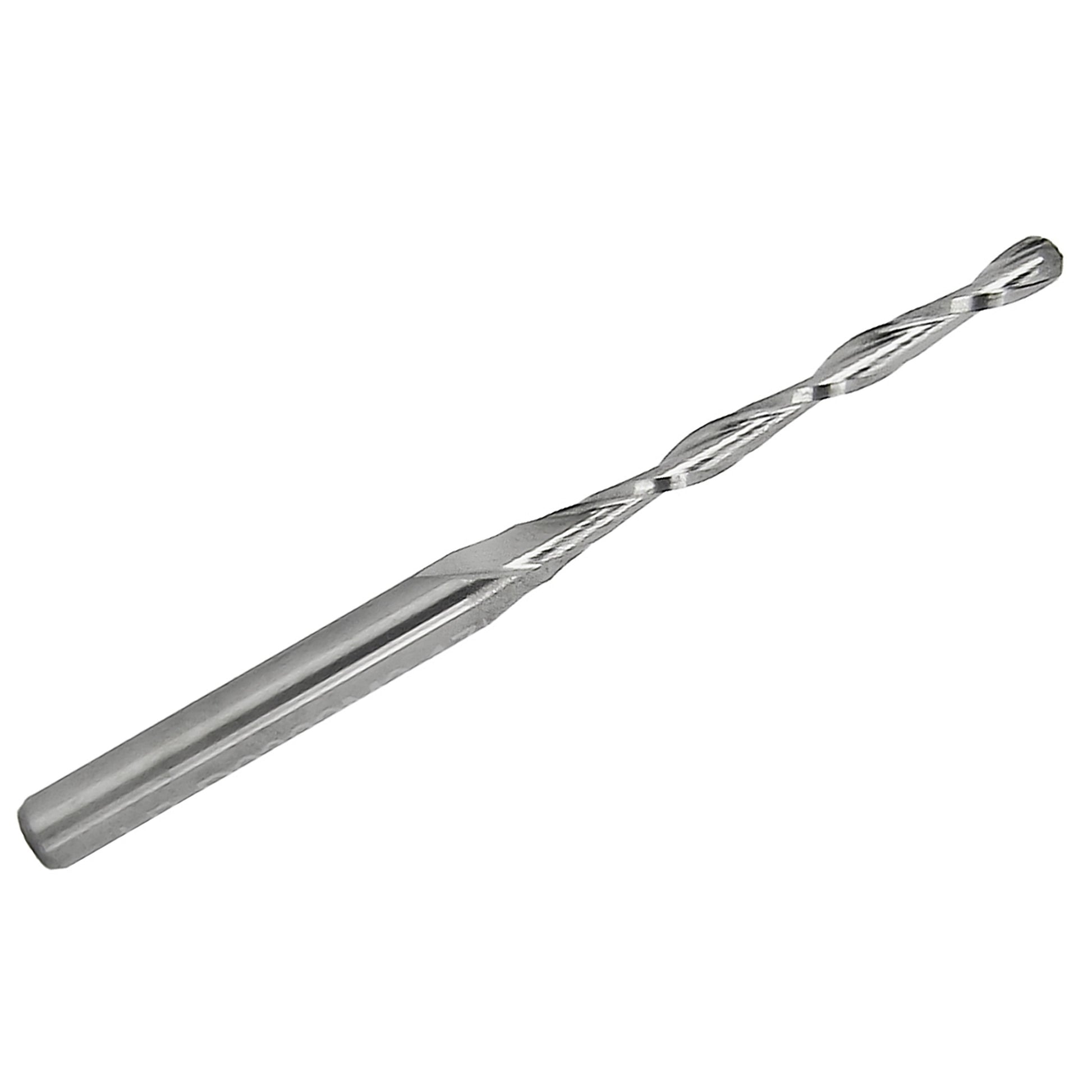

0.0787" / 2.00mm 2-flute ball nose carbide end mill with .700" LOC and standard 1/8" shank.

This solid carbide ball nose end mill is designed for CNC profiling, contouring, 3D carving, and detail work where a rounded cutting end is preferred. The 2-flute up-cut geometry provides a practical balance of cutting strength and chip clearance.

The ball nose geometry is useful for curved surfaces, 3D contours, rounded-bottom grooves, relief carving, and finishing passes in appropriate materials.

Common Applications

• 3D CNC carving and contouring
• Relief carving and detailed surface work
• Rounded-bottom grooves and radius cuts
• Plastic, acrylic, wood, composites, and suitable non-ferrous materials
• Prototype work, hobby CNC, and light production use

Benefits

• Ball nose end style is useful for smooth contours and 3D profiles
• 2-flute design balances chip clearance and cutting strength
• Up-cut flute direction helps evacuate chips upward
• .700" LOC provides extended reach for deeper detail work
• Solid carbide construction provides rigidity and wear resistance
• Standard 1/8" shank fits many compact CNC routers and precision collet setups

Specifications

Ball nose note: Ball nose end mills are commonly used for 3D profiling, contouring, rounded grooves, and finishing passes. For flat-bottom pockets or square internal corners, a square-end end mill is usually the better choice.
