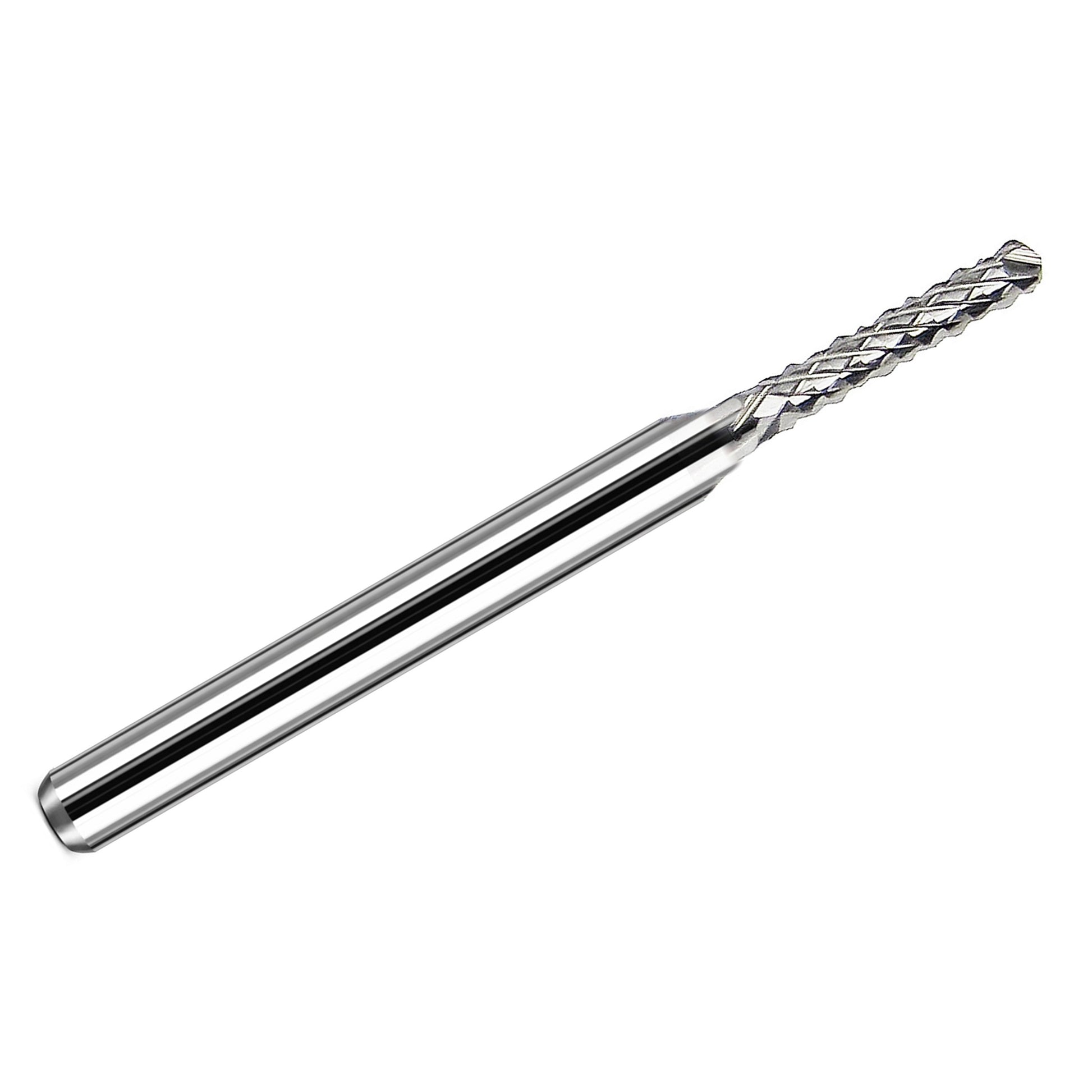

0.0787" (5/64" / 2.00mm) x .400" LOC Diamond Flute Carbide Router, Drill Point Tip, 1/8" Shank | AP-37

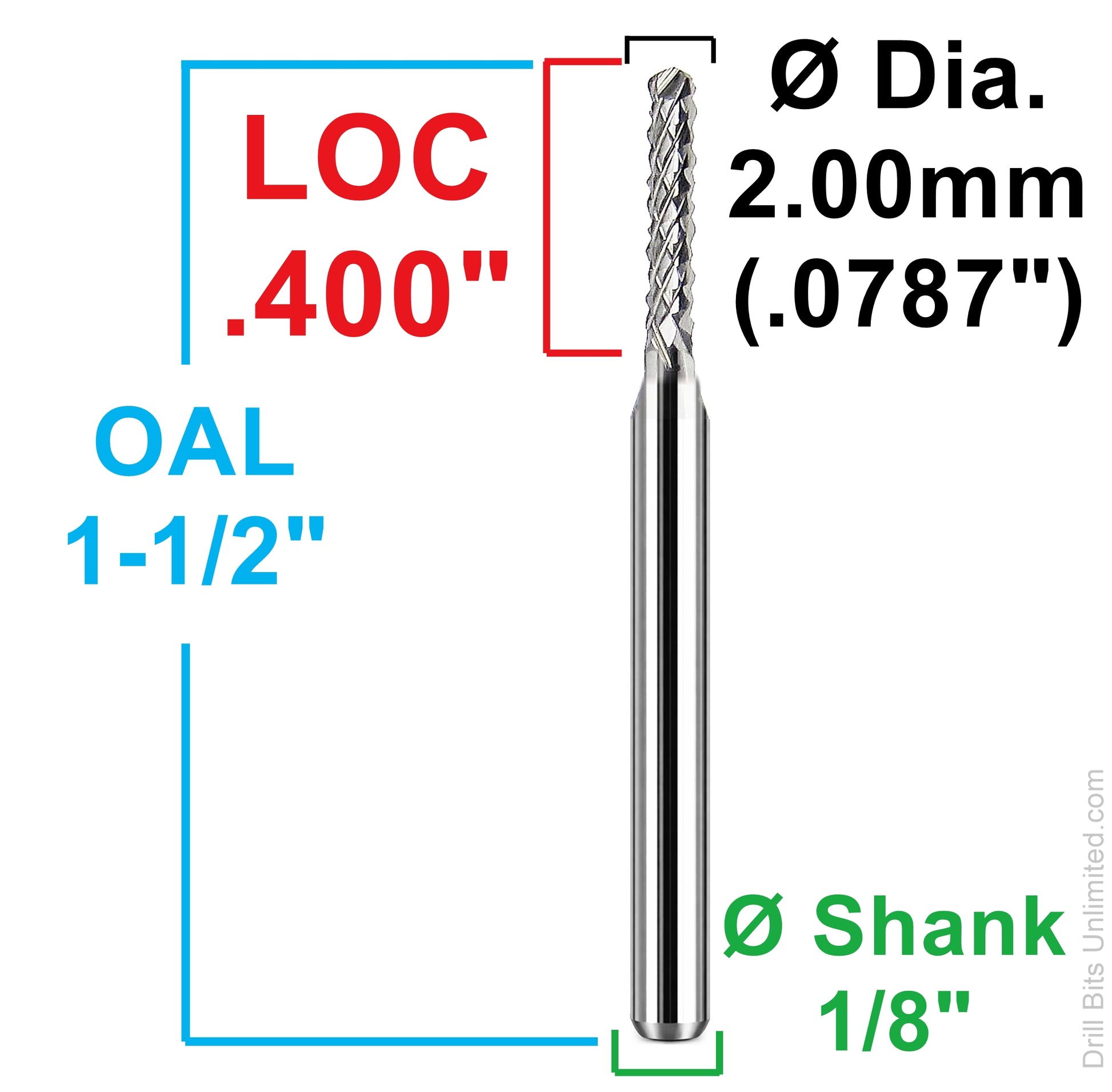

This diamond flute carbide router features a 0.0787" (2.00mm) cutting diameter, .400" flute length, 1-1/2" overall length, and a 1/8" shank. Its solid carbide construction makes it a dependable choice for precision routing in hard, abrasive materials.

The diamond flute geometry is designed for controlled cutting and dependable chip evacuation in demanding routing applications. This router is best suited for FR-4, G10, fiberglass, graphite, ceramics, carbon fiber, and similar abrasive composites. Its up-cut design helps evacuate chips efficiently and can improve bottom-edge cut quality in appropriate materials.

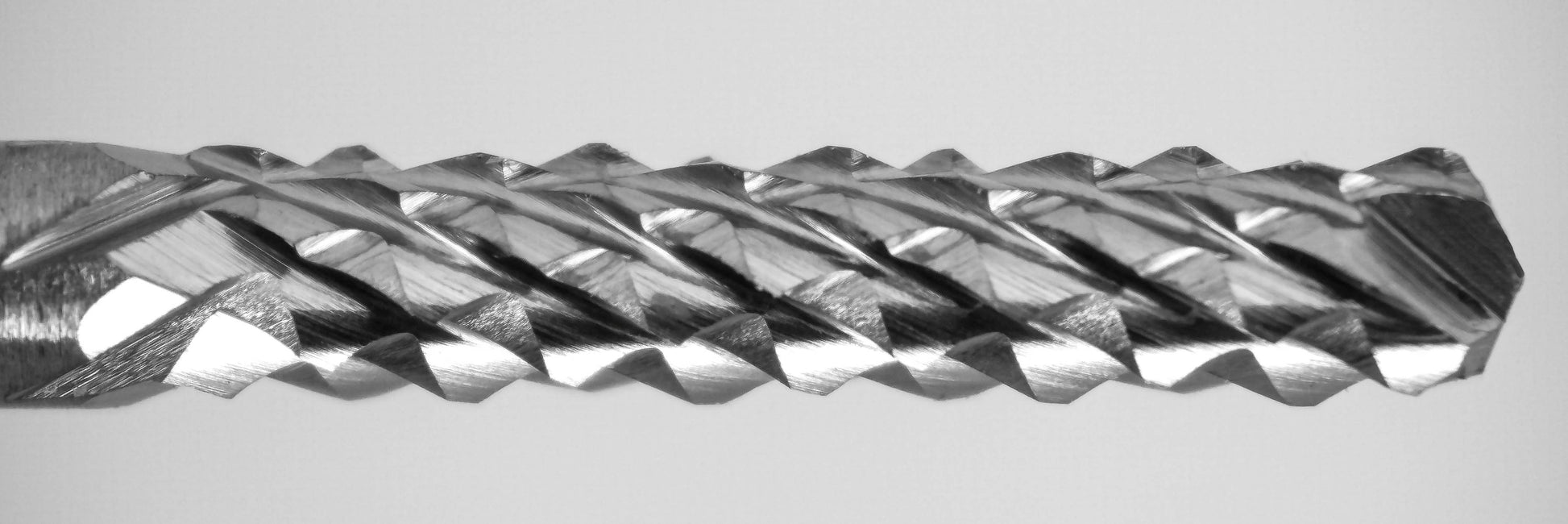

This tool features a drill point tip, which provides stronger entry for denser materials and applications requiring repeated plunging.

Typical Applications

• FR-4 and G10 routing
• Fiberglass and abrasive composite machining
• Graphite and ceramic machining
• Carbon fiber trimming and routing
• Profiling and contouring in abrasive sheet materials
• CNC routing applications requiring stronger plunge entry in demanding materials

Benefits

• Diamond flute geometry supports controlled cutting in abrasive materials
• Up-cut geometry can improve bottom-edge cut quality while clearing chips efficiently
• Drill point tip offers stronger entry for denser materials or repeated plunging
• Solid carbide construction offers rigidity and wear resistance
• 1/8" shank fits many compact CNC routers and spindles

Specifications

Click HERE for Feed and Speed Recommendations
