0.0787" (2.00mm) x 8mm LOC Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank

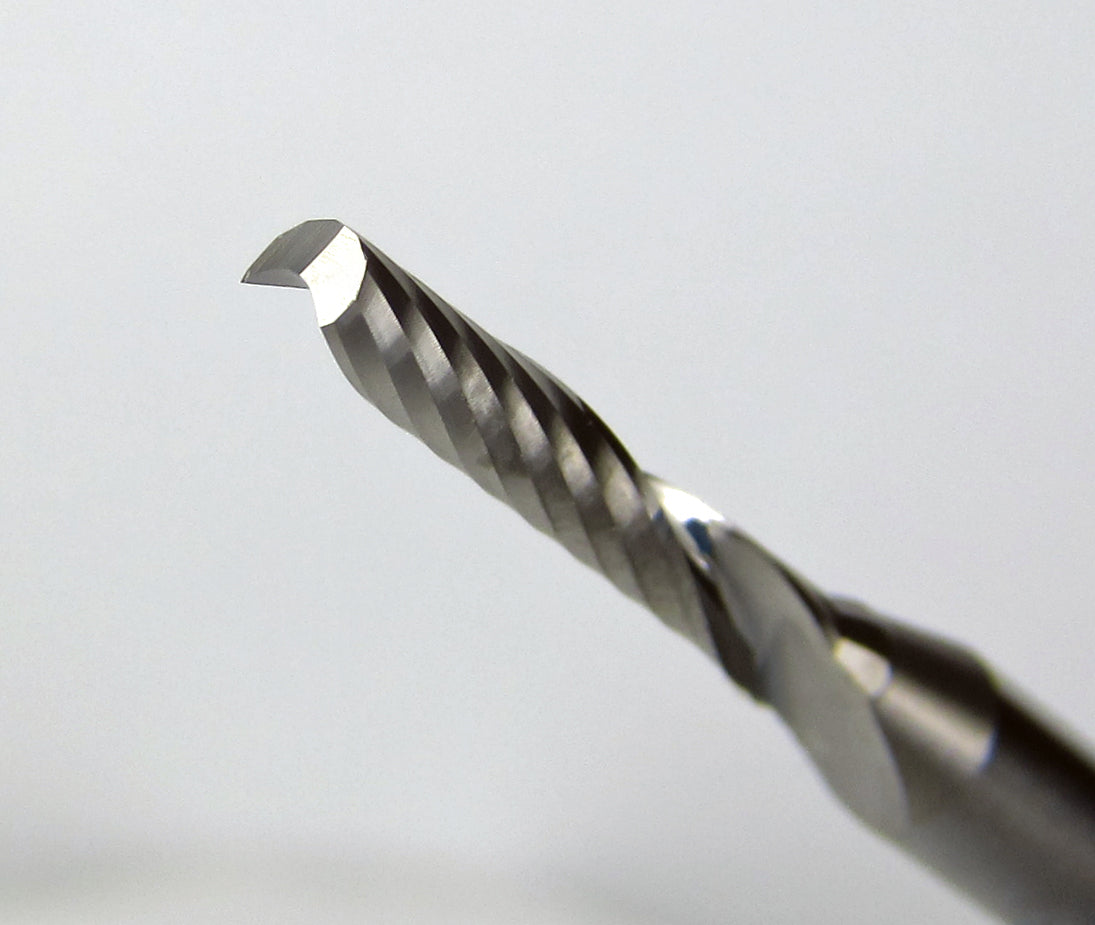

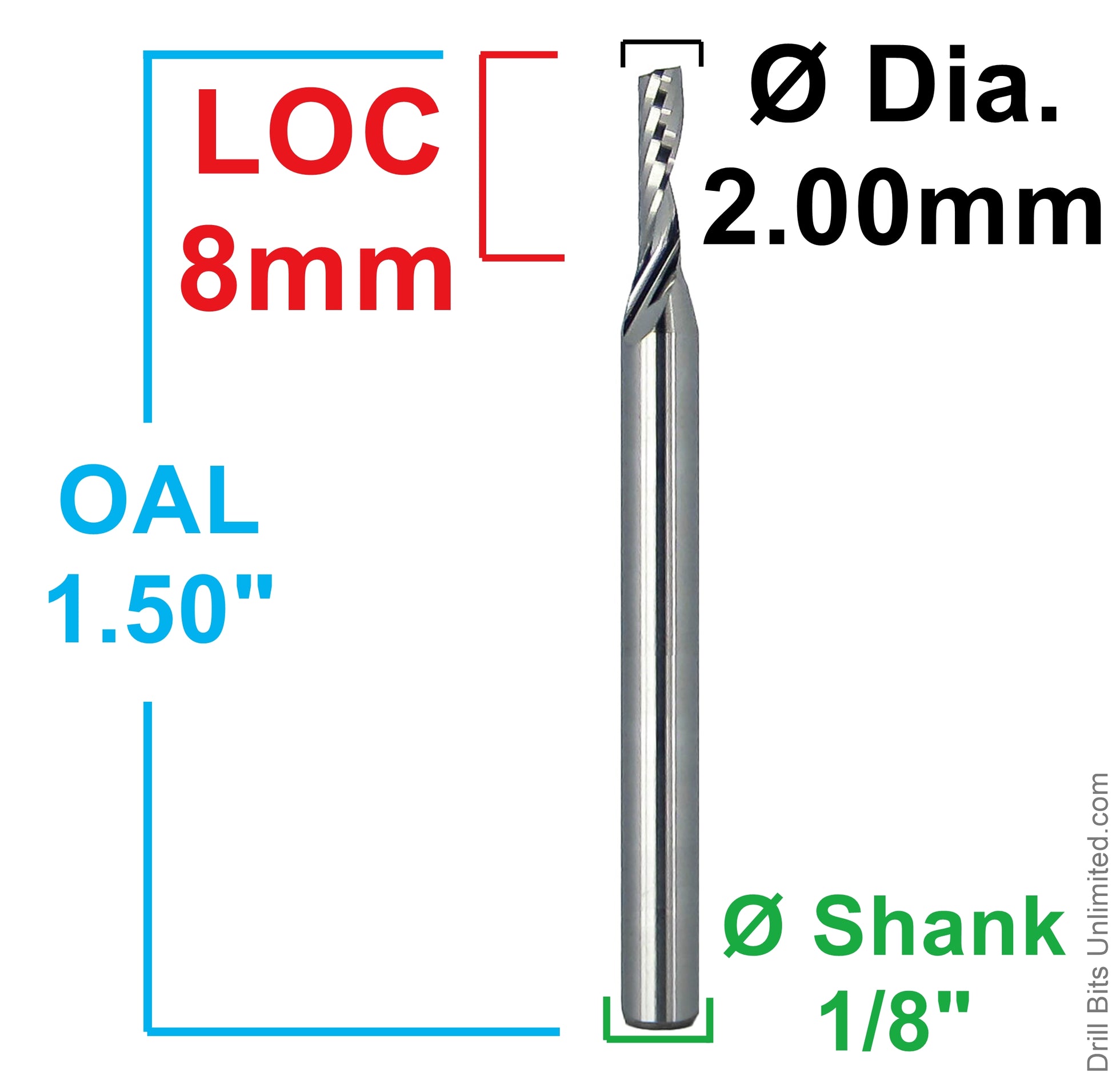

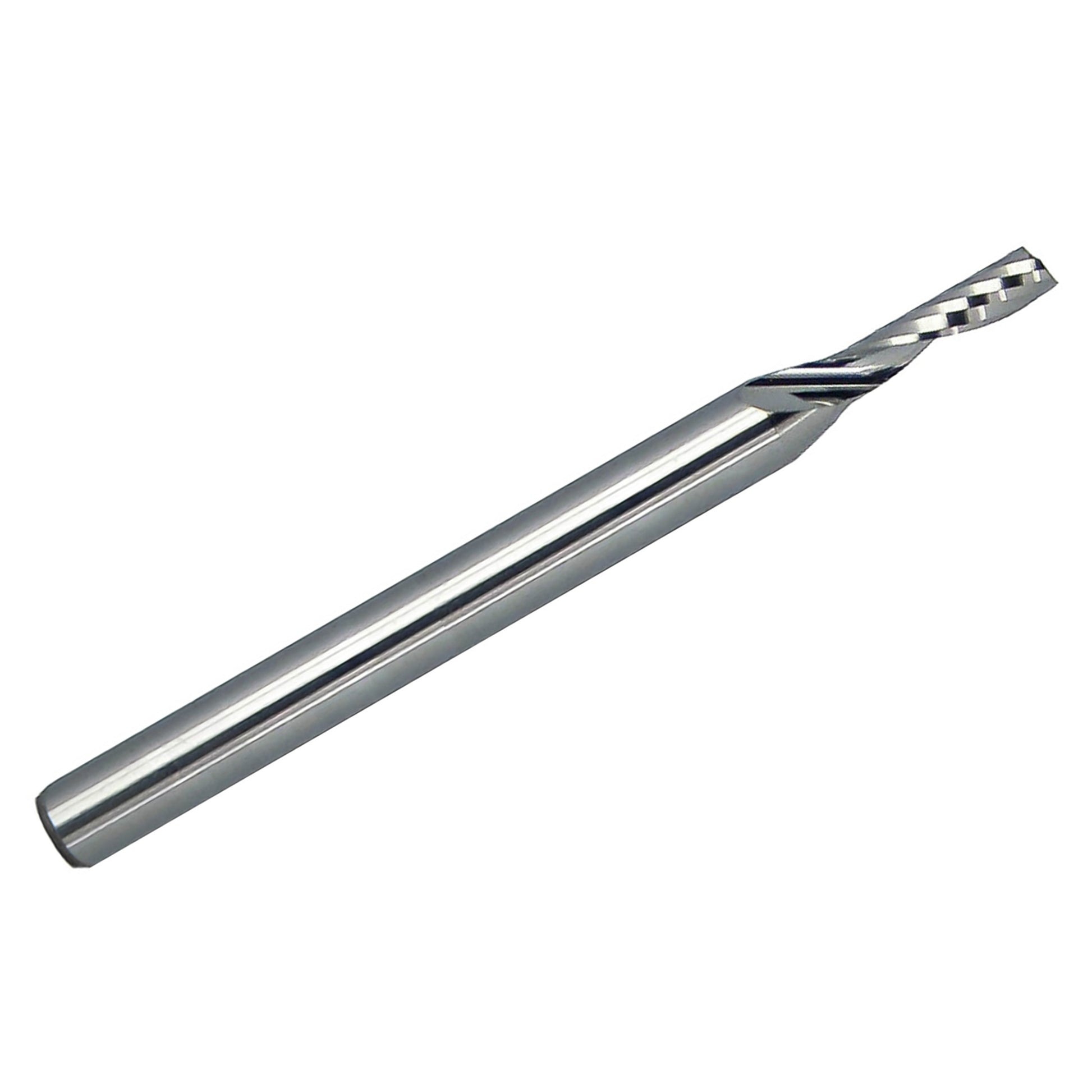

This single O-flute carbide end mill features a 0.0787" (2.00mm) cutting diameter, 8mm length of cut, 1.50" overall length, and a standard 1/8" shank. Its solid carbide construction makes it a practical choice for CNC routing, milling, profiling, slotting, and trimming in plastics and suitable non-ferrous materials.

The O-flute geometry is especially well suited for cutting acrylic, plastic, PVC, and other softer materials. It may also be used in aluminum and suitable non-ferrous materials when proper feeds, speeds, chip clearing, and workholding are used.

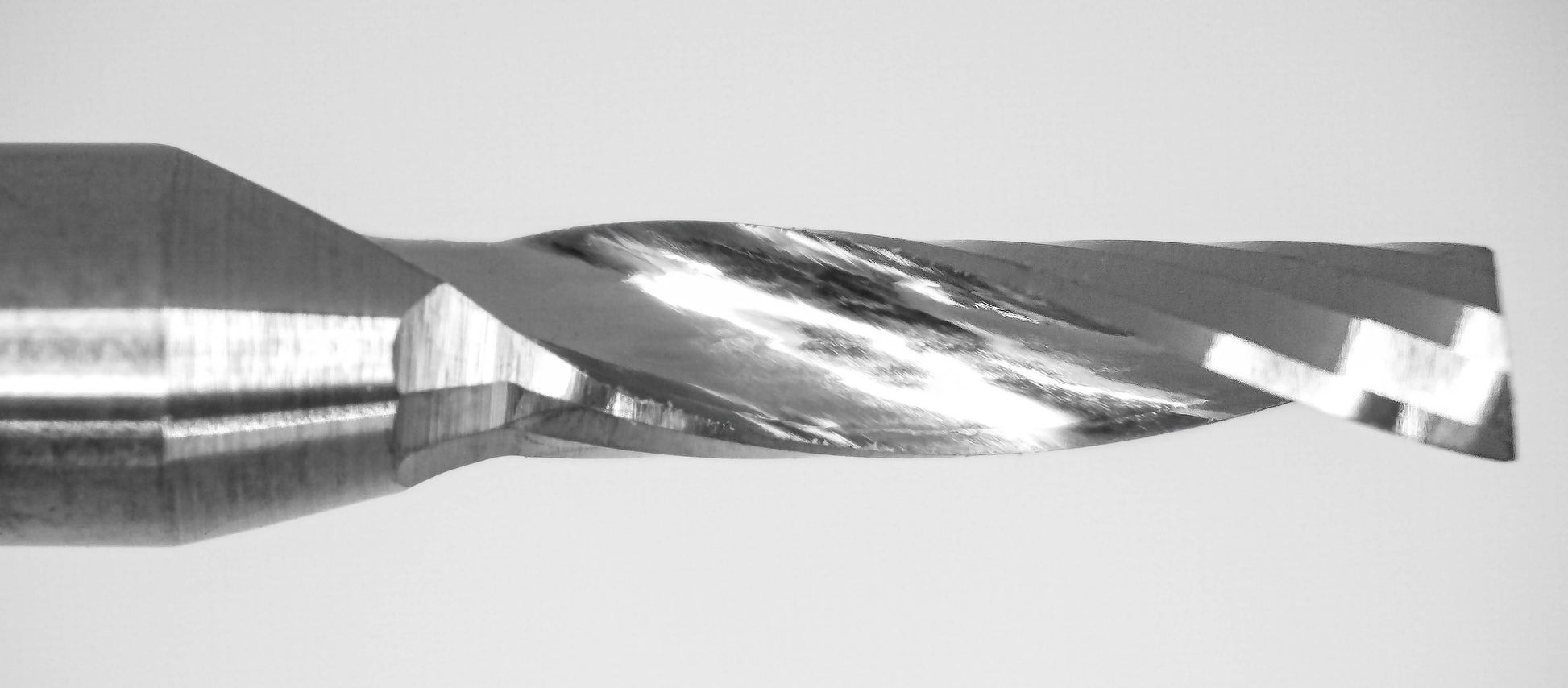

The up-cut design helps evacuate chips efficiently and can improve bottom-edge cut quality in many routing applications. Because up-cut tools pull chips upward, the top edge may require proper hold-down, masking, or finishing depending on the material.

Typical Applications

• Acrylic and plastic machining
• PVC cutting
• Signmaking and plastic fabrication
• Aluminum routing and milling when properly set up
• Suitable non-ferrous material cutting
• Profiling and contouring
• Slotting and detail work
• CNC applications requiring efficient chip evacuation

Benefits

• Single O-flute design supports efficient chip evacuation in plastics and softer materials
• Up-cut geometry helps pull chips up and away from the cut
• Can improve bottom-edge cut quality in many routing applications
• 8mm LOC provides useful cutting reach for small profiles, slots, and detail work
• Square end geometry is suitable for slotting, profiling, trimming, and general routing work
• Solid carbide construction provides rigidity and wear resistance
• Standard 1/8" shank fits many compact CNC routers and precision collet setups

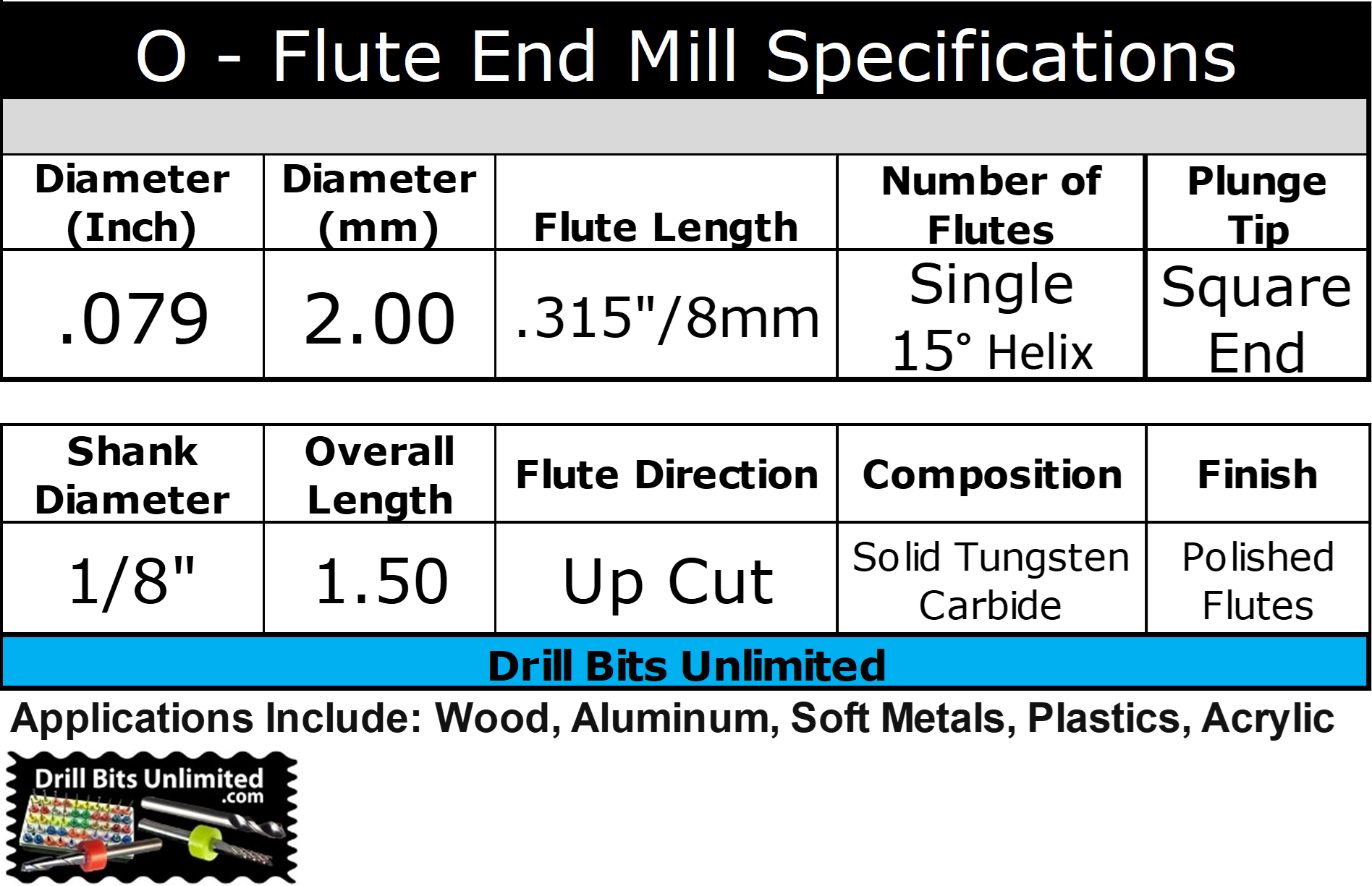

Specifications
