50° Solid Carbide V-Groove Engraving Bit – 0.100" Max Depth – 1/8" Shank – 2 Pack

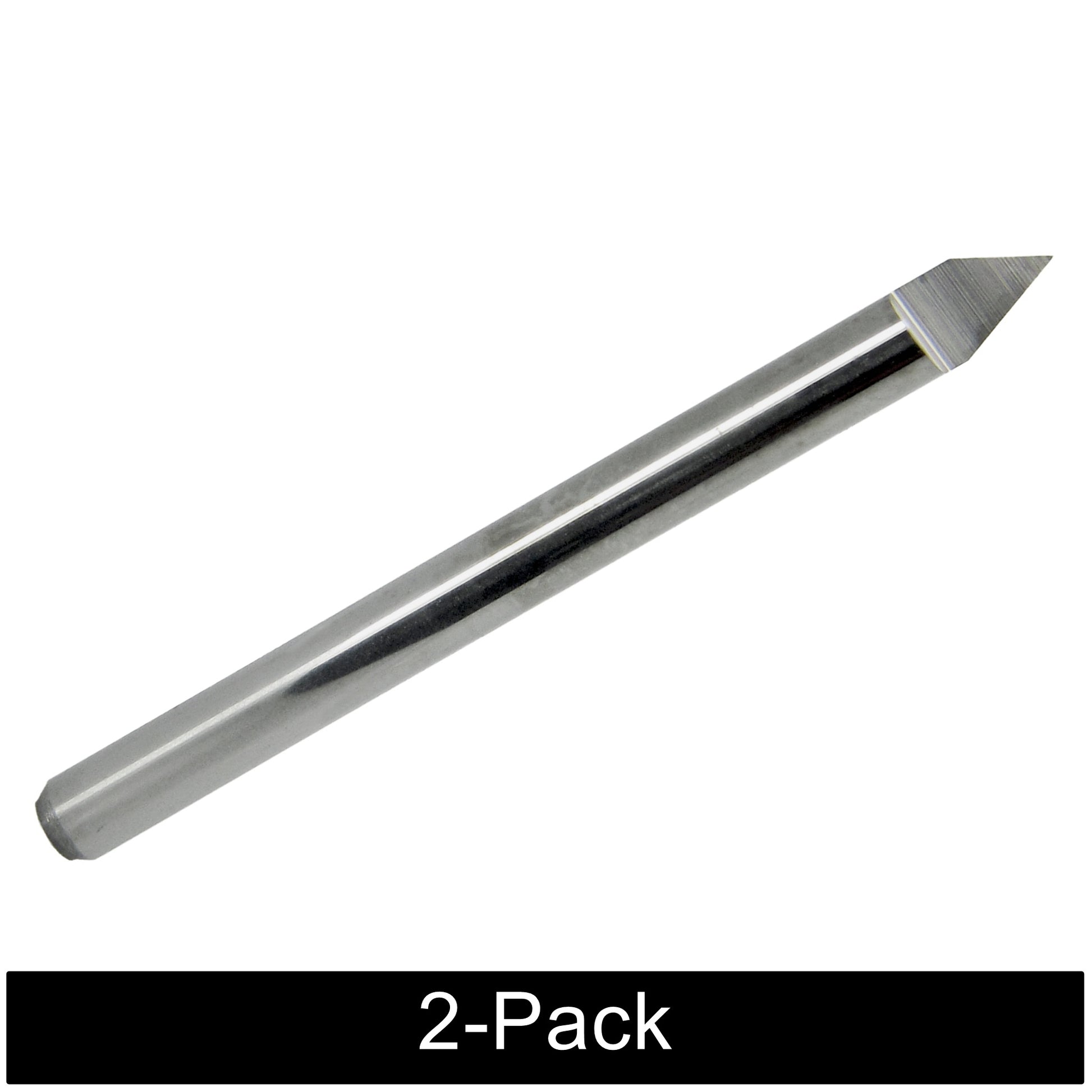

Includes 2 carbide engraving bits.

50° Solid Carbide V-Groove Engraving Bits 0.100" Max Depth  – 1/8" Shank (2 Pack)

These precision-ground solid carbide V-groove engraving bits feature a 50° included angle and a sharp point tip, making them ideal for fine detail engraving, chamfering, and narrow line work. The rounded back relief improves tool strength and cutting smoothness, helping reduce chatter and edge chipping during use.

Designed for clean, consistent results across a wide range of materials.

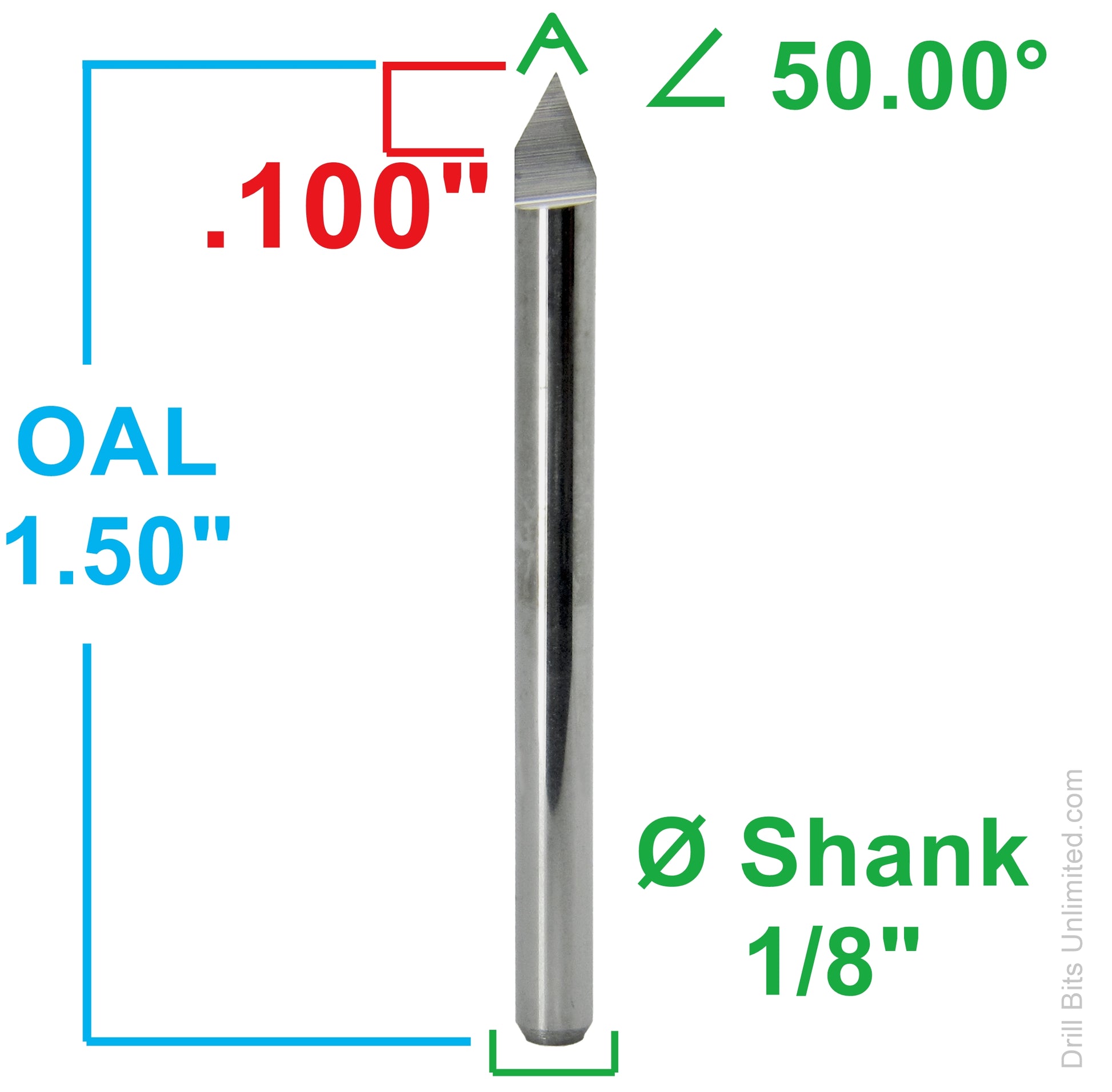

Specifications:

• Maximum Cutting Depth: 0.100"
• Included Angle: 50°

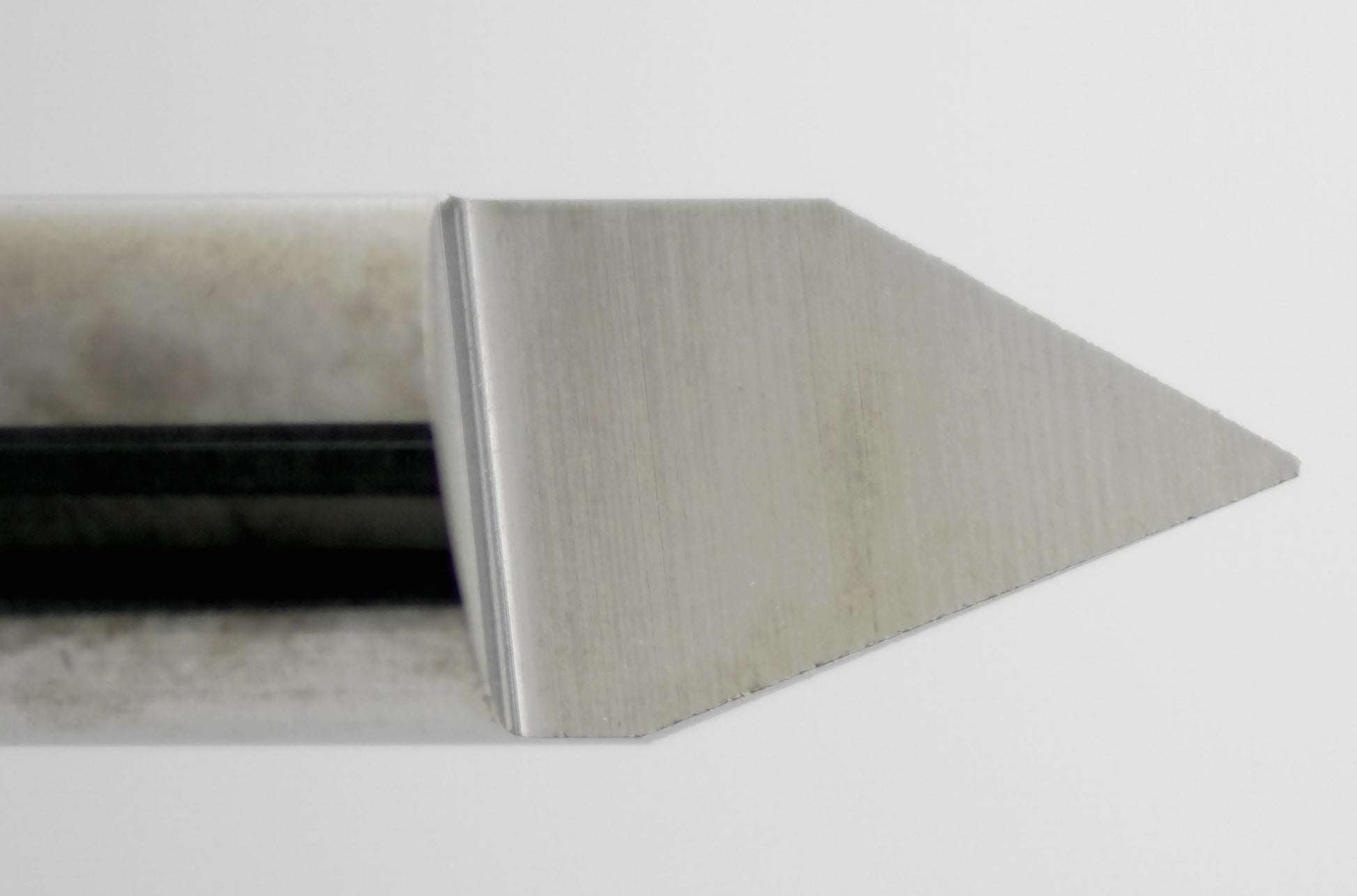

• Tip Type: Sharp Point

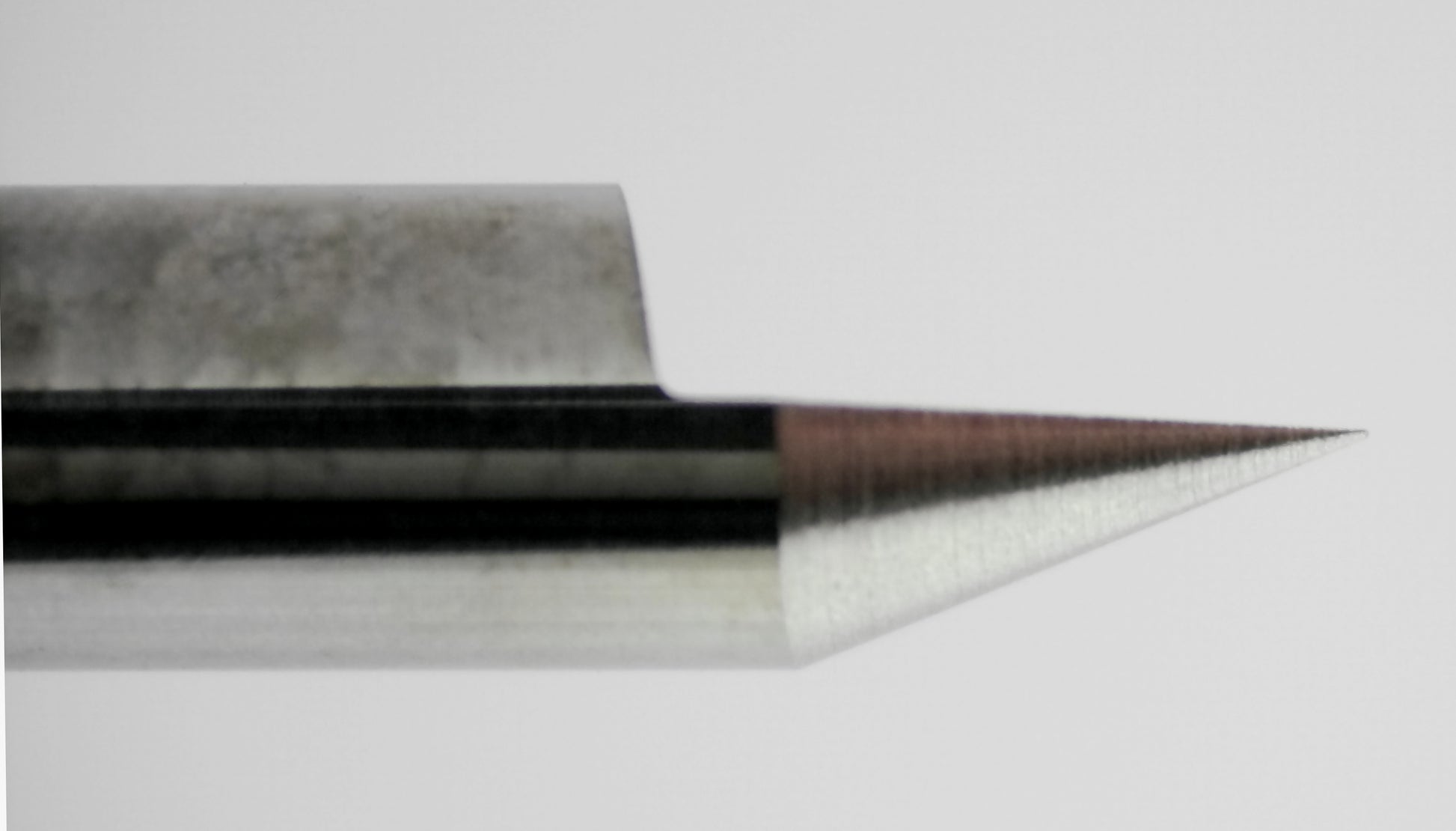

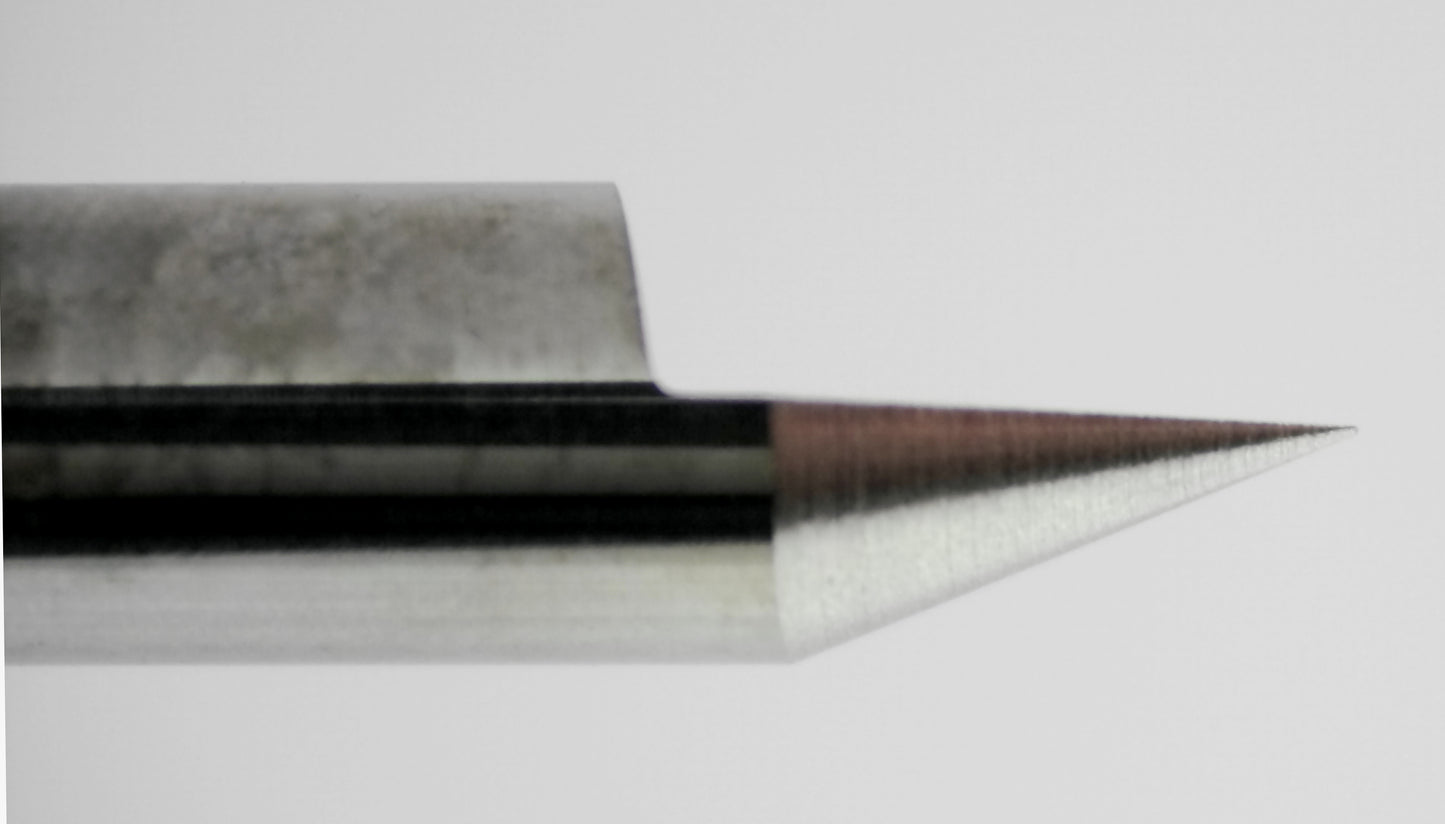

• Back Geometry: Rounded Relief
• Shank Diameter: 1/8" (3.175mm)
• Overall Length: 1.50"
• Material: Solid Carbide
• Cut Style: V-Groove Engraver
• Quantity: 2 Pieces

About 50° V-Groove Engraving Bits:

50° V-bits are ideal for finer engraving work where narrower lines and more detail are required compared to wider-angle tools. The sharp point geometry allows for crisp line definition, while line width increases naturally with depth of cut.

The rounded back relief design helps improve durability and reduces stress at the cutting edge, making these bits more resistant to chipping during detailed engraving operations.

Common Applications:

• Fine engraving in plastics and acrylics
• Wood and hardwood engraving
• Sign making and lettering
• PCB engraving and isolation routing
• Non-ferrous metals such as aluminum and brass
