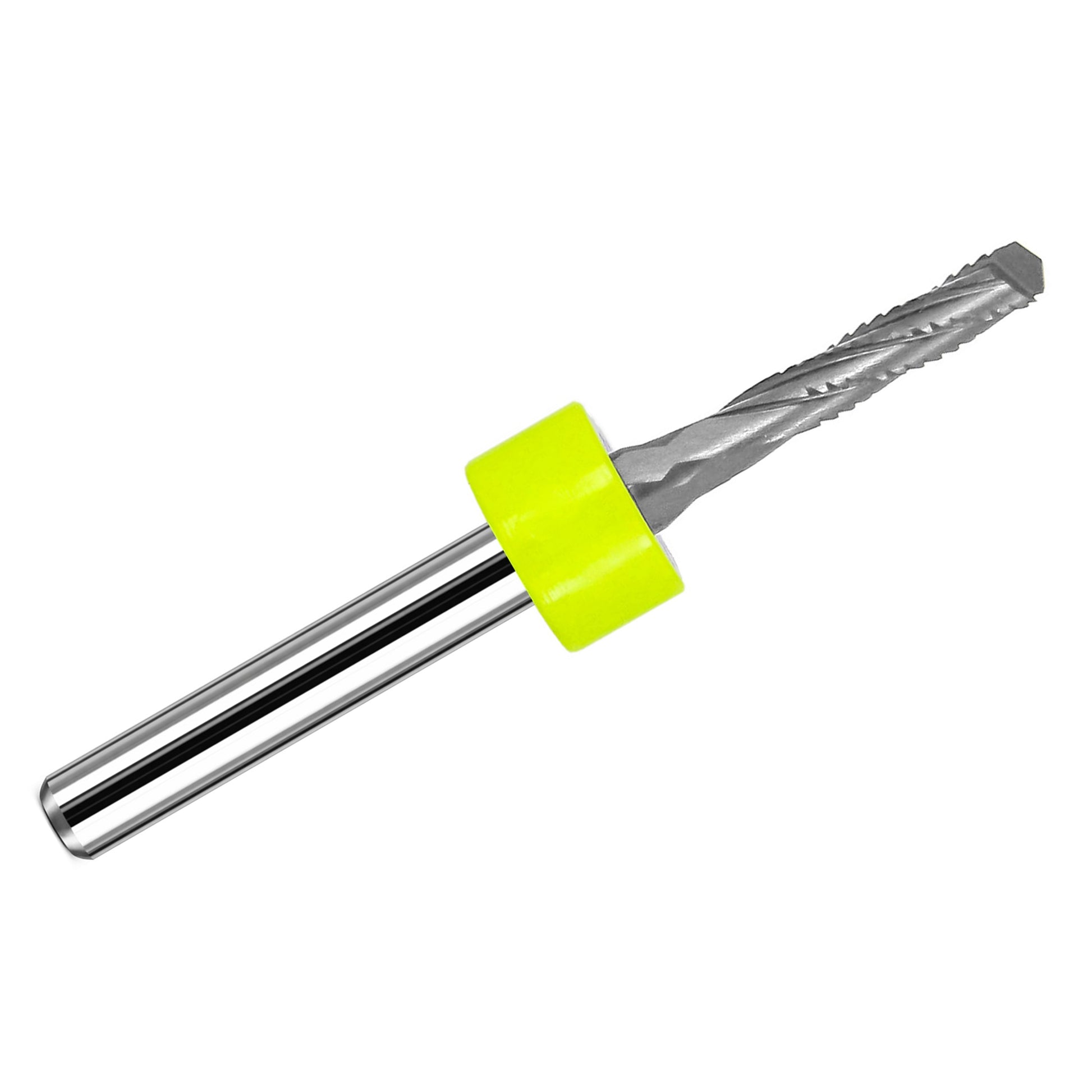

0.0945" (2.40mm / 3/32") Chip Breaker PCB Router, 9.5mm LOC, Drill Point, Up-Cut, 1/8" Shank | AP-3

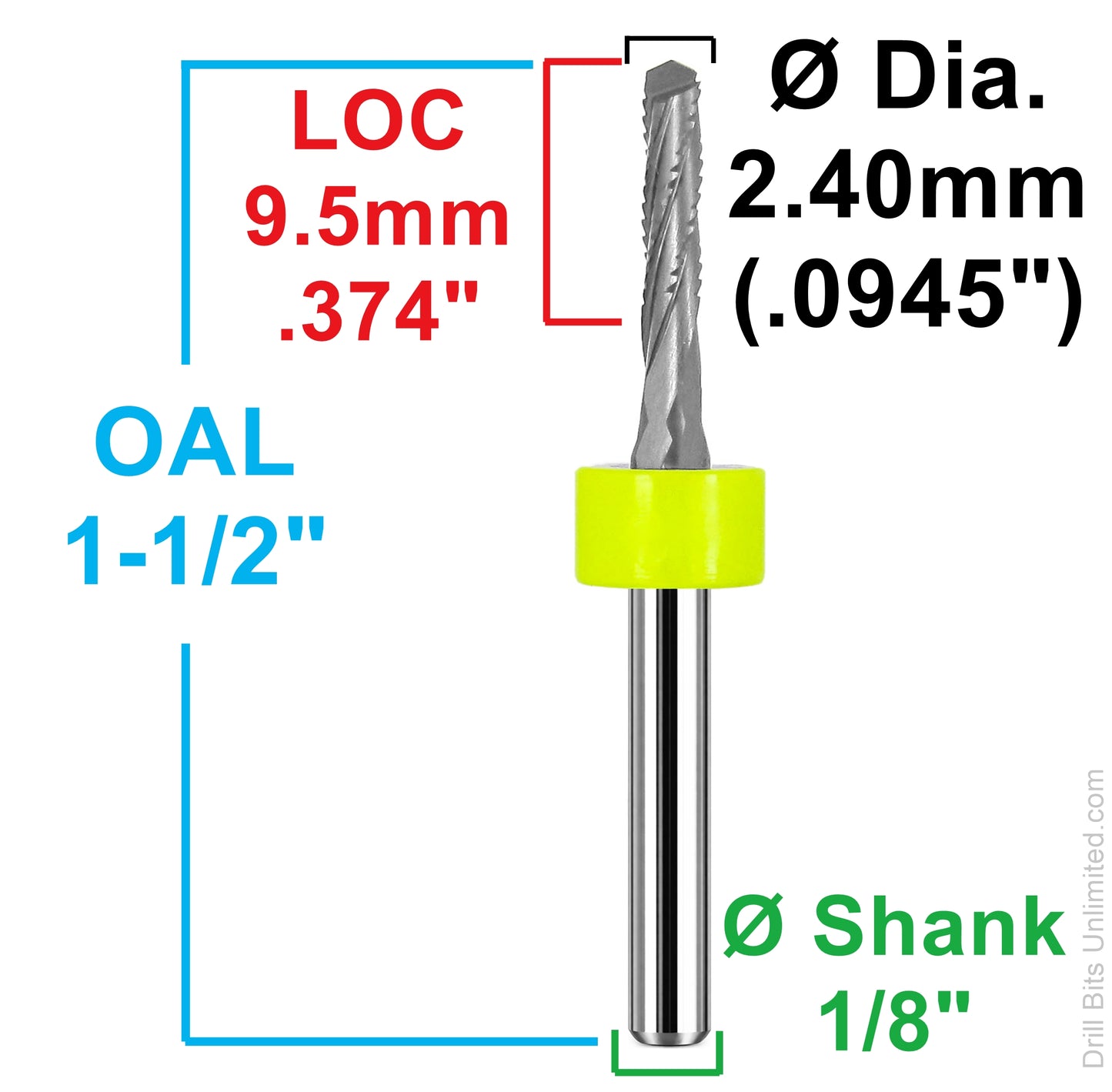

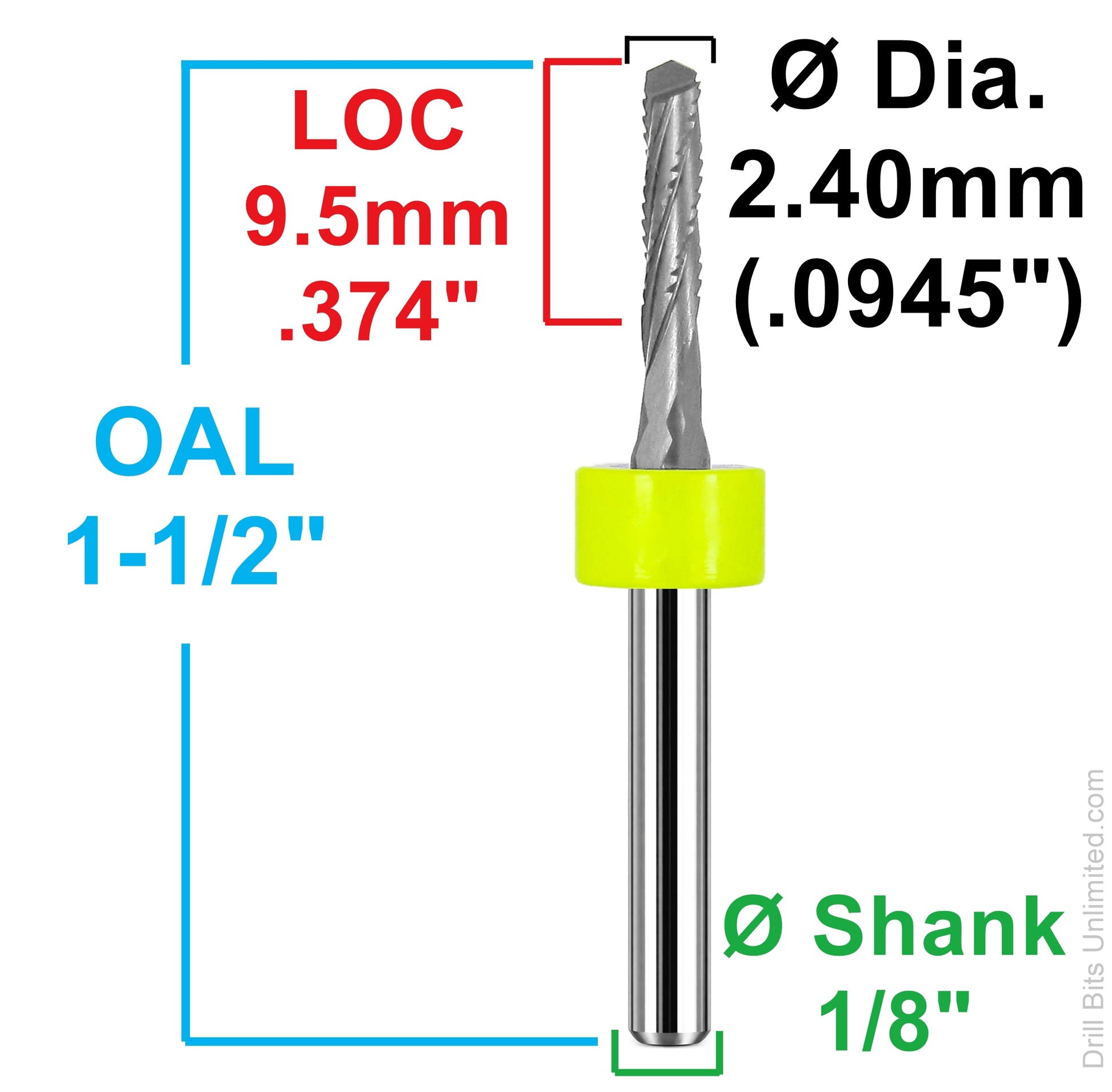

This 2.40mm (.0945") chip breaker carbide PCB router, nominally 3/32", features a 9.5mm (.374") length of cut, drill-point tip, up-cut spiral, 1/8" shank, and 1.50" overall length. Manufactured from solid carbide, it is designed for precision routing of FR-4, G10, fiberglass, phenolic laminates, and other rigid composite materials.

The spiral chip breaker geometry uses interrupted cutting edges that divide chips into smaller fragments during machining. Its up-cut design helps evacuate chips and debris from the cutting zone.

Chip Breaker Geometry and Drill-Point Tip

• Spiral chip breaker: Helps control chip formation and reduce debris accumulation.
• Up-cut spiral: Directs chips upward and away from the cutting zone.

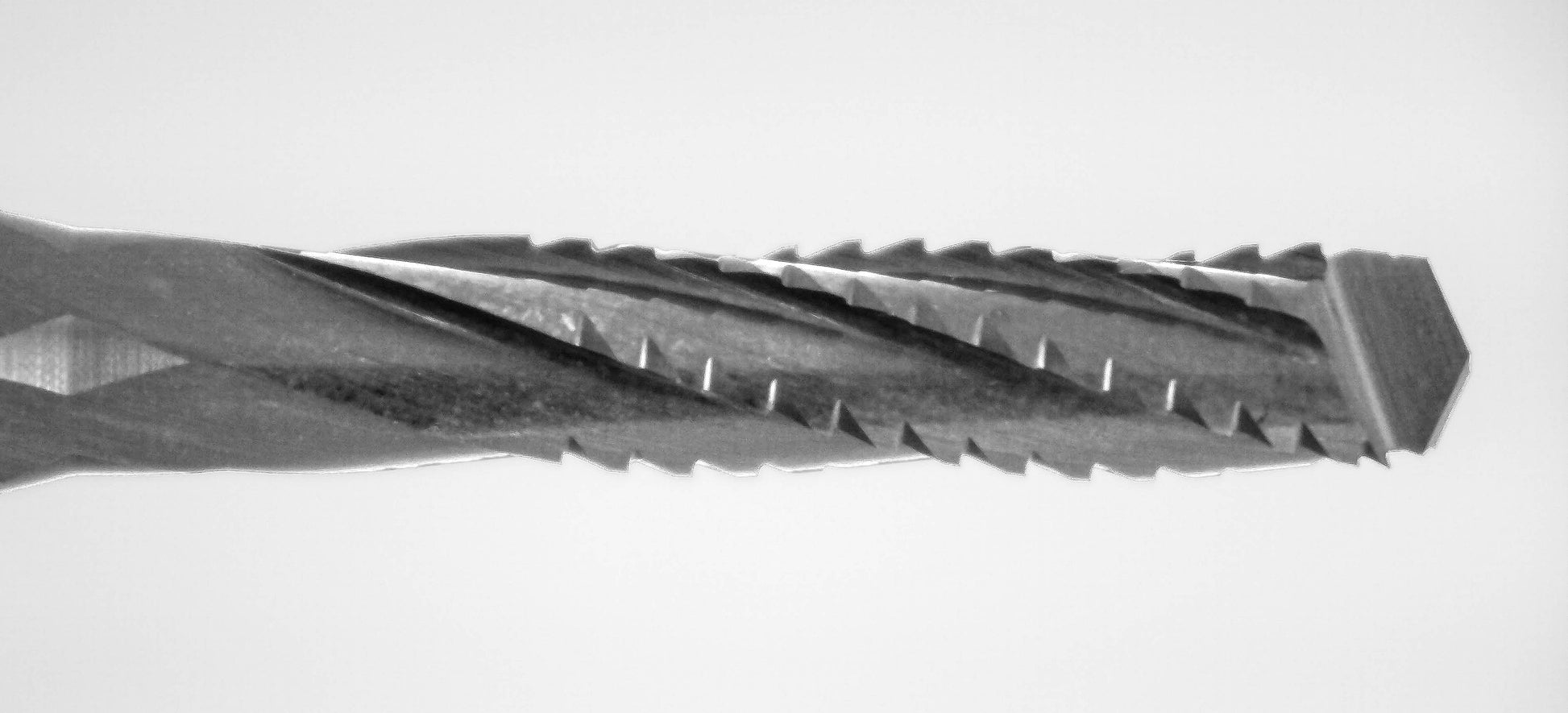

• Drill-point tip: Provides pointed cutting geometry for controlled plunge entry into suitable materials.
• 9.5mm (.374") LOC: Provides cutting reach for board profiling, slots, internal contours, and routing rigid composite sheets.
• Solid carbide: Provides rigidity and wear resistance when machining abrasive laminates.

The drill-point configuration is useful for routing operations requiring controlled entry into the workpiece. Use suitable plunge feeds, rigid workholding, and minimal spindle runout to help prevent tool damage.

Not sure which router geometry is right for your application? Compare Chip Breaker vs. Diamond Flute PCB Routers →

Typical Applications

• PCB outline routing and depaneling
• FR-4 and G10 fiberglass laminates
• Phenolic laminate cutting
• Precision slots and internal PCB contours
• Routing rigid fiberglass and reinforced composite sheets
• Controlled plunge-entry applications
• Selected carbon fiber composite routing operations

Carbon fiber and highly abrasive materials: Extended machining of abrasive composites may accelerate wear on uncoated carbide. For demanding production applications, consider a suitable diamond-coated router.

Explore Diamond-Coated Routers →

Specifications

Feeds, Speeds and Tool Handling

See our Chip Breaker Router Feed & Speed Chart → for general machining guidance.

Adjust cutting parameters for material, spindle runout, cutting engagement, and workholding. Avoid aggressive plunging and excessive lateral loading.

Sold individually. Price is per router bit.
