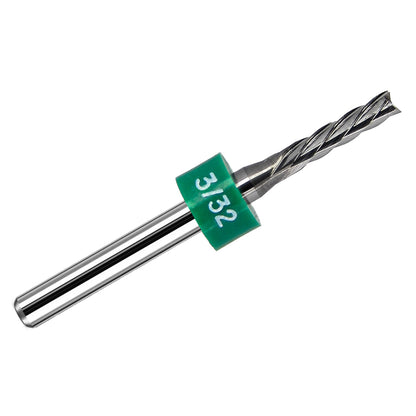

• 2.40mm five flute down cut carbide end mill with fish tail plunge tip and 1/8 inch shank

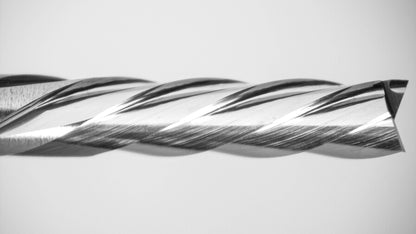

  • Close-up of fish tail plunge tip on 2.40mm five flute down cut carbide end mill

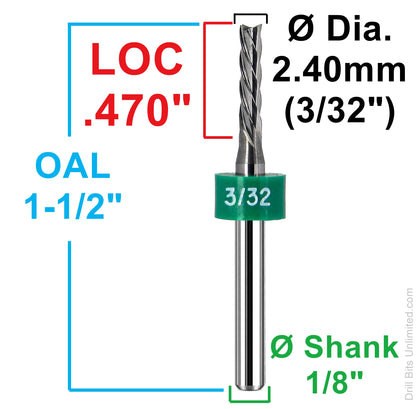

  • Dimensional drawing of 2.40mm five flute down cut carbide end mill showing .470 inch depth of cut, 1.50 inch OAL, and 1/8 inch shank
1 3

Drill Bits Unlimited

3/32" (2.40mm) x .470" LOC 5-Flute Down-Cut Carbide End Mill | AP-48

3/32" (2.40mm) x .470" LOC 5-Flute Down-Cut Carbide End Mill | AP-48

$13.95 USD
$13.95 USD
Sale Sold out
Sold individually ā€” price is per bit
Shipping calculated at checkout.

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 10% off
100 + 15% off

This 3/32" (2.40mm) five-flute down-cut carbide end mill features a .470" depth of cut, 1.50" overall length, and 1/8" shank. The down-cut flute geometry helps direct chips downward while supporting a cleaner top-edge finish during profiling, slotting, trimming, and contouring operations.

Made from solid tungsten carbide, this end mill provides the rigidity and wear resistance needed for precision machining. The five-flute design is especially suited to applications where a finer finished edge is desired in aluminum, copper, plastics, and other machinable materials.

The fish-tail center-cutting tip allows plunge-capable operation and provides a controlled cutting entry.

Typical Applications

  • Aluminum machining
  • Copper and other soft metals
  • Plastic machining
  • Profiling and contouring
  • Slotting and trimming
  • Jobs requiring a cleaner top-edge finish

Key Features

  • 5-flute geometry for a fine cutting finish
  • Down-cut flute direction helps improve top-edge surface quality
  • Fish-tail plunge tip for controlled cutting entry
  • Center cutting for plunge-capable operation
  • Solid tungsten carbide for rigidity and wear resistance
  • 1/8" shank fits many precision CNC and routing systems

Specifications

Tool Type Carbide End Mill
Flute Count 5
Cut Direction Right Hand
Flute Direction Left Hand (Down Cut)
Plunge Tip Fish Tail
Center Cutting Yes
Cutting Diameter 0.0945" (2.40mm / 3/32")
Depth of Cut (LOC) 0.470"
Overall Length 1.50"
Shank Diameter 1/8"
Material Solid Tungsten Carbide
