0.0945" (3/32") x .470" LOC Carbide End Mill, 1/8" Shank | AP-48

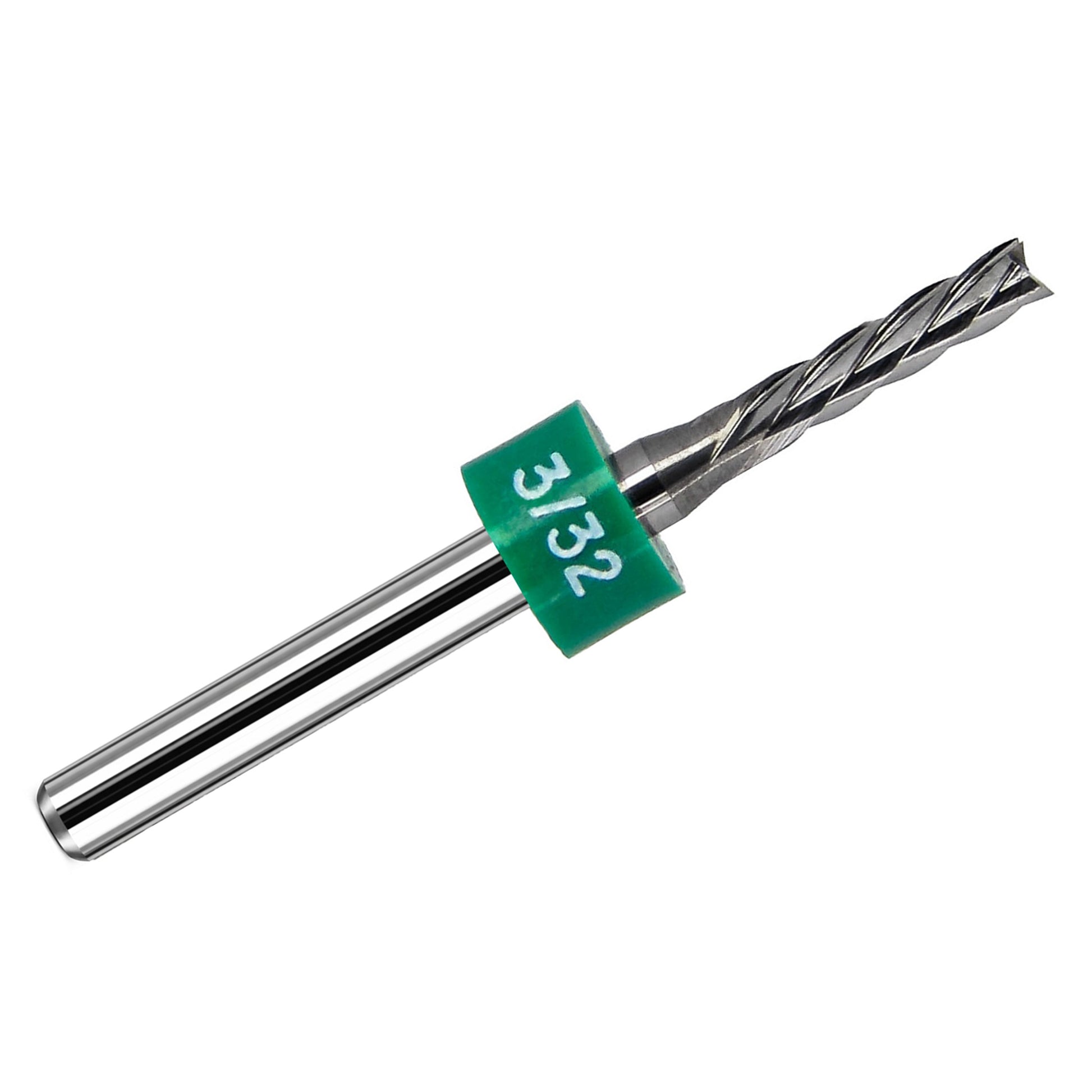

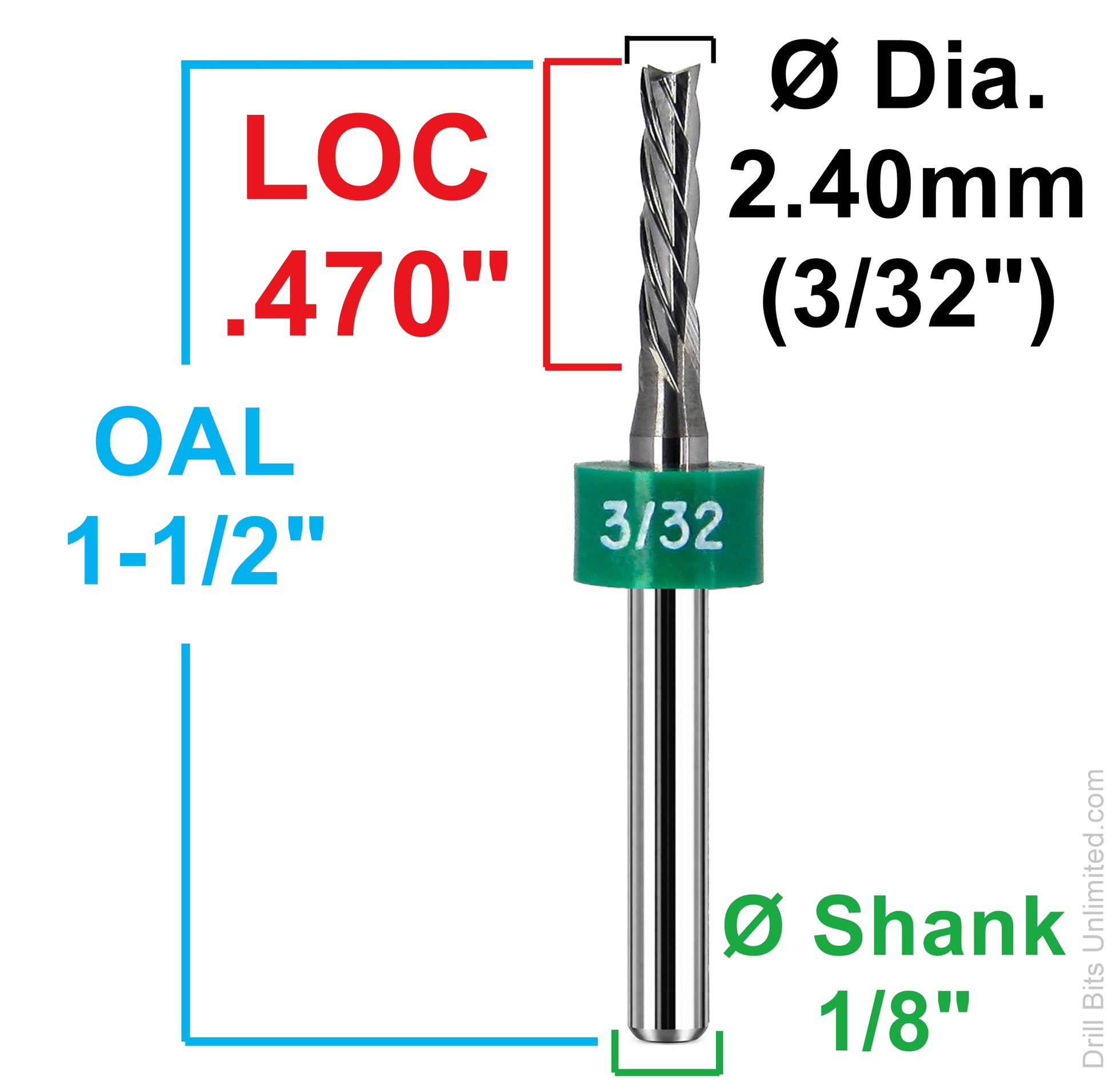

This five flute down cut carbide end mill features a 0.0945" (2.40mm) cutting diameter, .470" depth of cut, 1.50" overall length, and a 1/8" shank. Its solid tungsten carbide construction makes it a strong choice for applications where clean edge finish is important, especially in softer metals and other machinable materials.

The five-flute down cut geometry is designed to push chips downward while helping maintain top-edge surface quality. This tool is well suited for aluminum, copper, soft metals, plastics, and other machinable materials where a finer finish is desired.

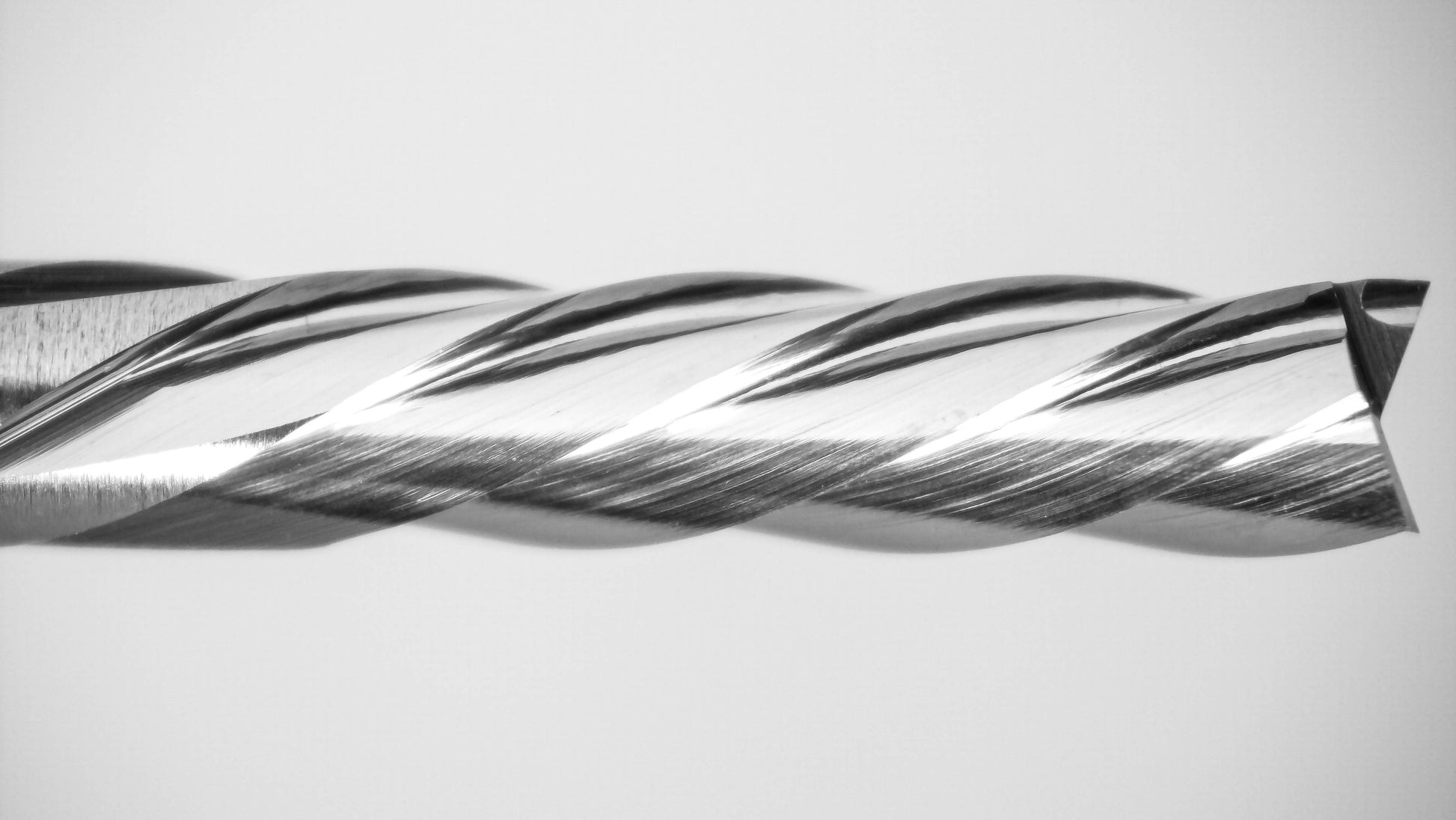

This end mill features a fish tail plunge tip, which provides gentler entry and supports center-cutting operation.

Typical Applications

• Aluminum machining
• Copper and other soft metal cutting
• Plastic machining
• Profiling and contouring
• Slotting and trimming
• Applications where cleaner top-edge finish is important

Benefits

• Five-flute design supports a fine edge finish in appropriate materials
• Down cut geometry can help improve top-edge surface quality
• Fish tail plunge tip provides gentler entry
• Center-cutting design allows plunge-capable operation
• Solid tungsten carbide construction offers rigidity and wear resistance

Specifications

👉 View End Mill Feed & Speed Calculator
