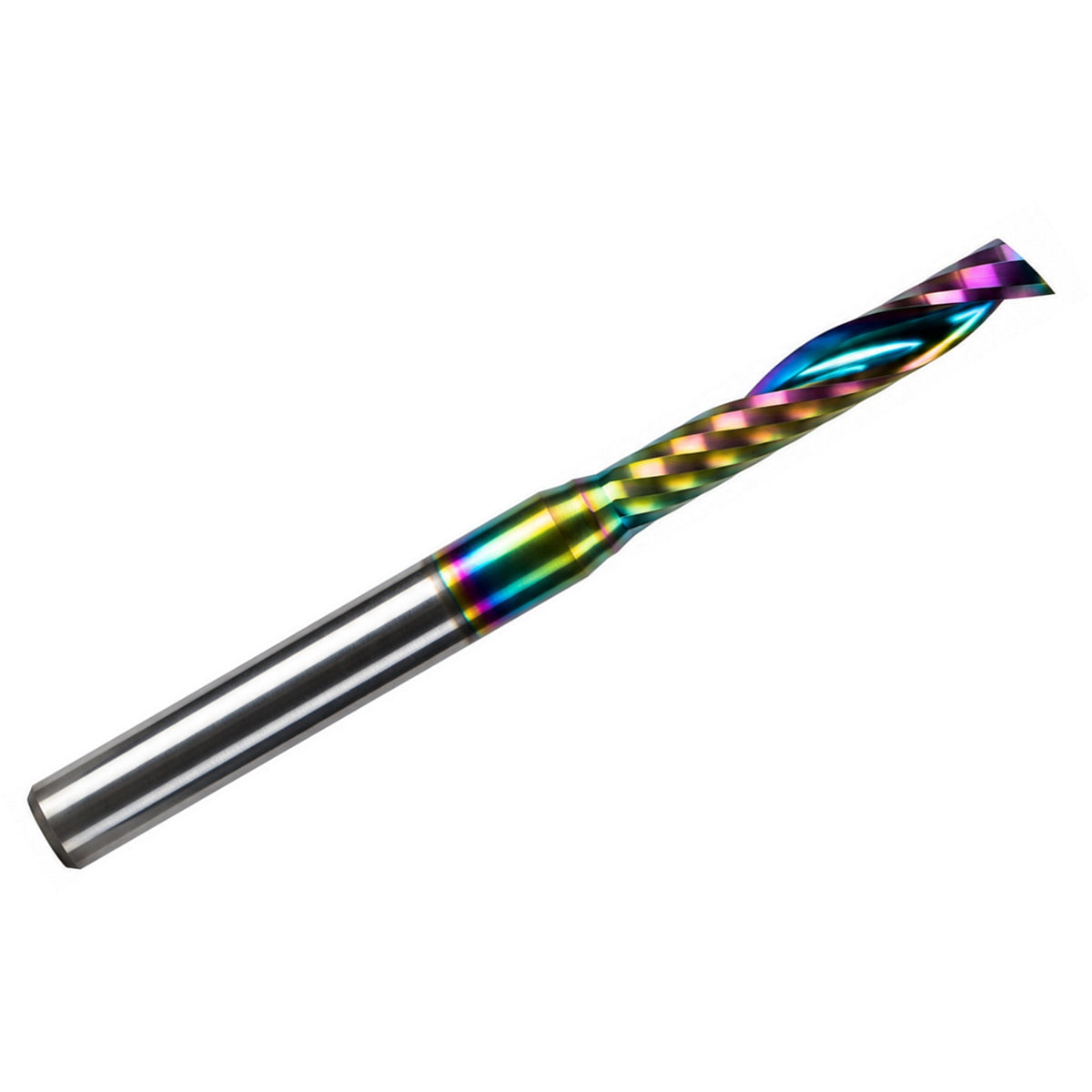

0.0984" (2.5mm) x 15mm LOC Rainbow DLC Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank | MO-177

0.0984" (2.50mm) x 15mm LOC Rainbow DLC-Coated Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank – MO-177

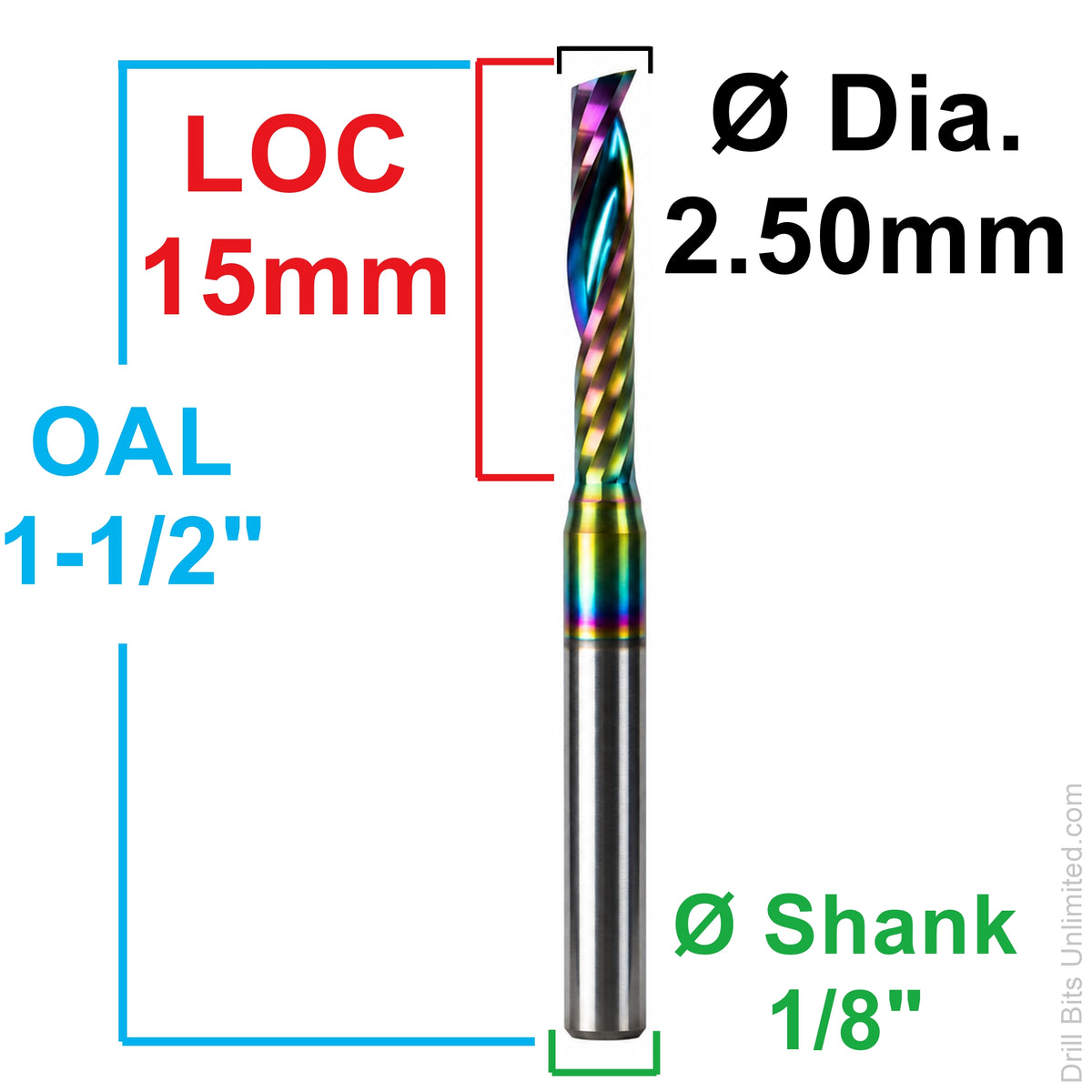

This Rainbow DLC-coated single O-flute solid carbide end mill features a 0.0984" (2.50mm) cutting diameter, 15mm length of cut, single O-flute geometry, and a standard 1/8" shank. It is designed for precision CNC routing, milling, profiling, slotting, and trimming in plastics and other suitable soft or non-ferrous materials.

The O-flute geometry provides generous chip space and efficient chip evacuation, making it especially well suited for machining acrylic, plastics, HDPE, polycarbonate, PVC, and other machinable plastic materials. It may also be used for suitable wood products, aluminum, and other non-ferrous materials when proper feeds, speeds, chip clearing, and workholding are used.

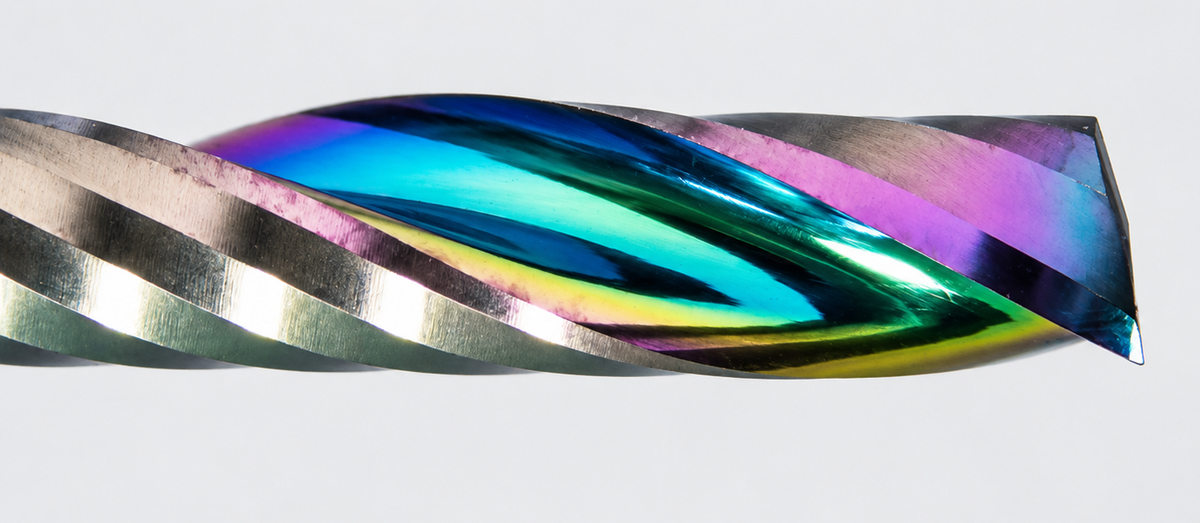

The Rainbow DLC (Diamond-Like Carbon) coating provides a low-friction, wear-resistant cutting surface designed to help reduce material adhesion and improve wear resistance compared with an otherwise similar uncoated cutter. The distinctive multicolor finish is characteristic of this coated tool and may vary slightly in appearance from tool to tool.

The up-cut design pulls chips upward and away from the cutting area for efficient evacuation. This is particularly useful during slotting and deeper cuts where effective chip clearing is important. Up-cut geometry can also provide good bottom-edge cut quality. Because the cutting action tends to lift the workpiece and chips upward, secure workholding is recommended and top-edge finish should be considered when the visible upper surface is critical.

Typical Applications

• Acrylic and plastic machining
• HDPE and polyethylene
• Polycarbonate
• PVC and similar plastics
• Signmaking and plastic fabrication
• Profiling and contouring
• Slotting and edge trimming
• Deeper routing applications requiring effective chip evacuation
• Suitable wood and wood-based materials
• Aluminum and suitable non-ferrous materials when properly set up

Tool Features

• Rainbow DLC coating provides a low-friction, wear-resistant cutting surface
• Single O-flute geometry provides generous chip space for efficient evacuation
• Well suited for acrylic, HDPE, polycarbonate, PVC, and other machinable plastics
• Up-cut geometry pulls chips upward and away from the cutting area
• 15mm LOC provides extended cutting depth for profiling, trimming, and slotting
• Square end geometry is suitable for slotting, profiling, trimming, and general routing work
• Solid carbide construction provides rigidity and wear resistance
• Standard 1/8" shank fits many compact CNC routers and precision collet setups

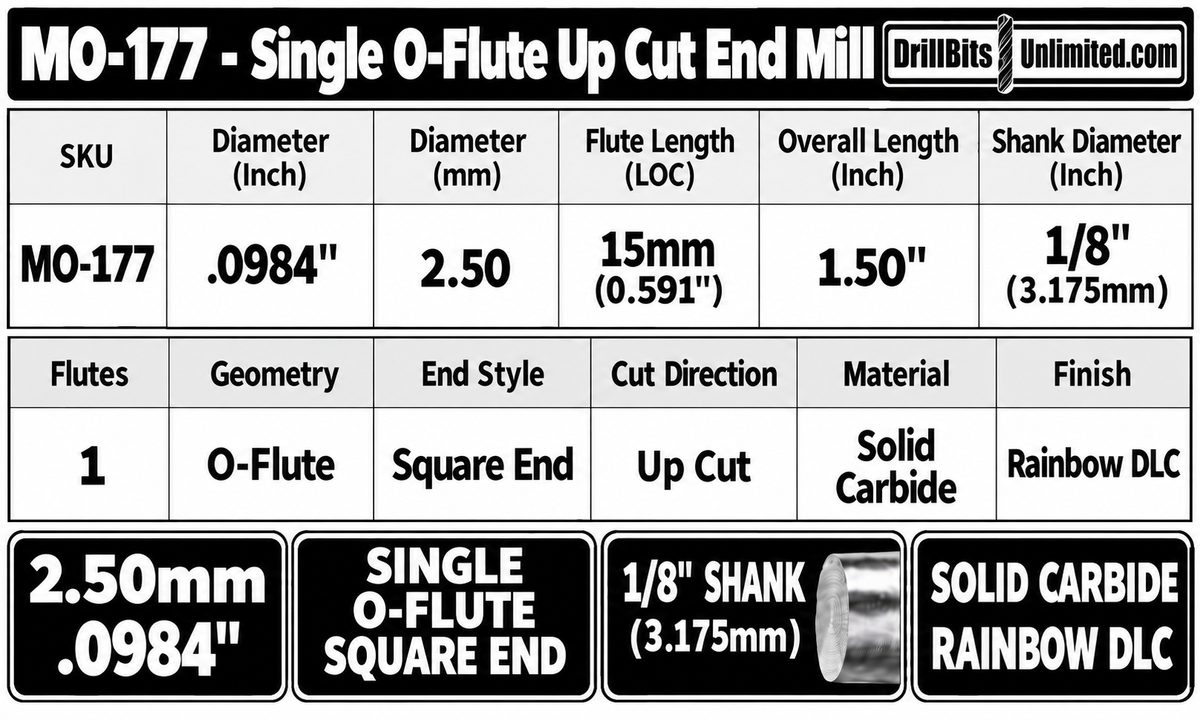

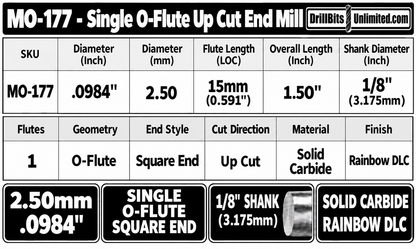

Specifications
