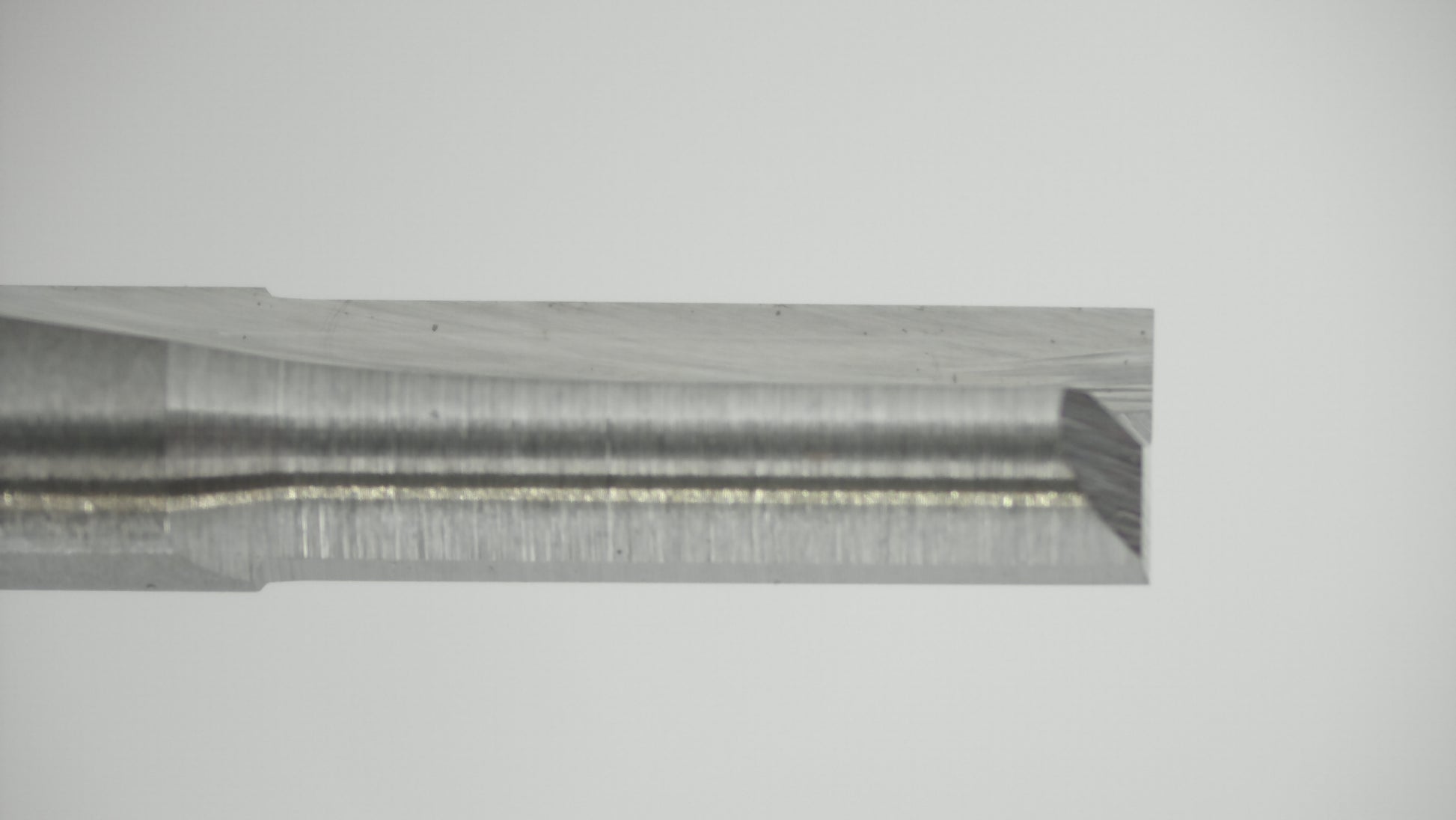

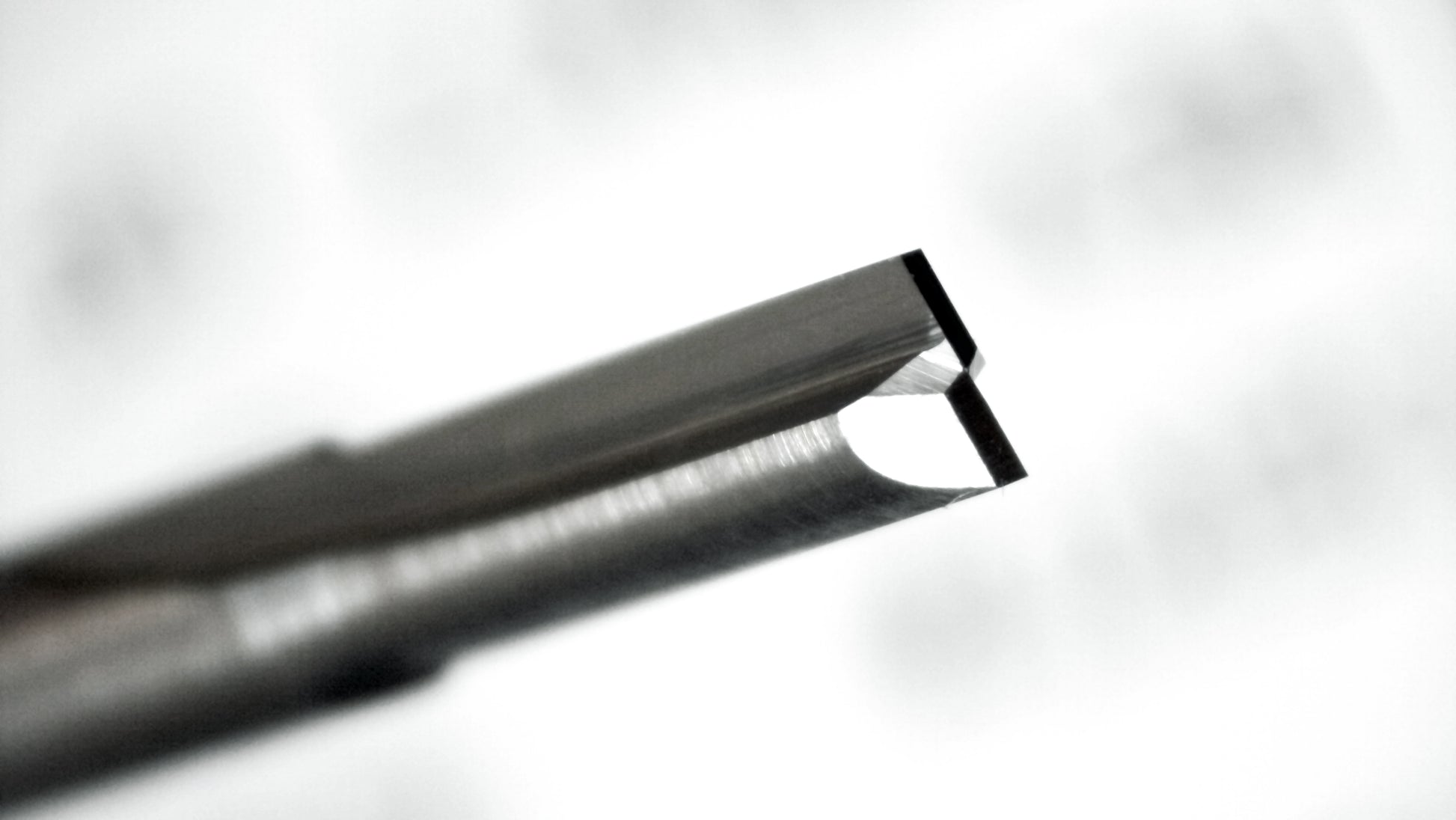

0.116" Solid Carbide Straight Flute End Mill 0.400" LOC 1/8" Shank 1.50" OAL Square End 2-Pack

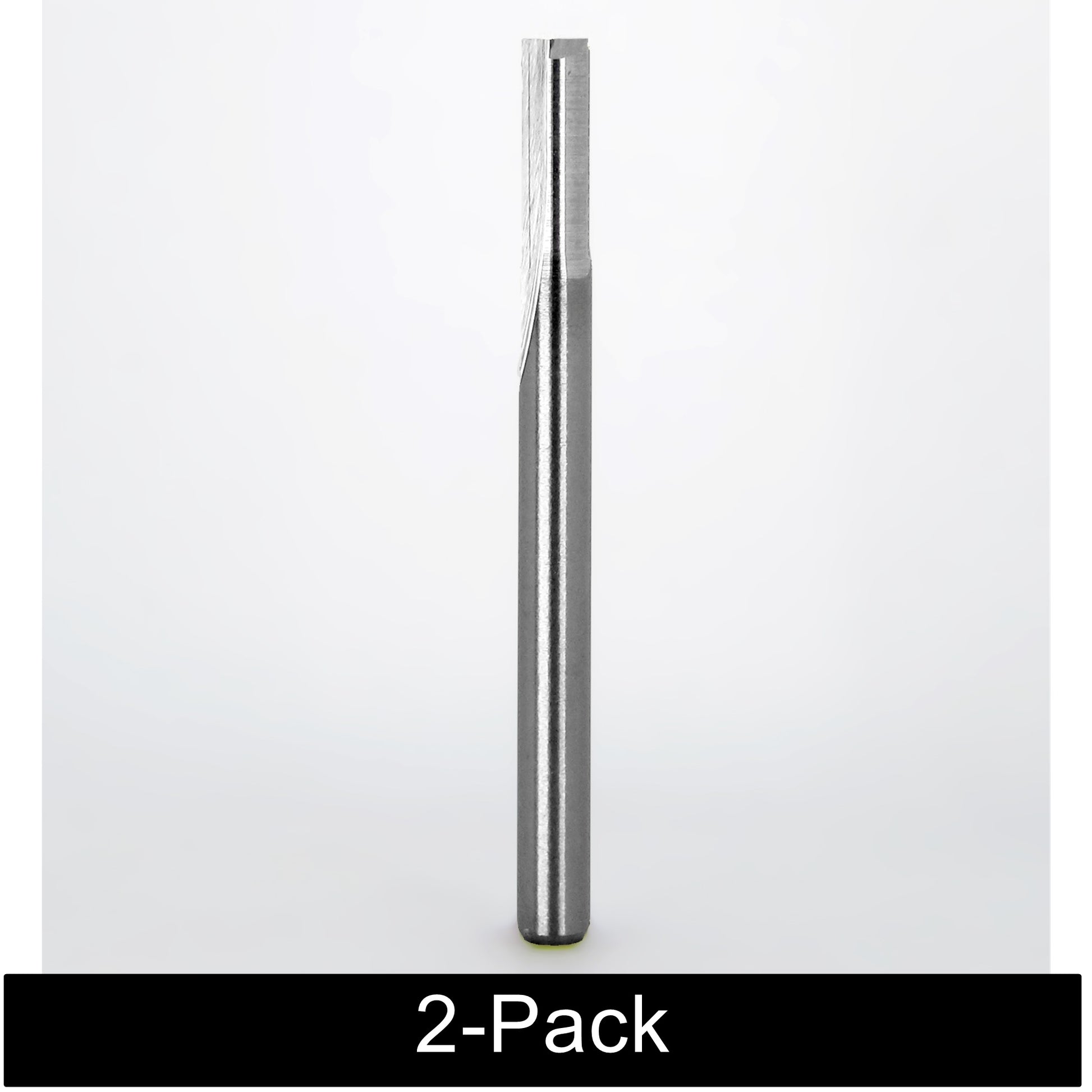

0.116" Solid Carbide Straight Flute End Mill – 2 Pack

This solid carbide straight flute end mill is designed for controlled cutting in plastics, laminates, and composite materials. The straight flute geometry provides balanced cutting forces and helps minimize lifting or edge fraying compared to spiral tools.

Specifications:

• Diameter: 0.116"
• Flute Type: Straight Flute
• End Type: Square End
• Flute Length (LOC): 0.400"
• Overall Length (OAL): 1.50"
• Shank Diameter: 1/8"
• Material: Solid Carbide
• Quantity: 2 Pieces

About This Tool:

Straight flute tools are ideal for applications where both top and bottom edge quality are important. Unlike upcut or downcut spirals, the straight flute design reduces material lifting and provides more neutral cutting action, making it especially useful in thin or layered materials.

Applications:

• Plastics and acrylics
• Composites and laminates
• PCB and phenolic materials
• Slotting and profiling
