0.1250" (1/8") x 1.25" LOC Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank | MO-200

0.1250" (1/8") x 1.25" LOC Single O-Flute Carbide End Mill, Up Cut, 1/8" Shank

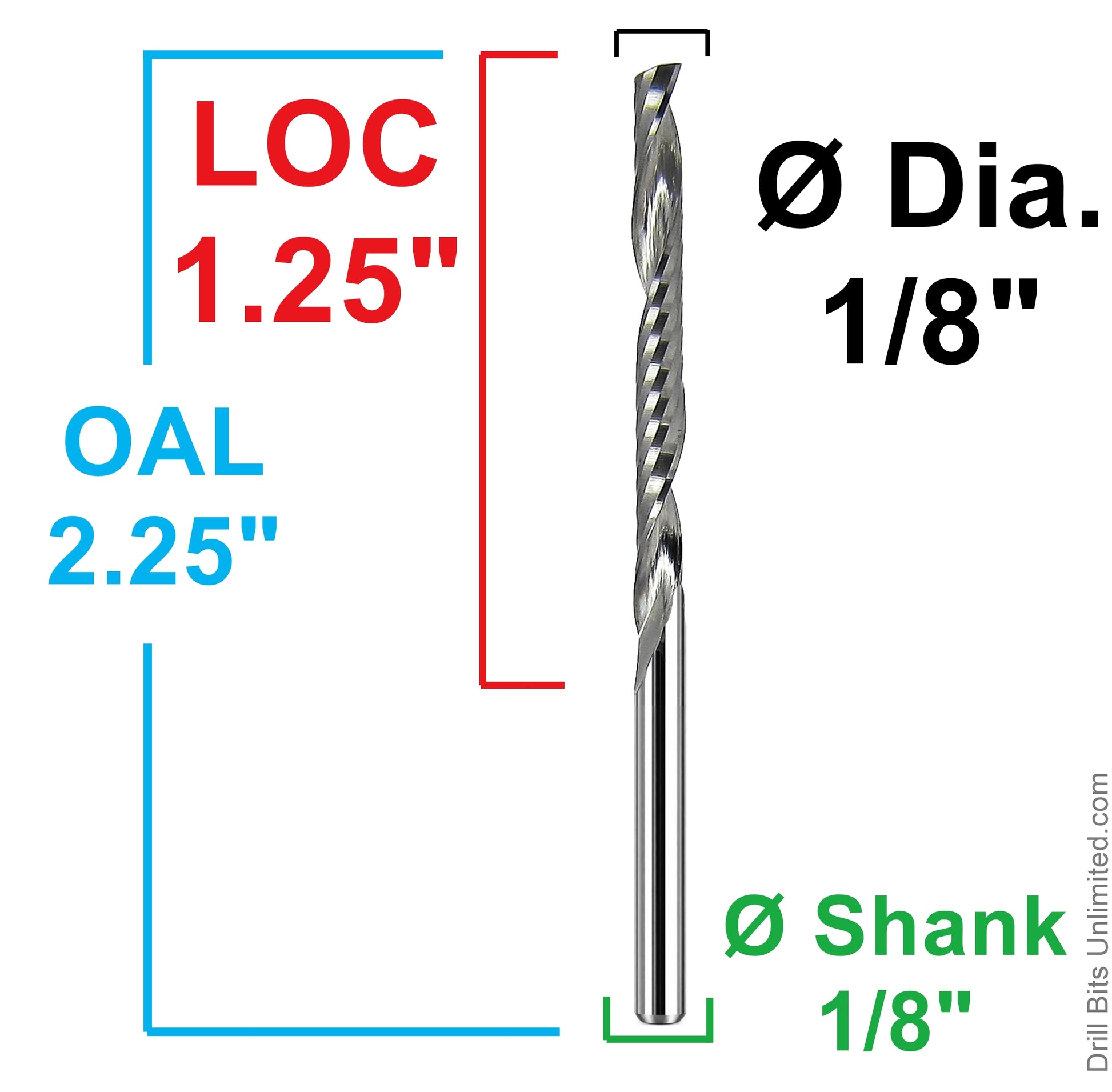

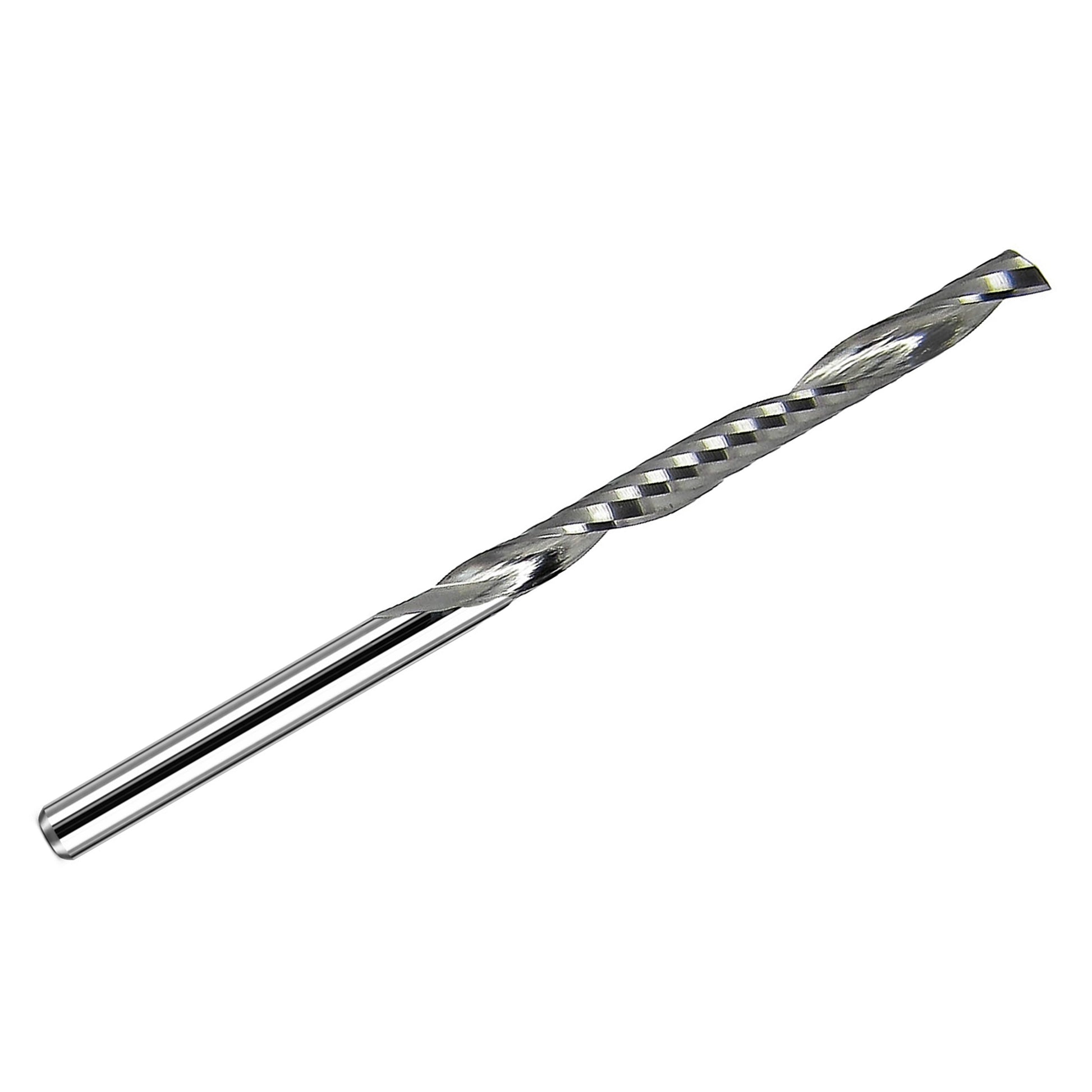

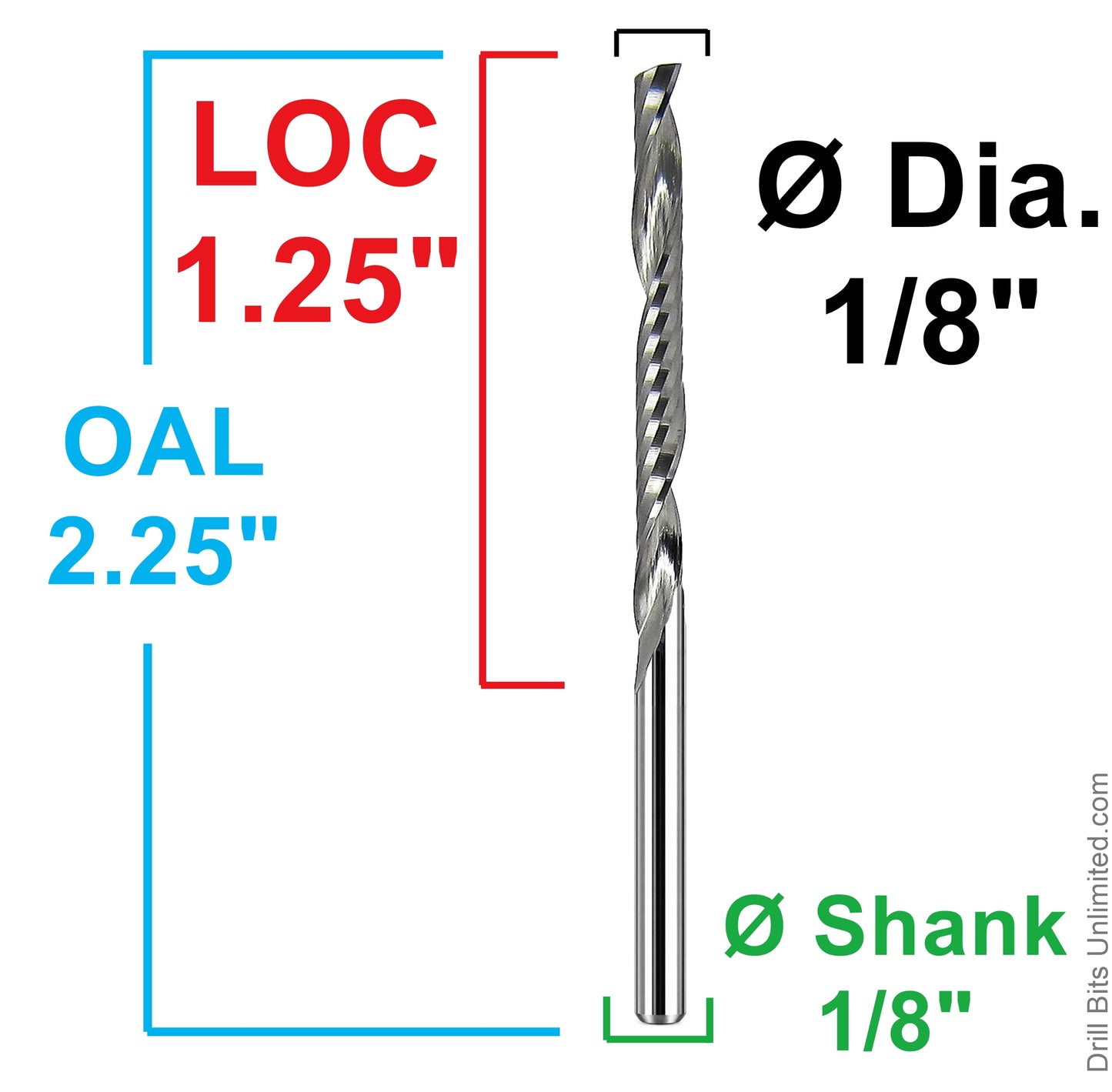

This single O-flute carbide end mill features a 0.1250" (1/8") cutting diameter, 1.25" length of cut, 2.25" overall length, and a standard 1/8" shank. Its bright, uncoated solid carbide construction makes it a practical choice for CNC routing, milling, profiling, slotting, and trimming in plastics and suitable non-ferrous materials.

The single O-flute geometry is especially well suited for cutting acrylic, plastic, PVC, and other softer materials. It may also be used in aluminum and suitable non-ferrous materials when proper feeds, speeds, chip clearing, and workholding are used.

The up-cut design helps evacuate chips efficiently and can improve bottom-edge cut quality in many routing applications. Because up-cut tools pull chips upward, the top edge may require proper hold-down, masking, or finishing depending on the material.

Important setup note: This tool has a very long 1.25" LOC relative to its 1/8" cutting diameter. Use light passes, conservative feeds, good chip clearing, and secure workholding to reduce deflection, chatter, heat buildup, or tool breakage.

Typical Applications

• Acrylic and plastic machining
• PVC cutting
• Signmaking and plastic fabrication
• Aluminum routing and milling when properly set up
• Suitable non-ferrous material cutting
• Profiling and contouring
• Slotting and edge trimming
• CNC applications requiring efficient chip evacuation

Benefits

• Single O-flute design supports efficient chip evacuation in plastics and softer materials
• Up-cut geometry helps pull chips up and away from the cut
• Can improve bottom-edge cut quality in many routing applications
• Long 1.25" LOC provides extra reach for deeper routing, profiling, and trimming applications
• Square end geometry is suitable for slotting, profiling, trimming, and general routing work
• Solid carbide construction provides rigidity and wear resistance
• Standard 1/8" shank fits many compact CNC routers and precision collet setups

Specifications
