0.2360" (6.00mm) x 25mm LOC Single O-Flute Carbide End Mill, Up Cut, 6mm Shank | MO-235

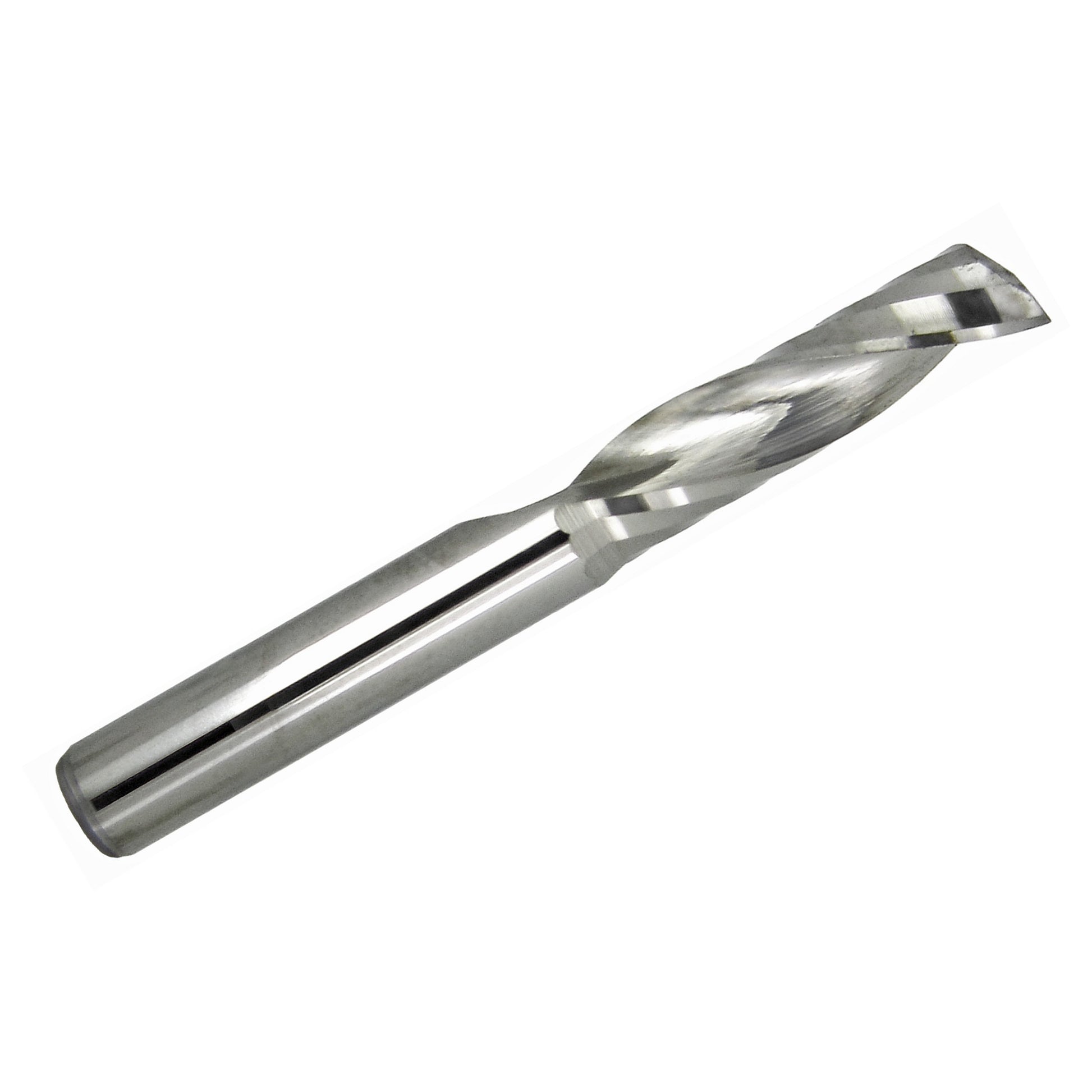

6mm x 25mm LOC Single O-Flute Carbide End Mill, Up Cut, 6mm Shank

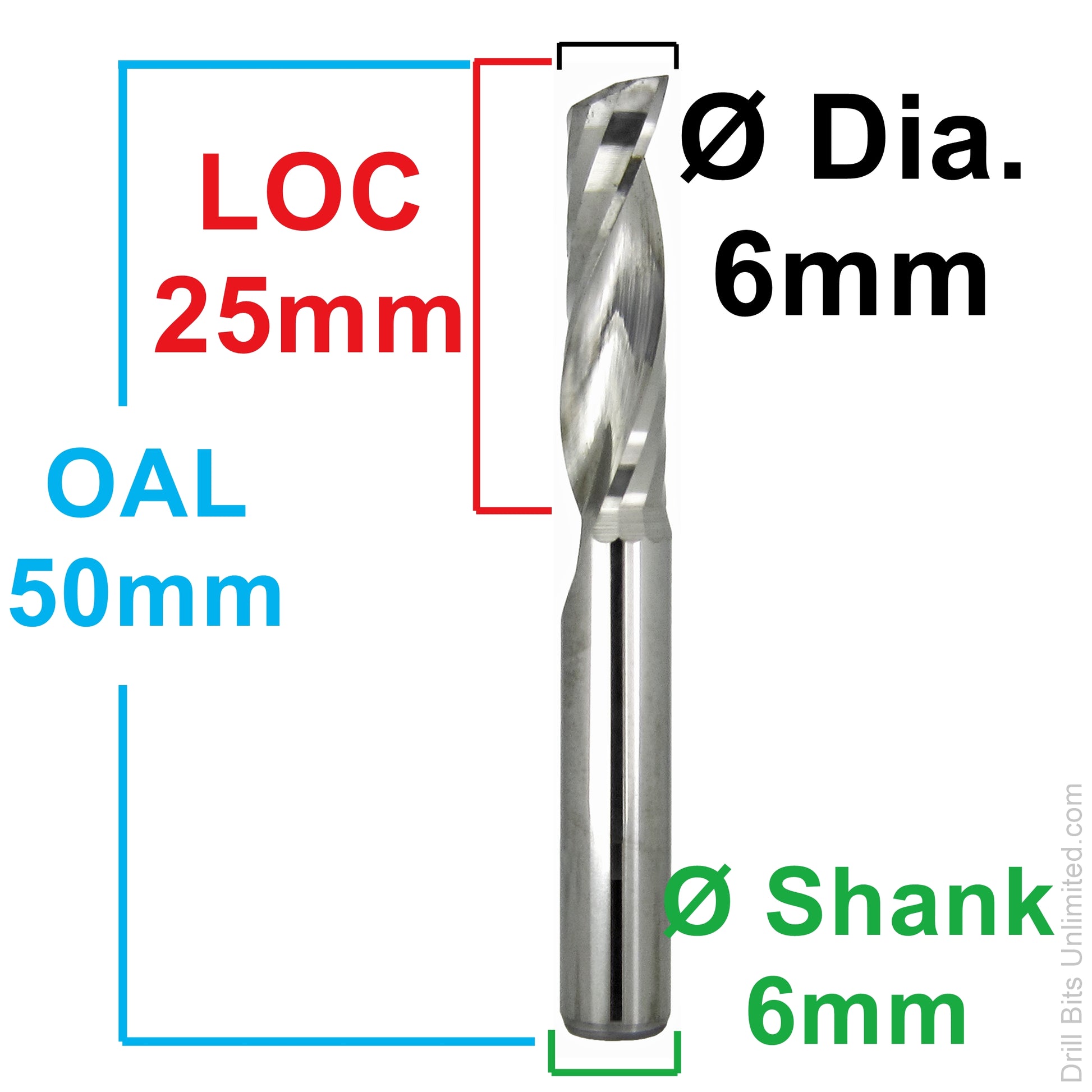

This single O-flute carbide end mill features a 6mm cutting diameter, 25mm length of cut, single O-flute geometry, 50mm overall length, and a 6mm shank. Its bright, uncoated solid carbide construction makes it a practical choice for CNC routing, milling, profiling, slotting, and trimming in plastics and suitable non-ferrous materials.

The O-flute geometry is especially well suited for cutting acrylic, plastic, PVC, and other softer materials. It may also be used in aluminum and suitable non-ferrous metals when proper feeds, speeds, chip clearing, and workholding are used.

The up-cut design helps evacuate chips efficiently and can improve bottom-edge cut quality in many routing applications. Because up-cut tools pull chips upward, the top edge may require proper hold-down, masking, or finishing depending on the material.

Important setup note: This tool has a long 25mm LOC. Use appropriate pass depth, conservative feeds, good chip clearing, and secure workholding to reduce deflection, chatter, or tool breakage.

Typical Applications

• Acrylic and plastic machining
• PVC cutting
• Signmaking and plastic fabrication
• Aluminum routing and milling when properly set up
• Suitable non-ferrous material cutting
• Profiling and contouring
• Slotting and edge trimming
• CNC applications requiring efficient chip evacuation

Benefits

• Single O-flute design supports efficient chip evacuation in plastics and softer materials
• Up-cut geometry helps pull chips up and away from the cut
• Can improve bottom-edge cut quality in many routing applications
• Long 25mm LOC provides added cutting reach for deeper profiles and slots
• Square end geometry is suitable for slotting, profiling, trimming, and general routing work
• Solid carbide construction provides rigidity and wear resistance
• 6mm shank fits compatible metric collets and toolholders

Specifications
