0.2500" (1/4") x 1.00" LOC Single O-Flute Carbide End Mill, Up Cut, 1/4" Shank | MO-250
0.2500" (1/4") x 1.00" LOC Single O-Flute Carbide End Mill, Up Cut, 1/4" Shank | MO-250
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 3% off |
| 25 + | 5% off |
| 50 + | 8% off |
| 100 + | 10% off |
Couldn't load pickup availability

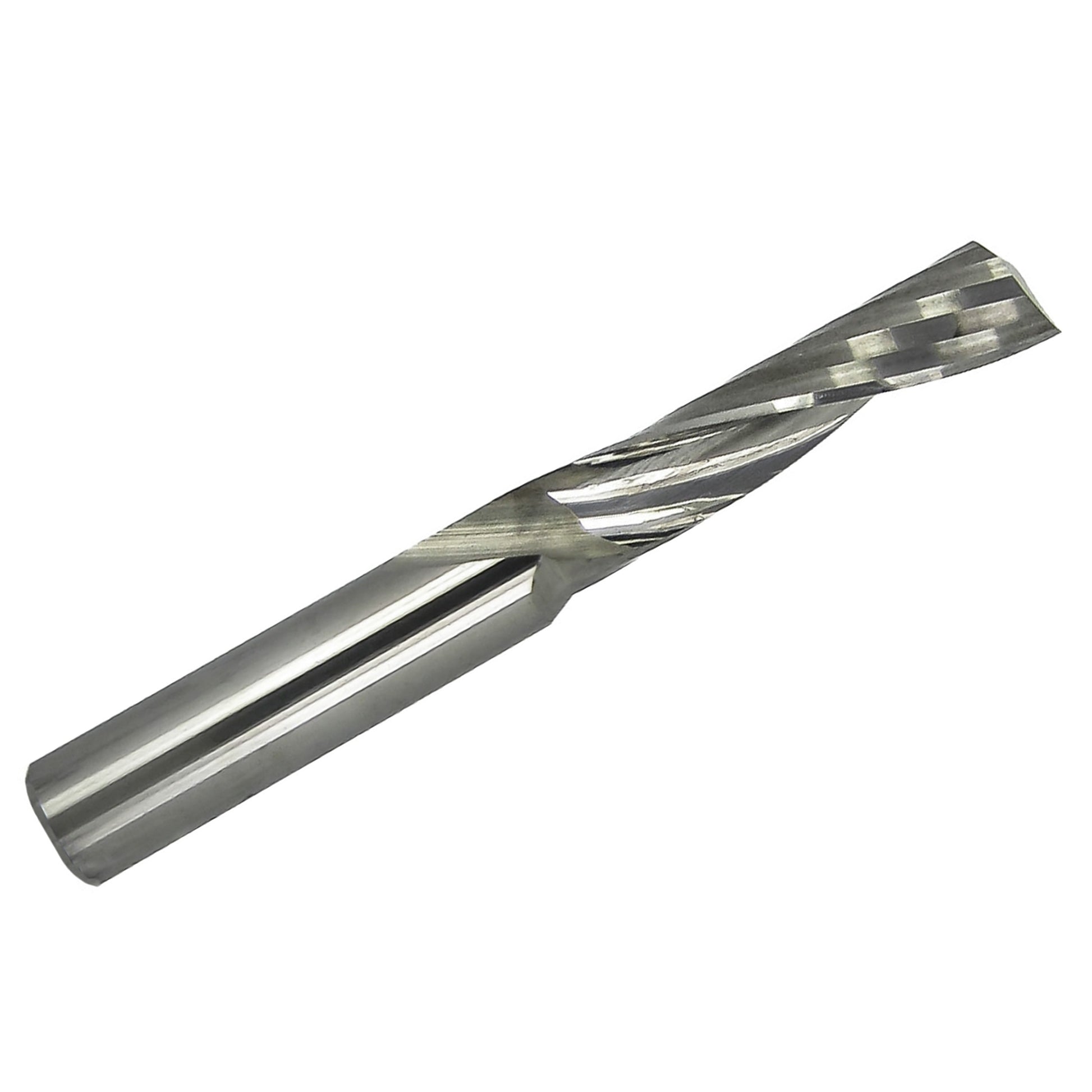

0.2500" (1/4") x 1.00" LOC Single O-Flute Carbide End Mill, Up Cut, 1/4" Shank
This up-cut single O-flute carbide end mill features a 0.2500" (1/4") cutting diameter, 1.00" length of cut, 2.00" overall length, and a 1/4" shank. Its bright, uncoated solid carbide construction makes it a practical choice for CNC routing, milling, profiling, slotting, and trimming in plastics and suitable non-ferrous materials.
The single O-flute geometry is especially well suited for cutting acrylic, plastic, PVC, and other softer materials. It may also be used in aluminum and suitable non-ferrous materials when proper feeds, speeds, chip clearing, and workholding are used.
The up-cut design helps evacuate chips efficiently and can improve bottom-edge cut quality in many routing applications. Because up-cut tools pull chips upward, the top edge may require proper hold-down, masking, or finishing depending on the material.
Setup note: This tool has a 1.00" LOC. Use appropriate pass depth, good chip clearing, and secure workholding to reduce deflection, chatter, heat buildup, or tool breakage.
Typical Applications
- Acrylic and plastic machining
- PVC cutting
- Signmaking and plastic fabrication
- Aluminum routing and milling when properly set up
- Suitable non-ferrous material cutting
- Profiling and contouring
- Slotting and edge trimming
- CNC applications requiring efficient chip evacuation
Benefits
- Single O-flute design supports efficient chip evacuation in plastics and softer materials
- Up-cut geometry helps pull chips up and away from the cut
- Can improve bottom-edge cut quality in many routing applications
- 1.00" LOC provides useful reach for deeper routing, profiling, and trimming applications
- Square end geometry is suitable for slotting, profiling, trimming, and general routing work
- Solid carbide construction provides rigidity and wear resistance
- 1/4" shank offers a sturdier setup for many CNC routers and compatible collets

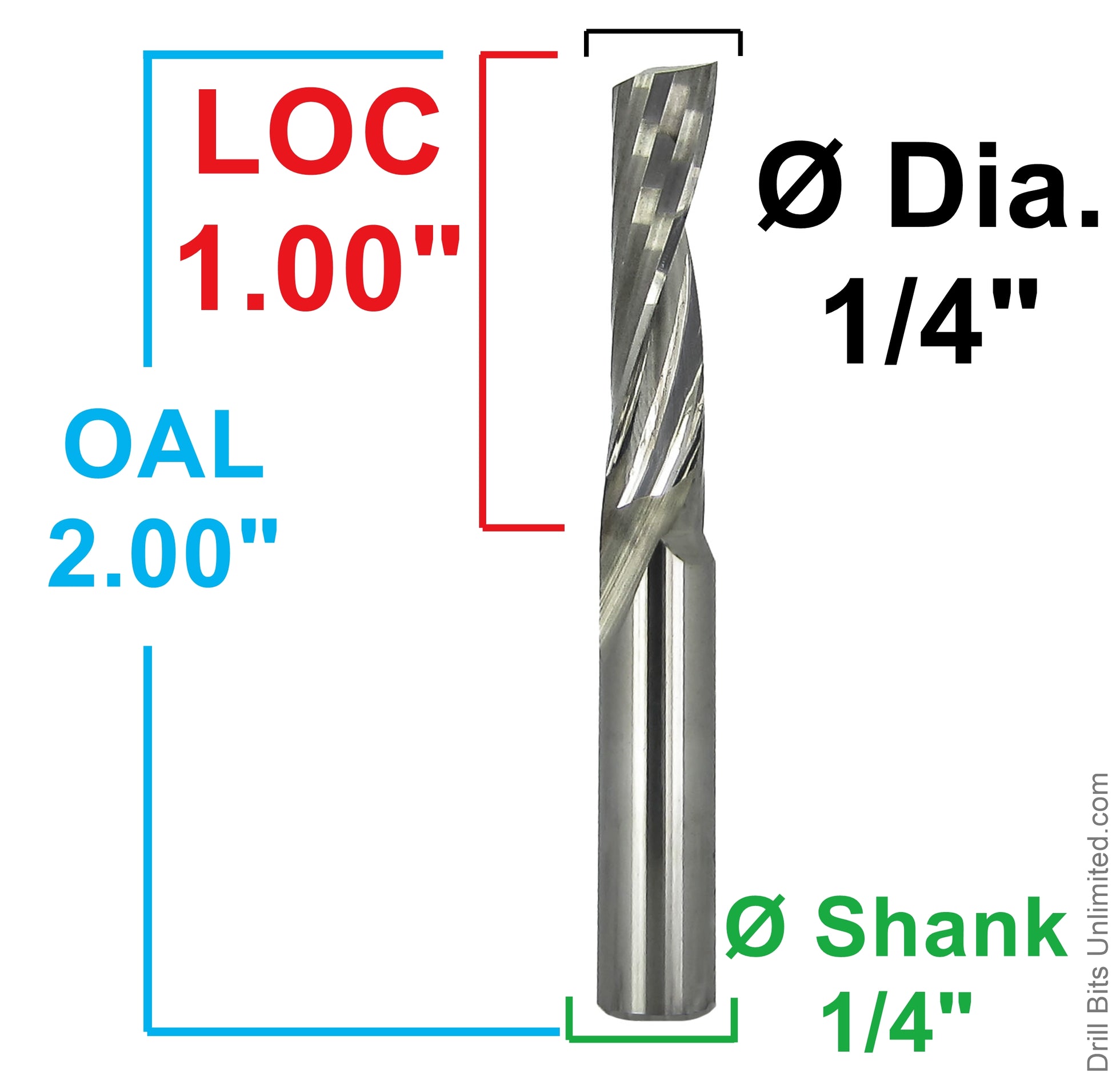

Specifications
| Tool Type | Solid Carbide O-Flute End Mill |
|---|---|
| Condition | New |
| Cutting Diameter | 0.2500" / 1/4" |
| Length of Cut / Flute Length | 1.00" |
| Overall Length | 2.00" |
| Shank Diameter | 1/4" |
| Flutes | 1 |
| Geometry | O-Flute |
| End Style | Square End |
| Cut Direction | Up Cut |
| Material | Solid Carbide |
| Finish / Coating | Bright / Uncoated |
See our carbide end mill feed and speed calculator →
Shop O-flute carbide end mills here: O-flute end mills →
