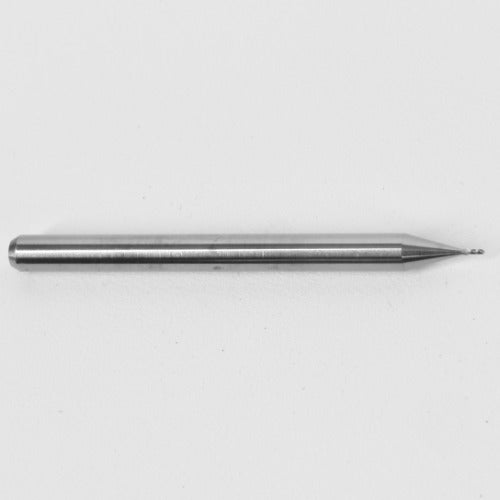

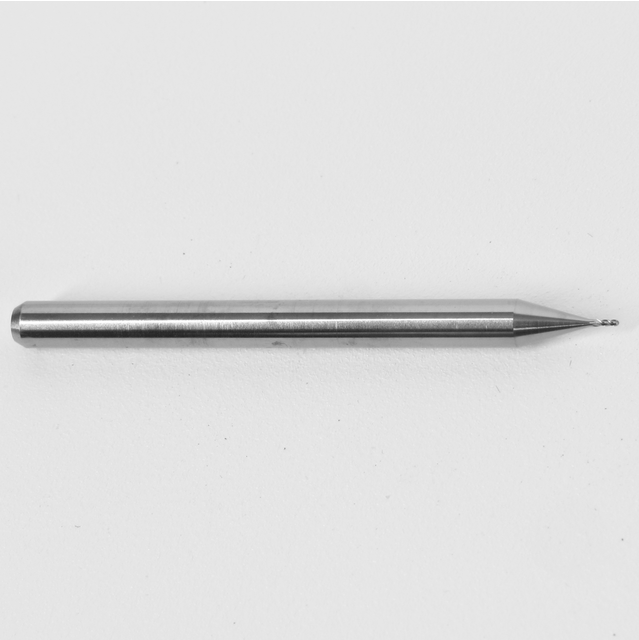

0.40mm .0157" Diameter Ball Nose End Mill, Carbide, 4-Flute, 1825-0157.047 K019

• Cutting Diameter (Size): 0.0850"
• Cutting Diameter (Decimal Inch): 0.0850
• Cutting Diameter (mm): 2.16
• Shank Diameter (Decimal Inch): 0.1250
• Shank Diameter (mm): 3.18
• Overall Length (Decimal Inch): 1.500
• Overall Length (mm): 38.10
• Length of Cut (Decimal Inch): 0.255
• Length of Cut (mm): 6.48
• Length Type: Standard
• Helix Angle (Degree): 30
• Number of Flutes: 4
• Flute Style: Right Hand Spiral / Medium Helix
• Type: Micro, Center Cutting
• Hand of Cut: Right-Hand
• Shank Type: Straight / Cylindrical
• Material: Sub Micron Grain Carbide
• Finish / Coating: Uncoated
• Series: 1825
• Primary Workpiece Material: Brass
• Secondary Workpiece Material: Aluminum, Graphite, Copper Alloy,

CFRP, Plastic, Thermoset Plastic, High Density Plastic, Titanium Alloy

• Application: Roughing / Finishing
• Unit of Measure: inch
