0.0197" (0.5mm) x .080" LOC 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | MB-100
0.0197" (0.5mm) x .080" LOC 2-Flute Ball Nose Carbide End Mill, 1/8" Shank | MB-100
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 8% off |
| 50 + | 12% off |
| 100 + | 14% off |
Couldn't load pickup availability

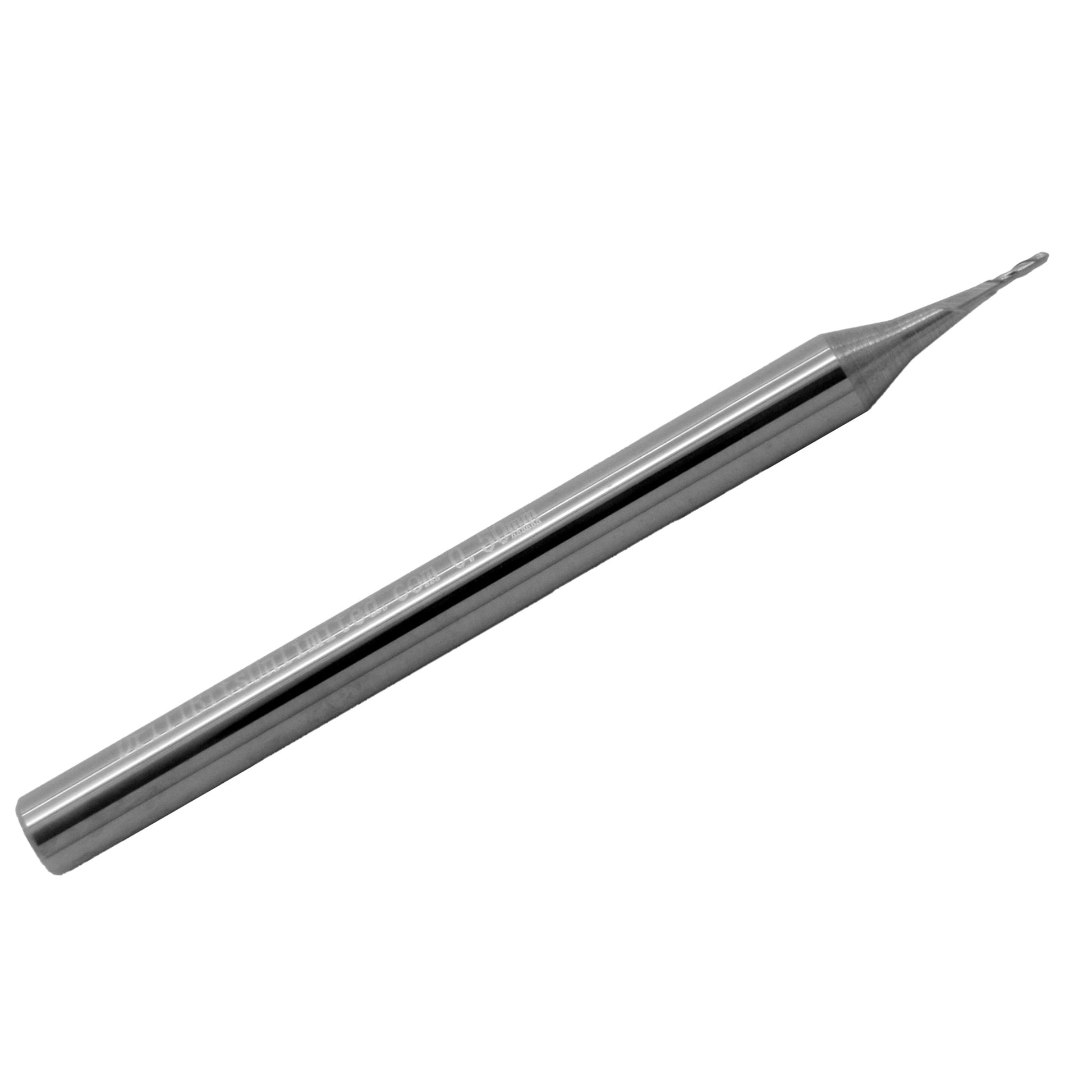

0.50mm Ball Nose Solid Carbide End Mill – 2 Flute
This 0.50mm ball nose solid carbide end mill is designed for precision contouring and fine-detail CNC machining.
The 2-flute spiral geometry provides smooth cutting action and efficient chip evacuation when machining aluminum, plastics, and other non-ferrous materials.

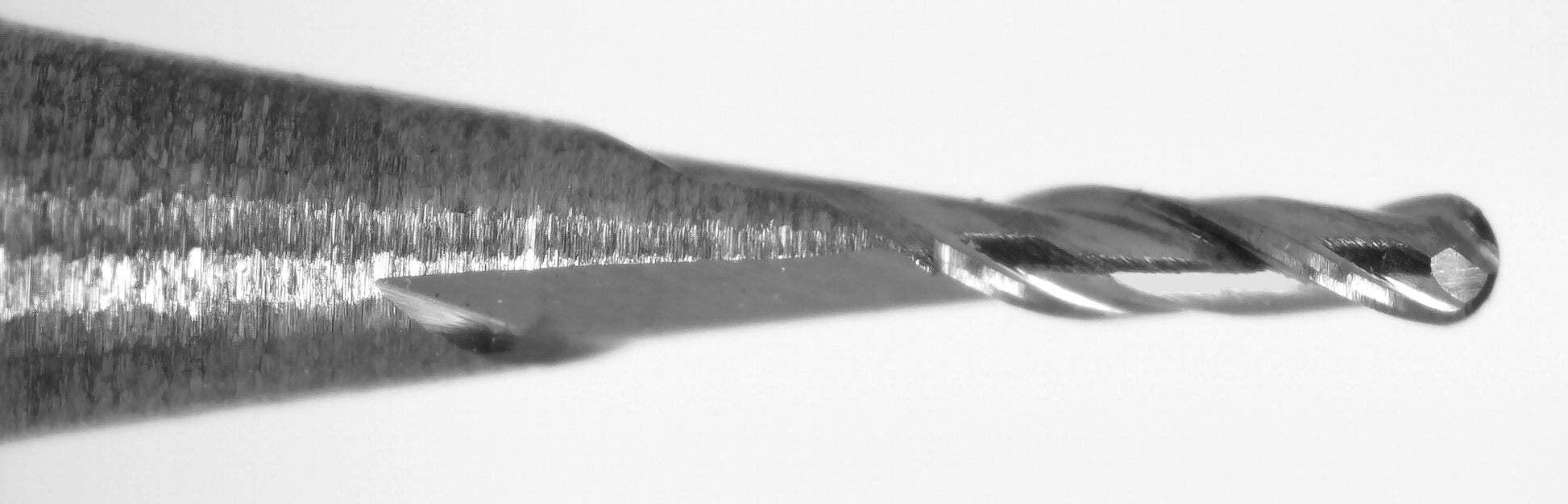

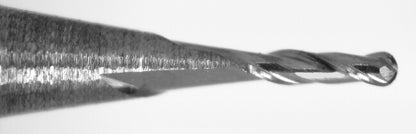

The ball nose tip allows smooth 3D contouring, fillets, and curved surfaces in detailed milling operations.
Ideal Applications
• micro milling
• mold making
• engraving
• aluminum machining
• plastics and composites

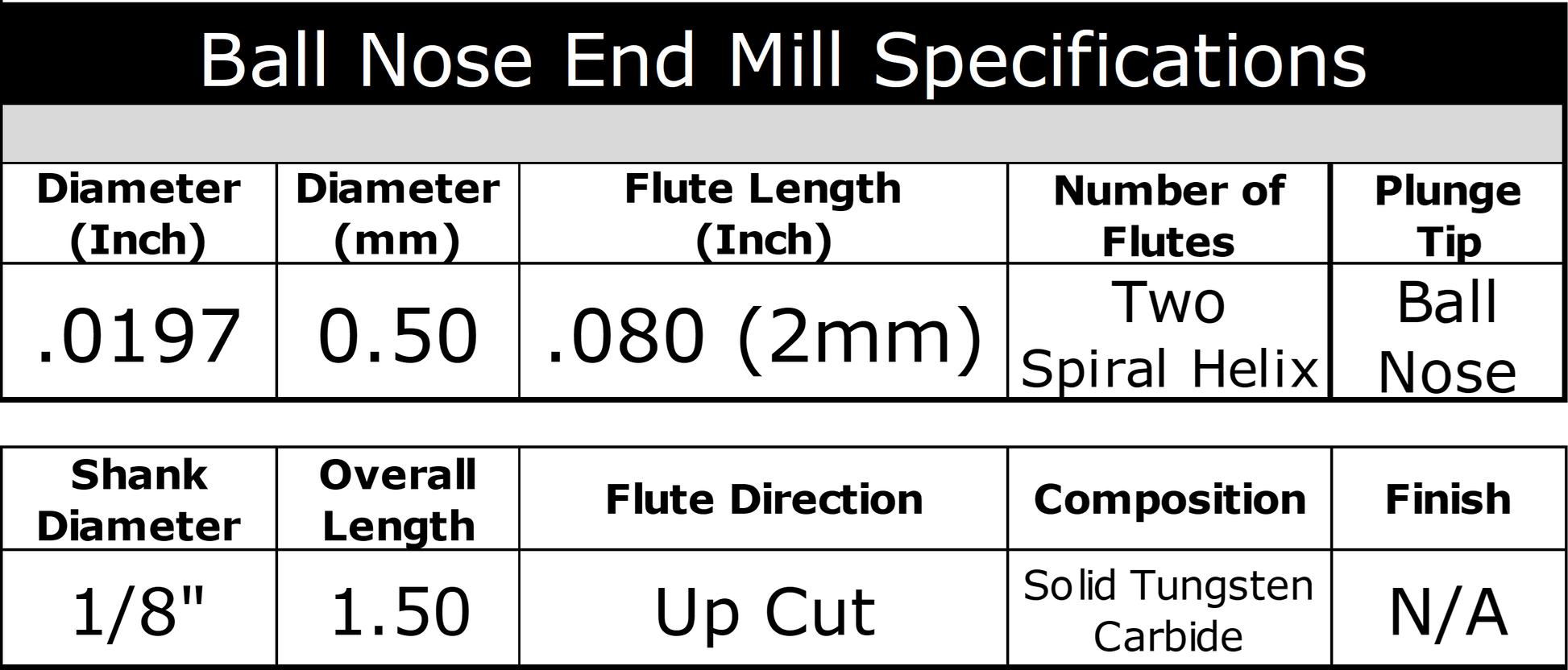

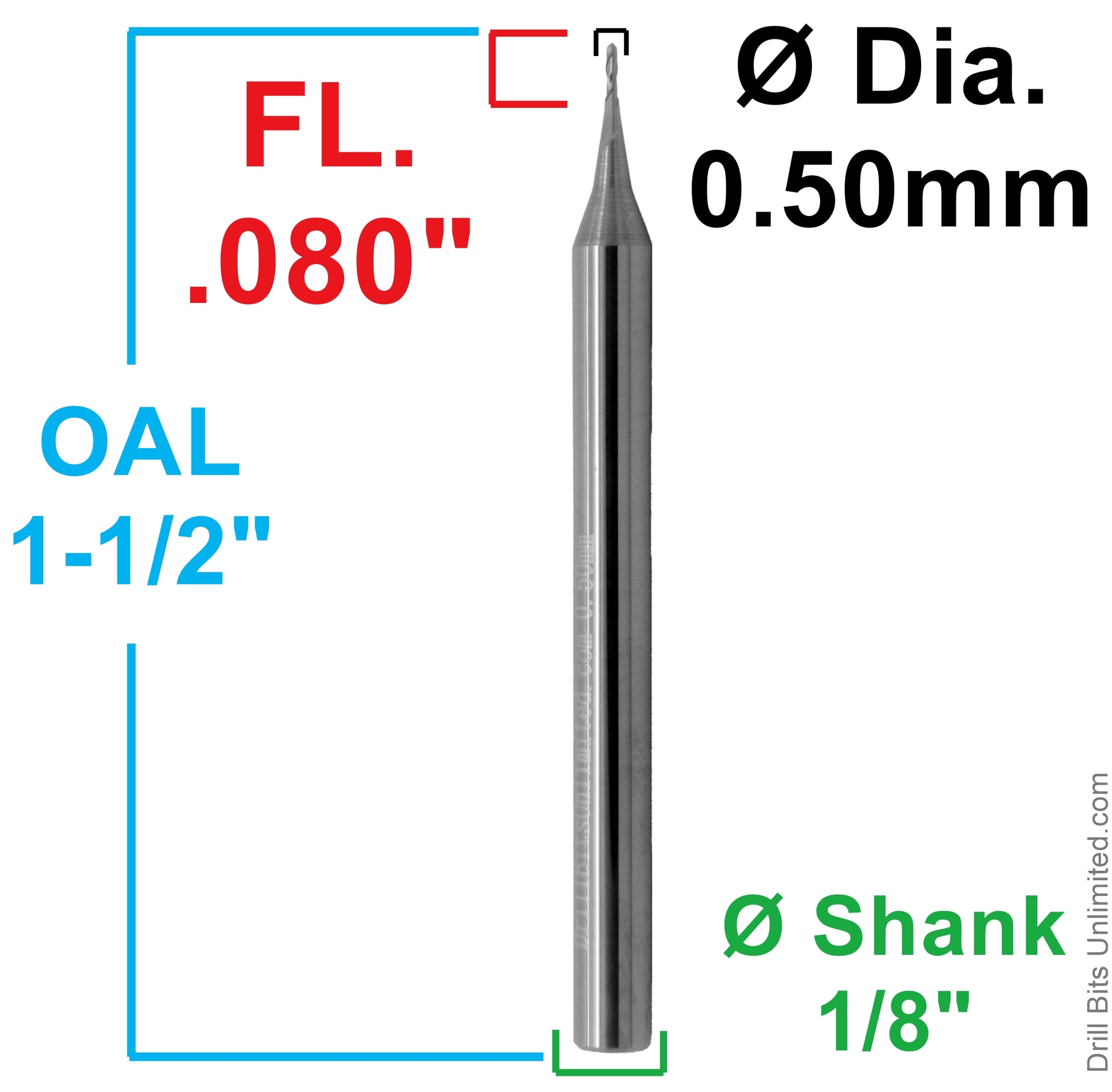

Specifications
Cutting Diameter: 0.50mm (.0197")
Flutes: 2
Length of Cut: 0.080" (2mm)
Shank Diameter: 1/8"
Overall Length: 1.50"
Material: Solid Tungsten Carbide
End Type: Ball Nose
| Mill Diameter (Inch) : | .0197" |
|---|---|
| Mill Diameter (mm) : | 0.50 |
| # of Flutes: | 2 |
| Length of Cut (inch): | .080 (2.00mm) |
| Shank Diameter (Inch) : | 1/8 |
| Overall Length (inch): | 1.50 |
| Material: | Solid Tungsten Carbide |
| Finish/Coating: | None |
| Cutting Direction: | Right Hand |
| Flute Direction: | Right Hand (Up Cut) |
| Flute Type: | Spiral |
| Helix Angle: | 30 |
| Center Cutting?: | Yes |
| Plunge Tip: | Ball Nose |
👉 View End Mill Feed & Speed Calculator
