0.0276" (0.7mm) x 1.05mm LOC 4-Flute Square End Carbide End Mill, 3mm Shank | K050
0.0276" (0.7mm) x 1.05mm LOC 4-Flute Square End Carbide End Mill, 3mm Shank | K050
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

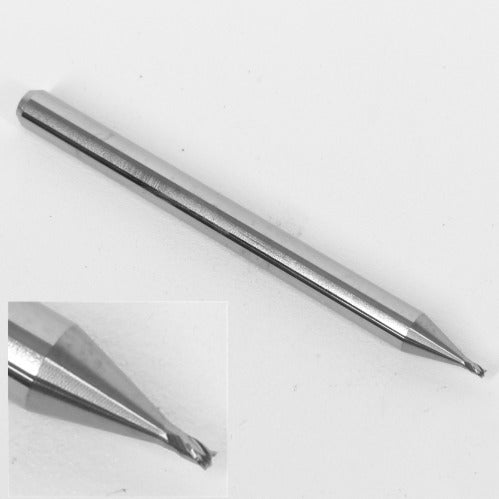

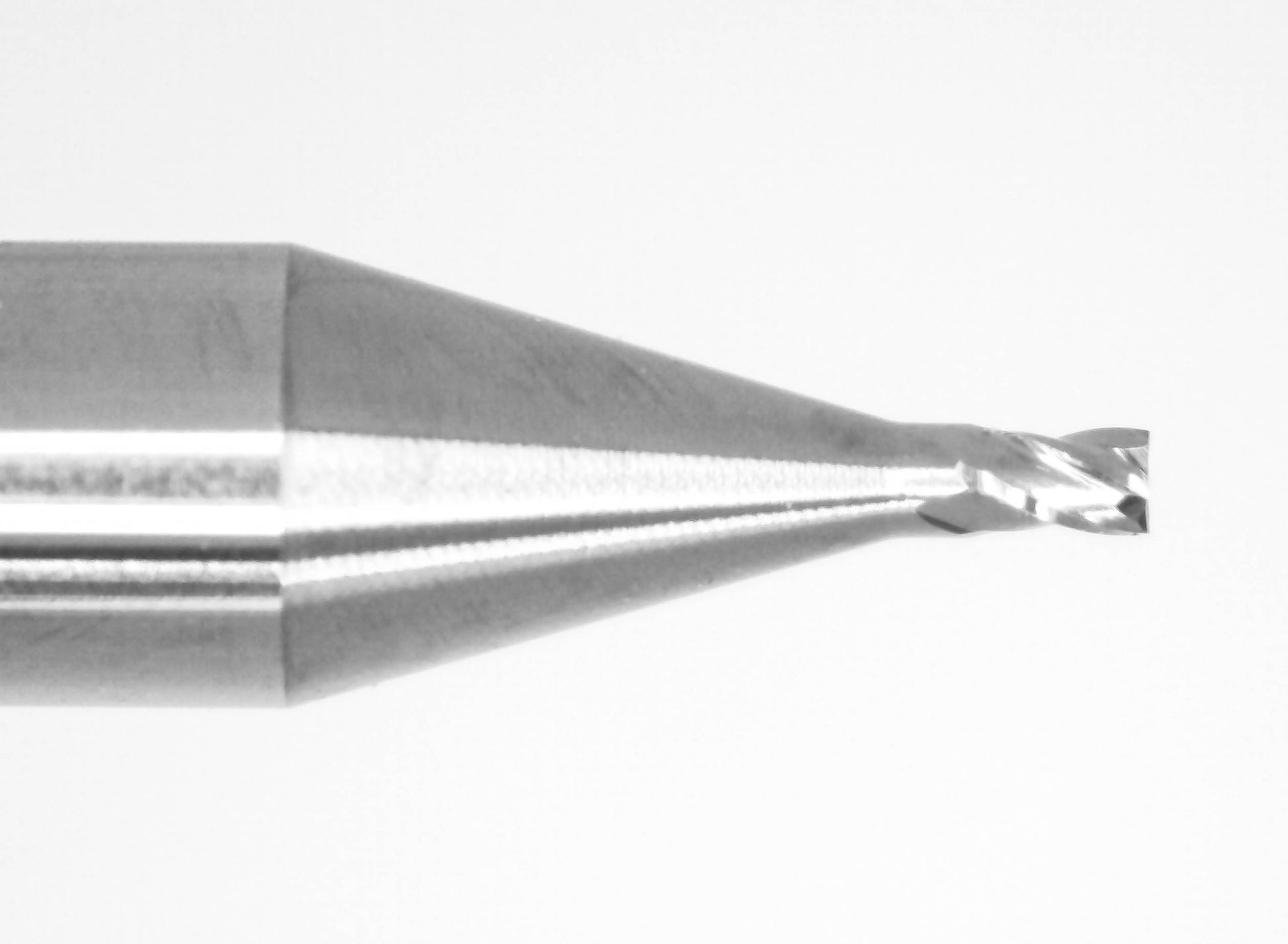

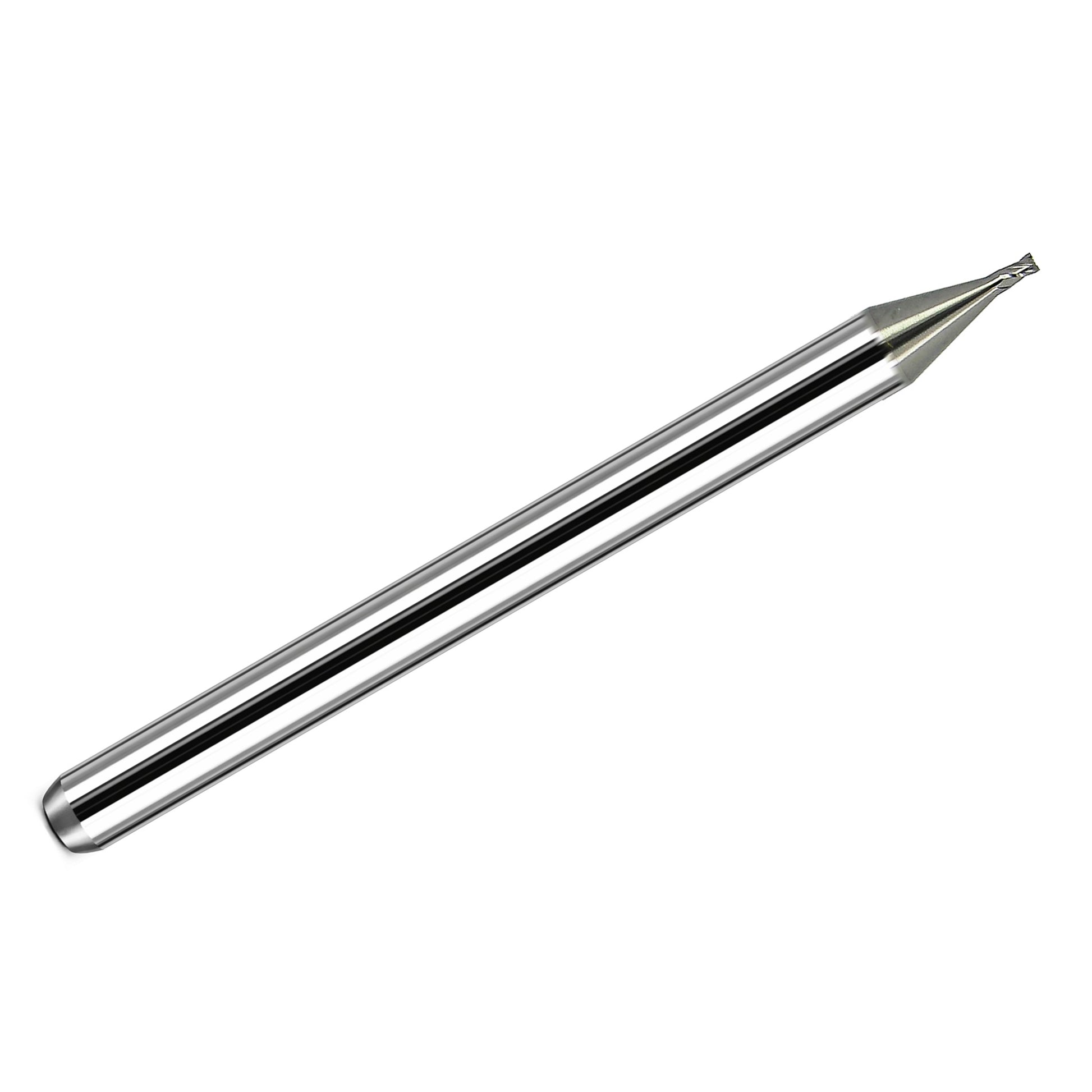

This 0.70mm (0.028") 4-flute solid carbide square end mill is manufactured by Kyocera USA, part number 1820-0276.041. This precision stub-length micro end mill features a bright (uncoated) micro-grain carbide construction and a 4-flute center-cutting geometry designed for high-precision CNC machining.
Square end mills are commonly used for slotting, profiling, pocketing, and general milling. The flat cutting end allows precise machining of flat-bottom features, sharp internal corners, and detailed pockets in small precision components.
The stub length design increases rigidity and reduces tool deflection when machining small features. Combined with the 30° helix angle and 4-flute geometry, this tool delivers improved stability and surface finish when machining plastics, aluminum, and other non-ferrous materials.
Manufacturer: Kyocera USA
Manufacturer Part Number: 1820-0276.041
Country of Origin: United States
Typical Applications
- Micro CNC milling
- Precision slotting and profiling
- Small pocket machining
- Electronics and precision components
- Machining plastics and non-ferrous materials
Benefits
- Square end geometry for flat-bottom milling
- Stub length design improves rigidity and accuracy
- 4 flutes provide improved surface finish
- Micro-grain carbide for strength and wear resistance
- Center cutting design allows plunge milling capability

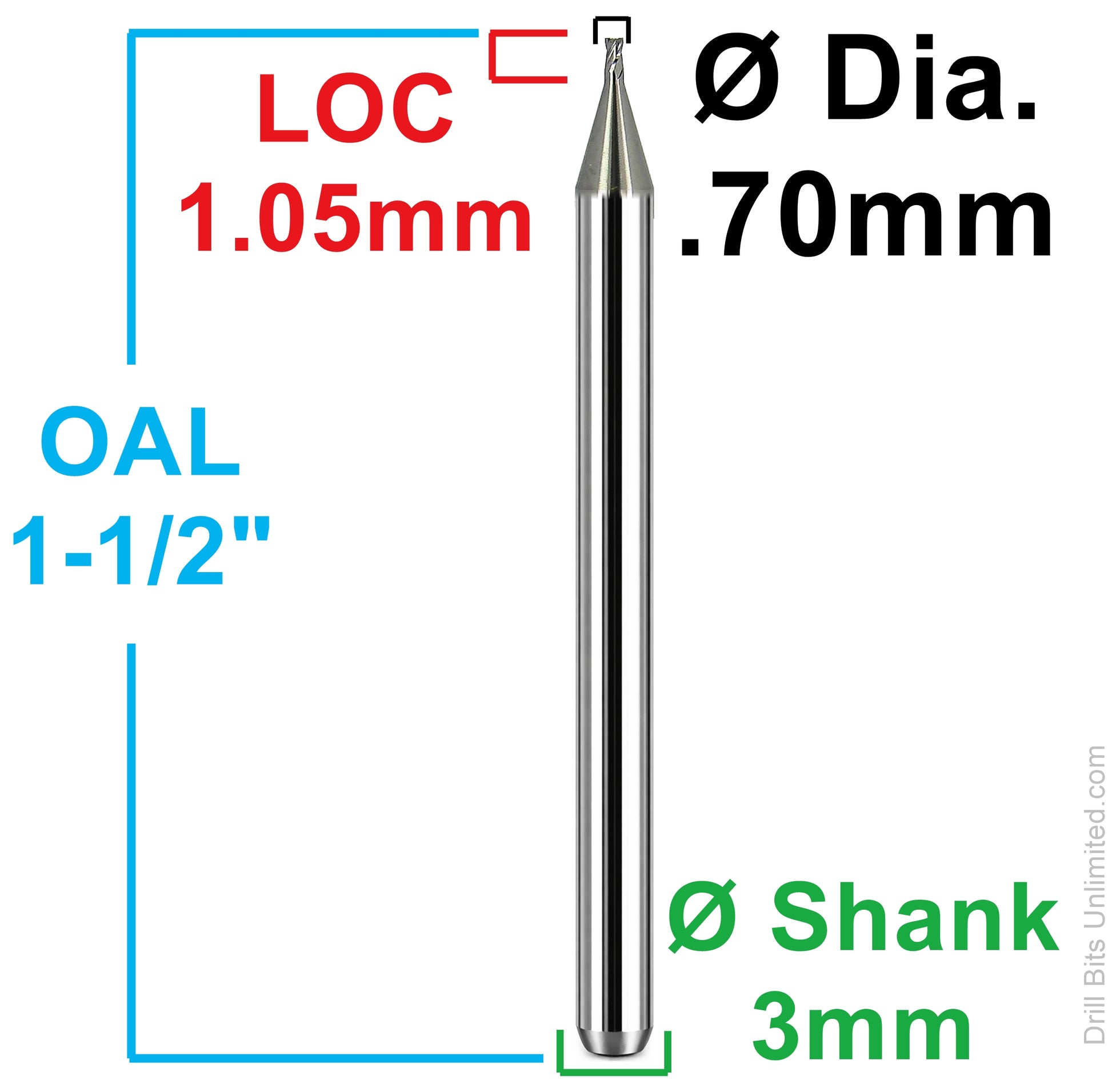

Specifications
| Manufacturer | Kyocera |
| Country of Origin | United States |
| Tool Type | Square End Mill |
| List Number | 1820 |
| Milling Diameter | 0.70mm (0.028") |
| Length of Cut (LOC) | 1.05mm |
| Overall Length | 38.00mm |
| Shank Diameter | 3.00mm |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | C2 Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non Ferrous (N) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
