0.0315" (0.80mm) (1/32") Left Hand Carbide Micro Drill Bit, AlTiN Coated, 3mm Shank – 226L-0315L433 K013 K013

0.0315" (0.80mm) (1/32") Left Hand Carbide Micro Drill Bit, AlTiN Coated, 3mm Shank – 226L-0315L433 K013 K013

$12.95 USD
$12.95 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.

This 0.80mm (1/32") left hand solid carbide micro drill bit features a durable AlTiN coating for improved wear resistance and heat protection when drilling difficult materials. The 130° four-facet point geometry improves centering accuracy and reduces walking during drilling operations.

Made in the USA, this precision ground carbide drill features an extended flute design and a 3mm shank for improved reach and rigidity in precision CNC drilling applications.

Left-hand drill bits are commonly used for removing broken fasteners and for specialized machining operations where reverse spindle rotation is required.

Manufacturer Part Number: 226L-0315L433

Alternate Format: 226L0315L433

Benefits

  • Left-hand spiral for reverse drilling applications
  • AlTiN coating improves wear resistance and heat protection
  • 130° four-facet point improves centering accuracy
  • Extended flute design for deeper reach
  • Solid carbide construction for excellent rigidity and tool life

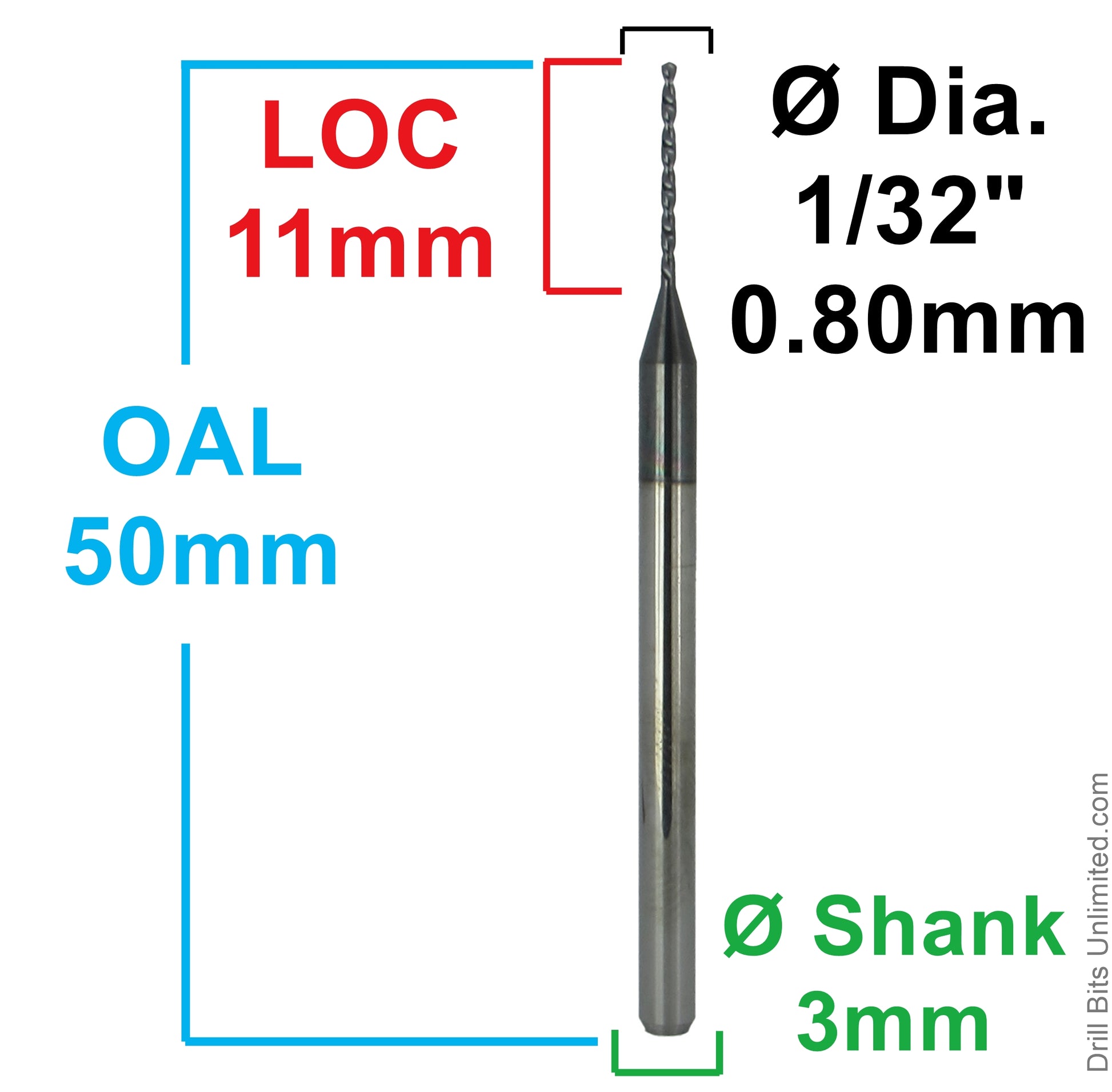

Tool Type Left Hand Carbide Micro Drill
Diameter 0.80mm (0.0315")
Material Solid Micrograin Carbide
Coating AlTiN
Point Angle 130° Four-Facet Point
Flutes 2
Flute Length 0.433"
Overall Length 50.00mm
Shank Diameter 3mm (0.1181")
Cut Direction Left Hand
Coolant Through No
Applications Brass, Cast Iron, CFRP, Composites, Copper Alloys, Graphite, Nickel Alloys, Titanium
Country of Origin United States

👉 View End Mill Feed & Speed Calculator
