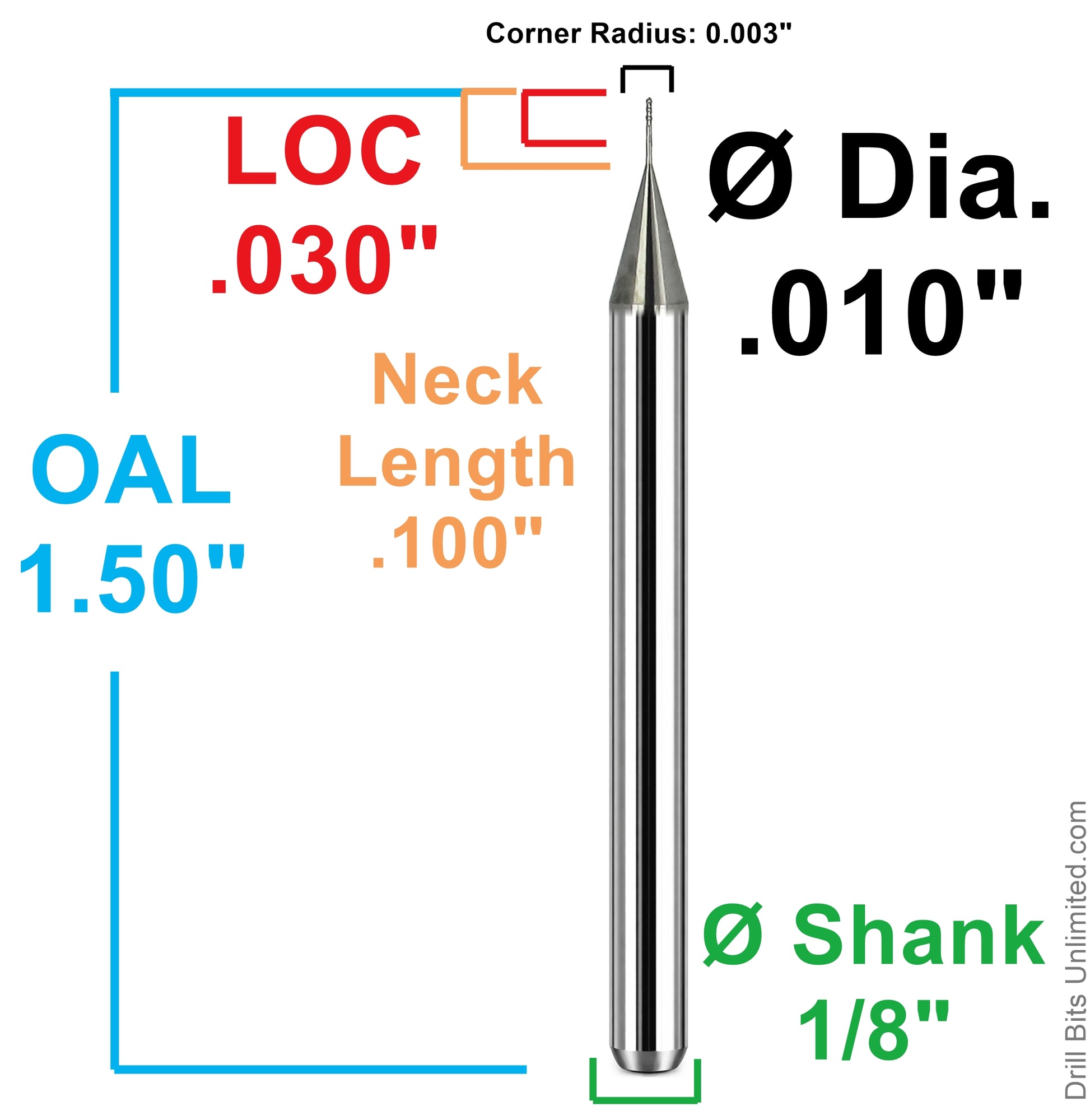

0.0100" (0.25mm) x .030" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K186

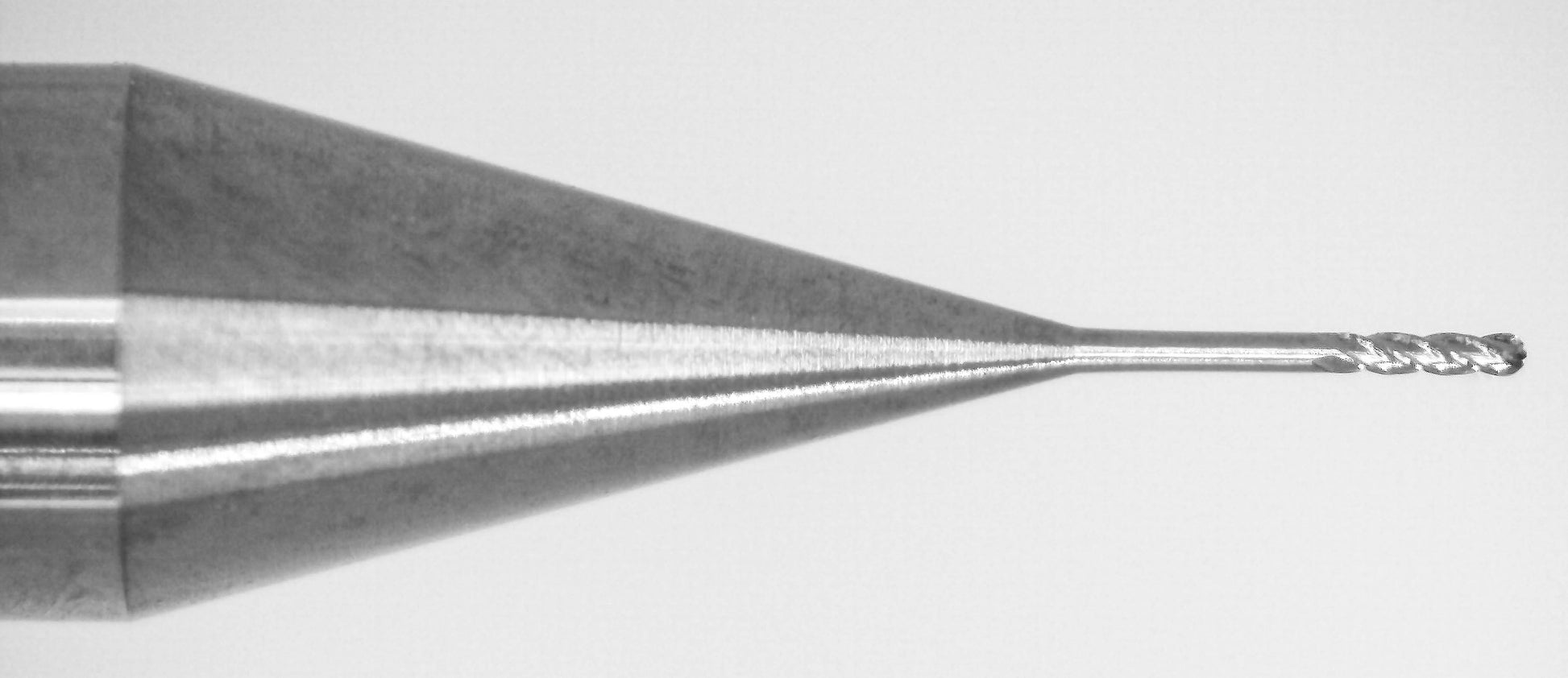

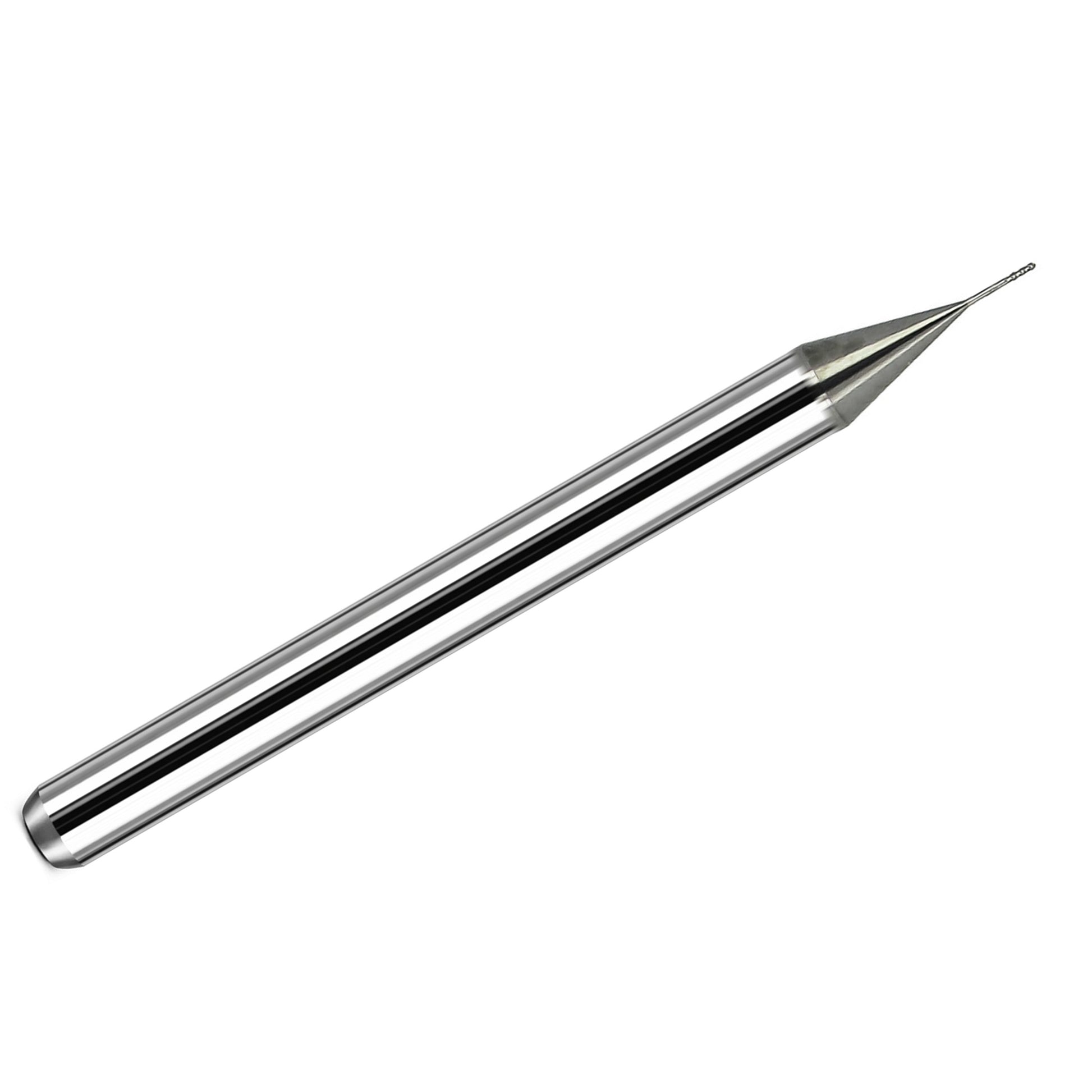

This .0100" 4-flute extended reach ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features a bright uncoated finish for precision CNC milling applications where a sharp cutting edge and fine surface finish are important.

This tool is part of the Kyocera Series 1845 extended reach ball nose end mill line and is designed for 3D contouring, profiling, fine-detail work, and finish milling in small features and hard-to-reach areas. The ball nose tip helps produce smooth blends on curved surfaces and delicate machined features.

Its extended reach necked design helps improve access in restricted areas, while the 4-flute geometry and 30° helix provide a strong balance of rigidity and finish quality. Because this tool has a bright (uncoated) finish, it is best suited where coating is not required and a sharp, precise edge is preferred.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1845-0100.100

Country of Origin: United States

Typical Applications

• 3D contour milling
• Profiling and finishing
• Fine-detail CNC machining
• Extended-reach milling in small features
• Precision micro-machining

Benefits

• Ball nose geometry for smooth contouring and profiling
• Extended reach necked design improves access in restricted areas
• 4 flutes provide rigidity and finish quality
• Bright uncoated finish for sharp cutting performance
• Sub-micron carbide supports precision and edge retention

Specifications
