0.0110" x .016" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K067
0.0110" x .016" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K067
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

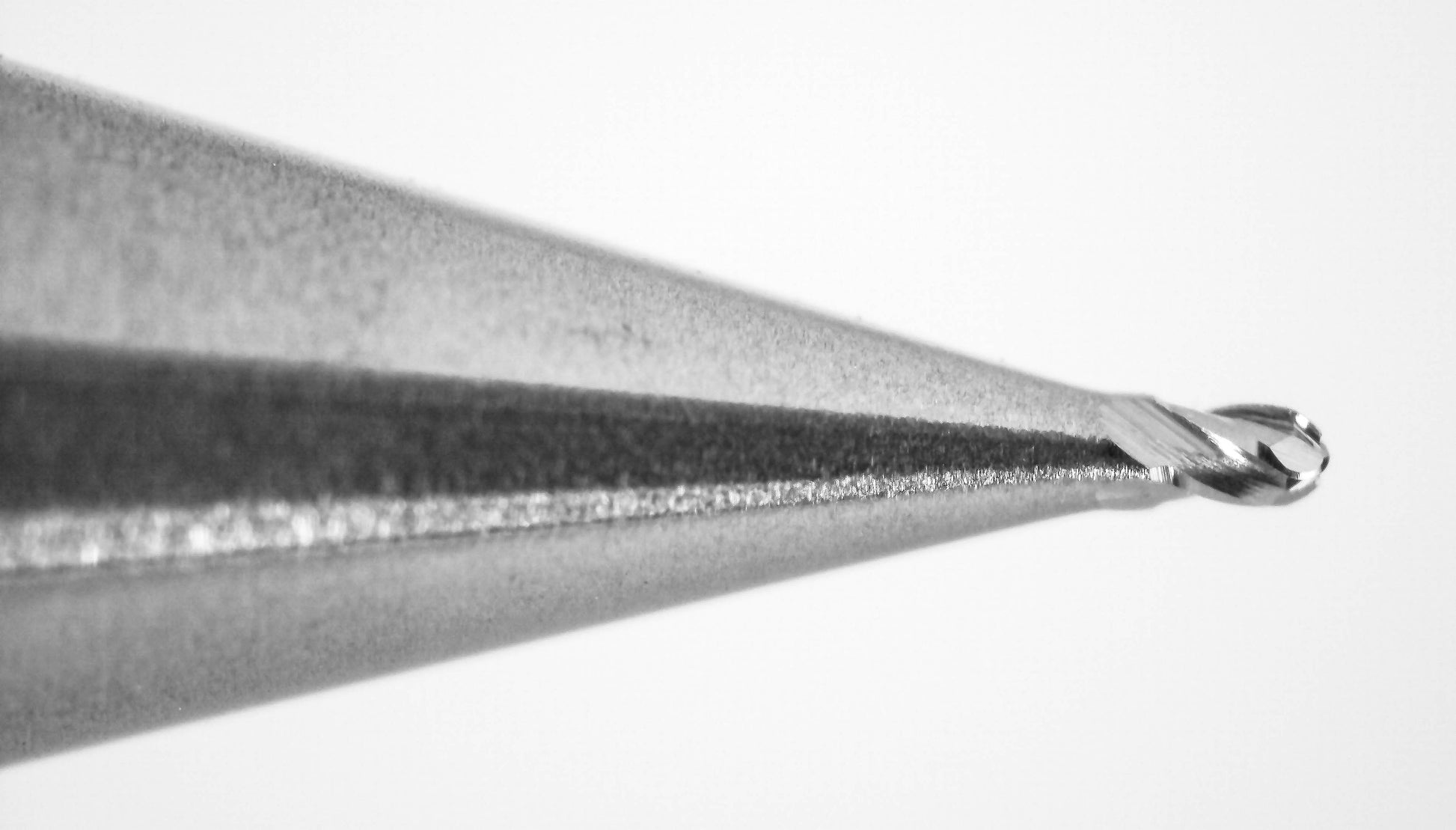

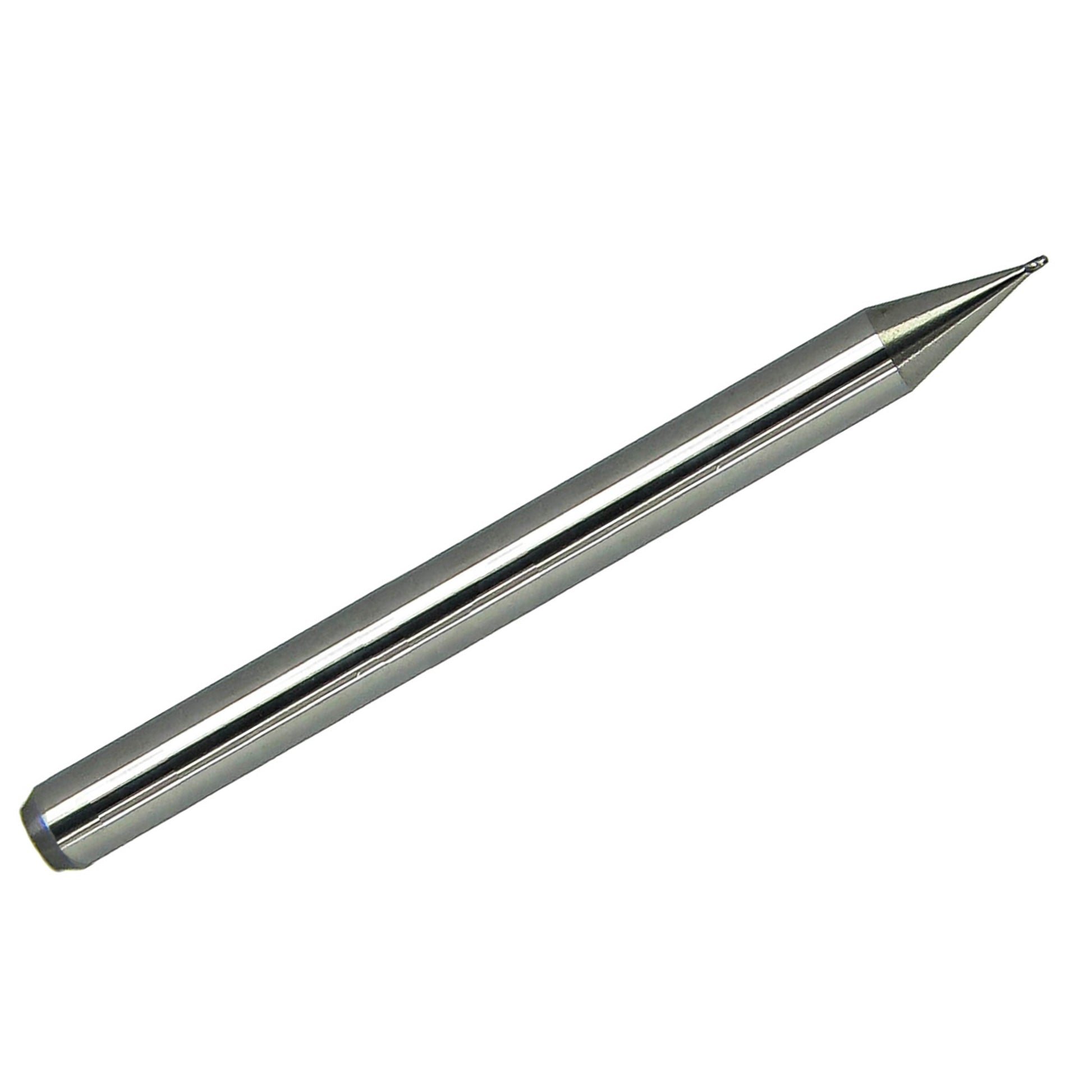

This 0.011" (0.28mm) 4-flute ball nose carbide end mill from Kyocera is manufactured from micro-grain solid carbide and designed for extremely fine precision CNC milling operations.
Ball nose end mills are commonly used for 3D contour milling, engraving, mold work, and fine finishing operations. The rounded cutting tip allows smooth machining of curved surfaces and intricate features.
The bright (uncoated) carbide finish provides extremely sharp cutting edges ideal for machining aluminum, plastics, graphite, and other non-ferrous materials. The 4-flute design increases rigidity and produces excellent surface finishes during light finishing passes.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0110.016
Country of Origin: United States
Typical Applications
- Micro machining
- 3D contour milling
- Mold and die work
- Precision engraving
- Fine finishing in aluminum and non-ferrous materials
Benefits
- Ball nose geometry for smooth 3D surface finishing
- 4 flutes increase rigidity and improve surface finish
- Micro-grain carbide for durability and long edge life
- Center cutting design allows plunge milling
- Bright finish provides extremely sharp cutting edges
Specifications
| Manufacturer | Kyocera |
| Country of Origin | United States |
| Tool Type | Ball Nose End Mill |
| List Number | 1835 |

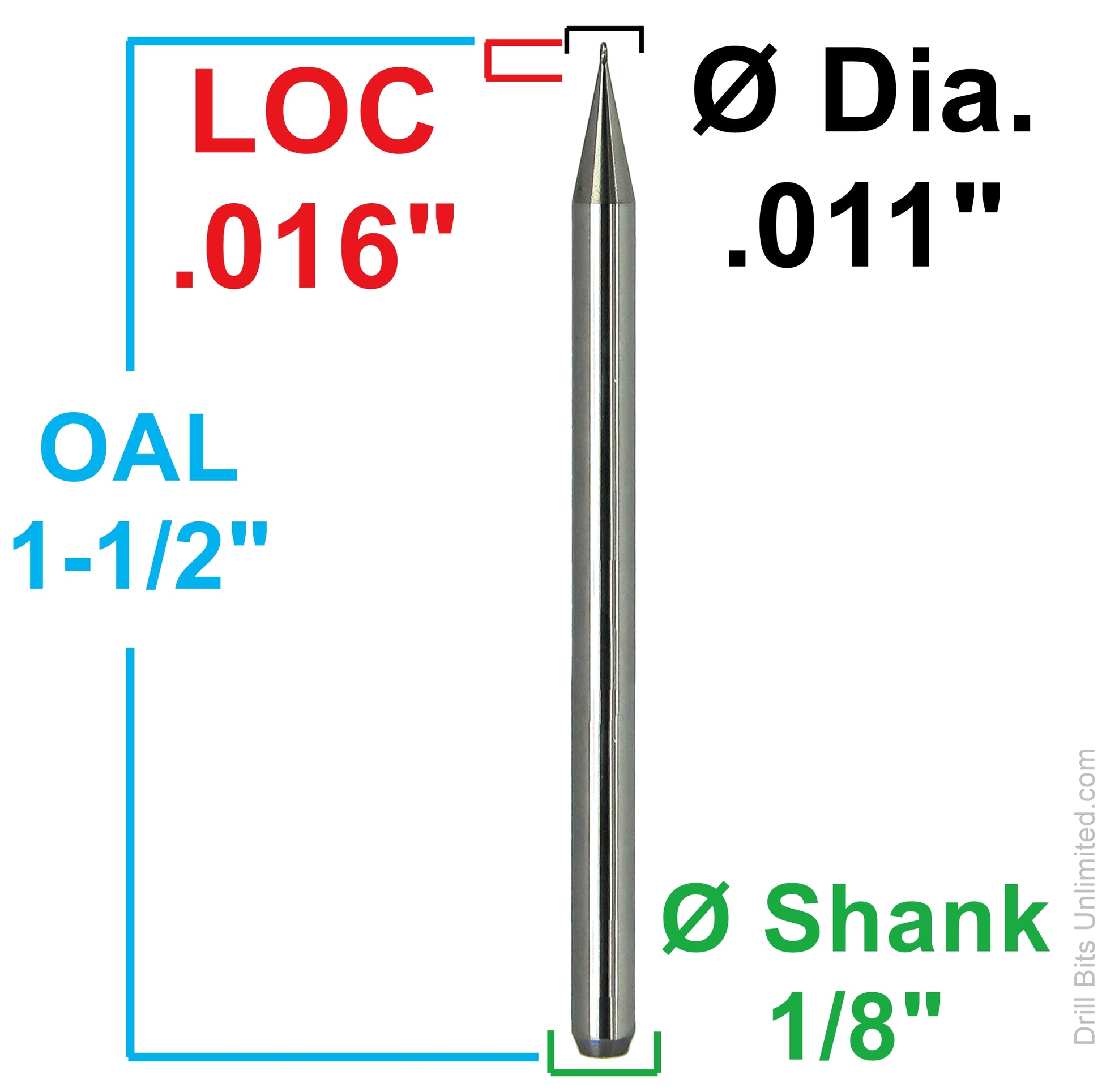

| Milling Diameter | 0.0110" |
| Length of Cut (LOC) | 0.0160" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non Ferrous (N) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | No |
