0.0156" (0.4mm) x .022" LOC AlTiN Coated 3-Flute Corner Radius Carbide End Mill, 1/8" Shank | K181

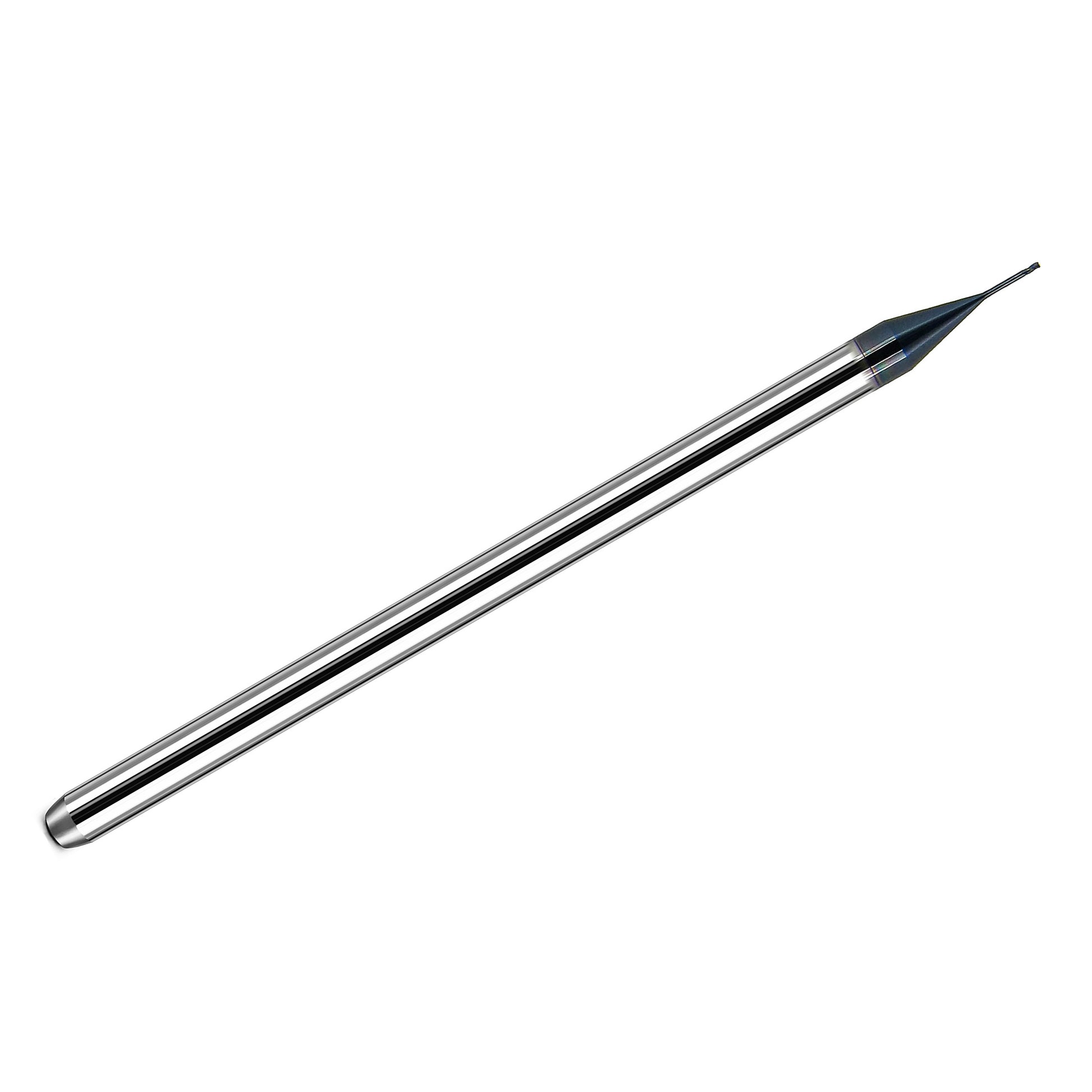

This 0.0156" (1/64") 3-flute corner radius carbide end mill from Kyocera is designed for precision micro machining and extended reach applications requiring strength and fine detail control.

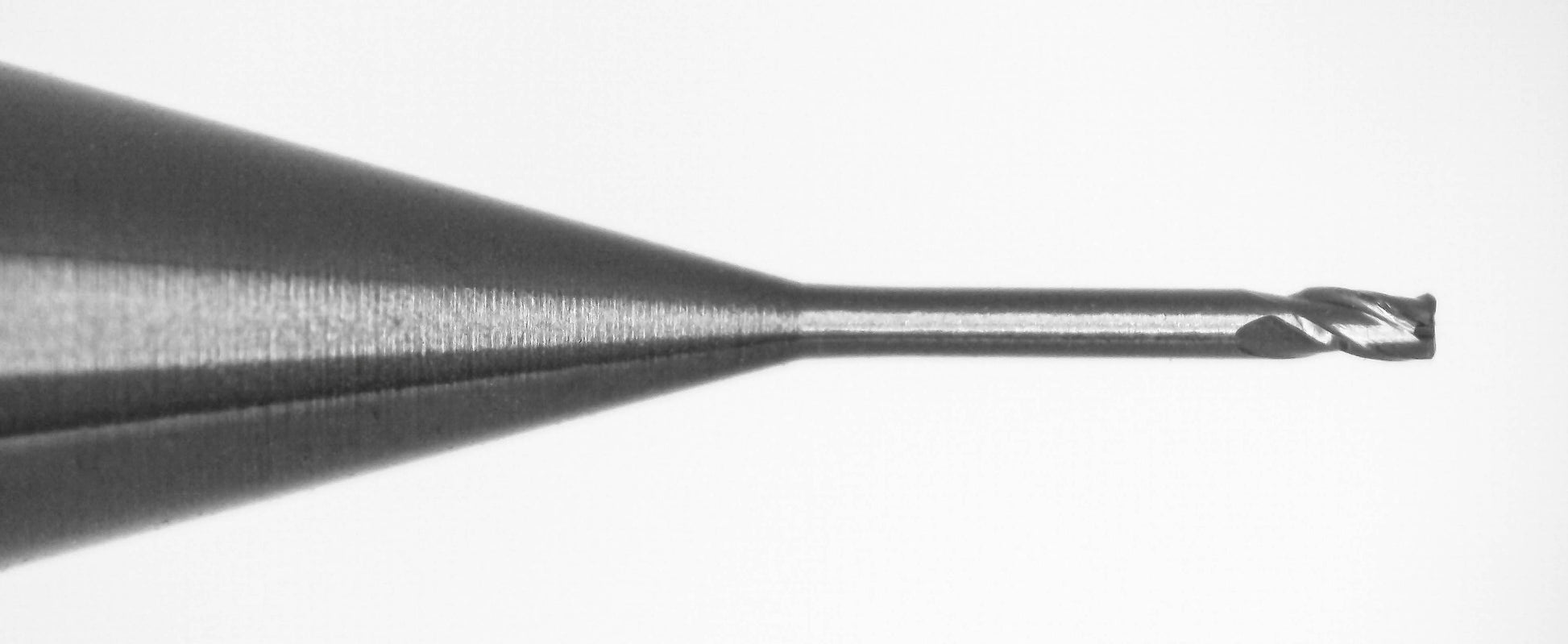

Featuring a 0.003" corner radius, this tool improves edge strength and reduces chipping compared to sharp corner tools, making it ideal for delicate machining operations.

The extended reach neck design provides access to deep or restricted areas while minimizing deflection, and the AlTiN coating enhances wear resistance and heat protection in demanding materials.

With a short 0.022" length of cut, this tool offers excellent stability for fine feature machining and precision finishing work.

Common applications include:

• Micro machining and fine detail work
• Mold and die finishing
• Precision slotting and profiling
• Hard material machining
• Delicate feature machining

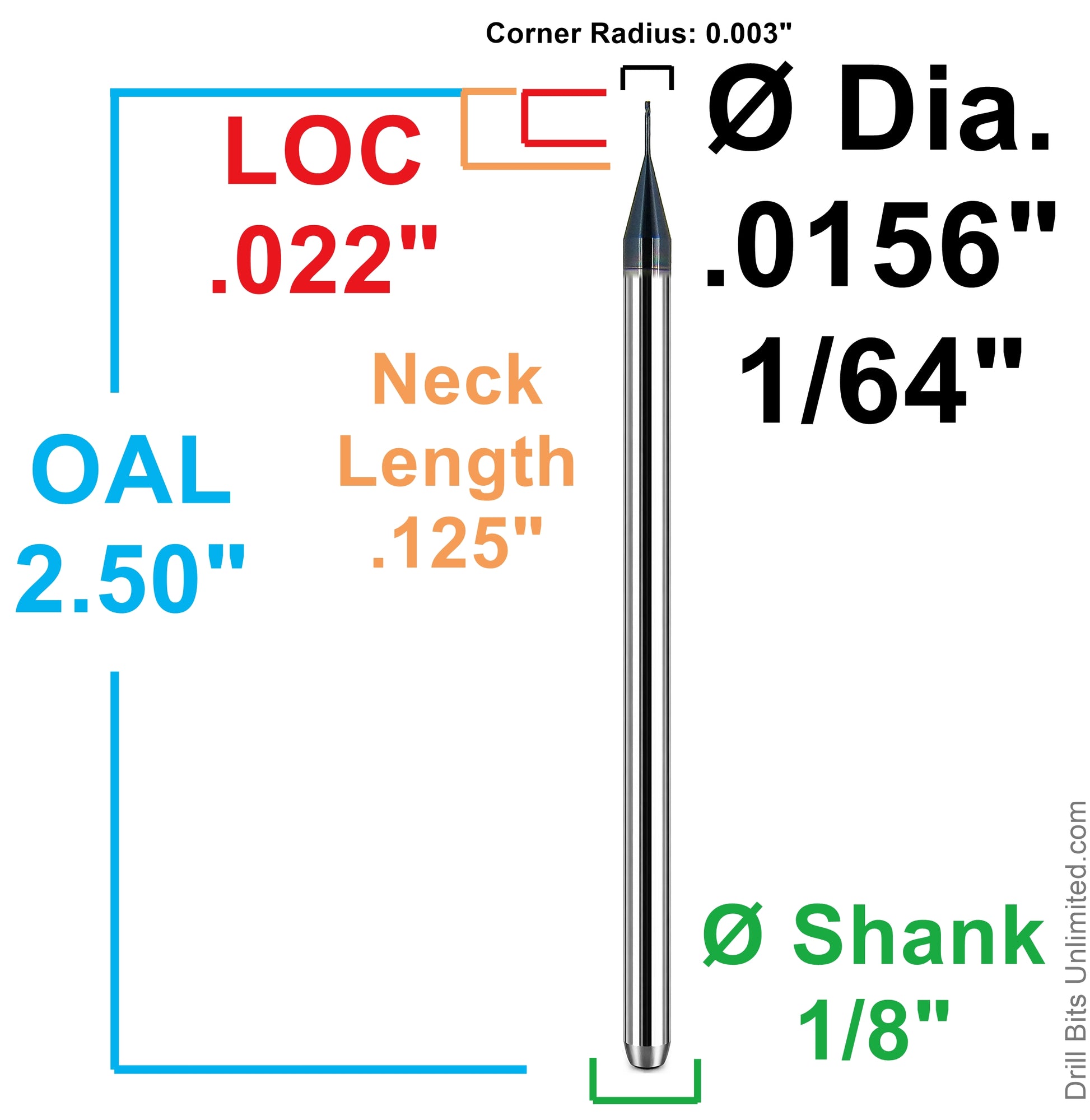

Specifications:

• Diameter: 0.0156" (1/64")
• Corner Radius: 0.003"
• Length of Cut: 0.022"
• Neck Length: 0.125"
• Overall Length: 2.50"
• Shank Diameter: 1/8"
• Flutes: 3
• Coating: AlTiN
• Material: Solid Micrograin Carbide
• Series: Kyocera 1743
• Manufacturer Part Number: 1743-0156L125CR
