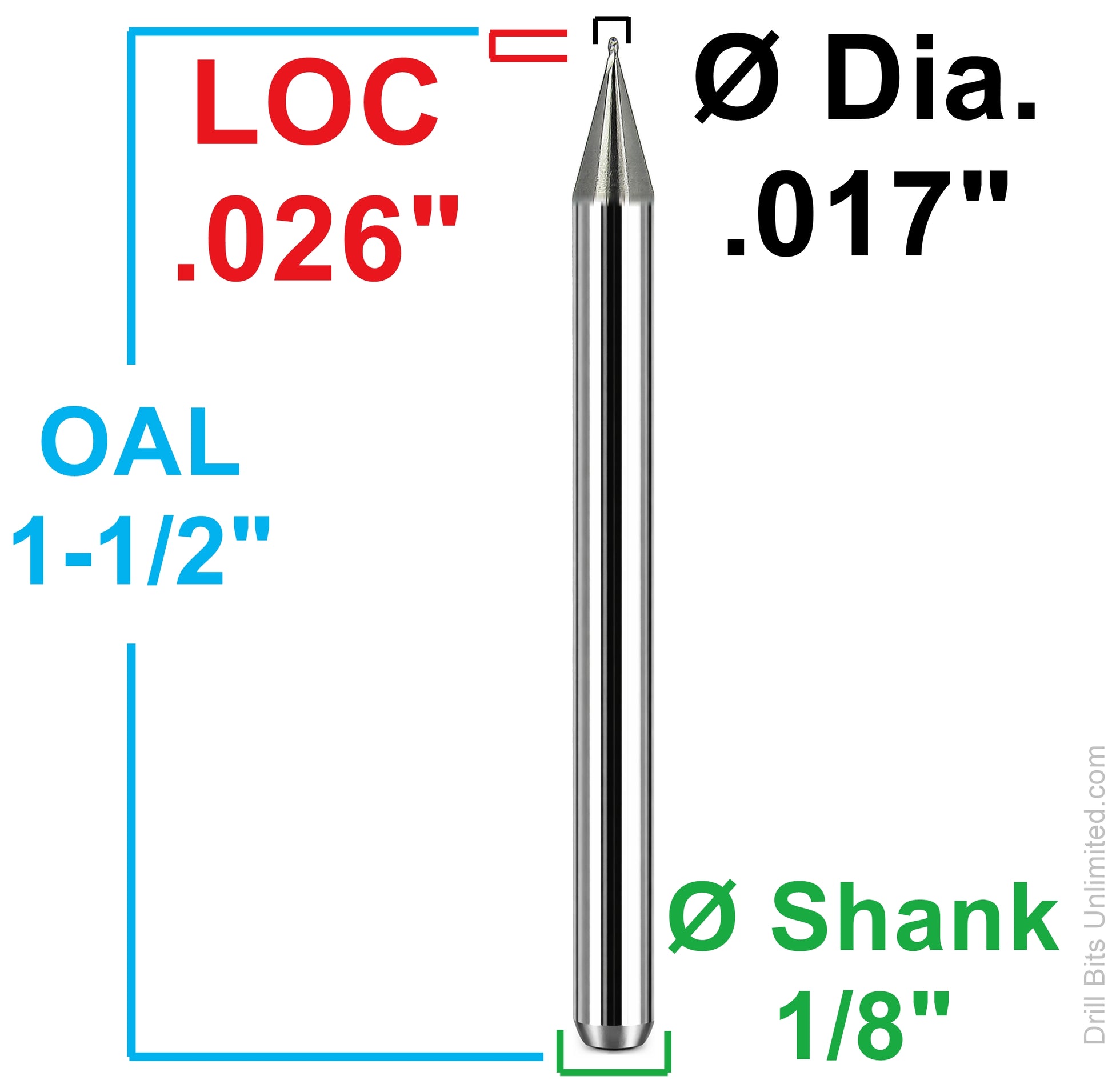

0.0170" x .026" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K047

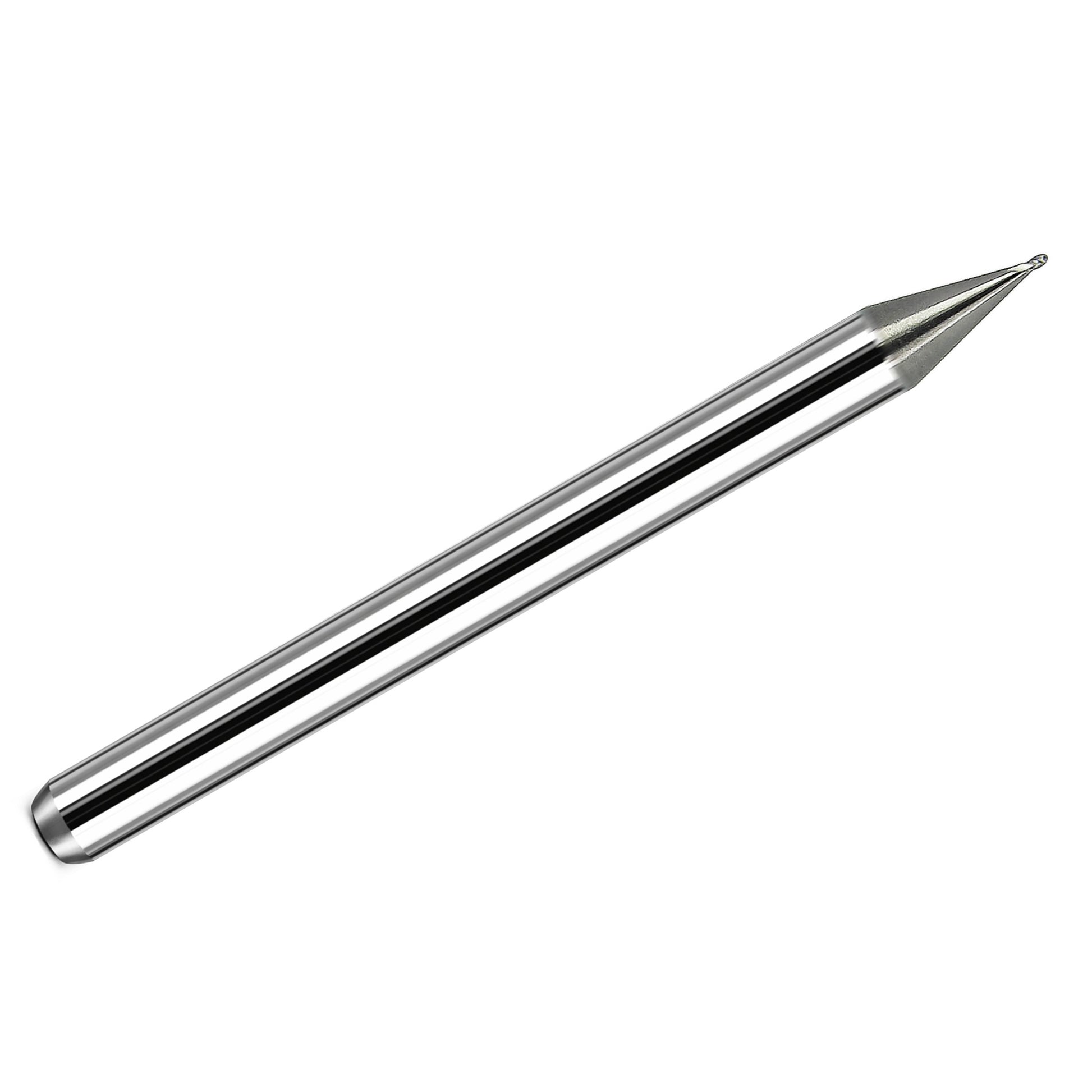

This 0.017" (0.43mm) 4-flute ball nose carbide end mill from Kyocera is precision ground from solid micro-grain carbide for extremely small diameter CNC milling applications requiring accuracy, rigidity, and fine detail capability.

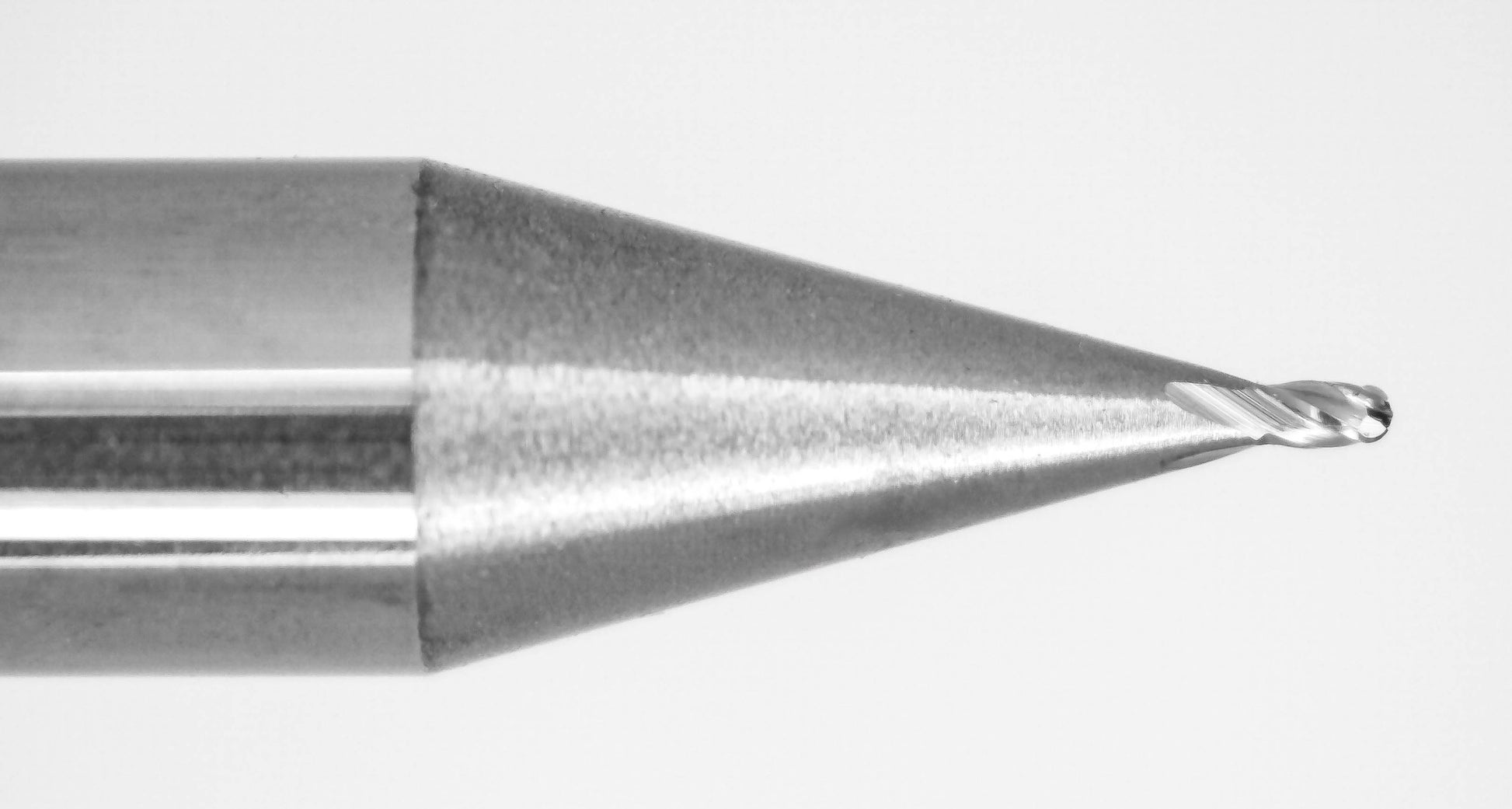

Ball nose end mills are commonly used for 3D contour milling, micro mold work, engraving, and complex surface finishing. The rounded cutting tip allows smooth transitions and fine surface finishes when machining detailed geometries.

This bright uncoated micro end mill is especially well suited for machining plastics, aluminum, copper alloys, and other non-ferrous materials where sharp cutting edges and clean chip evacuation are important.

Manufacturer: Kyocera

Manufacturer Part Number: 1835-0170.026

Country of Origin: United States

Typical Applications

• Micro 3D contour milling
• Precision engraving
• Mold and die detail work
• Machining plastics and aluminum
• High-precision CNC machining

Benefits

• Ball nose geometry for smooth 3D surface finishing
• 4 flutes provide added rigidity and improved surface quality
• Bright uncoated cutting edges are well suited for non-ferrous materials
• Center cutting design allows plunging and ramping
• Solid micro-grain carbide construction for precision and durability

Specifications
