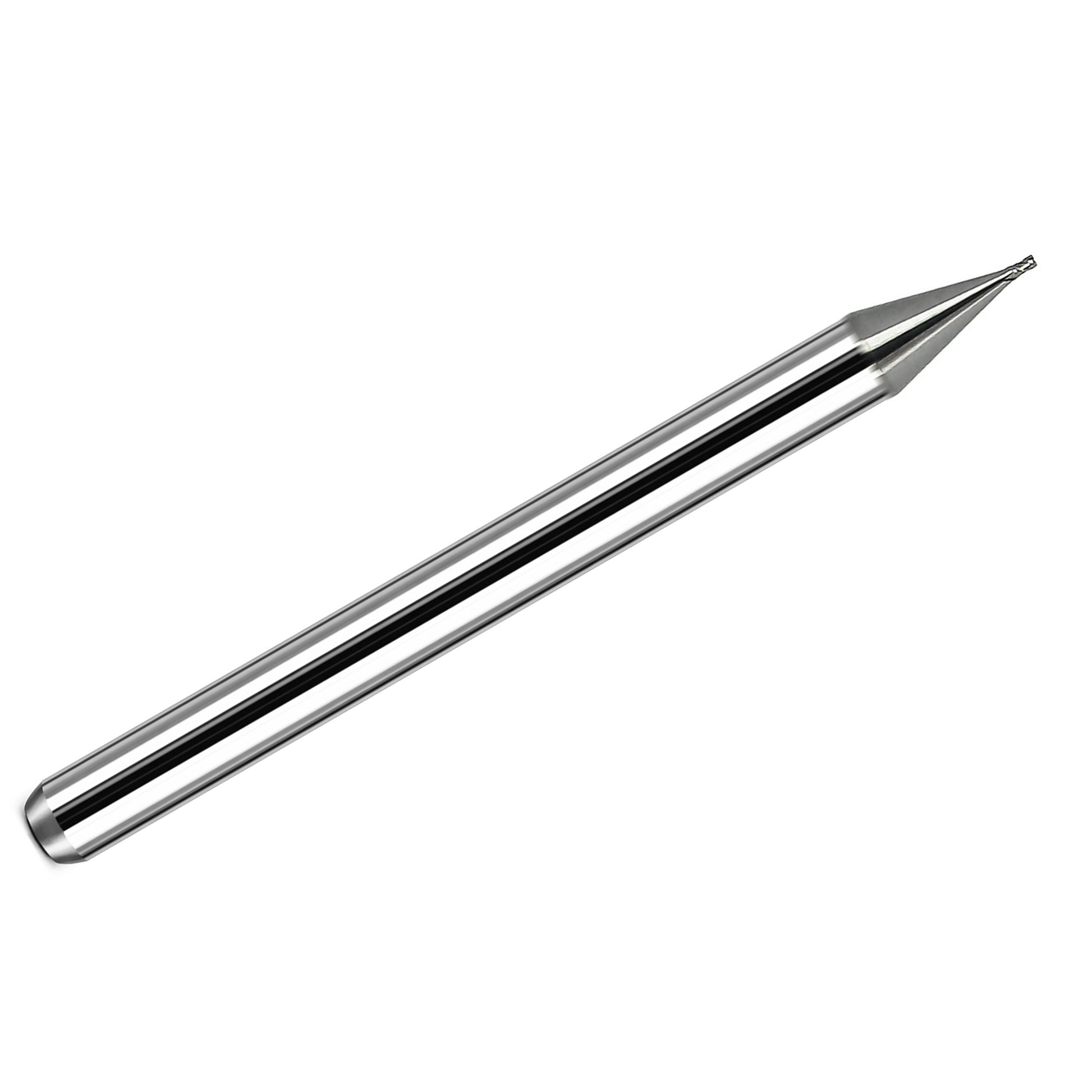

0.0180" (0.45mm) x .027" LOC 4-Flute Square End Carbide End Mill, 1/8" Shank | K190

This .0180" 4-flute stub-length square end carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features a bright uncoated finish for precision CNC milling applications where a sharp cutting edge and clean finish are important.

This tool is part of the Kyocera Series 1820 stub-length square end mill line for general purpose machining. The square end geometry is ideal for slotting, profiling, side milling, and shoulder work where a flat-bottom cut and sharp internal corners are needed.

Its stub-length design helps improve rigidity at this very small diameter, while the 4-flute geometry and 30° helix support smooth cutting and good finish quality. Because this tool has a bright (uncoated) finish, it is best suited where coating is not required and a sharp, precise edge is preferred.

This tool is manufactured by Kyocera and made in the USA.

Manufacturer: Kyocera

Manufacturer Part Number: 1820-0180.027

Country of Origin: United States

Typical Applications

• Slotting and side milling
• Profiling and shoulder milling
• General-purpose CNC machining
• Precision milling in very small features
• Fine-detail micro-machining

Benefits

• Square end geometry for flat-bottom cuts and sharp corners
• Stub-length design improves rigidity
• 4 flutes provide good finish quality
• Bright uncoated finish for sharp cutting performance
• Sub-micron carbide supports precision and edge retention

Specifications

👉 View End Mill Feed & Speed Calculator
