0.0190" x .029" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K198
0.0190" x .029" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K198
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

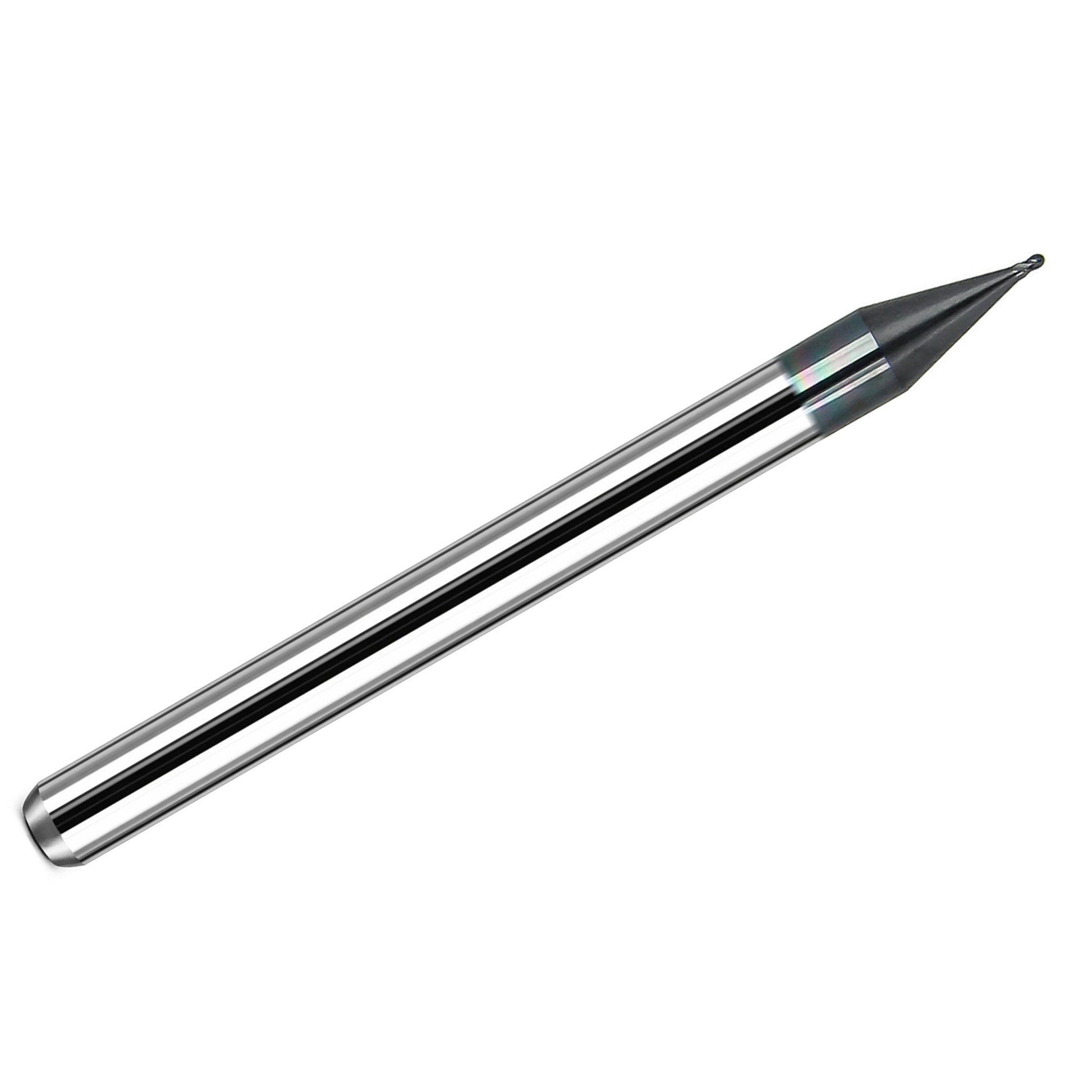

This .0190" 4-flute stub-length ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features an AlTiN coating for improved wear resistance and heat protection in precision CNC milling applications.
This tool is part of the Kyocera Series 1835 stub-length ball nose end mill line for profiling, contouring, and fine finishing work. The ball nose geometry is ideal for producing smooth blends on curved surfaces and for machining delicate details in small features.
Its stub-length design helps improve rigidity at this small diameter, while the 4-flute geometry and 30° helix support good finish quality and stable cutting performance. The AlTiN coating helps improve tool life in more demanding materials and higher-heat cutting conditions.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0190L029
Country of Origin: United States
Typical Applications
- 3D contour milling
- Profiling and finishing
- Fine-detail CNC machining
- Precision micro-machining
- Machining curved surfaces and small radiused features
Benefits
- Ball nose geometry for smooth contouring and profiling
- Stub-length design improves rigidity
- 4 flutes provide good finish quality
- AlTiN coating improves wear resistance and heat performance
- Sub-micron carbide supports precision and edge retention

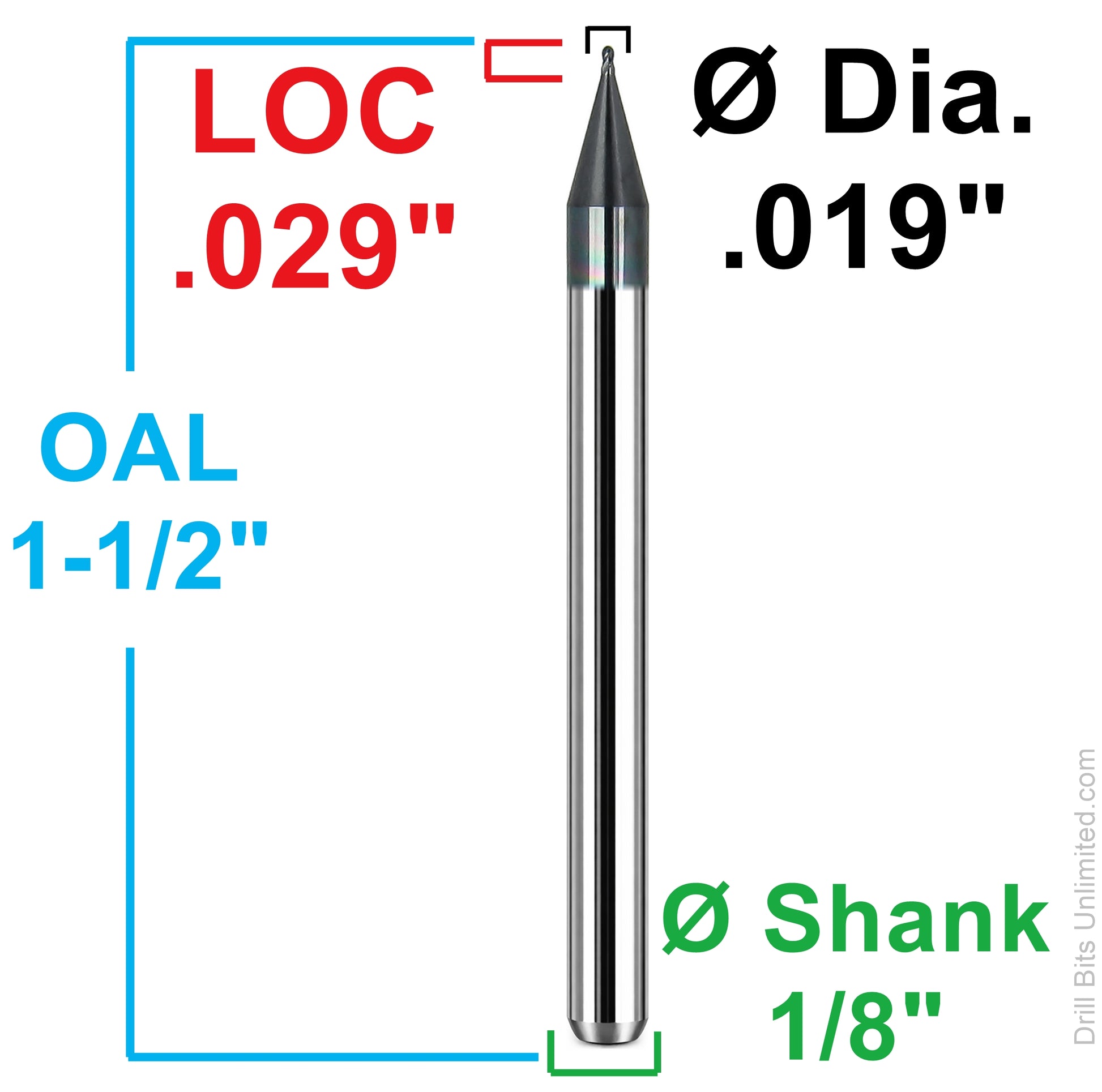

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| Series | 1835 |
| Milling Diameter | 0.0190" |
| Length of Cut (LOC) | 0.0290" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Sub-Micron Grain Solid Carbide |
| Finish | AlTiN Coated |
| Cutting Direction | Right Hand |
| Application | Profiling / Contouring / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened Material (H) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
