0.0220" x .033" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K101
0.0220" x .033" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K101
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

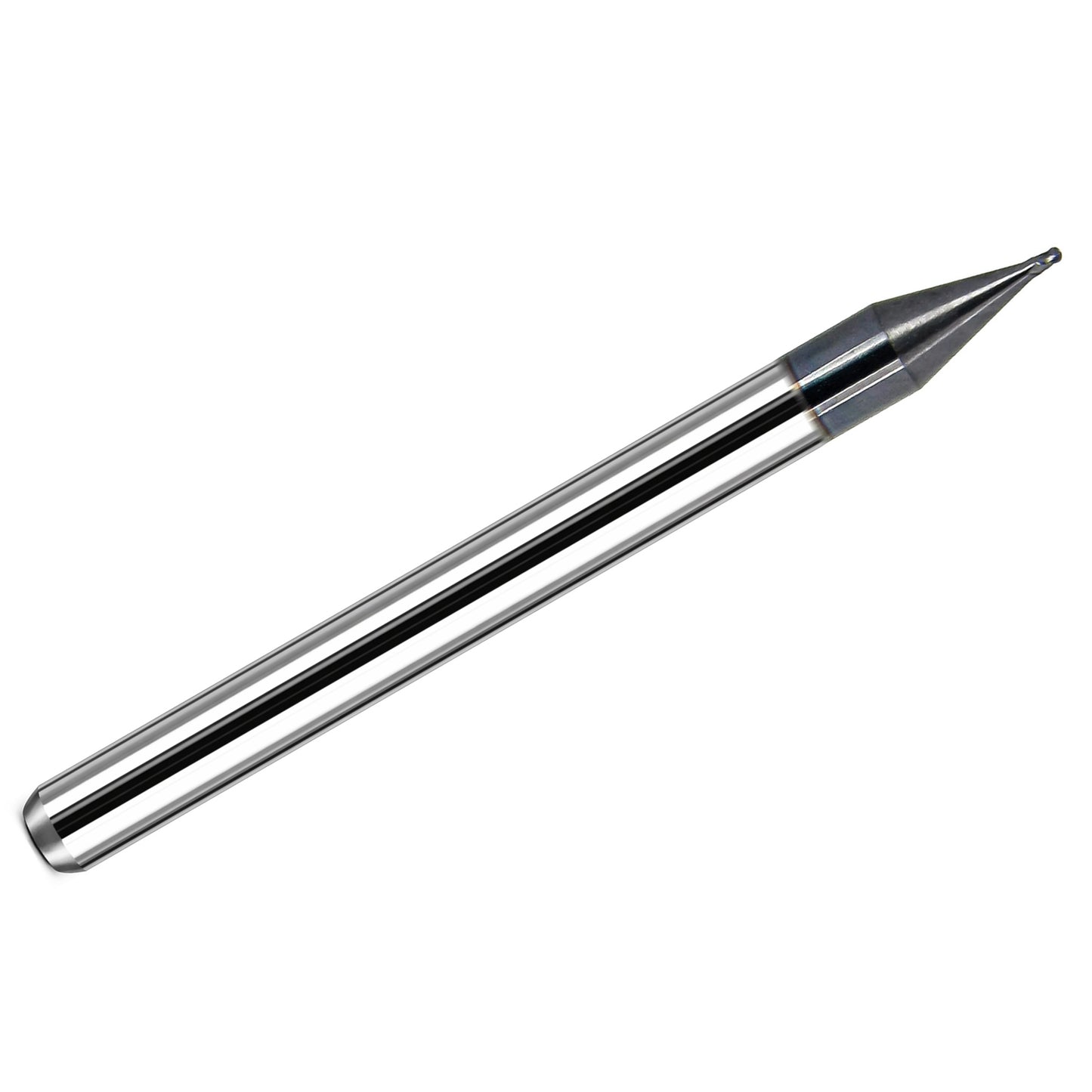

This 0.022" (0.56mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a high-performance AlTiN coating for demanding CNC machining applications.
Ball nose end mills are designed for 3D contouring, profiling, and precision finishing. The rounded cutting tip allows smooth machining of curved surfaces and fine detail features while producing excellent surface finish.
The AlTiN coating improves wear resistance and heat tolerance, making this tool well suited for steel, stainless steel, cast iron, hardened materials, and super alloys.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0220L033
Country of Origin: United States
Typical Applications
- 3D contour milling
- Mold and die finishing
- Precision CNC machining
- Tool steel machining
- Stainless steel machining
Benefits
- Ball nose geometry for smooth contouring and profiling
- AlTiN coating improves tool life in hard materials
- 4 flutes provide excellent rigidity and finish quality
- Micro-grain carbide for durability and wear resistance
- Center-cutting design allows plunge milling

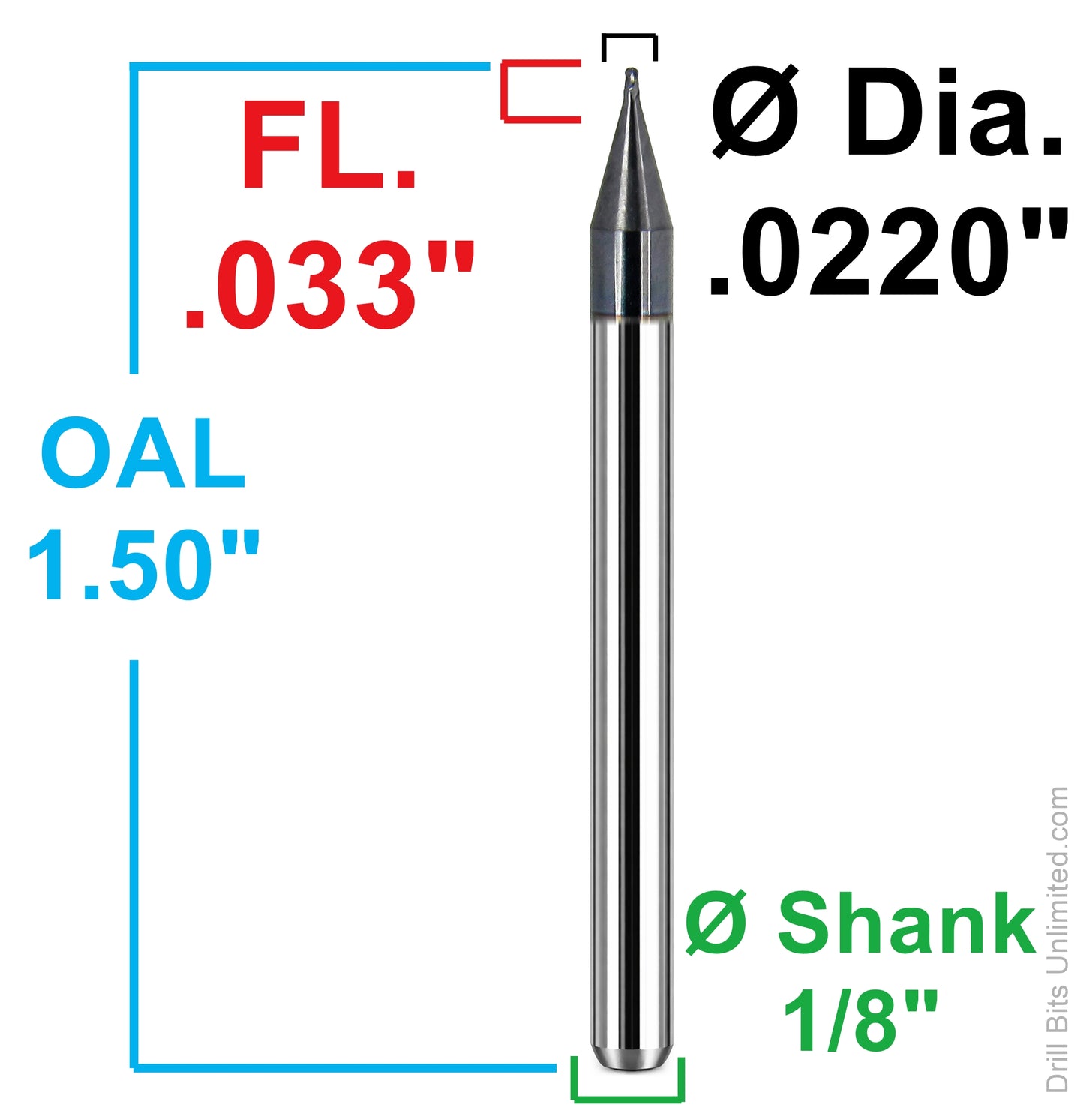

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| List Number | 1835 |
| Milling Diameter | 0.0220" |
| Length of Cut (FL) | 0.0330" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | AlTiN Coated |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
