0.0230" x .035" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K075
0.0230" x .035" LOC 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K075
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

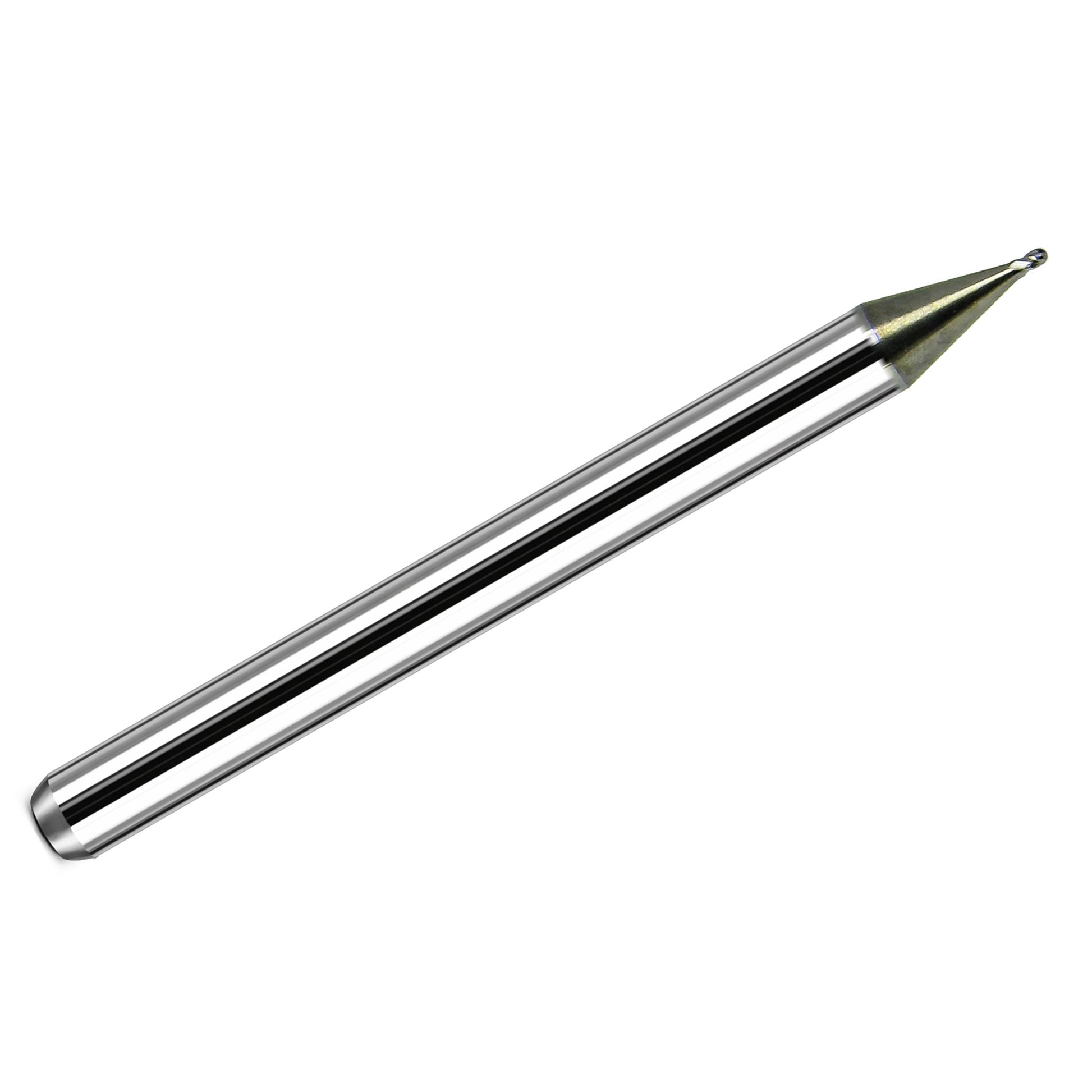

This 0.023" (0.58mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide to provide excellent strength, edge retention, and long tool life in precision CNC machining operations.
These professional cutting tools are manufactured in the United States and are designed for precision machining where consistent geometry, durability, and reliable tool life are required.

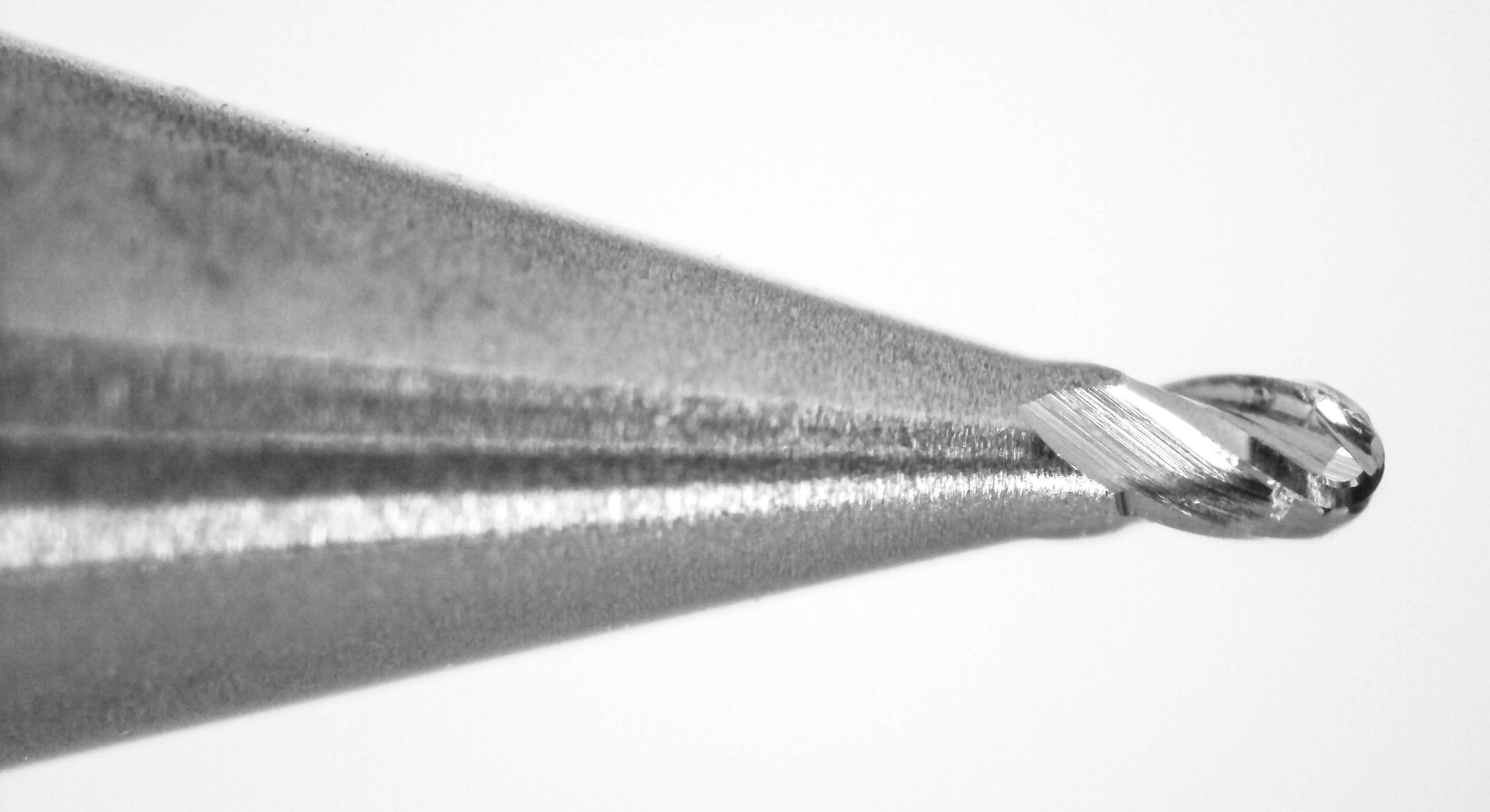

Ball nose end mills are designed for 3D contour machining, mold work, and precision finishing. The rounded cutting tip allows smooth machining of curved surfaces and intricate details while producing excellent surface finishes.
This tool features a bright (uncoated) finish which performs well in aluminum, plastics, and other non-ferrous materials. The 4-flute design provides increased rigidity and produces smooth finishes during finishing passes.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0230.035
Country of Origin: United States
Typical Applications
- 3D contour milling
- Precision micro-machining
- Mold and die finishing
- Aluminum machining
- Plastic and composite machining
Benefits
- Ball nose geometry for smooth 3D machining
- Micro-grain carbide for durability and edge retention
- 4 flutes increase rigidity and surface finish quality
- Center cutting design allows plunge milling
- Bright finish ideal for non-ferrous materials

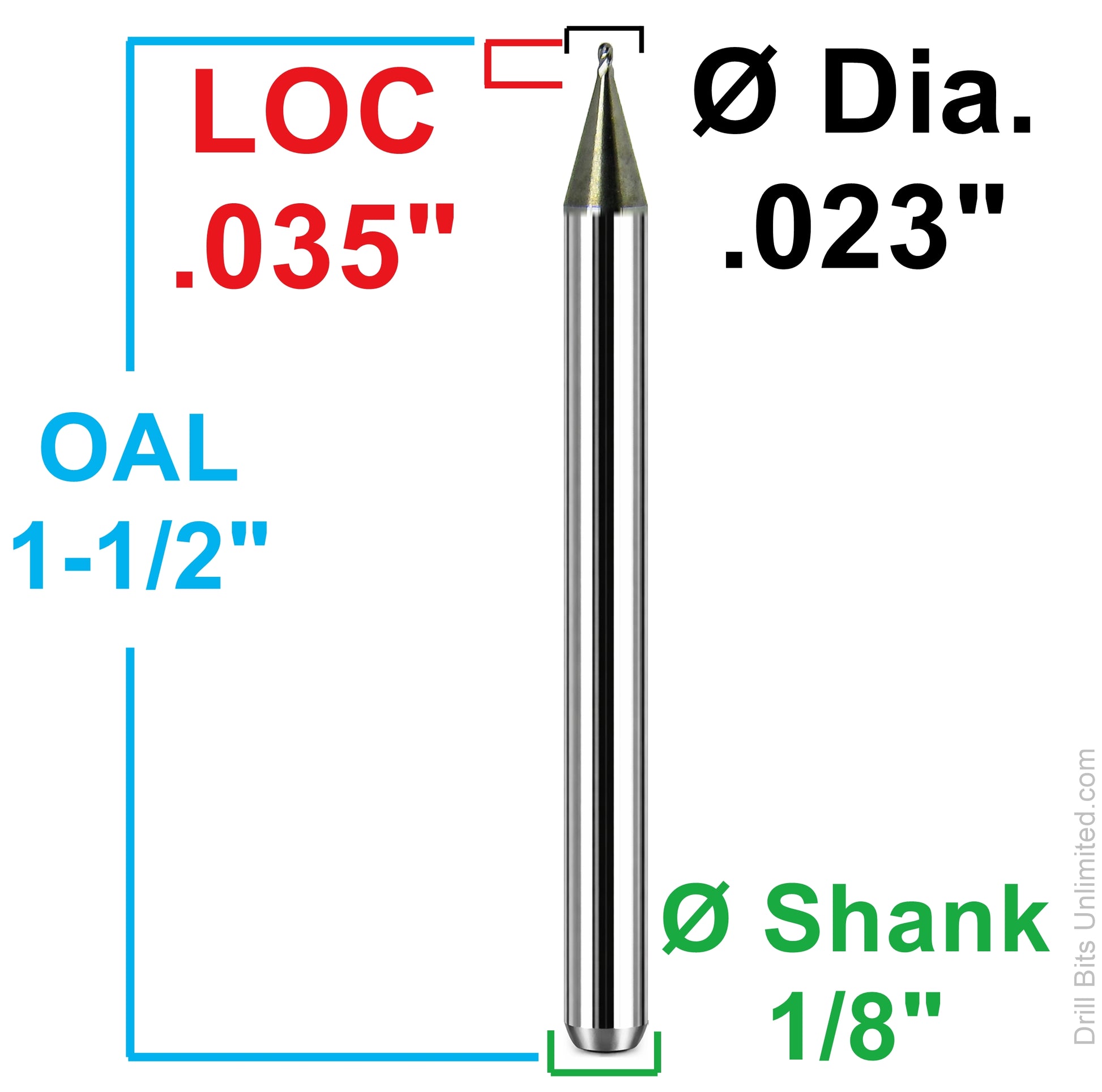

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| List Number | 1835 |
| Milling Diameter | 0.0230" |
| Length of Cut (LOC) | 0.0350" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | Bright (Uncoated) |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Non-Ferrous (N) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Country of Origin | United States |
