0.0240" (0.6mm) x .036" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K202
0.0240" (0.6mm) x .036" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K202
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

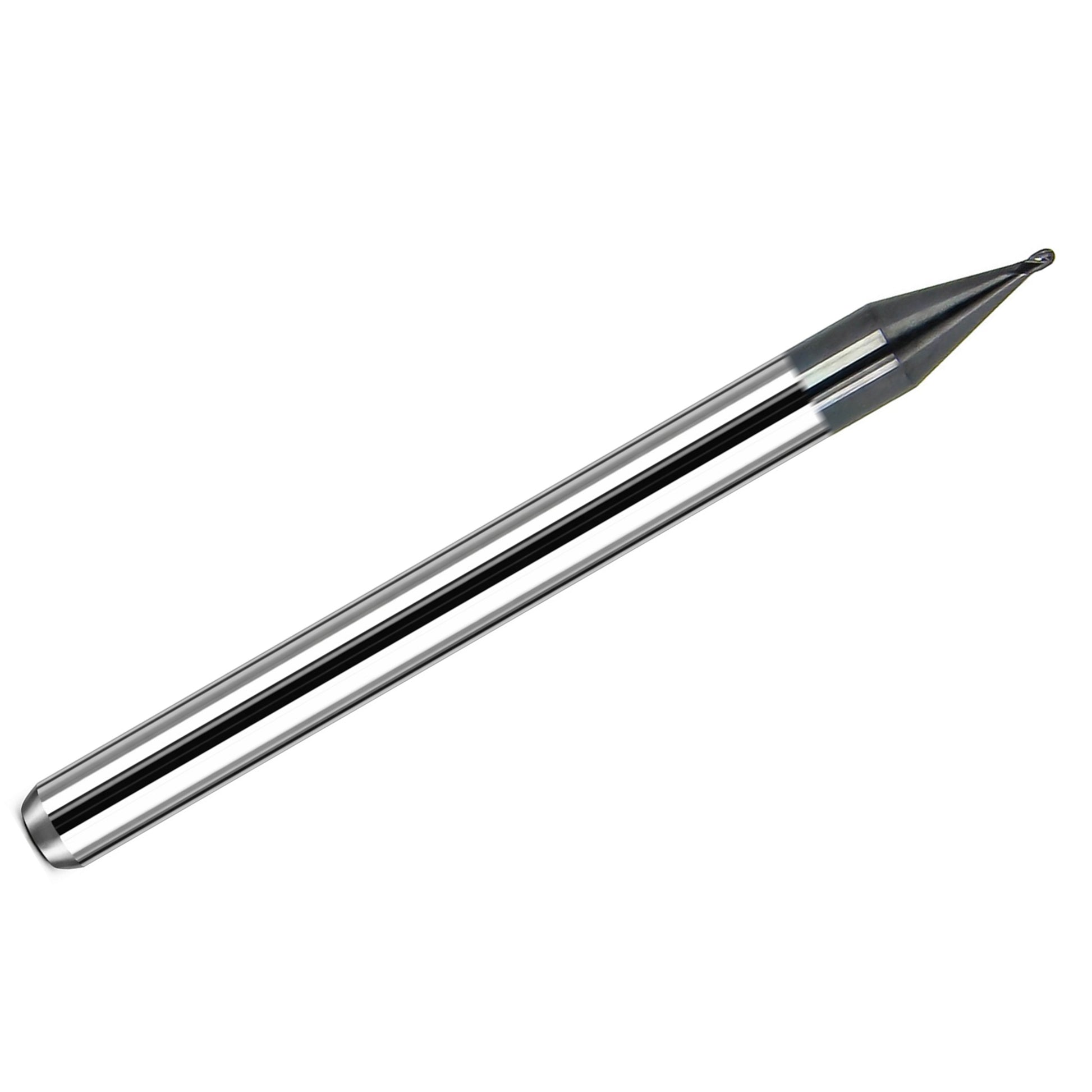

This .0240" 4-flute stub length ball nose carbide end mill is manufactured by Kyocera from sub-micron grain solid carbide and features an AlTiN coating for improved wear resistance and heat protection in precision CNC milling applications.

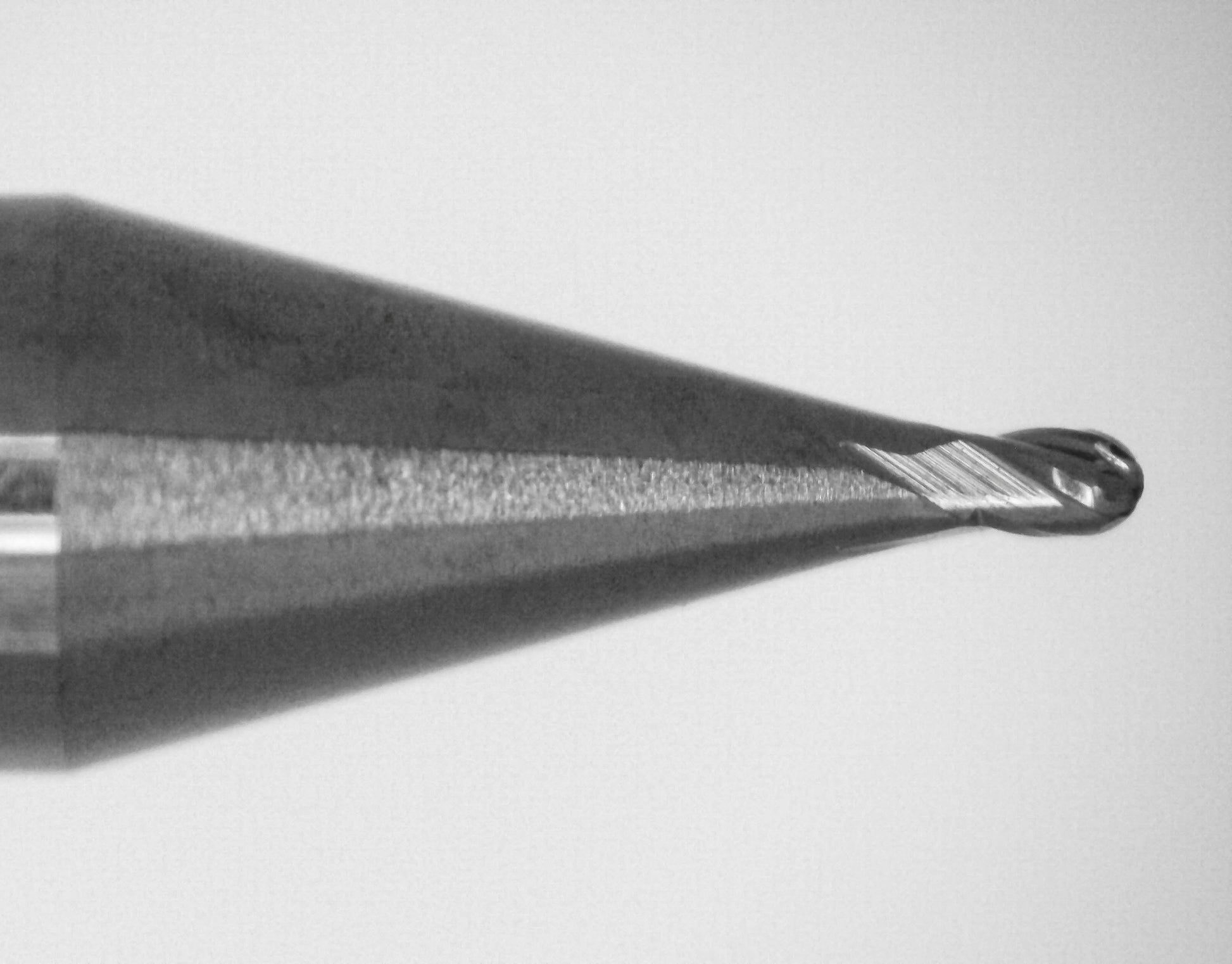

This tool is part of the Kyocera Series 1835 stub length ball nose end mill line for profiling, contouring, and fine finishing work. The ball nose geometry is well suited for machining curved surfaces, blended transitions, and small radiused details while helping produce a smooth surface finish.
Its stub length design provides added rigidity compared with longer reach tools, while the 4-flute geometry and 30° helix support stable cutting and good finish quality. The AlTiN coating helps increase wear resistance and tool life, especially in more demanding machining applications.
This tool is manufactured by Kyocera and made in the USA.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0240L036
Country of Origin: United States
Typical Applications
- 3D contour milling
- Profiling and finishing
- Fine-detail CNC machining
- Precision milling of small radiused features
- General purpose milling where a rigid short tool is preferred
Benefits
- Ball nose geometry for smooth contouring and profiling
- Stub length design improves rigidity
- 4 flutes provide finish quality and cutting stability
- AlTiN coating improves wear resistance and heat protection
- Sub-micron carbide supports precision and edge retention

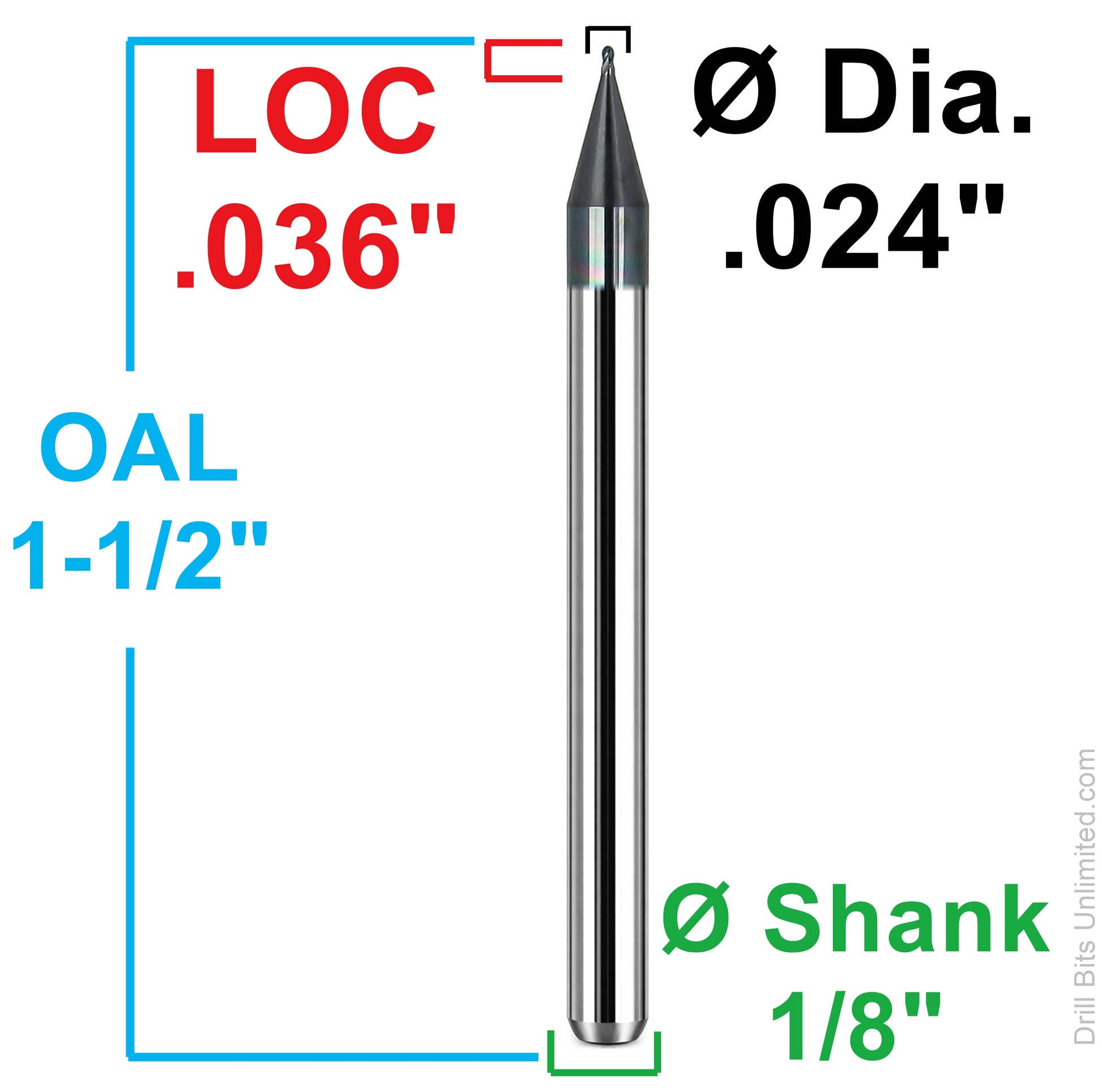

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| Series | 1835 |
| Milling Diameter | 0.0240" |
| Length of Cut (LOC) | 0.0360" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Sub-Micron Grain Solid Carbide |
| Finish | AlTiN Coated |
| Cutting Direction | Right Hand |
| Application | Profiling / Contouring / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Hardened Material (H) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
