0.0250" x .203" LOC 3-Flute Ball Nose Carbide End Mill, 1/8" Shank | K178
0.0250" x .203" LOC 3-Flute Ball Nose Carbide End Mill, 1/8" Shank | K178
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

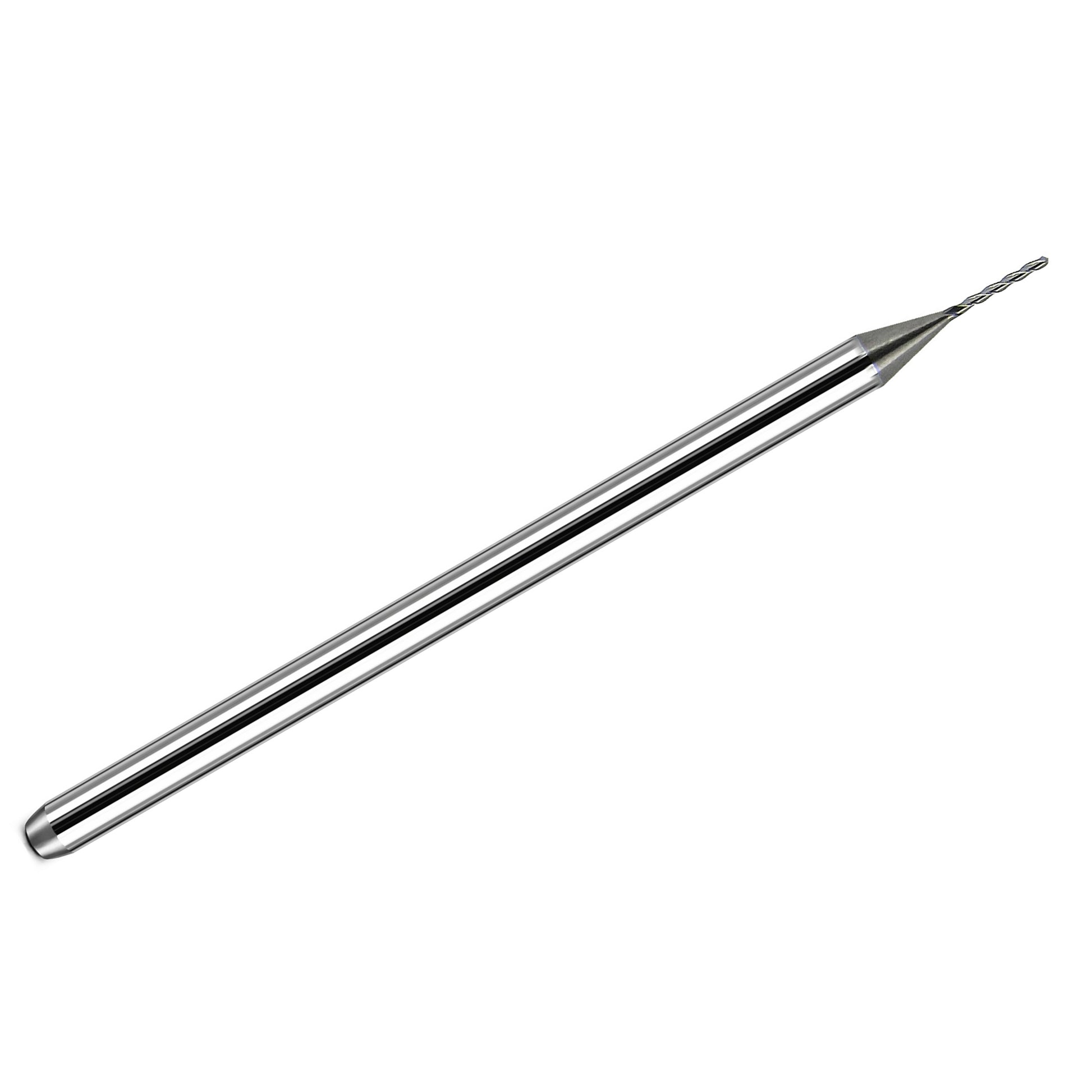

This .025" 3-flute ball nose carbide end mill from Kyocera is designed for precision micro milling and 3D contouring applications. Manufactured from micrograin solid carbide, it provides excellent rigidity, accuracy, and tool life in demanding CNC environments.

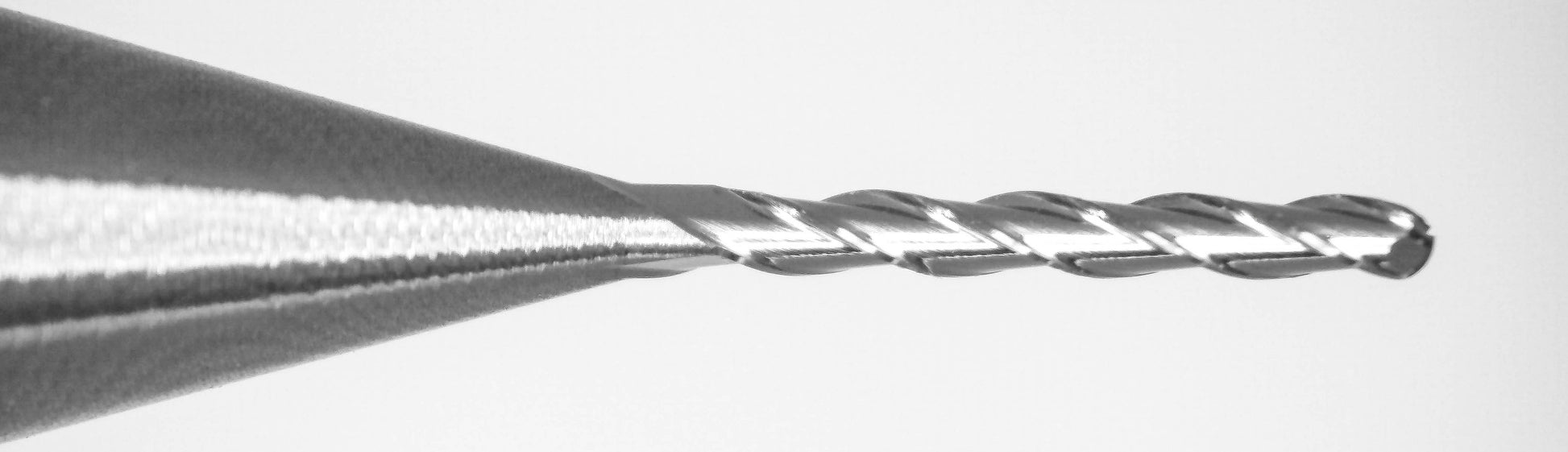

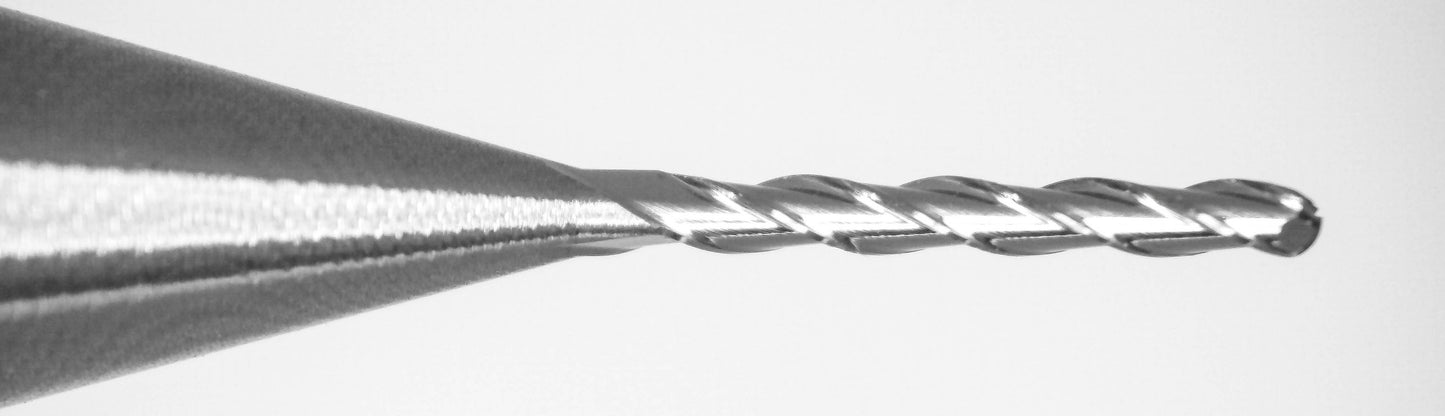

The ball nose geometry allows smooth surface finishes in contouring and engraving operations, while the 3-flute design offers an ideal balance of strength and chip evacuation compared to 2-flute micro tools.

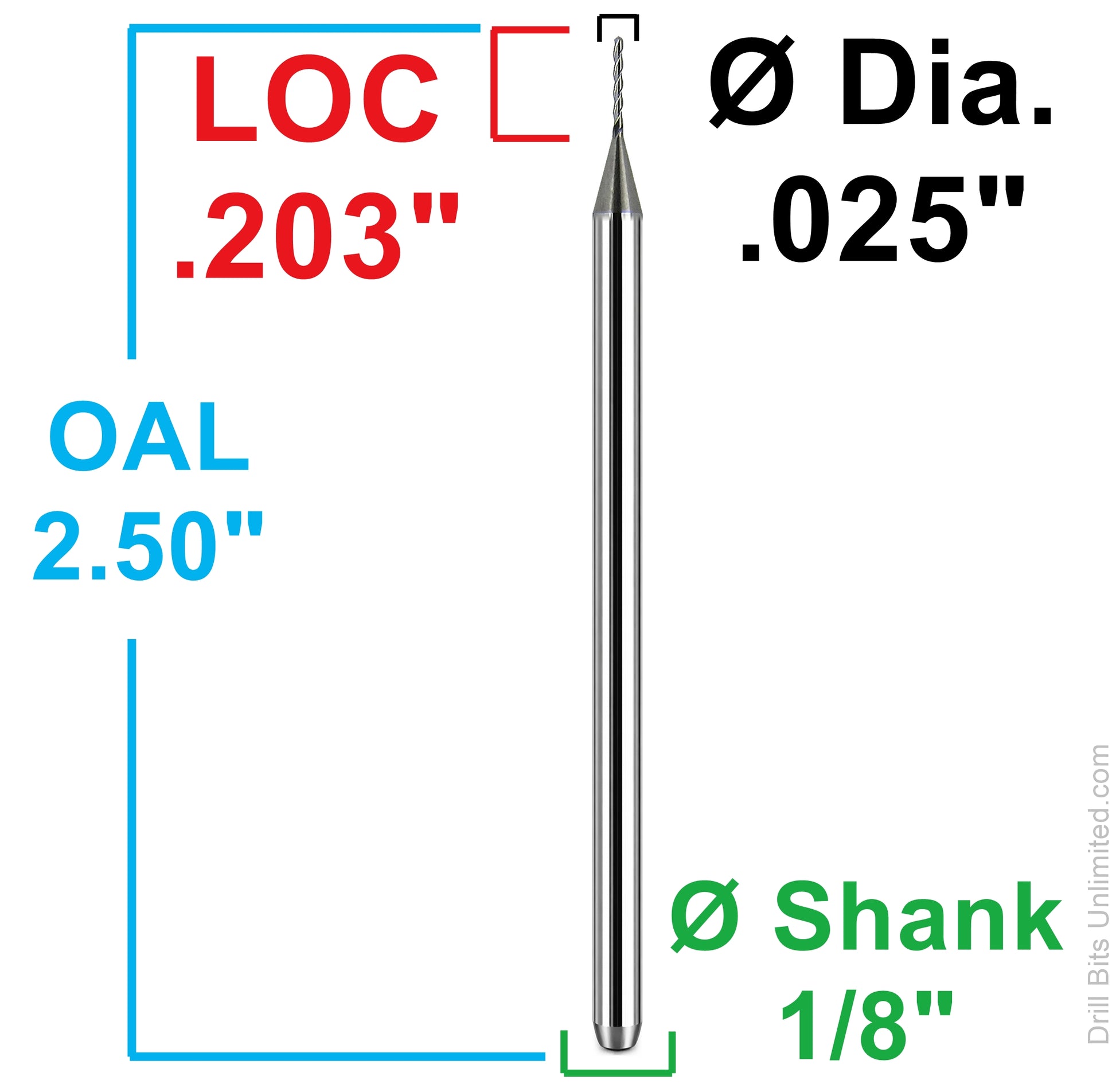

With a .025" cutting diameter, .203" length of cut, 2.50" overall length, and 1/8" shank, this tool is well suited for detailed work requiring reach and precision.
Manufactured in the United States, Kyocera tools are known for consistent quality, tight tolerances, and reliable performance in professional machining applications.
Common applications include:
- 3D contour milling
- Engraving and fine detail work
- Mold and die finishing
- Precision CNC machining
- Small feature machining in metals and plastics
Specifications:
- Diameter: .025" (0.635mm)
- Length of Cut: .203"
- Overall Length: 2.50"
- Shank Diameter: 1/8"
- Flutes: 3
- End Style: Ball Nose
- Material: Solid Micrograin Carbide
- Series: Kyocera 1725
- Country of Origin: United States
