0.0250" x .037" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K074
0.0250" x .037" LOC AlTiN Coated 4-Flute Ball Nose Carbide End Mill, 1/8" Shank | K074
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 7% off |
| 50 + | 10% off |
| 100 + | 15% off |
Couldn't load pickup availability

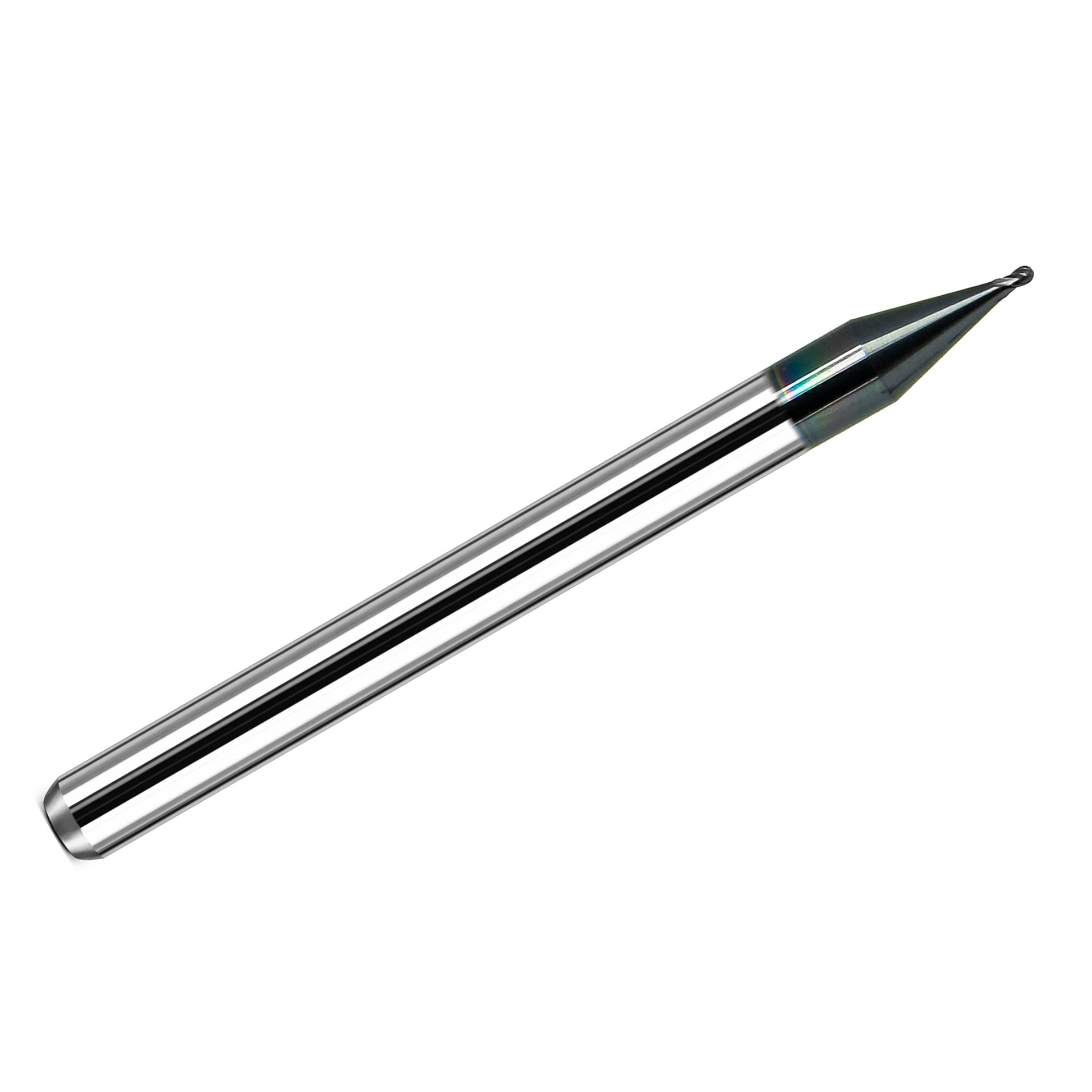

This 0.025" (0.64mm) 4-flute ball nose carbide end mill is manufactured by Kyocera from micro-grain solid carbide and features a durable AlTiN coating to improve wear resistance and heat protection during demanding CNC machining operations.
These professional cutting tools are manufactured in the United States and are designed for precision machining where consistent geometry, durability, and reliable tool life are required.

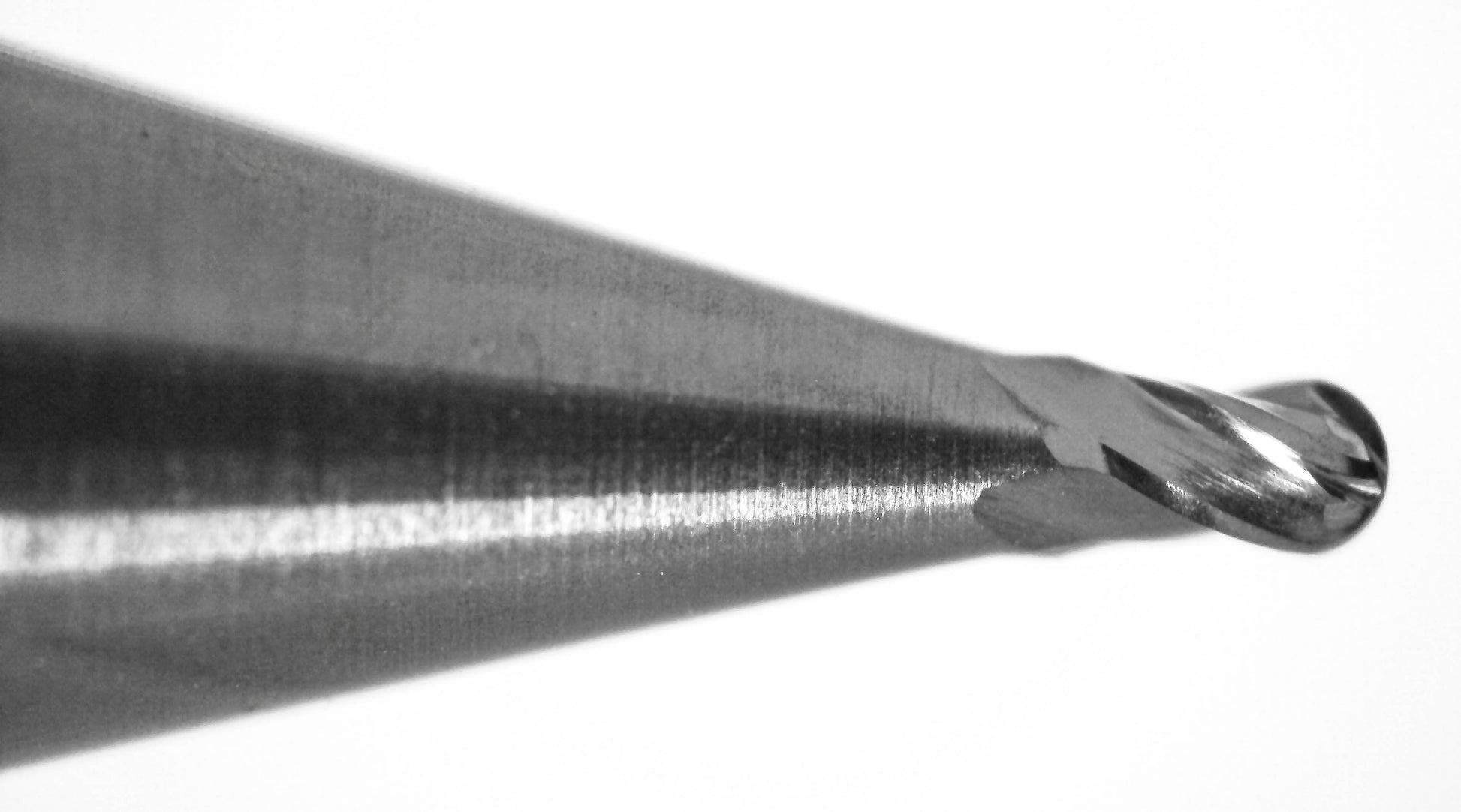

Ball nose end mills are designed for 3D contour machining, mold work, and precision finishing. The rounded cutting tip allows smooth machining of curved surfaces, complex profiles, and fine details while producing excellent surface finishes.
The AlTiN coating provides superior heat resistance compared to uncoated tools, making this end mill well suited for machining steels, stainless steels, hardened materials, and super alloys. The 4-flute design improves rigidity and produces smoother finishes during finishing passes.
Manufacturer: Kyocera
Manufacturer Part Number: 1835-0250L037
Country of Origin: United States
Typical Applications
- 3D contour milling
- Mold and die work
- Precision micro-machining
- Finishing hardened steels
- Machining stainless and alloy steels
Benefits
- Ball nose geometry for smooth 3D machining
- AlTiN coating improves heat resistance and tool life
- 4 flutes increase rigidity and surface finish quality
- Micro-grain carbide for durability and edge retention
- Center cutting design allows plunge milling

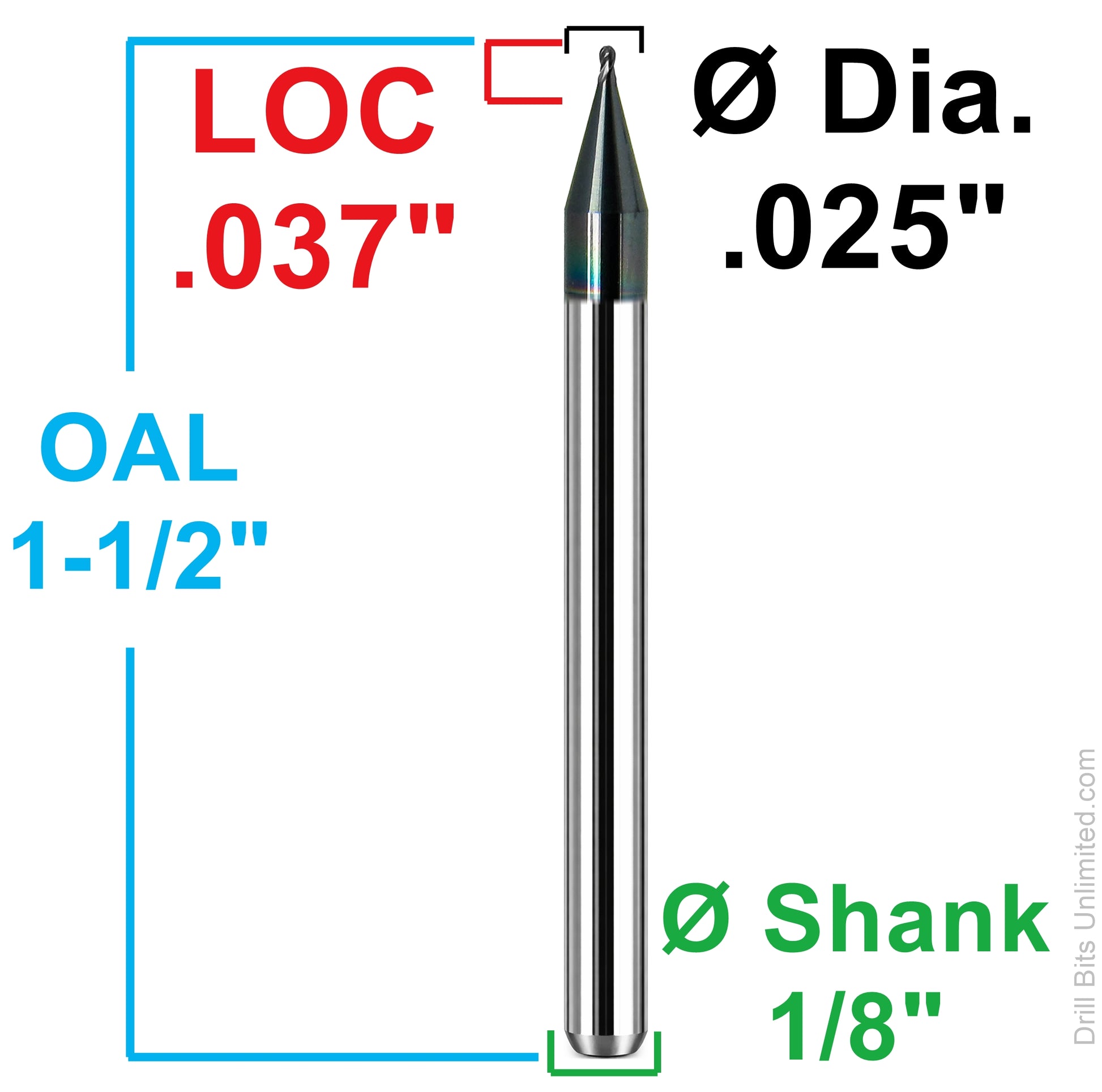

Specifications
| Manufacturer | Kyocera |
| Tool Type | Ball Nose End Mill |
| List Number | 1835 |
| Milling Diameter | 0.0250" |
| Length of Cut (LOC) | 0.0370" |
| Overall Length | 1.5000" |
| Shank Diameter | 0.1250" (1/8") |
| Number of Flutes | 4 |
| Helix Angle | 30° |
| Material | Micro Grain Solid Carbide |
| Finish | AlTiN |
| Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Application | Roughing / Finishing |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Non-Ferrous (N) Compatibility | No |
| Country of Origin | United States |
